Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

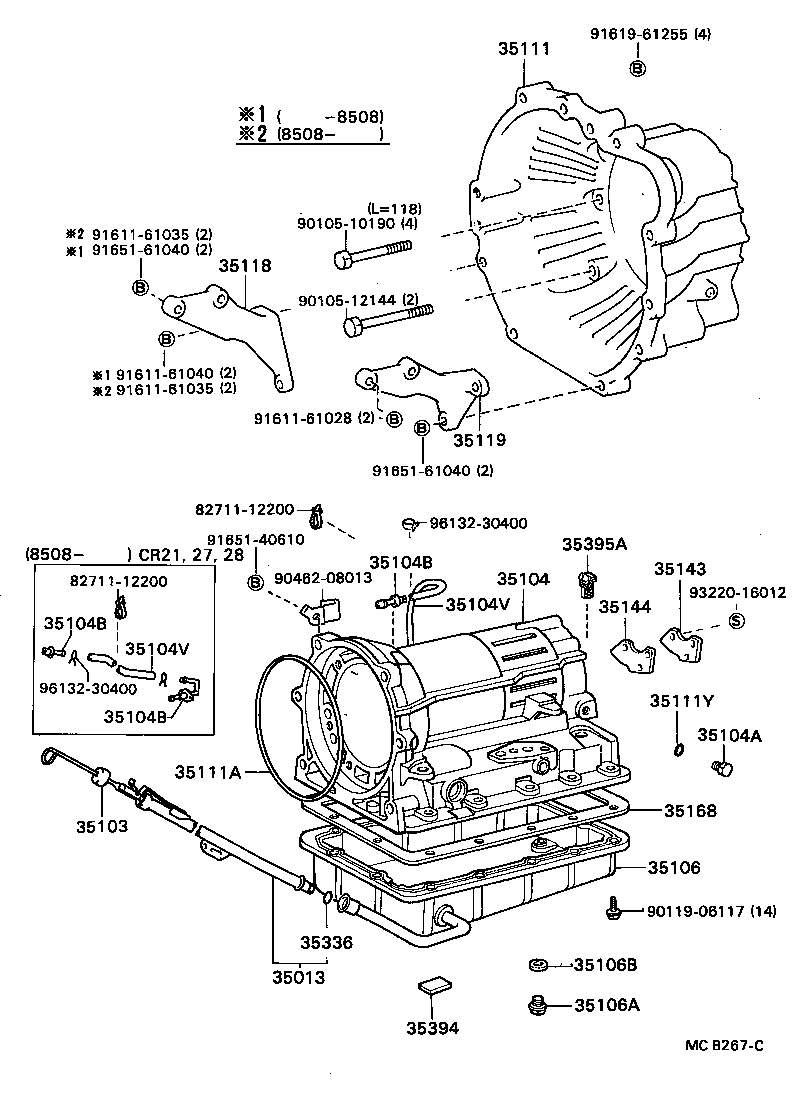

Exploded illustration MCB267C 9161961255 — not listed in this catalogue 35111 — HOUSING, AUTOMATIC TRANSMISSION (4 parts) 9010510190 — not listed in this catalogue 9161161035 — not listed in this catalogue 9165161040 — not listed in this catalogue 35118 — PLATE, STIFENER, RH (ATM) (4 parts) 9010512144 — not listed in this catalogue 9161161040 — not listed in this catalogue 9161161035 — not listed in this catalogue 9161161028 — not listed in this catalogue 35119 — PLATE, STIFENER, LH (ATM) (3 parts) 9165161040 — not listed in this catalogue 8271112200 — not listed in this catalogue 9613230400 — not listed in this catalogue 9165140610 — not listed in this catalogue 35395A — STRAINER, GOVERNOR OIL (2 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (4 parts) 35143 — COVER, TRANSMISSION CASE, REAR (1 parts) 9046208013 — not listed in this catalogue 35104 — CASE SUB-ASSY, AUTOMATIC TRANSMISSION (8 parts) 8271112200 — not listed in this catalogue 9322016012 — not listed in this catalogue 35104V — HOSE (FOR BREATHER PLUG) (4 parts) 35144 — GASKET, TRANSMISSION CASE REAR COVER (1 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (4 parts) 35104V — HOSE (FOR BREATHER PLUG) (4 parts) 9613230400 — not listed in this catalogue 35111Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (4 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (1 parts) 35111A — RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) (2 parts) 35168 — GASKET, AUTOMATIC TRANSMISSION OIL PAN (1 parts) 35103 — GAGE SUB-ASSY, TRANSMISSION OIL LEVEL (5 parts) 35106 — PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL (4 parts) 9011906117 — not listed in this catalogue 35336 — RING, O (FOR TRANSMISSION OIL FILLER TUBE) (1 parts) 35106B — GASKET, DRAIN PLUG (ATM) (1 parts) 35013 — TUBE SUB-ASSY, TRANSMISSION OIL FILLER (4 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (2 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (1 parts)
MCB267C · 23 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
35013 — Tube Sub-assy, Transmission Oil Filler
35013-28020 Tube Sub-assy, Transmission Oil Filler
1982-11 → 1988-08 ended
YR2# 4FC ¥4,370
35013-28030 Tube Sub-assy, Transmission Oil Filler
1984-08 → 1988-08 ended
CR21,27,28 4FC ¥2,250
35013-28040 Tube Sub-assy, Transmission Oil Filler
1985-10 → 1988-08 ended
YR3# 4FC ¥4,500
35013-28050 Tube Sub-assy, Transmission Oil Filler
1985-10 → 1988-08 ended
CR30 4FC ¥4,410
35103 — Gage Sub-assy, Transmission Oil Level
35103-26011 Gage Sub-assy, Transmission Oil Level
1982-11 → 1983-08 ended
YR2# 4FC ¥1,430
35103-26012 Gage Sub-assy, Transmission Oil Level
1983-08 → 1988-08 ended
YR2# 4FC ¥1,430
35103-28010 Gage Sub-assy, Transmission Oil Level
1985-10 → 1988-08 ended
YR3# 4FC ¥1,430
35103-28020 Gage Sub-assy, Transmission Oil Level
1985-10 → 1988-08 ended
CR30 4FC ¥1,430
35103-30101 Gage Sub-assy, Transmission Oil Level
1984-08 → 1988-08 ended
CR21,27,28 4FC ¥1,440
35104 — Case Sub-assy, Automatic Transmission
35104-26011 Case Sub-assy, Automatic Transmission
1982-11 → 1984-08 ended
YR2# 4FC ¥72,600
35104-26020 Case Sub-assy, Automatic Transmission
1984-08 → 1984-10 ended
CR21,27,YR2# 4FC ¥80,000
35104-26020 Case Sub-assy, Automatic Transmission
1984-10 → 1985-08 ended
CR21,27 4FC ¥80,000
35104-26021 Case Sub-assy, Automatic Transmission
1985-08 → 1986-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥72,800
35104-26021 Case Sub-assy, Automatic Transmission
1986-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥72,800
35104-26030 Case Sub-assy, Automatic Transmission
1985-10 → 1986-08 ended
CR30,YR30 4FC ¥72,600
35104-26030 Case Sub-assy, Automatic Transmission
1986-08 → 1988-08 ended
CR30 4FC ¥72,600
35104-26030 Case Sub-assy, Automatic Transmission
1984-10 → 1985-08 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥72,600
35104A — Plug, Automatic Transmission Case
90341-08001 Plug, Automatic Transmission Case
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥120
35104B — Plug, Breather, NO.1 (ATM)
90930-03084 Plug, Breather, NO.1 (ATM)
1982-11 → 1985-08 ended
CR21,27,YR2# 4FC ¥450
90930-03098 note Plug, Breather, NO.1 (ATM)
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥740
90930-03098 Plug, Breather, NO.1 (ATM)
1985-10 → 1988-08 ended
CR30,YR3# 4FC ¥740
90930-03099 note Plug, Breather, NO.1 (ATM)
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥610
35104V — Hose (FOR BREATHER PLUG)
90445-10008 Hose (FOR BREATHER PLUG)
1982-11 → 1985-08 ended
CR21,27,YR2# 4FC ¥520
90445-11076 Hose (FOR BREATHER PLUG)
1985-10 → 1986-02 ended
CR30,YR30 4FC ¥810
90445-11084 Hose (FOR BREATHER PLUG)
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥760
90447-11008 Hose (FOR BREATHER PLUG)
1986-02 → 1988-08 ended
CR30,YR3# 4FC ¥1,140
35106 — Pan Sub-assy, Automatic Transmission Oil
35106-30050 Pan Sub-assy, Automatic Transmission Oil
1984-08 → 1988-08 ended
CR21,27,28 4FC ¥7,500
35106-30060 Pan Sub-assy, Automatic Transmission Oil
1982-11 → 1988-08 ended
YR2# 4FC ¥7,500
35107-27010 Pan Sub-assy, Automatic Transmission Oil
1985-10 → 1988-08 ended
CR30 4FC ¥9,400
35107-28010 Pan Sub-assy, Automatic Transmission Oil
1985-10 → 1988-08 ended
YR3# 4FC ¥14,600
35106A — Plug Sub-assy, Drain (ATM)
90341-10003 Plug Sub-assy, Drain (ATM)
1982-11 → 1983-07 ended
YR2# 4FC ¥260
90341-10006 Plug Sub-assy, Drain (ATM)
1983-07 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥210
35106B — Gasket, Drain Plug (ATM)
35178-30010 Gasket, Drain Plug (ATM)
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥190
35111 — Housing, Automatic Transmission
35111-20091 Housing, Automatic Transmission
1984-08 → 1988-05 ended
CR21,27,28,30 4FC ¥47,500
35111-27030 Housing, Automatic Transmission
1988-05 → 1988-08 ended
CR21,27,28,30 4FC ¥47,500
35111-28010 Housing, Automatic Transmission
1982-11 → 1985-08 ended
YR2# 4FC ¥51,900
35111-28011 Housing, Automatic Transmission
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2#,3# (HRF,SRF) +2 ¥51,200
35111A — Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
90301-99006 Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
1982-11 → 1987-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥1,200
90301-99054 Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
1987-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥800
35111Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥170
35118 — Plate, Stifener, RH (ATM)
33118-14031 Plate, Stifener, RH (ATM)
1984-08 → 1985-08 ended
CR21,27 4FC ¥3,640
33118-14032 Plate, Stifener, RH (ATM)
1985-08 → 1986-07 ended
CR21,27,28,30 4FC ¥3,150
33118-14033 Plate, Stifener, RH (ATM)
1986-07 → 1988-08 ended
CR21,27,28,30 4FC ¥3,210
33118-28010 Plate, Stifener, RH (ATM)
1982-11 → 1988-08 ended
YR2#,3# 4FC ¥3,180
35119 — Plate, Stifener, LH (ATM)
33119-14050 Plate, Stifener, LH (ATM)
1984-08 → 1988-08 ended
CR21,27,28,30 4FC ¥3,270
33119-28010 Plate, Stifener, LH (ATM)
1982-11 → 1988-08 ended
YR20,21,28,3# 4FC ¥1,530
33119-28010 note Plate, Stifener, LH (ATM)
1982-11 → 1988-08 ended
YR26 4FC ¥1,530
35143 — Cover, Transmission Case, Rear
35143-22010 Cover, Transmission Case, Rear
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥520
35144 — Gasket, Transmission Case Rear Cover
35144-22010 Gasket, Transmission Case Rear Cover
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥330
35168 — Gasket, Automatic Transmission Oil Pan
35168-22011 Gasket, Automatic Transmission Oil Pan
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥520
35336 — Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥140
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥360
35395A — Strainer, Governor Oil
35395-40010 Strainer, Governor Oil
1983-05 → 1986-08 ended
CR21,27,28,30,YR2#,30 4FC ¥890
35395-40010 Strainer, Governor Oil
1986-08 → 1988-08 ended
YR20 MRF 4FC;YR2#,3# (HRF,SRF) +2 ¥890
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
