Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

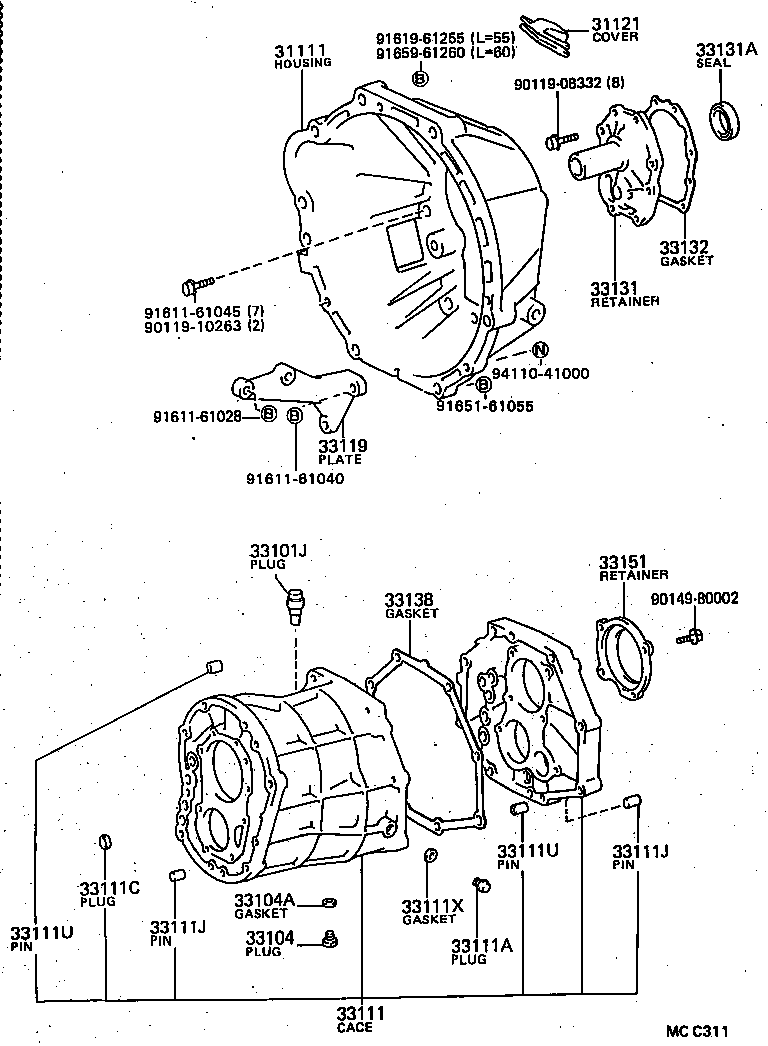

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31111 — Housing, Clutch | ||||
| 31111-22120 |
Housing, Clutch
1982-11 → 1985-08
ended
|
CR21,26 5F | ¥29,200 | |
| 31111-27020 |
Housing, Clutch
1982-11 → 1988-08
ended
|
KR26 | ¥25,100 | |
| 31111-28010 |
Housing, Clutch
1982-11 → 1988-08
ended
|
YR26 D | ¥23,800 | |
| 31111-28020 |
Housing, Clutch
1985-10 → 1988-08
ended
|
YR3# 5F | ¥23,700 | |
| 31111-28030 |
Housing, Clutch
1985-08 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥23,800 | |
| 31111-30180 |
Housing, Clutch
1982-11 → 1985-08
ended
|
YR2# 5F,5H | ¥32,500 | |
| 31111-30190 |
Housing, Clutch
1985-08 → 1988-08
ended
|
YR2# (5F,5H) (B,D,E,G,N,Q) | ¥27,800 | |
| 31121 — Cover, Clutch Housing, NO.1 | ||||
| 31121-30040 |
Cover, Clutch Housing, NO.1
1985-08 → 1988-08
ended
|
YR2#,3# (5F,5H) (B,D,E,G,N,Q) | ¥1,480 | |
| 33101J — Plug, Breather | ||||
| 90930-03085 |
Plug, Breather
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥500 | |
| 33104 — Plug Sub-assy, Drain(MTM) | ||||
| 90341-18021 |
Plug Sub-assy, Drain(MTM)
1983-12 → 1985-08
ended
|
CR21,26,KR26,YR2# MTM | ¥240 | |
| 90341-18021 |
Plug Sub-assy, Drain(MTM)
1985-08 → 1988-08
ended
|
CR21,26,28,3#,YR2# (5F,5H) (B,D,E,G,N,Q) | ¥240 | |
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1982-11 → 1983-12
ended
|
CR2#,KR26,YR2# MTM | ¥350 | |
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1985-08 → 1988-08
ended
|
KR26,YR26 4H | ¥350 | |
| 90341-18057 |
Plug Sub-assy, Drain(MTM)
1985-10 → 1988-08
ended
|
YR3# 5F | ¥350 | |
| 33104A — Gasket, Drain Plug(MTM) | ||||
| 90430-18007 |
Gasket, Drain Plug(MTM)
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# MTM | ¥210 | |
| 90430-18008 |
Gasket, Drain Plug(MTM)
1984-08 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥110 | |
| 33111 — Case, Manual Transmission | ||||
| 33101-26010 |
Case, Manual Transmission
1985-10 → 1986-02
ended
|
YR30 5F | ¥47,000 | |
| 33101-26900 |
Case, Manual Transmission
1986-02 → 1988-08
ended
|
YR3# 5F | ¥46,700 | |
| 33101-28010 |
Case, Manual Transmission
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥54,500 | |
| 33111-35031 |
Case, Manual Transmission
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥48,000 | |
| 33111A — Plug, Manual Transmission Case | ||||
| 90341-18002 |
Plug, Manual Transmission Case
1982-11 → 1983-04
ended
|
CR26,KR26,YR2# MTM | ¥580 | |
| 90341-18006 |
Plug, Manual Transmission Case
1983-04 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥180 | |
| 33111C — Plug(FOR TRANSMISSION CASE) | ||||
| 90331-14004 note |
Plug(FOR TRANSMISSION CASE)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥370 | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥130 | |
| 33111U — Pin, Ring(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥120 | |
| 90253-15001 note |
Pin, Ring(FOR MANUAL TRANSMISSION CASE)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR20,21,28,3# MTM | ¥120 | |
| 33111X — Gasket, Transmission Case Plug | ||||
| 90430-18007 |
Gasket, Transmission Case Plug
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# MTM | ¥210 | |
| 90430-18008 |
Gasket, Transmission Case Plug
1984-08 → 1988-08
ended
|
CR21,26,28,3#,KR26,YR2#,3# MTM | ¥110 | |
| 33119 — Plate, Stiffener, LH(MTM) | ||||
| 33119-14050 |
Plate, Stiffener, LH(MTM)
1982-11 → 1988-08
ended
|
CR21,26,28,3# 5F | ¥3,270 | |
| 33119-28010 |
Plate, Stiffener, LH(MTM)
1982-11 → 1988-08
ended
|
YR20,21,28,3# MTM | ¥1,530 | |
| 33119-28010 note |
Plate, Stiffener, LH(MTM)
1982-11 → 1988-08
ended
|
YR26 MTM | ¥1,530 | |
| 33131 — Retainer, Bearing, Front(MTM) | ||||
| 33131-20050 |
Retainer, Bearing, Front(MTM)
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥6,000 | |
| 33131-26020 |
Retainer, Bearing, Front(MTM)
1984-01 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥5,400 | |
| 33131-28010 |
Retainer, Bearing, Front(MTM)
1982-11 → 1984-01
ended
|
CR2#,YR2# 5F,5H | ¥5,500 | |
| 33131A — Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥220 | |
| 90311-32106 |
Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥240 | |
| 33132 — Gasket, Front Bearing Retainer(MTM) | ||||
| 33132-28010 |
Gasket, Front Bearing Retainer(MTM)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥250 | |
| 33132-30030 |
Gasket, Front Bearing Retainer(MTM)
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥250 | |
| 33138 — Gasket, Intermediate Plate | ||||
| 33138-28010 |
Gasket, Intermediate Plate
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥730 | |
| 33151 — Retainer, Output Shaft Rear Bearing(MTM) | ||||
| 33151-26010 |
Retainer, Output Shaft Rear Bearing(MTM)
1982-11 → 1988-08
ended
|
KR26,YR26 4H | ¥4,910 | |
| 33151-28010 |
Retainer, Output Shaft Rear Bearing(MTM)
1982-11 → 1988-08
ended
|
CR21,26,28,3#,YR2#,3# 5F,5H | ¥3,580 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
