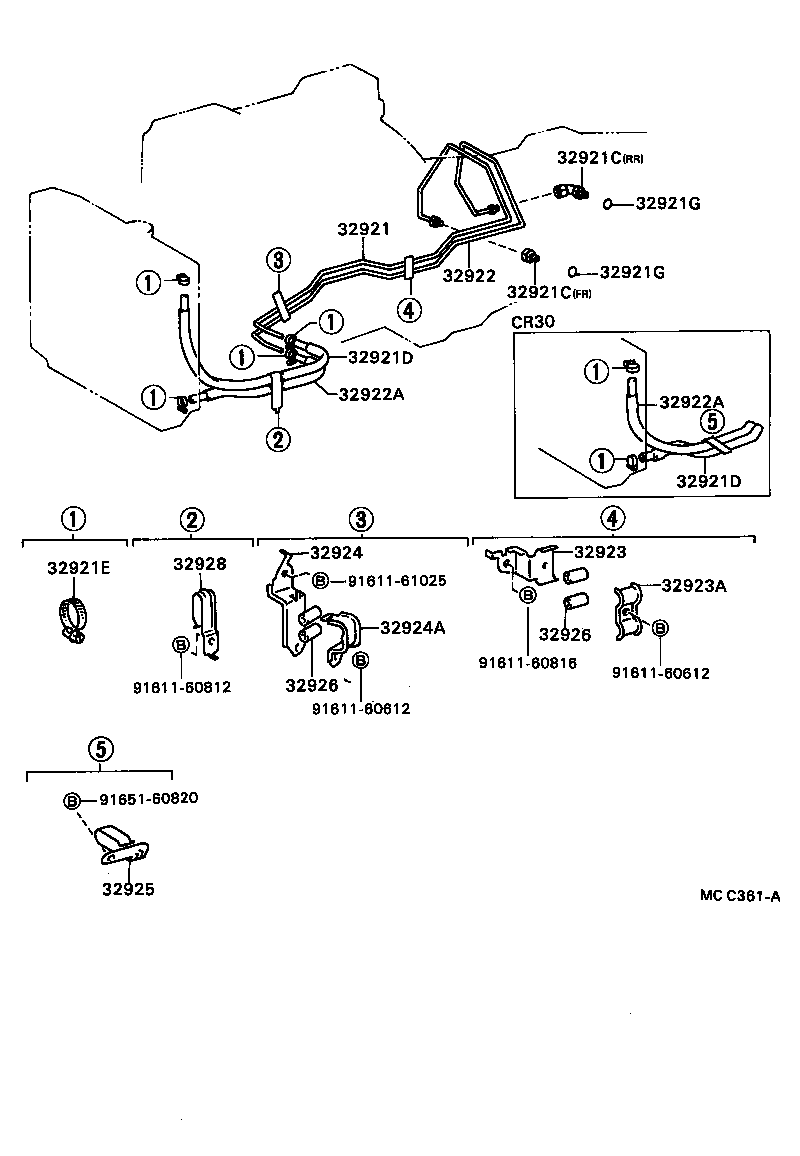

Exploded illustration MCC361A 32921C — UNION(FOR OIL COOLER TUBE) (7 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (1 parts) 32921 — TUBE, OIL COOLER INLET, NO.1 (7 parts) 32921G — RING, O(FOR OIL COOLER TUBE UNION) (1 parts) 32922 — TUBE, OIL COOLER OUTLET, NO.1 (7 parts) 32921C — UNION(FOR OIL COOLER TUBE) (7 parts) 32921D — HOSE(FOR OIL COOLER INLET) (9 parts) 32922A — HOSE(FOR OIL COOLER OUTLET) (10 parts) 32922A — HOSE(FOR OIL COOLER OUTLET) (10 parts) 32921D — HOSE(FOR OIL COOLER INLET) (9 parts) 32924 — CLAMP, OIL COOLER TUBE, NO.2 (4 parts) 32923 — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE (3 parts) 32928 — CLAMP, FLEXIBLE HOSE, NO.1 (5 parts) 32921E — CLAMP, HOSE(FOR OIL COOLER) (4 parts) 9161161025 — not listed in this catalogue 32923A — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE (5 parts) 32924A — CLAMP(FOR OIL COOLER TUBE, NO.2) (2 parts) 32926 — CUSHION, OIL COOLER TUBE(ATM) (3 parts) 9161160816 — not listed in this catalogue 9161160612 — not listed in this catalogue 32926 — CUSHION, OIL COOLER TUBE(ATM) (3 parts) 9161160812 — not listed in this catalogue 9161160612 — not listed in this catalogue 9165160820 — not listed in this catalogue 32925 — CLAMP, OIL COOLER TUBE, NO.3 (2 parts)
MCC361A · 19 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
32921 — Tube, Oil Cooler Inlet, NO.1
32921-28020 Tube, Oil Cooler Inlet, NO.1
1982-11 → 1983-11 ended
YR2# 4FC ¥1,690
32921-28021 Tube, Oil Cooler Inlet, NO.1
1983-11 → 1985-08 ended
YR2# 4FC ¥1,710
32921-28030 Tube, Oil Cooler Inlet, NO.1
1984-08 → 1985-08 ended
CR21,27 4FC —
32921-28031 Tube, Oil Cooler Inlet, NO.1
1985-08 → 1988-08 ended
CR21,27,28 4FC ¥2,010
32921-28040 Tube, Oil Cooler Inlet, NO.1
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥1,430
32921-28050 Tube, Oil Cooler Inlet, NO.1
1985-10 → 1988-08 ended
YR3# 4FC ¥2,100
32921-28060 Tube, Oil Cooler Inlet, NO.1
1985-10 → 1988-08 ended
CR30 4FC ¥1,890
32921C — Union(FOR OIL COOLER TUBE)
90404-14007 note Union(FOR OIL COOLER TUBE)
1982-11 → 1985-08 ended
YR2# 4FC ¥500
90404-16021 note Union(FOR OIL COOLER TUBE)
1984-08 → 1985-08 ended
CR21,27 4FC ¥520
90404-16021 note Union(FOR OIL COOLER TUBE)
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥520
90407-14003 note Union(FOR OIL COOLER TUBE)
1982-11 → 1985-08 ended
YR2# 4FC ¥1,720
90407-14008 note Union(FOR OIL COOLER TUBE)
1985-10 → 1988-08 ended
CR30,YR3# ¥790
90407-16010 note Union(FOR OIL COOLER TUBE)
1984-08 → 1985-08 ended
CR21,27 4FC ¥440
90407-16010 note Union(FOR OIL COOLER TUBE)
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥440
32921D — Hose(FOR OIL COOLER INLET)
32941-28020 Hose(FOR OIL COOLER INLET)
1982-11 → 1985-08 ended
YR2# 4FC ¥5,500
32941-28041 Hose(FOR OIL COOLER INLET)
1984-08 → 1987-03 ended
CR21,27,28 4FC ¥5,800
32941-28050 Hose(FOR OIL COOLER INLET)
1985-08 → 1987-03 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥6,700
32941-28060 Hose(FOR OIL COOLER INLET)
1985-10 → 1987-03 ended
YR3# 4FC ¥3,710
32941-28070 Hose(FOR OIL COOLER INLET)
1985-10 → 1987-03 ended
CR30 4FC ¥5,100
32941-28080 Hose(FOR OIL COOLER INLET)
1987-03 → 1988-08 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥6,400
32941-28100 Hose(FOR OIL COOLER INLET)
1987-03 → 1988-08 ended
CR21,27,28 4FC ¥4,100
32941-28120 Hose(FOR OIL COOLER INLET)
1987-03 → 1988-08 ended
YR3# 4FC ¥2,110
32941-28140 Hose(FOR OIL COOLER INLET)
1987-03 → 1988-08 ended
CR30 4FC ¥4,300
32921E — Clamp, Hose(FOR OIL COOLER)
90460-14085 Clamp, Hose(FOR OIL COOLER)
1982-11 → 1985-08 ended
YR2# 4FC ¥590
90460-18002 Clamp, Hose(FOR OIL COOLER)
1984-08 → 1985-08 ended
CR21,27 4FC ¥320
90460-18002 Clamp, Hose(FOR OIL COOLER)
1985-08 → 1987-03 ended
YR20 MRF 4FC;YR20 HRF +3 ¥320
90467-13039 Clamp, Hose(FOR OIL COOLER)
1987-03 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥100
32921G — Ring, O(FOR OIL COOLER TUBE UNION)
90301-10189 Ring, O(FOR OIL COOLER TUBE UNION)
1982-11 → 1988-08 ended
CR21,27,28,30,YR2#,3# 4FC ¥170
32922 — Tube, Oil Cooler Outlet, NO.1
32922-28020 Tube, Oil Cooler Outlet, NO.1
1982-11 → 1983-11 ended
YR2# 4FC ¥1,880
32922-28021 Tube, Oil Cooler Outlet, NO.1
1983-11 → 1985-08 ended
YR2# 4FC ¥1,870
32922-28030 Tube, Oil Cooler Outlet, NO.1
1984-08 → 1985-08 ended
CR21,27 4FC —
32922-28031 Tube, Oil Cooler Outlet, NO.1
1985-08 → 1988-08 ended
CR21,27,28 4FC ¥1,870
32922-28040 Tube, Oil Cooler Outlet, NO.1
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥1,480
32922-28050 Tube, Oil Cooler Outlet, NO.1
1985-10 → 1988-08 ended
YR3# 4FC ¥2,100
32922-28060 Tube, Oil Cooler Outlet, NO.1
1985-10 → 1988-08 ended
CR30 4FC ¥2,490
32922A — Hose(FOR OIL COOLER OUTLET)
32942-28020 Hose(FOR OIL COOLER OUTLET)
1982-11 → 1985-08 ended
YR2# 4FC ¥4,390
32942-28041 Hose(FOR OIL COOLER OUTLET)
1984-08 → 1987-03 ended
CR21,27,28 4FC ¥4,430
32942-28050 Hose(FOR OIL COOLER OUTLET)
1985-08 → 1987-03 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥5,300
32942-28060 Hose(FOR OIL COOLER OUTLET)
1985-10 → 1986-02 ended
YR30 4FC ¥4,680
32942-28070 Hose(FOR OIL COOLER OUTLET)
1985-10 → 1987-03 ended
CR30 4FC ¥5,500
32942-28080 Hose(FOR OIL COOLER OUTLET)
1986-02 → 1987-03 ended
YR3# 4FC ¥3,420
32942-28100 Hose(FOR OIL COOLER OUTLET)
1987-03 → 1988-08 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥5,200
32942-28110 Hose(FOR OIL COOLER OUTLET)
1987-03 → 1988-08 ended
CR21,27,28 4FC ¥3,310
32942-28130 Hose(FOR OIL COOLER OUTLET)
1987-03 → 1988-08 ended
YR3# 4FC ¥3,300
32942-28150 Hose(FOR OIL COOLER OUTLET)
1987-03 → 1988-08 ended
CR30 4FC ¥5,200
32923 — Clamp, Automatic Transmission Oil Cooler Tube
32923-28040 Clamp, Automatic Transmission Oil Cooler Tube
1984-08 → 1988-08 ended
CR21,27,28,30 4FC ¥800
90461-08070 Clamp, Automatic Transmission Oil Cooler Tube
1982-11 → 1985-08 ended
YR2# 4FC ¥250
90461-08628 Clamp, Automatic Transmission Oil Cooler Tube
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2#,3# (HRF,SRF) +2 ¥320
32923A — Clamp, Automatic Transmission Oil Cooler Tube
32923-28020 Clamp, Automatic Transmission Oil Cooler Tube
1982-11 → 1985-08 ended
YR2# 4FC ¥1,080
32923-28030 note Clamp, Automatic Transmission Oil Cooler Tube
1982-11 → 1985-08 ended
YR2# 4FC ¥730
32923-28050 Clamp, Automatic Transmission Oil Cooler Tube
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2#,3# (HRF,SRF) +2 ¥780
32923-28060 note Clamp, Automatic Transmission Oil Cooler Tube
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2#,3# (HRF,SRF) +2 ¥780
90462-12044 Clamp, Automatic Transmission Oil Cooler Tube
1984-08 → 1988-08 ended
CR21,27,28,30 4FC ¥260
32924 — Clamp, Oil Cooler Tube, NO.2
32924-27010 Clamp, Oil Cooler Tube, NO.2
1985-08 → 1988-08 ended
CR21,27,28,30 4FC ¥740
32924-28010 Clamp, Oil Cooler Tube, NO.2
1982-11 → 1985-08 ended
YR2# 4FC ¥360
32924-28030 Clamp, Oil Cooler Tube, NO.2
1984-08 → 1985-08 ended
CR21,27 4FC —
32929-28010 Clamp, Oil Cooler Tube, NO.2
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR2#,3# (HRF,SRF) +2 ¥450
32924A — Clamp(FOR OIL COOLER TUBE, NO.2)
32929-28010 Clamp(FOR OIL COOLER TUBE, NO.2)
1985-08 → 1988-08 ended
CR21,27,28,30 4FC ¥450
32929-30110 Clamp(FOR OIL COOLER TUBE, NO.2)
1984-08 → 1985-08 ended
CR21,27 4FC ¥410
32925 — Clamp, Oil Cooler Tube, NO.3
90949-01258 Clamp, Oil Cooler Tube, NO.3
1985-10 → 1987-10 ended
CR30 4FC ¥530
90949-01448 Clamp, Oil Cooler Tube, NO.3
1987-10 → 1988-08 ended
CR30 4FC ¥400
32926 — Cushion, Oil Cooler Tube(ATM)
32926-30011 note Cushion, Oil Cooler Tube(ATM)
1982-11 → 1985-08 ended
YR2# 4FC ¥200
32926-30020 note Cushion, Oil Cooler Tube(ATM)
1984-08 → 1985-08 ended
CR21,27 4FC ¥170
32926-30020 note Cushion, Oil Cooler Tube(ATM)
1985-08 → 1988-08 ended
YR20 MRF 4FC;YR20 HRF +3 ¥170
32928 — Clamp, Flexible Hose, NO.1
32928-28010 Clamp, Flexible Hose, NO.1
1985-10 → 1988-08 ended
YR3# 4FC ¥470
90949-01047 Clamp, Flexible Hose, NO.1
1982-11 → 1985-08 ended
YR2# 4FC ¥640
90949-01204 Clamp, Flexible Hose, NO.1
1984-08 → 1988-08 ended
CR21,27,28 4FC ¥340
90949-01235 Clamp, Flexible Hose, NO.1
1985-08 → 1987-10 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥440
90949-01430 Clamp, Flexible Hose, NO.1
1987-10 → 1988-08 ended
YR20 MRF 4FC;YR2# (HRF,SRF) +2 ¥260
