Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

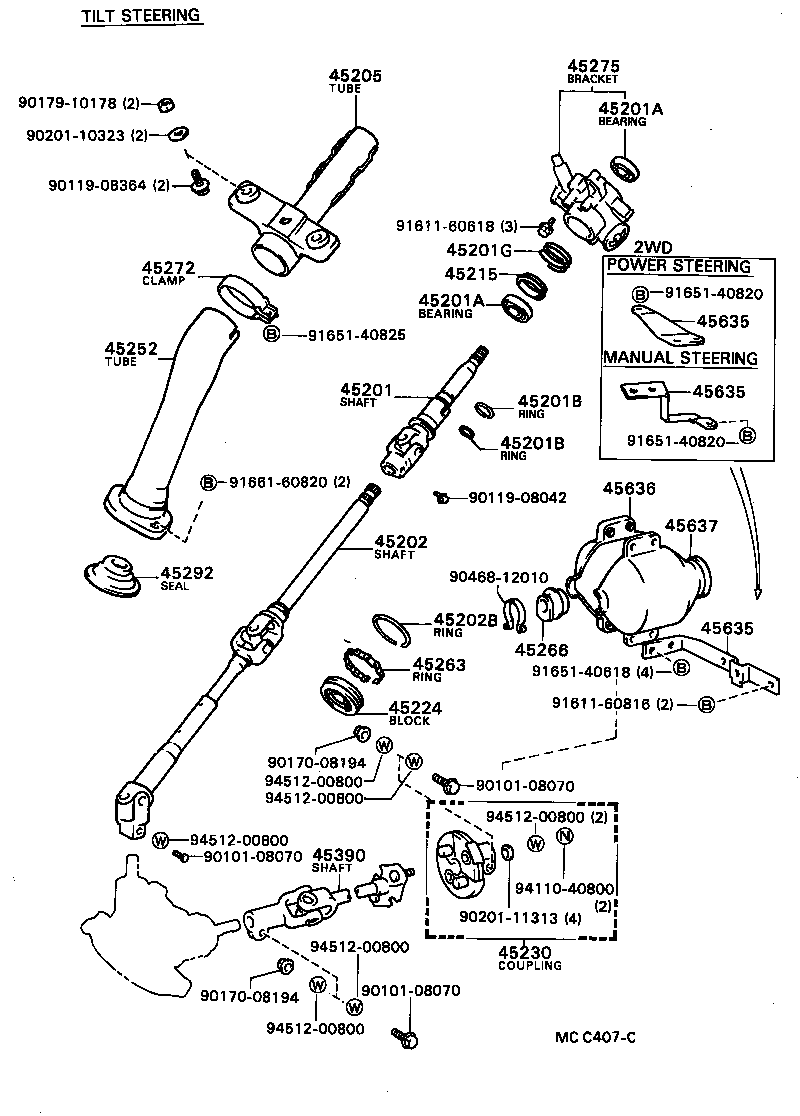

Exploded illustration MCC407C 45275 — BRACKET, STEERING COLUMN, UPPER (10 parts) 45205 — TUBE SUB-ASSY, STEERING COLUMN (7 parts) 9017910178 — not listed in this catalogue 45201A — BEARING(FOR STEERING MAIN SHAFT) (12 parts) 9020110323 — not listed in this catalogue 9011908364 — not listed in this catalogue 9161160618 — not listed in this catalogue 45201G — SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) (5 parts) 45272 — CLAMP, STEERING COLUMN, LOWER (1 parts) 45215 — COLLAR, MAIN SHAFT BEARING THRUST (5 parts) 9165140820 — not listed in this catalogue 45201A — BEARING(FOR STEERING MAIN SHAFT) (12 parts) 45635 — SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR (3 parts) 9165140825 — not listed in this catalogue 45252 — TUBE, STEERING COLUMN, LOWER (4 parts) 45201 — SHAFT SUB-ASSY, STEERING MAIN (9 parts) 45635 — SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR (3 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (2 parts) 9165140820 — not listed in this catalogue 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (2 parts) 9166160820 — not listed in this catalogue 45636 — PROTECTOR, INTERMEDIATE LINK JOINT, UPPER (1 parts) 9011908042 — not listed in this catalogue 45637 — PROTECTOR, INTER LINK JOINT, LWR NO.1 (1 parts) 45202 — SHAFT SUB-ASSY, STEERING INTERMEDIATE (6 parts) 45292 — SEAL, MAIN SHAFT LOWER DUST (7 parts) 9046812010 — not listed in this catalogue 45202B — RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT) (1 parts) 45635 — SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR (3 parts) 45266 — COVER, STEERING INTERMEDIATE SHAFT DUST (1 parts) 45263 — RING, STEERING COLUMN, NO.1 (1 parts) 9165140618 — not listed in this catalogue 9161160816 — not listed in this catalogue 45224 — BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) (1 parts) 9017008194 — not listed in this catalogue 9451200800 — not listed in this catalogue 9010108070 — not listed in this catalogue 9451200800 — not listed in this catalogue 9451200800 — not listed in this catalogue 9451200800 — not listed in this catalogue 45390 — SHAFT ASSY, STEERING TORQUE (3 parts) 9010108070 — not listed in this catalogue 9411040800 — not listed in this catalogue 9020111313 — not listed in this catalogue 9451200800 — not listed in this catalogue 45230 — COUPLING ASSY, FLEXIBLE (3 parts) 9010108070 — not listed in this catalogue 9017008194 — not listed in this catalogue 9451200800 — not listed in this catalogue
MCC407C · 24 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
45201 — Shaft Sub-assy, Steering Main
45210-22050 note Shaft Sub-assy, Steering Main
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥14,100
45210-22050 note Shaft Sub-assy, Steering Main
1985-08 → 1986-12 ended
CR26 N ¥14,100
45210-22050 note Shaft Sub-assy, Steering Main
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥14,100
45210-22050 note Shaft Sub-assy, Steering Main
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥14,100
45210-22050 note Shaft Sub-assy, Steering Main
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥14,100
45210-28010 Shaft Sub-assy, Steering Main
1982-11 → 1983-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥25,000
45210-28011 Shaft Sub-assy, Steering Main
1983-08 → 1985-08 ended
CR2#,KR26,YR2# D,E,G,N,R ¥24,800
45210-28030 Shaft Sub-assy, Steering Main
1985-08 → 1988-08 ended
YR20 5S,06S,08S HRF E;YR20 +6 ¥24,300
45210-28030 Shaft Sub-assy, Steering Main
1985-10 → 1988-08 ended
CR36,37,YR36 B,D ¥24,300
45201A — Bearing(FOR STEERING MAIN SHAFT)
90363-18001 note Bearing(FOR STEERING MAIN SHAFT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,480
90363-18001 note Bearing(FOR STEERING MAIN SHAFT)
1985-08 → 1986-12 ended
CR26 N ¥2,480
90363-18001 note Bearing(FOR STEERING MAIN SHAFT)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥2,480
90363-18001 note Bearing(FOR STEERING MAIN SHAFT)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,480
90363-18001 note Bearing(FOR STEERING MAIN SHAFT)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥2,480
90363-18038 Bearing(FOR STEERING MAIN SHAFT)
1985-10 → 1988-08 ended
CR36,37,YR36 B,D ¥660
90363-18038 Bearing(FOR STEERING MAIN SHAFT)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# B,D,E,G,N,R ¥660
90363-28001 note Bearing(FOR STEERING MAIN SHAFT)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥2,550
90363-28001 note Bearing(FOR STEERING MAIN SHAFT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥2,550
90363-28001 note Bearing(FOR STEERING MAIN SHAFT)
1985-08 → 1986-12 ended
CR26 N ¥2,550
90363-28001 note Bearing(FOR STEERING MAIN SHAFT)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥2,550
90363-28001 note Bearing(FOR STEERING MAIN SHAFT)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥2,550
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥120
90520-17269 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥120
45201G — Spring, Compression(FOR STEERING MAIN SHAFT)
90501-45011 Spring, Compression(FOR STEERING MAIN SHAFT)
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥540
90501-45011 Spring, Compression(FOR STEERING MAIN SHAFT)
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥540
90501-45011 Spring, Compression(FOR STEERING MAIN SHAFT)
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥540
90501-45011 Spring, Compression(FOR STEERING MAIN SHAFT)
1985-08 → 1986-12 ended
CR26 N ¥540
90501-45011 Spring, Compression(FOR STEERING MAIN SHAFT)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥540
45202 — Shaft Sub-assy, Steering Intermediate
45220-28020 Shaft Sub-assy, Steering Intermediate
1982-11 → 1983-08 ended
CR21,YR2# 4FC,5F ¥27,100
45220-28021 Shaft Sub-assy, Steering Intermediate
1983-08 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥27,100
45220-28040 Shaft Sub-assy, Steering Intermediate
1985-08 → 1986-12 ended
CR26 N ¥22,500
45220-28040 Shaft Sub-assy, Steering Intermediate
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥22,500
45220-28040 Shaft Sub-assy, Steering Intermediate
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥22,500
45220-28040 Shaft Sub-assy, Steering Intermediate
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥22,500
45202B — Ring, Shaft Snap(FOR STEERING INTERMEDIATE SHAFT)
96152-00300 Ring, Shaft Snap(FOR STEERING INTERMEDIATE SHAFT)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥80
45205 — Tube Sub-assy, Steering Column
45205-28050 note Tube Sub-assy, Steering Column
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥5,000
45205-28050 note Tube Sub-assy, Steering Column
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥5,000
45205-28050 note Tube Sub-assy, Steering Column
1985-08 → 1986-12 ended
CR26 N ¥5,000
45205-28050 note Tube Sub-assy, Steering Column
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥5,000
45205-28050 note Tube Sub-assy, Steering Column
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥5,000
45205-28060 Tube Sub-assy, Steering Column
1982-11 → 1988-08 ended
CR2#,KR26,YR2# B,D,E,G,N,R ¥4,130
45205-28060 Tube Sub-assy, Steering Column
1985-10 → 1988-08 ended
CR36,37,YR36 B,D ¥4,130
45215 — Collar, Main Shaft Bearing Thrust
45215-22011 Collar, Main Shaft Bearing Thrust
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥350
45215-22011 Collar, Main Shaft Bearing Thrust
1985-08 → 1986-12 ended
CR26 N ¥350
45215-22011 Collar, Main Shaft Bearing Thrust
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥350
45215-22011 Collar, Main Shaft Bearing Thrust
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥350
45215-22011 Collar, Main Shaft Bearing Thrust
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥350
45224 — Block, Bearing(FOR STEERING FLEXIBLE COUPLING)
45225-26010 note Block, Bearing(FOR STEERING FLEXIBLE COUPLING)
1984-06 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,210
45230 — Coupling Assy, Flexible
45230-14020 note Coupling Assy, Flexible
1985-08 → 1988-08 ended
CR2#,YR21,26,28;YR20 HRF (E,Q);YR20 HRF +4 ¥3,510
45230-27020 Coupling Assy, Flexible
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥4,180
45230-28010 Coupling Assy, Flexible
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,180
45252 — Tube, Steering Column, Lower
45252-28020 Tube, Steering Column, Lower
1982-11 → 1985-08 ended
CR2#,YR2# 4FC,5F ¥2,510
45252-28030 Tube, Steering Column, Lower
1982-11 → 1985-08 ended
KR26,YR20,26 D,R ¥2,620
45252-28070 Tube, Steering Column, Lower
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥2,630
45252-28080 Tube, Steering Column, Lower
1985-08 → 1988-08 ended
KR26,YR20,26,28 4H,5H ¥2,490
45263 — Ring, Steering Column, NO.1
45263-32010 Ring, Steering Column, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥170
45266 — Cover, Steering Intermediate Shaft Dust
45266-27020 Cover, Steering Intermediate Shaft Dust
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥860
45272 — Clamp, Steering Column, Lower
45272-28030 Clamp, Steering Column, Lower
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥790
45275 — Bracket, Steering Column, Upper
45280-28040 note Bracket, Steering Column, Upper
1986-12 → 1987-08 ended
YR20 HRF E;YR20 MRF +5 ¥16,900
45280-28040 note Bracket, Steering Column, Upper
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥16,900
45280-28040 note Bracket, Steering Column, Upper
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥16,900
45280-28040 note Bracket, Steering Column, Upper
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥16,900
45280-28040 note Bracket, Steering Column, Upper
1985-08 → 1986-12 ended
CR26 N ¥16,900
45280-28041 note Bracket, Steering Column, Upper
1987-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥16,900
45280-28050 Bracket, Steering Column, Upper
1982-11 → 1987-08 ended
CR2#,KR26,YR2# B,D,E,G,N,R ¥16,900
45280-28050 Bracket, Steering Column, Upper
1985-10 → 1987-08 ended
CR36,YR36 B,D ¥16,900
45280-28051 Bracket, Steering Column, Upper
1987-08 → 1988-08 ended
CR36,37,YR36 B,D ¥16,900
45280-28051 Bracket, Steering Column, Upper
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥16,900
45292 — Seal, Main Shaft Lower Dust
45292-28010 note Seal, Main Shaft Lower Dust
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥1,830
45292-28010 note Seal, Main Shaft Lower Dust
1985-08 → 1986-12 ended
CR26 N ¥1,830
45292-28010 note Seal, Main Shaft Lower Dust
1985-08 → 1986-12 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,830
45292-28010 note Seal, Main Shaft Lower Dust
1985-10 → 1986-12 ended
CR3#,YR30 E,G,N,Q ¥1,830
45292-28010 note Seal, Main Shaft Lower Dust
1986-12 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥1,830
45292-28020 Seal, Main Shaft Lower Dust
1982-11 → 1988-08 ended
CR2#,KR26,YR2# B,D,E,G,N,R ¥1,830
45292-28020 Seal, Main Shaft Lower Dust
1985-10 → 1988-08 ended
CR36,37,YR36 B,D ¥1,830
45390 — Shaft Assy, Steering Torque
45390-28010 Shaft Assy, Steering Torque
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥10,700
45390-28020 note Shaft Assy, Steering Torque
1985-08 → 1988-08 ended
CR2#,YR21,26,28;YR20 HRF (E,Q);YR20 HRF +4 ¥10,600
45390-28030 Shaft Assy, Steering Torque
1985-10 → 1988-08 ended
CR3#,YR3# ¥10,200
45635 — Support, Intermediate Link Joint Protector
45635-28010 Support, Intermediate Link Joint Protector
1987-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥550
45635-28020 note Support, Intermediate Link Joint Protector
1987-08 → 1988-08 ended
CR2#,YR21,26;YR20 HRF E;YR20 HRF +4 ¥640
45635-28030 Support, Intermediate Link Joint Protector
1987-08 → 1988-08 ended
CR3#,YR3# ¥930
45636 — Protector, Intermediate Link Joint, Upper
45636-27010 Protector, Intermediate Link Joint, Upper
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥880
45637 — Protector, Inter Link Joint, Lwr NO.1
45637-27010 Protector, Inter Link Joint, Lwr NO.1
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥1,410
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
