Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

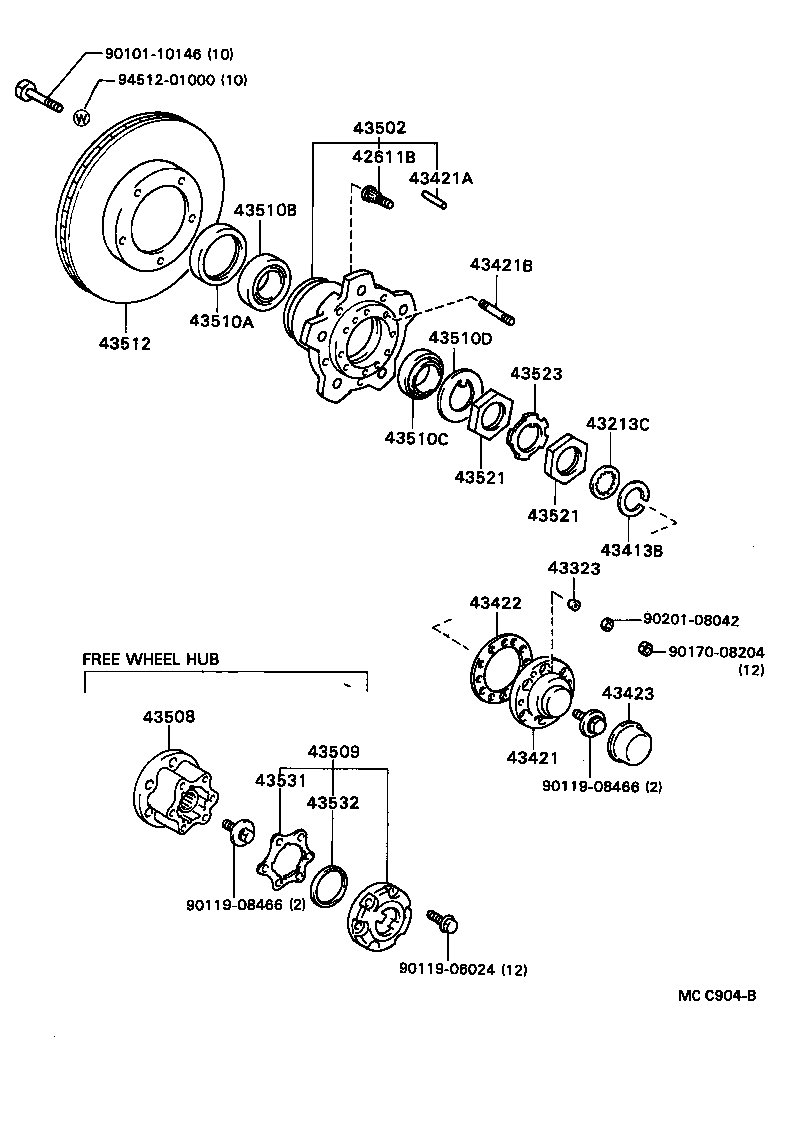

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42611B — Bolt, Hub (FOR FRONT AXLE) | ||||
| 90942-02035 note |
Bolt, Hub (FOR FRONT AXLE)
1982-11 → 1983-09
ended
|
CR26,KR26,YR26 D,R | ¥240 | |
| 90942-02036 note |
Bolt, Hub (FOR FRONT AXLE)
1982-11 → 1983-09
ended
|
CR2#,KR26,YR2# | ¥250 | |
| 90942-02047 |
Bolt, Hub (FOR FRONT AXLE)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥230 | |
| 90942-02047 note |
Bolt, Hub (FOR FRONT AXLE)
1983-09 → 1985-08
ended
|
CR26,KR26,YR26 D,R | ¥230 | |
| 90942-02048 note |
Bolt, Hub (FOR FRONT AXLE)
1983-09 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥460 | |
| 43213C — Spacer (FOR DRIVE SHAFT) | ||||
| 90560-27005 note |
Spacer (FOR DRIVE SHAFT)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥200 | |
| 90560-27010 note |
Spacer (FOR DRIVE SHAFT)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥170 | |
| 90560-27011 note |
Spacer (FOR DRIVE SHAFT)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥230 | |
| 43323 — Washer, Cone (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
Washer, Cone (FOR FRONT AXLE SHAFT)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥230 | |
| 43413B — Ring, Drive Shaft Snap | ||||
| 90520-27023 |
Ring, Drive Shaft Snap
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥140 | |
| 43421 — Flange, Front Axle Outer Shaft | ||||
| 43421-35010 |
Flange, Front Axle Outer Shaft
1985-10 → 1986-08
ended
|
CR3#,YR30 D,G,N | ¥4,350 | |
| 43421A — Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥240 | |
| 43421B — Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥110 | |
| 43422 — Gasket, Front Axle Outer Shaft Flange | ||||
| 43422-60020 |
Gasket, Front Axle Outer Shaft Flange
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥180 | |
| 43423 — Cap, Front Axle Outer Shaft Flange | ||||
| 43423-35010 |
Cap, Front Axle Outer Shaft Flange
1986-05 → 1986-08
ended
|
CR3#,YR30 D,G,N | ¥320 | |
| 43423-60011 |
Cap, Front Axle Outer Shaft Flange
1985-10 → 1986-05
ended
|
CR3#,YR30 D,G,N | ¥430 | |
| 43502 — Hub Sub-assy, Front Axle | ||||
| 43502-20010 |
Hub Sub-assy, Front Axle
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥13,500 | |
| 43502-20010 |
Hub Sub-assy, Front Axle
1985-08 → 1987-08
ended
|
YR20 E,N,R) HRF 5F +5 | ¥13,500 | |
| 43502-20010 |
Hub Sub-assy, Front Axle
1985-08 → 1988-08
ended
|
CR21 MRF | ¥13,500 | |
| 43502-20010 |
Hub Sub-assy, Front Axle
1987-08 → 1988-08
ended
|
YR20 ) HRF 5F +5 | ¥13,500 | |
| 43502-28020 |
Hub Sub-assy, Front Axle
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥14,400 | |
| 43502-28030 note |
Hub Sub-assy, Front Axle
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥12,100 | |
| 43502-28030 note |
Hub Sub-assy, Front Axle
1987-08 → 1988-08
ended
|
CR28 | ¥12,100 | |
| 43508 — Body Sub-assy, Free Wheel Hub | ||||
| 43508-35010 |
Body Sub-assy, Free Wheel Hub
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥15,300 | |
| 43509 — Cover Sub-assy, Free Wheel Hub | ||||
| 43509-35030 |
Cover Sub-assy, Free Wheel Hub
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥8,200 | |
| 43510A — Seal, Oil (FOR FRONT AXLE HUB) | ||||
| 90311-48001 |
Seal, Oil (FOR FRONT AXLE HUB)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥490 | |
| 90311-66002 |
Seal, Oil (FOR FRONT AXLE HUB)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥770 | |
| 43510B — Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) | ||||
| 90366-50011 |
Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥2,420 | |
| 90368-31067 |
Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,760 | |
| 43510C — Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-19037 |
Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥1,630 | |
| 90368-45087 |
Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥3,060 | |
| 43510D — Washer, Claw (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20005 |
Washer, Claw (FOR STEERING KNUCKLE WASHER)
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥190 | |
| 90214-42030 |
Washer, Claw (FOR STEERING KNUCKLE WASHER)
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥190 | |
| 43512 — Disc, Front | ||||
| 43512-28020 note |
Disc, Front
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R,X | ¥11,700 | |
| 43512-28020 note |
Disc, Front
1987-08 → 1988-08
ended
|
YR20 ) HRF 5F +5 | ¥11,700 | |
| 43512-28020 note |
Disc, Front
1985-08 → 1988-08
ended
|
CR21 MRF | ¥11,700 | |
| 43512-28020 note |
Disc, Front
1985-08 → 1987-08
ended
|
YR20 E,N,R) HRF 5F +5 | ¥11,700 | |
| 43512-28030 note |
Disc, Front
1984-08 → 1985-08
ended
|
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 | ¥11,100 | |
| 43512-28030 note |
Disc, Front
1982-11 → 1984-08
ended
|
YR20 Q;CR21,YR21 | ¥11,100 | |
| 43512-28030 note |
Disc, Front
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥11,100 | |
| 43512-28040 |
Disc, Front
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥12,200 | |
| 43512-28050 note |
Disc, Front
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;CR21,YR20,21 +2 | ¥11,400 | |
| 43512-28050 note |
Disc, Front
1987-08 → 1988-08
ended
|
CR28 | ¥11,400 | |
| 43521 — Nut, Front Wheel Adjusting | ||||
| 43521-60011 |
Nut, Front Wheel Adjusting
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥500 | |
| 43523 — Washer, Front Wheel Adjusting Lock | ||||
| 90215-42025 |
Washer, Front Wheel Adjusting Lock
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥160 | |
| 43531 — Gasket, Free Wheel Hub | ||||
| 43531-60010 |
Gasket, Free Wheel Hub
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥140 | |
| 43532 — Ring, Free Wheel Hub | ||||
| 43532-60010 |
Ring, Free Wheel Hub
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
