Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

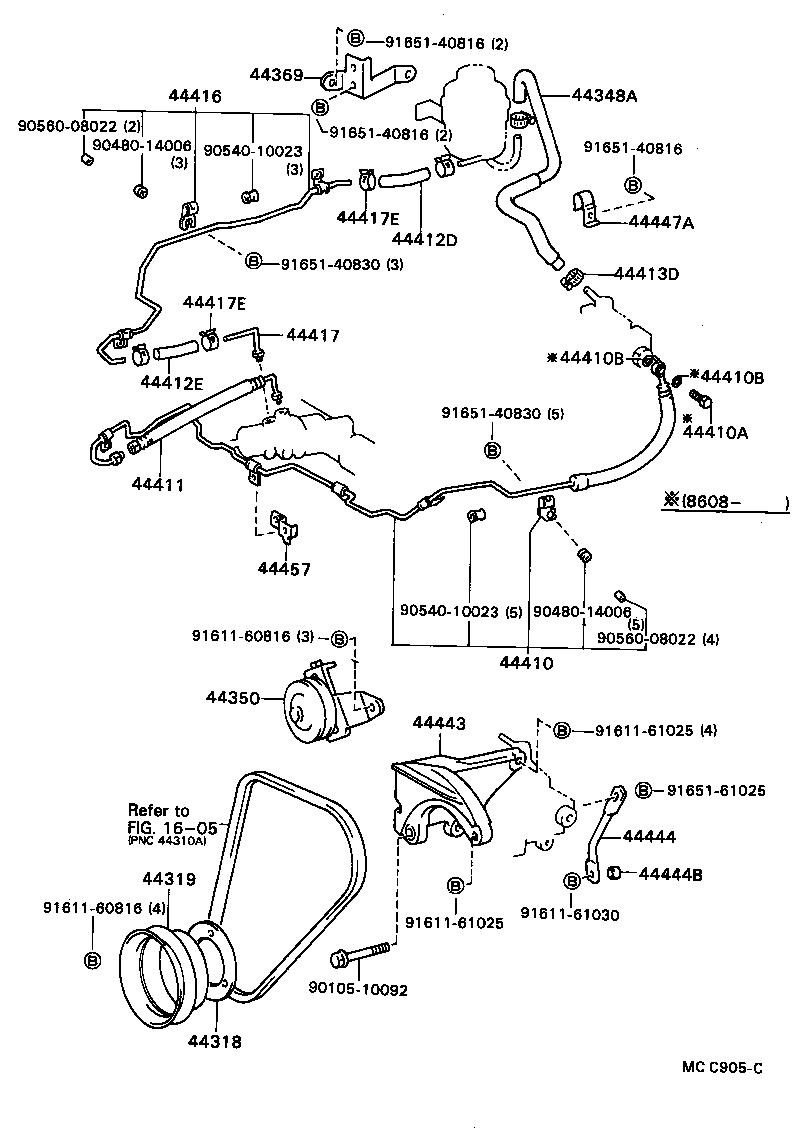

Exploded illustration MCC905C 9165140816 — not listed in this catalogue 44369 — BRACKET, OIL RESERVOIR, NO.1 (3 parts) 44348A — HOSE, OIL RESERVOIR TO PUMP, NO.1 (11 parts) 44416 — TUBE, RETURN(FOR STEERING GEAR OUTLET) (6 parts) 9056008022 — not listed in this catalogue 9165140816 — not listed in this catalogue 9048014006 — not listed in this catalogue 9165140816 — not listed in this catalogue 9054010023 — not listed in this catalogue 44417E — CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) (1 parts) 44447A — BRACKET, HOSE SUPPORT, NO.1 (2 parts) 44412D — HOSE, RETURN, NO.1 (2 parts) 9165140830 — not listed in this catalogue 44413D — CLAMP(FOR RESERVOIR TANK INLET HOSE) (5 parts) 44417E — CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) (1 parts) 44417 — TUBE, RETURN, NO.2 (8 parts) 44410B — GASKET(FOR PRESSURE FEED TUBE) (1 parts) 44410B — GASKET(FOR PRESSURE FEED TUBE) (1 parts) 44412E — HOSE, RETURN, NO.2 (5 parts) 9165140830 — not listed in this catalogue 44410A — BOLT, UNION(FOR PRESSURE FEED TUBE) (1 parts) 44411 — HOSE, PRESSURE FEED (3 parts) 44457 — BRACKET, TUBE SUPPORT, NO.1 (2 parts) 9054010023 — not listed in this catalogue 9048014006 — not listed in this catalogue 9161160816 — not listed in this catalogue 9056008022 — not listed in this catalogue 44410 — TUBE ASSY, PRESSURE FEED (12 parts) 44350 — PULLEY ASSY, POWER STEERING IDLE (2 parts) 44443 — BRACKET, PUMP (5 parts) 9161161025 — not listed in this catalogue 9165161025 — not listed in this catalogue 1605 — not listed in this catalogue 44444 — STAY, PUMP, REAR (3 parts) 44444B — COLLAR (FOR PUMP REAR STAY) (1 parts) 44319 — PULLEY, VANE PUMP DRIVE (4 parts) 9161160816 — not listed in this catalogue 9161161030 — not listed in this catalogue 9161161025 — not listed in this catalogue 9010510092 — not listed in this catalogue 44318 — SPACER, VANE PUMP DRIVE PULLEY (2 parts)
MCC905C · 22 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
44318 — Spacer, Vane Pump Drive Pulley
44318-28012 Spacer, Vane Pump Drive Pulley
1985-08 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥380
44318-28012 Spacer, Vane Pump Drive Pulley
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥380
44319 — Pulley, Vane Pump Drive
44319-27010 Pulley, Vane Pump Drive
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥2,940
44319-27010 Pulley, Vane Pump Drive
1985-08 → 1988-08 ended
CR2#,3# ¥2,940
44319-28013 Pulley, Vane Pump Drive
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥1,920
44319-28013 Pulley, Vane Pump Drive
1985-08 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,920
44348A — Hose, Oil Reservoir TO Pump, NO.1
44348-28010 note Hose, Oil Reservoir TO Pump, NO.1
1982-11 → 1985-08 ended
YR20,26 4FC,5F ¥2,170
44348-28010 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,170
44348-28020 note Hose, Oil Reservoir TO Pump, NO.1
1982-11 → 1984-08 ended
YR20,26 4FC,5F ¥4,020
44348-28021 note Hose, Oil Reservoir TO Pump, NO.1
1984-08 → 1985-08 ended
YR20,26 4FC,5F ¥4,030
44348-28021 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥4,030
44348-28030 Hose, Oil Reservoir TO Pump, NO.1
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥2,900
44348-28040 Hose, Oil Reservoir TO Pump, NO.1
1983-05 → 1988-08 ended
YR21,3# ¥6,100
44348-28050 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
CR2# ¥1,670
44348-28060 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
CR2# ¥1,960
44348-28070 note Hose, Oil Reservoir TO Pump, NO.1
1985-10 → 1988-08 ended
CR3# ¥1,390
44348-28080 note Hose, Oil Reservoir TO Pump, NO.1
1985-10 → 1988-08 ended
CR3# ¥2,210
44350 — Pulley Assy, Power Steering Idle
44350-28011 Pulley Assy, Power Steering Idle
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥15,600
44350-28011 Pulley Assy, Power Steering Idle
1985-08 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥15,600
44369 — Bracket, Oil Reservoir, NO.1
44369-28011 Bracket, Oil Reservoir, NO.1
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥880
44369-28011 Bracket, Oil Reservoir, NO.1
1985-08 → 1988-08 ended
YR21,26,28,30;YR20 HRF (E,Q);YR20 HRF +4 ¥880
44369-28020 Bracket, Oil Reservoir, NO.1
1985-08 → 1988-08 ended
CR2#,3# ¥1,820
44410 — Tube Assy, Pressure Feed
44410-28012 Tube Assy, Pressure Feed
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥20,900
44410-28030 Tube Assy, Pressure Feed
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥29,600
44410-28062 Tube Assy, Pressure Feed
1985-08 → 1986-06 ended
CR2# ¥21,500
44410-28063 Tube Assy, Pressure Feed
1986-06 → 1988-08 ended
CR2# ¥21,600
44410-28072 Tube Assy, Pressure Feed
1985-08 → 1986-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥27,700
44410-28073 Tube Assy, Pressure Feed
1986-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥33,400
44410-28082 Tube Assy, Pressure Feed
1985-08 → 1986-08 ended
YR20,26,28 MTM (B,D) ¥21,500
44410-28083 Tube Assy, Pressure Feed
1986-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥21,600
44410-28090 Tube Assy, Pressure Feed
1985-10 → 1986-08 ended
YR30 ¥27,700
44410-28091 Tube Assy, Pressure Feed
1986-08 → 1987-08 ended
YR3# ¥27,800
44410-28092 Tube Assy, Pressure Feed
1987-08 → 1988-08 ended
YR3# ¥27,400
44410-28100 Tube Assy, Pressure Feed
1985-10 → 1988-08 ended
CR3# ¥13,200
44410A — Bolt, Union(FOR PRESSURE FEED TUBE)
90401-16008 Bolt, Union(FOR PRESSURE FEED TUBE)
1986-08 → 1988-08 ended
YR20 HRF E;YR21,26,28,3#;YR20 HRF +4 ¥610
44410B — Gasket(FOR PRESSURE FEED TUBE)
90430-16242 Gasket(FOR PRESSURE FEED TUBE)
1986-08 → 1988-08 ended
YR20 HRF E;YR21,26,28,3#;YR20 HRF +4 ¥190
44411 — Hose, Pressure Feed
44411-28010 Hose, Pressure Feed
1983-04 → 1985-05 ended
CR21,27;CR26 N ¥11,500
44411-28011 Hose, Pressure Feed
1985-05 → 1985-08 ended
CR21,27;CR26 N ¥11,500
44411-28020 Hose, Pressure Feed
1985-10 → 1988-08 ended
CR3#,YR3# ¥7,500
44412D — Hose, Return, NO.1
44412-28120 Hose, Return, NO.1
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,260
44412-28130 Hose, Return, NO.1
1985-08 → 1988-08 ended
YR21,3# ¥1,140
44412E — Hose, Return, NO.2
44412-28050 Hose, Return, NO.2
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,140
44412-28070 Hose, Return, NO.2
1985-08 → 1988-08 ended
CR2# ¥1,140
44412-28080 Hose, Return, NO.2
1985-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥1,180
44412-28100 Hose, Return, NO.2
1985-10 → 1988-08 ended
YR3# ¥1,140
44412-28110 Hose, Return, NO.2
1985-10 → 1988-08 ended
CR3# ¥1,140
44413D — Clamp(FOR RESERVOIR TANK INLET HOSE)
90460-01001 Clamp(FOR RESERVOIR TANK INLET HOSE)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥580
90460-26001 Clamp(FOR RESERVOIR TANK INLET HOSE)
1985-08 → 1987-06 ended
YR21,3# ¥590
90460-26001 Clamp(FOR RESERVOIR TANK INLET HOSE)
1985-08 → 1987-06 ended
CR2#,3#,YR26,28;YR20 HRF (E,Q);YR20 HRF +4 ¥590
90467-21005 Clamp(FOR RESERVOIR TANK INLET HOSE)
1987-06 → 1988-08 ended
YR20 HRF E;CR2#,3#,YR26,28;YR20 HRF +4 ¥330
90467-21005 Clamp(FOR RESERVOIR TANK INLET HOSE)
1987-06 → 1988-08 ended
YR21,3# ¥330
44416 — Tube, Return(FOR STEERING GEAR OUTLET)
44416-28011 Tube, Return(FOR STEERING GEAR OUTLET)
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥6,800
44416-28041 Tube, Return(FOR STEERING GEAR OUTLET)
1985-08 → 1988-08 ended
CR2# ¥4,670
44416-28051 Tube, Return(FOR STEERING GEAR OUTLET)
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥5,700
44416-28071 Tube, Return(FOR STEERING GEAR OUTLET)
1985-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥5,700
44416-28090 Tube, Return(FOR STEERING GEAR OUTLET)
1985-10 → 1988-08 ended
YR3# ¥5,700
44416-28100 Tube, Return(FOR STEERING GEAR OUTLET)
1985-10 → 1988-08 ended
CR3# ¥4,650
44417 — Tube, Return, NO.2
44417-28010 Tube, Return, NO.2
1982-11 → 1983-10 ended
YR2# 4FC,5F —
44417-28011 Tube, Return, NO.2
1983-10 → 1985-08 ended
YR2# 4FC,5F ¥1,090
44417-28030 Tube, Return, NO.2
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥1,240
44417-28040 Tube, Return, NO.2
1985-08 → 1988-08 ended
CR2# ¥1,190
44417-28050 Tube, Return, NO.2
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,000
44417-28070 Tube, Return, NO.2
1985-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥1,190
44417-28090 Tube, Return, NO.2
1985-10 → 1988-08 ended
YR3# ¥1,290
44417-28100 Tube, Return, NO.2
1985-10 → 1988-08 ended
CR3# ¥1,320
44417E — Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
90467-16007 Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥370
44443 — Bracket, Pump
44443-14030 Bracket, Pump
1985-08 → 1988-08 ended
CR2#,30,36 ¥7,600
44443-14030 Bracket, Pump
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥7,600
44443-28011 Bracket, Pump
1982-11 → 1985-08 ended
YR20,26 4FC,5F ¥7,600
44443-28011 Bracket, Pump
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥7,600
44443-28021 Bracket, Pump
1983-05 → 1988-08 ended
YR21,3# ¥7,700
44444 — Stay, Pump, Rear
44444-27010 Stay, Pump, Rear
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥1,980
44444-27010 Stay, Pump, Rear
1985-08 → 1985-11 ended
YR21,26,28,30;YR20 HRF (E,Q);YR20 HRF +4 ¥1,980
44444-27030 Stay, Pump, Rear
1985-11 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,810
44444B — Collar (FOR PUMP REAR STAY)
90387-12031 Collar (FOR PUMP REAR STAY)
1985-11 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥250
44447A — Bracket, Hose Support, NO.1
44447-28010 note Bracket, Hose Support, NO.1
1982-11 → 1985-08 ended
YR2# 4FC,5F —
44447-28020 note Bracket, Hose Support, NO.1
1983-05 → 1988-08 ended
YR21,3# ¥670
44457 — Bracket, Tube Support, NO.1
44457-28020 Bracket, Tube Support, NO.1
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥1,550
44457-28030 Bracket, Tube Support, NO.1
1985-10 → 1988-08 ended
YR3# ¥330
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
