Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

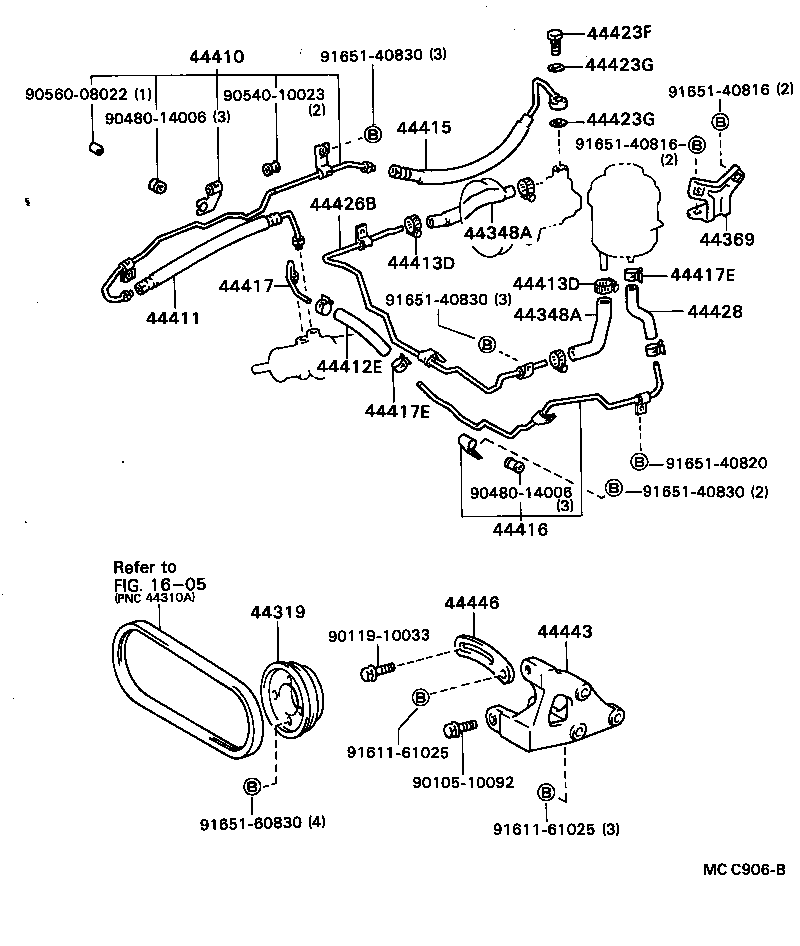

Exploded illustration MCC906B 44423F — BOLT, UNION (1 parts) 9165140830 — not listed in this catalogue 44410 — TUBE ASSY, PRESSURE FEED (12 parts) 44423G — GASKET, UNION BOLT (1 parts) 9165140816 — not listed in this catalogue 9056008022 — not listed in this catalogue 9054010023 — not listed in this catalogue 9048014006 — not listed in this catalogue 44423G — GASKET, UNION BOLT (1 parts) 44415 — HOSE, PRESSURE FEED, NO.2 (2 parts) 9165140816 — not listed in this catalogue 44426B — TUBE, OIL RESERVOIR TO PUMP (4 parts) 44348A — HOSE, OIL RESERVOIR TO PUMP, NO.1 (11 parts) 44369 — BRACKET, OIL RESERVOIR, NO.1 (3 parts) 44413D — CLAMP(FOR RESERVOIR TANK INLET HOSE) (5 parts) 44417E — CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) (1 parts) 44413D — CLAMP(FOR RESERVOIR TANK INLET HOSE) (5 parts) 44417 — TUBE, RETURN, NO.2 (8 parts) 9165140830 — not listed in this catalogue 44428 — HOSE, RETURN, NO.2 (2 parts) 44348A — HOSE, OIL RESERVOIR TO PUMP, NO.1 (11 parts) 44411 — HOSE, PRESSURE FEED (3 parts) 44412E — HOSE, RETURN, NO.2 (5 parts) 44417E — CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) (1 parts) 9165140820 — not listed in this catalogue 9165140830 — not listed in this catalogue 9048014006 — not listed in this catalogue 44416 — TUBE, RETURN(FOR STEERING GEAR OUTLET) (6 parts) 1605 — not listed in this catalogue 44446 — STRUT, ADJUSTING (2 parts) 44319 — PULLEY, VANE PUMP DRIVE (4 parts) 44443 — BRACKET, PUMP (5 parts) 9011910033 — not listed in this catalogue 9161161025 — not listed in this catalogue 9010510092 — not listed in this catalogue 9165160830 — not listed in this catalogue 9161161025 — not listed in this catalogue
MCC906B · 21 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
44319 — Pulley, Vane Pump Drive
44319-27010 Pulley, Vane Pump Drive
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥2,940
44319-27010 Pulley, Vane Pump Drive
1985-08 → 1988-08 ended
CR2#,3# ¥2,940
44319-28013 Pulley, Vane Pump Drive
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥1,920
44319-28013 Pulley, Vane Pump Drive
1985-08 → 1988-08 ended
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 ¥1,920
44348A — Hose, Oil Reservoir TO Pump, NO.1
44348-28010 note Hose, Oil Reservoir TO Pump, NO.1
1982-11 → 1985-08 ended
YR20,26 4FC,5F ¥2,170
44348-28010 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥2,170
44348-28020 note Hose, Oil Reservoir TO Pump, NO.1
1982-11 → 1984-08 ended
YR20,26 4FC,5F ¥4,020
44348-28021 note Hose, Oil Reservoir TO Pump, NO.1
1984-08 → 1985-08 ended
YR20,26 4FC,5F ¥4,030
44348-28021 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥4,030
44348-28030 Hose, Oil Reservoir TO Pump, NO.1
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥2,900
44348-28040 Hose, Oil Reservoir TO Pump, NO.1
1983-05 → 1988-08 ended
YR21,3# ¥6,100
44348-28050 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
CR2# ¥1,670
44348-28060 note Hose, Oil Reservoir TO Pump, NO.1
1985-08 → 1988-08 ended
CR2# ¥1,960
44348-28070 note Hose, Oil Reservoir TO Pump, NO.1
1985-10 → 1988-08 ended
CR3# ¥1,390
44348-28080 note Hose, Oil Reservoir TO Pump, NO.1
1985-10 → 1988-08 ended
CR3# ¥2,210
44369 — Bracket, Oil Reservoir, NO.1
44369-28011 Bracket, Oil Reservoir, NO.1
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥880
44369-28011 Bracket, Oil Reservoir, NO.1
1985-08 → 1988-08 ended
YR21,26,28,30;YR20 HRF (E,Q);YR20 HRF +4 ¥880
44369-28020 Bracket, Oil Reservoir, NO.1
1985-08 → 1988-08 ended
CR2#,3# ¥1,820
44410 — Tube Assy, Pressure Feed
44410-28012 Tube Assy, Pressure Feed
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥20,900
44410-28030 Tube Assy, Pressure Feed
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥29,600
44410-28062 Tube Assy, Pressure Feed
1985-08 → 1986-06 ended
CR2# ¥21,500
44410-28063 Tube Assy, Pressure Feed
1986-06 → 1988-08 ended
CR2# ¥21,600
44410-28072 Tube Assy, Pressure Feed
1985-08 → 1986-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥27,700
44410-28073 Tube Assy, Pressure Feed
1986-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥33,400
44410-28082 Tube Assy, Pressure Feed
1985-08 → 1986-08 ended
YR20,26,28 MTM (B,D) ¥21,500
44410-28083 Tube Assy, Pressure Feed
1986-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥21,600
44410-28090 Tube Assy, Pressure Feed
1985-10 → 1986-08 ended
YR30 ¥27,700
44410-28091 Tube Assy, Pressure Feed
1986-08 → 1987-08 ended
YR3# ¥27,800
44410-28092 Tube Assy, Pressure Feed
1987-08 → 1988-08 ended
YR3# ¥27,400
44410-28100 Tube Assy, Pressure Feed
1985-10 → 1988-08 ended
CR3# ¥13,200
44411 — Hose, Pressure Feed
44411-28010 Hose, Pressure Feed
1983-04 → 1985-05 ended
CR21,27;CR26 N ¥11,500
44411-28011 Hose, Pressure Feed
1985-05 → 1985-08 ended
CR21,27;CR26 N ¥11,500
44411-28020 Hose, Pressure Feed
1985-10 → 1988-08 ended
CR3#,YR3# ¥7,500
44412E — Hose, Return, NO.2
44412-28050 Hose, Return, NO.2
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,140
44412-28070 Hose, Return, NO.2
1985-08 → 1988-08 ended
CR2# ¥1,140
44412-28080 Hose, Return, NO.2
1985-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥1,180
44412-28100 Hose, Return, NO.2
1985-10 → 1988-08 ended
YR3# ¥1,140
44412-28110 Hose, Return, NO.2
1985-10 → 1988-08 ended
CR3# ¥1,140
44413D — Clamp(FOR RESERVOIR TANK INLET HOSE)
90460-01001 Clamp(FOR RESERVOIR TANK INLET HOSE)
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F ¥580
90460-26001 Clamp(FOR RESERVOIR TANK INLET HOSE)
1985-08 → 1987-06 ended
YR21,3# ¥590
90460-26001 Clamp(FOR RESERVOIR TANK INLET HOSE)
1985-08 → 1987-06 ended
CR2#,3#,YR26,28;YR20 HRF (E,Q);YR20 HRF +4 ¥590
90467-21005 Clamp(FOR RESERVOIR TANK INLET HOSE)
1987-06 → 1988-08 ended
YR21,3# ¥330
90467-21005 Clamp(FOR RESERVOIR TANK INLET HOSE)
1987-06 → 1988-08 ended
YR20 HRF E;CR2#,3#,YR26,28;YR20 HRF +4 ¥330
44415 — Hose, Pressure Feed, NO.2
44415-28010 Hose, Pressure Feed, NO.2
1985-08 → 1988-08 ended
CR2# ¥7,800
44415-28020 Hose, Pressure Feed, NO.2
1985-10 → 1988-08 ended
CR3# ¥10,500
44416 — Tube, Return(FOR STEERING GEAR OUTLET)
44416-28011 Tube, Return(FOR STEERING GEAR OUTLET)
1982-11 → 1985-08 ended
YR2# 4FC,5F ¥6,800
44416-28041 Tube, Return(FOR STEERING GEAR OUTLET)
1985-08 → 1988-08 ended
CR2# ¥4,670
44416-28051 Tube, Return(FOR STEERING GEAR OUTLET)
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥5,700
44416-28071 Tube, Return(FOR STEERING GEAR OUTLET)
1985-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥5,700
44416-28090 Tube, Return(FOR STEERING GEAR OUTLET)
1985-10 → 1988-08 ended
YR3# ¥5,700
44416-28100 Tube, Return(FOR STEERING GEAR OUTLET)
1985-10 → 1988-08 ended
CR3# ¥4,650
44417 — Tube, Return, NO.2
44417-28010 Tube, Return, NO.2
1982-11 → 1983-10 ended
YR2# 4FC,5F —
44417-28011 Tube, Return, NO.2
1983-10 → 1985-08 ended
YR2# 4FC,5F ¥1,090
44417-28030 Tube, Return, NO.2
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥1,240
44417-28040 Tube, Return, NO.2
1985-08 → 1988-08 ended
CR2# ¥1,190
44417-28050 Tube, Return, NO.2
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥1,000
44417-28070 Tube, Return, NO.2
1985-08 → 1988-08 ended
YR20,26,28 MTM (B,D) ¥1,190
44417-28090 Tube, Return, NO.2
1985-10 → 1988-08 ended
YR3# ¥1,290
44417-28100 Tube, Return, NO.2
1985-10 → 1988-08 ended
CR3# ¥1,320
44417E — Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
90467-16007 Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥370
44423F — Bolt, Union
90401-16008 Bolt, Union
1985-08 → 1988-08 ended
CR2#,3# ¥610
44423G — Gasket, Union Bolt
90430-16242 Gasket, Union Bolt
1985-08 → 1988-08 ended
CR2#,3# ¥190
44426B — Tube, Oil Reservoir TO Pump
44426-28011 Tube, Oil Reservoir TO Pump
1982-11 → 1985-08 ended
YR20,26 4FC,5F ¥4,130
44426-28011 Tube, Oil Reservoir TO Pump
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥4,130
44426-28021 Tube, Oil Reservoir TO Pump
1985-08 → 1988-08 ended
CR2# ¥5,700
44426-28030 Tube, Oil Reservoir TO Pump
1985-10 → 1988-08 ended
CR3# ¥10,600
44428 — Hose, Return, NO.2
44428-28010 Hose, Return, NO.2
1985-08 → 1988-08 ended
CR2# ¥1,190
44428-28020 Hose, Return, NO.2
1985-10 → 1988-08 ended
CR3# ¥990
44443 — Bracket, Pump
44443-14030 Bracket, Pump
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥7,600
44443-14030 Bracket, Pump
1985-08 → 1988-08 ended
CR2#,30,36 ¥7,600
44443-28011 Bracket, Pump
1982-11 → 1985-08 ended
YR20,26 4FC,5F ¥7,600
44443-28011 Bracket, Pump
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 ¥7,600
44443-28021 Bracket, Pump
1983-05 → 1988-08 ended
YR21,3# ¥7,700
44446 — Strut, Adjusting
44446-14010 Strut, Adjusting
1983-04 → 1985-08 ended
CR21,27;CR26 N ¥640
44446-14010 Strut, Adjusting
1985-08 → 1988-08 ended
CR2#,3# ¥640
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
