Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

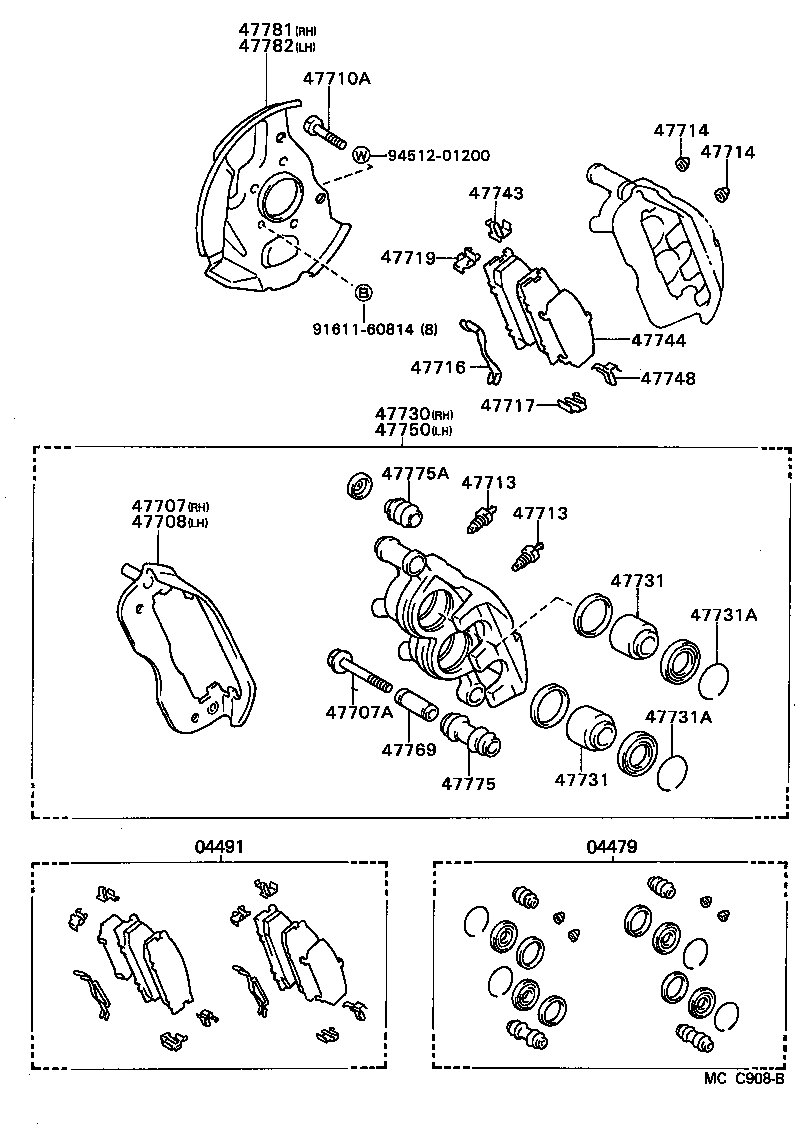

Exploded illustration MCC908B 47781 — COVER, DISC BRAKE DUST, FRONT RH (10 parts) 47782 — COVER, DISC BRAKE DUST, FRONT LH (10 parts) 47710A — BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) (3 parts) 47714 — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (1 parts) 47714 — CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) (1 parts) 9451201200 — not listed in this catalogue 47743 — SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) (1 parts) 47719 — PLATE, FRONT DISC BRAKE PAD GUIDE (1 parts) 9161160814 — not listed in this catalogue 47744 — SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) (8 parts) 47716 — PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) (2 parts) 47748 — SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) (1 parts) 47717 — PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) (6 parts) 47730 — CYLINDER ASSY, FRONT DISC BRAKE, RH (17 parts) 47750 — CYLINDER ASSY, DISC BRAKE, LH (17 parts) 47775A — BOOT, PIN (1 parts) 47713 — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (8 parts) 47707 — PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH (12 parts) 47713 — PLUG, BLEEDER(FOR FRONT DISC BRAKE) (8 parts) 47708 — PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH (12 parts) 47731 — PISTON, FRONT DISC BRAKE (3 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (3 parts) 47707A — BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE) (3 parts) 47731A — RING, SET(FOR FRONT DISC BRAKE PISTON) (3 parts) 47769 — BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) (3 parts) 47731 — PISTON, FRONT DISC BRAKE (3 parts) 47775 — BOOT, BUSH DUST(FOR FRONT DISC BRAKE) (3 parts) 04491 — PAD KIT, DISC BRAKE, FRONT (8 parts) 04479 — CYLINDER KIT, DISC BRAKE, FRONT (4 parts)
MCC908B · 27 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
137 parts on this figure
Part number Description Fitment Price
04479 — Cylinder Kit, Disc Brake, Front
04479-14070 Cylinder Kit, Disc Brake, Front
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥2,010
04479-28010 Cylinder Kit, Disc Brake, Front
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,010
04479-28031 Cylinder Kit, Disc Brake, Front
1986-05 → 1988-08 ended
CR3#,YR3# ¥2,940
04479-28040 Cylinder Kit, Disc Brake, Front
1985-10 → 1986-05 ended
CR3#,YR30 ¥2,950
04491 — Pad Kit, Disc Brake, Front
04491-28020 Pad Kit, Disc Brake, Front
1982-11 → 1982-12 ended
CR26,KR26,YR2# ¥9,000
04491-28020 note Pad Kit, Disc Brake, Front
1982-12 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥9,000
04491-28030 note Pad Kit, Disc Brake, Front
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥8,500
04491-28030 note Pad Kit, Disc Brake, Front
1982-12 → 1984-08 ended
YR20 Q;CR21,YR21 ¥8,500
04491-28030 note Pad Kit, Disc Brake, Front
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥8,500
04491-28070 Pad Kit, Disc Brake, Front
1985-08 → 1986-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥9,700
04491-28071 Pad Kit, Disc Brake, Front
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥9,700
04491-28080 Pad Kit, Disc Brake, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥9,800
47707 — Plate Sub-assy, Disc Brake Torque, Front RH
47707-27030 note Plate Sub-assy, Disc Brake Torque, Front RH
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 B,D,G,N ¥9,100
47707-27030 note Plate Sub-assy, Disc Brake Torque, Front RH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥9,100
47707-27030 note Plate Sub-assy, Disc Brake Torque, Front RH
1986-08 → 1987-08 ended
YR20 HRF E;YR20 HRF +5 ¥9,100
47707-28010 note Plate Sub-assy, Disc Brake Torque, Front RH
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥10,000
47707-28020 note Plate Sub-assy, Disc Brake Torque, Front RH
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥9,300
47707-28020 note Plate Sub-assy, Disc Brake Torque, Front RH
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥9,300
47707-28020 note Plate Sub-assy, Disc Brake Torque, Front RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥9,300
47707-28030 note Plate Sub-assy, Disc Brake Torque, Front RH
1985-08 → 1986-08 ended
CR21 DSL ¥9,100
47707-28030 note Plate Sub-assy, Disc Brake Torque, Front RH
1985-08 → 1986-08 ended
YR20 E,N,R) HRF 5F +5 ¥9,100
47707-28040 Plate Sub-assy, Disc Brake Torque, Front RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥9,200
47707-28060 note Plate Sub-assy, Disc Brake Torque, Front RH
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥9,200
47707-28060 note Plate Sub-assy, Disc Brake Torque, Front RH
1987-08 → 1988-08 ended
CR28 ¥9,200
47707A — Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-08199 note Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
1982-11 → 1982-12 ended
CR26,KR26,YR2# ¥250
90119-08384 note Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
1982-12 → 1988-08 ended
CR2#,KR26,YR2# ¥260
90119-10385 Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥260
47708 — Plate Sub-assy, Disc Brake Torque, Front LH
47708-27030 note Plate Sub-assy, Disc Brake Torque, Front LH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥9,100
47708-27030 note Plate Sub-assy, Disc Brake Torque, Front LH
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 B,D,G,N ¥9,100
47708-27030 note Plate Sub-assy, Disc Brake Torque, Front LH
1986-08 → 1987-08 ended
YR20 HRF E;YR20 HRF +5 ¥9,100
47708-28010 note Plate Sub-assy, Disc Brake Torque, Front LH
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥10,000
47708-28020 note Plate Sub-assy, Disc Brake Torque, Front LH
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥9,300
47708-28020 note Plate Sub-assy, Disc Brake Torque, Front LH
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥9,300
47708-28020 note Plate Sub-assy, Disc Brake Torque, Front LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥9,300
47708-28030 note Plate Sub-assy, Disc Brake Torque, Front LH
1985-08 → 1986-08 ended
YR20 E,N,R) HRF 5F +5 ¥9,100
47708-28030 note Plate Sub-assy, Disc Brake Torque, Front LH
1985-08 → 1986-08 ended
CR21 DSL ¥9,100
47708-28040 Plate Sub-assy, Disc Brake Torque, Front LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥9,200
47708-28060 note Plate Sub-assy, Disc Brake Torque, Front LH
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥9,200
47708-28060 note Plate Sub-assy, Disc Brake Torque, Front LH
1987-08 → 1988-08 ended
CR28 ¥9,200
47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
90101-12010 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥310
90101-12030 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥250
90101-12123 note Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
1985-10 → 1988-08 ended
CR3#,YR3# ¥240
47713 — Plug, Bleeder(FOR FRONT DISC BRAKE)
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1982-11 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 ¥200
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1987-08 → 1988-08 ended
CR28 ¥200
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1986-08 → 1988-08 ended
CR3#,YR3# ¥200
47547-20010 Plug, Bleeder(FOR FRONT DISC BRAKE)
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥200
47547-27030 Plug, Bleeder(FOR FRONT DISC BRAKE)
1986-08 → 1986-10 ended
YR20 HRF E;YR20 HRF +5 ¥180
47547-27040 Plug, Bleeder(FOR FRONT DISC BRAKE)
1986-10 → 1987-08 ended
YR20 HRF E;YR20 HRF +5 ¥300
47547-27040 Plug, Bleeder(FOR FRONT DISC BRAKE)
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥300
47547-27040 Plug, Bleeder(FOR FRONT DISC BRAKE)
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 B,D,G,N ¥300
47714 — Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR20,21,28,3# ¥160
47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47716-28010 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥630
47716-28020 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥400
47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47717-14050 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1982-11 → 1986-11 ended
CR2#,3#,KR26,YR2#,3# ¥400
47717-14050 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1986-11 → 1987-01 ended
CR21 DSL ¥400
47717-14050 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1986-11 → 1987-01 ended
YR20 E,N) HRF 5F +5 ¥400
47718-14090 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1982-11 → 1986-11 ended
CR2#,3#,KR26,YR2#,3# ¥400
47718-14090 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1986-11 → 1987-01 ended
CR21 DSL ¥400
47718-14090 note Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
1986-11 → 1987-01 ended
YR20 E,N) HRF 5F +5 ¥400
47719 — Plate, Front Disc Brake Pad Guide
47736-14030 Plate, Front Disc Brake Pad Guide
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥310
47730 — Cylinder Assy, Front Disc Brake, RH
47730-27040 note Cylinder Assy, Front Disc Brake, RH
1986-08 → 1987-08 ended
YR20 HRF E;YR20 HRF +5 ¥47,700
47730-27040 note Cylinder Assy, Front Disc Brake, RH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥47,700
47730-27040 note Cylinder Assy, Front Disc Brake, RH
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 B,D,G,N ¥47,700
47730-28010 note Cylinder Assy, Front Disc Brake, RH
1982-11 → 1982-12 ended
CR26,KR26,YR2# D,E,G,N,R,X ¥49,600
47730-28011 note Cylinder Assy, Front Disc Brake, RH
1982-12 → 1983-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥44,900
47730-28012 note Cylinder Assy, Front Disc Brake, RH
1983-08 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥49,500
47730-28020 note Cylinder Assy, Front Disc Brake, RH
1982-11 → 1982-12 ended
YR20 Q ¥42,700
47730-28021 note Cylinder Assy, Front Disc Brake, RH
1982-12 → 1983-08 ended
YR20 Q;CR21,YR21 ¥42,700
47730-28030 note Cylinder Assy, Front Disc Brake, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥42,400
47730-28030 note Cylinder Assy, Front Disc Brake, RH
1983-08 → 1984-08 ended
YR20 Q;CR21,YR21 ¥42,400
47730-28030 note Cylinder Assy, Front Disc Brake, RH
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥42,400
47730-28040 note Cylinder Assy, Front Disc Brake, RH
1985-08 → 1986-08 ended
YR20 E,N,R) HRF 5F +5 ¥45,500
47730-28040 note Cylinder Assy, Front Disc Brake, RH
1985-08 → 1986-08 ended
CR21 DSL ¥45,500
47730-28050 note Cylinder Assy, Front Disc Brake, RH
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥45,200
47730-28060 Cylinder Assy, Front Disc Brake, RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥67,400
47730-28100 note Cylinder Assy, Front Disc Brake, RH
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥47,600
47730-28100 Cylinder Assy, Front Disc Brake, RH
1987-08 → 1988-08 ended
CR28 ¥47,600
47731 — Piston, Front Disc Brake
47731-14090 Piston, Front Disc Brake
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,190
47731-28020 Piston, Front Disc Brake
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,160
47731-28030 Piston, Front Disc Brake
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,910
47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON)
90522-49001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1985-10 → 1988-08 ended
CR3#,YR3# ¥180
90522-67001 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥230
90522-69002 Ring, Set(FOR FRONT DISC BRAKE PISTON)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥210
47743 — Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47743-14040 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR20,21,28,3# ¥320
47744 — Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47744-28010 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1982-11 → 1982-12 ended
CR26,KR26,YR2# ¥1,310
47744-28010 note Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1982-12 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥1,310
47744-28020 note Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1982-12 → 1984-08 ended
YR20 Q;CR21,YR21 ¥280
47744-28020 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥280
47744-28020 note Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥280
47744-28020 note Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥280
47744-28040 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1985-10 → 1987-09 ended
CR3#,YR3# ¥260
47744-28050 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
1987-09 → 1988-08 ended
CR3#,YR3# ¥260
47748 — Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748-14050 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥360
47750 — Cylinder Assy, Disc Brake, LH
47750-27040 note Cylinder Assy, Disc Brake, LH
1987-08 → 1988-08 ended
CR21,26,27,KR26,YR26,28 ¥47,700
47750-27040 note Cylinder Assy, Disc Brake, LH
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥47,700
47750-27040 note Cylinder Assy, Disc Brake, LH
1986-08 → 1987-08 ended
YR20 HRF E;YR20 HRF +5 ¥47,700
47750-28010 note Cylinder Assy, Disc Brake, LH
1982-11 → 1982-12 ended
CR26,KR26,YR2# D,E,G,N,R,X ¥49,600
47750-28011 note Cylinder Assy, Disc Brake, LH
1982-12 → 1983-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥44,900
47750-28012 note Cylinder Assy, Disc Brake, LH
1983-08 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥49,500
47750-28020 note Cylinder Assy, Disc Brake, LH
1982-11 → 1982-12 ended
YR20 Q ¥42,700
47750-28021 note Cylinder Assy, Disc Brake, LH
1982-12 → 1983-08 ended
YR20 Q;CR21,YR21 ¥42,700
47750-28030 note Cylinder Assy, Disc Brake, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥42,400
47750-28030 note Cylinder Assy, Disc Brake, LH
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥42,400
47750-28030 note Cylinder Assy, Disc Brake, LH
1983-08 → 1984-08 ended
YR20 Q;CR21,YR21 ¥42,400
47750-28040 note Cylinder Assy, Disc Brake, LH
1985-08 → 1986-08 ended
CR21 DSL ¥45,500
47750-28040 note Cylinder Assy, Disc Brake, LH
1985-08 → 1986-08 ended
YR20 E,N,R) HRF 5F +5 ¥45,500
47750-28050 note Cylinder Assy, Disc Brake, LH
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥45,200
47750-28060 Cylinder Assy, Disc Brake, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥67,400
47750-28100 note Cylinder Assy, Disc Brake, LH
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥47,600
47750-28100 note Cylinder Assy, Disc Brake, LH
1987-08 → 1988-08 ended
CR28 ¥47,600
47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47769-14010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1982-11 → 1982-12 ended
CR26,KR26,YR2# ¥730
47769-28010 note Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1982-12 → 1988-08 ended
CR2#,KR26,YR2# ¥680
47769-28020 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥630
47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775-14010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥780
47775-17010 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥710
47775-28020 Boot, Bush Dust(FOR FRONT DISC BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥710
47775A — Boot, Pin
47776-14010 Boot, Pin
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥670
47781 — Cover, Disc Brake Dust, Front RH
47781-28030 note Cover, Disc Brake Dust, Front RH
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥2,570
47781-28040 note Cover, Disc Brake Dust, Front RH
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥2,430
47781-28040 note Cover, Disc Brake Dust, Front RH
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥2,430
47781-28040 note Cover, Disc Brake Dust, Front RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥2,430
47781-28050 note Cover, Disc Brake Dust, Front RH
1985-08 → 1987-08 ended
YR20 E,N,R) HRF 5F +5 ¥3,420
47781-28050 note Cover, Disc Brake Dust, Front RH
1985-08 → 1988-08 ended
CR21 MRF ¥3,420
47781-28050 note Cover, Disc Brake Dust, Front RH
1987-08 → 1988-08 ended
YR20 ) HRF 5F +5 ¥3,420
47781-28060 note Cover, Disc Brake Dust, Front RH
1985-08 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20,21 +2 ¥3,400
47781-28060 note Cover, Disc Brake Dust, Front RH
1987-08 → 1988-08 ended
CR28 ¥3,400
47781-28080 Cover, Disc Brake Dust, Front RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,390
47782 — Cover, Disc Brake Dust, Front LH
47782-28030 note Cover, Disc Brake Dust, Front LH
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥2,570
47782-28040 note Cover, Disc Brake Dust, Front LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥2,430
47782-28040 note Cover, Disc Brake Dust, Front LH
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥2,430
47782-28040 note Cover, Disc Brake Dust, Front LH
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥2,430
47782-28050 note Cover, Disc Brake Dust, Front LH
1985-08 → 1987-08 ended
YR20 E,N,R) HRF 5F +5 ¥3,420
47782-28050 note Cover, Disc Brake Dust, Front LH
1985-08 → 1988-08 ended
CR21 MRF ¥3,420
47782-28050 note Cover, Disc Brake Dust, Front LH
1987-08 → 1988-08 ended
YR20 ) HRF 5F +5 ¥3,420
47782-28060 note Cover, Disc Brake Dust, Front LH
1985-08 → 1988-08 ended
YR20 HRF 5F G;CR21,YR20,21 +2 ¥3,400
47782-28060 note Cover, Disc Brake Dust, Front LH
1987-08 → 1988-08 ended
CR28 ¥3,400
47782-28080 Cover, Disc Brake Dust, Front LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
