Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

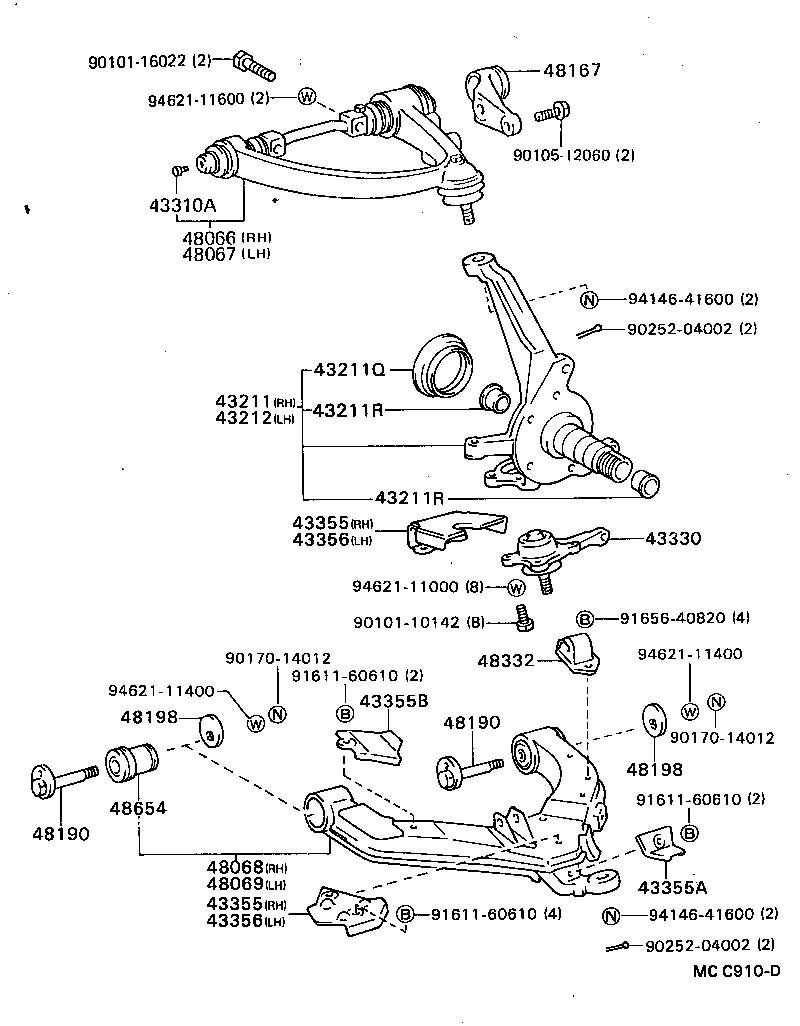

Exploded illustration MCC910D 9010116022 — not listed in this catalogue 48167 — ARM, TORQUE (2 parts) 9462111600 — not listed in this catalogue 9010512060 — not listed in this catalogue 43310A — PLUG (FOR BALL JOINT) (2 parts) 48066 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH (6 parts) 48067 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH (6 parts) 9414641600 — not listed in this catalogue 9025204002 — not listed in this catalogue 43211Q — SEAL, OIL (FOR STEERING KNUCKLE) (2 parts) 43211 — KNUCKLE, STEERING, RH (3 parts) 43211R — BUSH (FOR STEERING KNUCKLE) (2 parts) 43212 — KNUCKLE, STEERING, LH (3 parts) 43211R — BUSH (FOR STEERING KNUCKLE) (2 parts) 43355 — DEFLECTOR, LOWER ARM ICE, RH (14 parts) 43330 — JOINT ASSY, LOWER BALL, FRONT (5 parts) 43356 — DEFLECTOR, LOWER ARM ICE, LH (14 parts) 9462111000 — not listed in this catalogue 9165640820 — not listed in this catalogue 9010110142 — not listed in this catalogue 9462111400 — not listed in this catalogue 9017014012 — not listed in this catalogue 48332 — BUMPER, FRONT SPRING, NO.2 (4 parts) 9161160610 — not listed in this catalogue 9462111400 — not listed in this catalogue 43355B — DEFLECTOR, LOWER ARM ICE, RH (2 parts) 48198 — CAM, CAMBER ADJUST, NO.2 (3 parts) 48190 — CAM ASSY, CAMBER ADJUST (3 parts) 9017014012 — not listed in this catalogue 48198 — CAM, CAMBER ADJUST, NO.2 (3 parts) 9161160610 — not listed in this catalogue 48654 — BUSH, LOWER ARM (5 parts) 48190 — CAM ASSY, CAMBER ADJUST (3 parts) 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (4 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (4 parts) 43355A — DEFLECTOR, LOWER ARM ICE, NO.1 (1 parts) 43355 — DEFLECTOR, LOWER ARM ICE, RH (14 parts) 9161160610 — not listed in this catalogue 9414641600 — not listed in this catalogue 43356 — DEFLECTOR, LOWER ARM ICE, LH (14 parts) 9025204002 — not listed in this catalogue
MCC910D · 24 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
43211 — Knuckle, Steering, RH
43201-28010 Knuckle, Steering, RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥34,700
43211-28020 Knuckle, Steering, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥18,700
43211-28021 Knuckle, Steering, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥18,700
43211Q — Seal, Oil (FOR STEERING KNUCKLE)
90316-60001 Seal, Oil (FOR STEERING KNUCKLE)
1985-10 → 1987-08 ended
CR3#,YR3# ¥1,020
90316-60002 Seal, Oil (FOR STEERING KNUCKLE)
1987-08 → 1988-08 ended
CR3#,YR3# ¥970
43211R — Bush (FOR STEERING KNUCKLE)
90381-30003 note Bush (FOR STEERING KNUCKLE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,550
90999-70068 note Bush (FOR STEERING KNUCKLE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥800
43212 — Knuckle, Steering, LH
43202-28010 Knuckle, Steering, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥34,700
43211-28020 Knuckle, Steering, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥18,700
43211-28021 Knuckle, Steering, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥18,700
43310A — Plug (FOR BALL JOINT)
90345-06014 note Plug (FOR BALL JOINT)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
90345-06014 note Plug (FOR BALL JOINT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥110
43330 — Joint Assy, Lower Ball, Front
43330-29115 note Joint Assy, Lower Ball, Front
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥6,800
43330-29165 note Joint Assy, Lower Ball, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,500
43330-29175 Joint Assy, Lower Ball, Front
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,700
43340-29095 note Joint Assy, Lower Ball, Front
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥6,800
43340-29115 note Joint Assy, Lower Ball, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,500
43355 — Deflector, Lower Arm Ice, RH
43355-27030 note Deflector, Lower Arm Ice, RH
1985-08 → 1985-11 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥5,300
43355-27031 note Deflector, Lower Arm Ice, RH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥5,300
43355-27031 note Deflector, Lower Arm Ice, RH
1986-08 → 1988-08 ended
CR26,27 V4D N ¥5,300
43355-27031 note Deflector, Lower Arm Ice, RH
1985-11 → 1986-08 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥5,300
43355-28010 note Deflector, Lower Arm Ice, RH
1982-11 → 1983-01 ended
YR2# 4FC,5F,5H ¥6,300
43355-28011 note Deflector, Lower Arm Ice, RH
1983-01 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F,5H ¥6,400
43355-28020 note Deflector, Lower Arm Ice, RH
1982-11 → 1983-01 ended
KR26,YR26 4H ¥3,570
43355-28020 note Deflector, Lower Arm Ice, RH
1982-11 → 1983-01 ended
CR26 V4D ¥3,570
43355-28021 note Deflector, Lower Arm Ice, RH
1983-01 → 1985-08 ended
CR26 V4D D ¥3,730
43355-28021 note Deflector, Lower Arm Ice, RH
1983-01 → 1985-08 ended
KR26,YR26 4H ¥3,730
43355-28021 note Deflector, Lower Arm Ice, RH
1985-08 → 1988-08 ended
KR26,YR26 4H ¥3,730
43355-28021 note Deflector, Lower Arm Ice, RH
1985-08 → 1988-08 ended
CR26 V4D ¥3,730
43355-28030 note Deflector, Lower Arm Ice, RH
1985-10 → 1988-08 ended
CR36 V4D;CR30,37,YR3# ¥2,500
43355-28060 note Deflector, Lower Arm Ice, RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,020
43355A — Deflector, Lower Arm Ice, NO.1
43355-28050 Deflector, Lower Arm Ice, NO.1
1985-10 → 1988-08 ended
CR36 V4D;CR30,37,YR3# ¥930
43355B — Deflector, Lower Arm Ice, RH
43355-28040 note Deflector, Lower Arm Ice, RH
1985-10 → 1988-08 ended
CR36 V4D;CR30,37,YR3# ¥2,060
43356-28030 note Deflector, Lower Arm Ice, RH
1985-10 → 1988-08 ended
CR36 V4D;CR30,37,YR3# ¥2,060
43356 — Deflector, Lower Arm Ice, LH
43355-28020 note Deflector, Lower Arm Ice, LH
1982-11 → 1983-01 ended
CR26 V4D ¥3,570
43355-28020 note Deflector, Lower Arm Ice, LH
1982-11 → 1983-01 ended
KR26,YR26 4H ¥3,570
43355-28021 note Deflector, Lower Arm Ice, LH
1985-08 → 1988-08 ended
CR26 V4D ¥3,730
43355-28021 note Deflector, Lower Arm Ice, LH
1985-08 → 1988-08 ended
KR26,YR26 4H ¥3,730
43355-28021 note Deflector, Lower Arm Ice, LH
1983-01 → 1985-08 ended
KR26,YR26 4H ¥3,730
43355-28021 note Deflector, Lower Arm Ice, LH
1983-01 → 1985-08 ended
CR26 V4D D ¥3,730
43355-28060 note Deflector, Lower Arm Ice, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,020
43356-27020 note Deflector, Lower Arm Ice, LH
1985-08 → 1985-11 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥5,300
43356-27021 note Deflector, Lower Arm Ice, LH
1985-11 → 1986-08 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥5,300
43356-27021 note Deflector, Lower Arm Ice, LH
1986-08 → 1988-08 ended
CR26,27 V4D N ¥5,300
43356-27021 note Deflector, Lower Arm Ice, LH
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +5 ¥5,300
43356-28010 note Deflector, Lower Arm Ice, LH
1982-11 → 1983-01 ended
YR2# 4FC,5F,5H ¥6,300
43356-28011 note Deflector, Lower Arm Ice, LH
1983-01 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F,5H ¥6,400
43356-28020 note Deflector, Lower Arm Ice, LH
1985-10 → 1988-08 ended
CR36 V4D;CR30,37,YR3# ¥2,500
48066 — Arm Sub-assy, Front Suspension, Upper RH
48066-28030 Arm Sub-assy, Front Suspension, Upper RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥21,400
48610-27020 Arm Sub-assy, Front Suspension, Upper RH
1985-08 → 1986-08 ended
YR21 Q ¥20,200
48610-27021 Arm Sub-assy, Front Suspension, Upper RH
1986-08 → 1988-08 ended
YR21 Q ¥20,300
48610-28011 Arm Sub-assy, Front Suspension, Upper RH
1985-08 → 1986-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥20,200
48610-28012 Arm Sub-assy, Front Suspension, Upper RH
1986-08 → 1988-08 ended
YR20,21 HRF E;YR20 HRF +4 ¥20,300
48610-28013 Arm Sub-assy, Front Suspension, Upper RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥22,600
48067 — Arm Sub-assy, Front Suspension, Upper LH
48067-28030 Arm Sub-assy, Front Suspension, Upper LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥21,400
48630-27020 Arm Sub-assy, Front Suspension, Upper LH
1985-08 → 1986-08 ended
YR21 Q ¥20,200
48630-27021 Arm Sub-assy, Front Suspension, Upper LH
1986-08 → 1988-08 ended
YR21 Q ¥20,300
48630-28011 Arm Sub-assy, Front Suspension, Upper LH
1985-08 → 1986-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥19,200
48630-28012 Arm Sub-assy, Front Suspension, Upper LH
1986-08 → 1988-08 ended
YR20,21 HRF E;YR20 HRF +4 ¥19,500
48630-28013 Arm Sub-assy, Front Suspension, Upper LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥22,600
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-27050 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥12,800
48068-28020 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥14,200
48068-28030 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1985-10 → 1987-12 ended
CR3#,YR3# ¥21,900
48068-28031 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1987-12 → 1988-08 ended
CR3#,YR3# ¥18,100
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-27050 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥12,800
48069-28020 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥14,200
48069-28030 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1985-10 → 1987-12 ended
CR3#,YR3# ¥21,900
48069-28031 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1987-12 → 1988-08 ended
CR3#,YR3# ¥18,100
48167 — Arm, Torque
48106-28010 Arm, Torque
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥5,400
48106-28020 Arm, Torque
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,750
48190 — Cam Assy, Camber Adjust
48190-20010 Cam Assy, Camber Adjust
1982-11 → 1985-09 ended
CR2#,KR26,YR2# ¥1,050
48190-27010 Cam Assy, Camber Adjust
1985-09 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,050
48190-27010 Cam Assy, Camber Adjust
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,050
48198 — Cam, Camber Adjust, NO.2
48198-20010 Cam, Camber Adjust, NO.2
1982-11 → 1985-09 ended
CR2#,KR26,YR2# ¥550
48198-27010 Cam, Camber Adjust, NO.2
1985-09 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥540
48198-27010 Cam, Camber Adjust, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥540
48332 — Bumper, Front Spring, NO.2
48331-27030 Bumper, Front Spring, NO.2
1985-04 → 1985-08 ended
YR20 HRF 5F G;CR2#,KR26,YR21,26;YR20 +4 ¥1,410
48331-27050 Bumper, Front Spring, NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,260
48331-28020 Bumper, Front Spring, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥850
48331-29045 Bumper, Front Spring, NO.2
1982-11 → 1985-04 ended
CR2#,KR26,YR2# ¥1,320
48654 — Bush, Lower Arm
48061-27010 Bush, Lower Arm
1985-09 → 1986-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,850
48061-27011 Bush, Lower Arm
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,830
48061-28010 Bush, Lower Arm
1982-11 → 1985-09 ended
CR2#,KR26,YR2# ¥4,020
48061-28020 Bush, Lower Arm
1985-10 → 1986-11 ended
CR3#,YR3# ¥3,820
48061-28021 Bush, Lower Arm
1986-11 → 1988-08 ended
CR3#,YR3# ¥3,820
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
