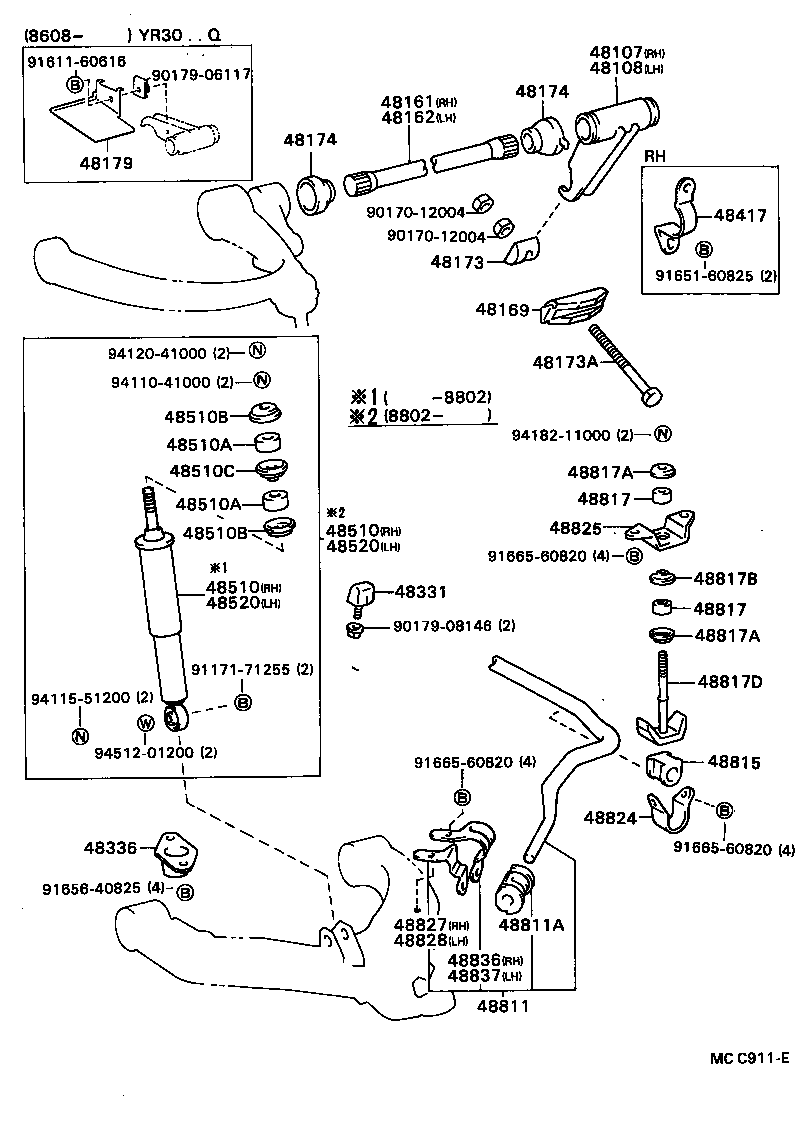

Exploded illustration MCC911E 48107 — ARM SUB-ASSY, ANCHOR, RH (1 parts) 9161160616 — not listed in this catalogue 48108 — ARM SUB-ASSY, ANCHOR, LH (1 parts) 9017906117 — not listed in this catalogue 48174 — COVER, TORSION BAR DUST (2 parts) 48161 — SPRING, TORSION BAR, RH (9 parts) 48162 — SPRING, TORSION BAR, LH (9 parts) 48174 — COVER, TORSION BAR DUST (2 parts) 48179 — PROTECTOR, TORSION BAR DUST COVER, LH (1 parts) 48417 — BRACKET, SPRING (1 parts) 9017012004 — not listed in this catalogue 9017012004 — not listed in this catalogue 48173 — SEAT, ANCHOR ARM ADJUSTER (1 parts) 9165160825 — not listed in this catalogue 48169 — SWIVEL, ANCHOR ARM (2 parts) 9412041000 — not listed in this catalogue 48173A — BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING) (1 parts) 9411041000 — not listed in this catalogue 48510B — RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) (3 parts) 9418211000 — not listed in this catalogue 48510A — CUSHION, FRONT SHOCK ABSORBER (3 parts) 48510C — RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) (2 parts) 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 48817 — CUSHION, FRONT STABILIZER (1 parts) 48510A — CUSHION, FRONT SHOCK ABSORBER (3 parts) 48825 — BRACKET, STABILIZER, NO.2 (1 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (14 parts) 48510B — RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) (3 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (14 parts) 9166560820 — not listed in this catalogue 48817B — RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) (1 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (14 parts) 48331 — BUMPER, FRONT SPRING, NO.1 (2 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (14 parts) 48817 — CUSHION, FRONT STABILIZER (1 parts) 9017908146 — not listed in this catalogue 48817A — RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) (1 parts) 9117171255 — not listed in this catalogue 48817D — BOLT(FOR FRONT STABILIZER) (4 parts) 9411551200 — not listed in this catalogue 9451201200 — not listed in this catalogue 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (7 parts) 9166560820 — not listed in this catalogue 48824 — BRACKET, STABILIZER, FRONT (5 parts) 48336 — BUMPER, FRONT SPRING, NO.2 (1 parts) 9166560820 — not listed in this catalogue 9165640825 — not listed in this catalogue 48827 — BRACKET, FRONT STABILIZER, NO.2 RH (2 parts) 48811A — BUSH(FOR FRONT STABILIZER BAR) (1 parts) 48828 — BRACKET, FRONT STABILIZER, NO.2 LH (2 parts) 48836 — BRACKET, FRONT STABILIZER END, RH (2 parts) 48837 — BRACKET, FRONT STABILIZER END, LH (2 parts) 48811 — BAR, STABILIZER, FRONT (6 parts)
MCC911E · 37 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
48107 — Arm Sub-assy, Anchor, RH
48107-28010 Arm Sub-assy, Anchor, RH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,200
48108 — Arm Sub-assy, Anchor, LH
48108-28010 Arm Sub-assy, Anchor, LH
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥5,200
48161 — Spring, Torsion Bar, RH
48161-28010 Spring, Torsion Bar, RH
1985-08 → 1988-08 ended
CR26,27,28,YR26,28 B,N ¥10,700
48161-28010 Spring, Torsion Bar, RH
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F,5H ¥10,700
48161-28020 Spring, Torsion Bar, RH
1982-11 → 1985-08 ended
KR26 ¥10,900
48161-28020 note Spring, Torsion Bar, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥10,900
48161-28020 Spring, Torsion Bar, RH
1985-08 → 1988-08 ended
CR21,KR26,YR21;YR20 HRF (E,Q);YR20 HRF +4 ¥10,900
48161-28020 note Spring, Torsion Bar, RH
1985-08 → 1988-08 ended
CR28,YR28 ¥10,900
48161-28030 Spring, Torsion Bar, RH
1982-11 → 1988-08 ended
CR26,YR26 D ¥11,400
48161-28030 note Spring, Torsion Bar, RH
1985-08 → 1988-08 ended
CR21,YR21;YR20 HRF (E,Q);YR20 HRF +4 ¥11,400
48161-28040 Spring, Torsion Bar, RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥12,900
48162 — Spring, Torsion Bar, LH
48162-28010 Spring, Torsion Bar, LH
1985-08 → 1988-08 ended
CR26,27,28,YR26,28 B,N ¥10,700
48162-28010 Spring, Torsion Bar, LH
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F,5H ¥10,700
48162-28020 note Spring, Torsion Bar, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥10,900
48162-28020 Spring, Torsion Bar, LH
1985-08 → 1988-08 ended
CR21,KR26,YR21;YR20 HRF (E,Q);YR20 HRF +4 ¥10,900
48162-28020 note Spring, Torsion Bar, LH
1985-08 → 1988-08 ended
CR28,YR28 ¥10,900
48162-28020 Spring, Torsion Bar, LH
1982-11 → 1985-08 ended
KR26 ¥10,900
48162-28030 Spring, Torsion Bar, LH
1982-11 → 1988-08 ended
CR26,YR26 D ¥11,400
48162-28030 note Spring, Torsion Bar, LH
1985-08 → 1988-08 ended
CR21,YR21;YR20 HRF (E,Q);YR20 HRF +4 ¥11,400
48162-28040 Spring, Torsion Bar, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥12,900
48169 — Swivel, Anchor Arm
48169-28010 Swivel, Anchor Arm
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥1,260
48169-28020 Swivel, Anchor Arm
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,600
48173 — Seat, Anchor Arm Adjuster
48173-27010 Seat, Anchor Arm Adjuster
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥440
48173A — Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
90101-12096 Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥710
48174 — Cover, Torsion Bar Dust
48174-27010 note Cover, Torsion Bar Dust
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥670
48175-27010 note Cover, Torsion Bar Dust
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥680
48179 — Protector, Torsion Bar Dust Cover, LH
48179-27010 Protector, Torsion Bar Dust Cover, LH
1986-08 → 1988-08 ended
YR30 Q —
48331 — Bumper, Front Spring, NO.1
48305-30030 Bumper, Front Spring, NO.1
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥750
48305-39015 Bumper, Front Spring, NO.1
1982-11 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 ¥1,000
48336 — Bumper, Front Spring, NO.2
48332-28010 Bumper, Front Spring, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,320
48417 — Bracket, Spring
48417-28030 Bracket, Spring
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥930
48510 — Absorber Assy, Shock, Front RH
48500-28090 Absorber Assy, Shock, Front RH
1985-10 → 1988-02 ended
CR3#,YR3# ¥8,100
48500-28110 Absorber Assy, Shock, Front RH
1985-08 → 1988-02 ended
CR26,YR26 D ¥8,100
48500-28110 Absorber Assy, Shock, Front RH
1985-08 → 1988-02 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
48500-28120 Absorber Assy, Shock, Front RH
1985-08 → 1988-02 ended
CR26,27,YR26 N ¥8,100
48500-29275 Absorber Assy, Shock, Front RH
1982-11 → 1984-08 ended
CR21,YR20,21 ¥8,000
48500-29276 Absorber Assy, Shock, Front RH
1984-08 → 1985-08 ended
CR21,YR20,21 ¥8,000
48500-29285 Absorber Assy, Shock, Front RH
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,R ¥8,000
48500-29286 Absorber Assy, Shock, Front RH
1984-08 → 1985-08 ended
CR26,KR26,YR26 D,R ¥8,000
48500-29295 Absorber Assy, Shock, Front RH
1982-11 → 1984-08 ended
YR26 N ¥8,000
48500-29296 Absorber Assy, Shock, Front RH
1984-08 → 1985-08 ended
CR26,27,YR26 N ¥7,000
48500-29315 Absorber Assy, Shock, Front RH
1988-02 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥8,100
48500-29315 Absorber Assy, Shock, Front RH
1988-02 → 1988-08 ended
CR26,YR26 D ¥8,100
48500-29325 Absorber Assy, Shock, Front RH
1988-02 → 1988-08 ended
CR26,27,YR26 N ¥8,100
48500-29335 Absorber Assy, Shock, Front RH
1988-02 → 1988-08 ended
CR3#,YR3# ¥8,100
48510A — Cushion, Front Shock Absorber
90948-01003 Cushion, Front Shock Absorber
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥220
90948-01003 note Cushion, Front Shock Absorber
1985-10 → 1988-08 ended
CR3#,YR3# ¥220
90948-01029 note Cushion, Front Shock Absorber
1985-10 → 1988-08 ended
CR3#,YR3# ¥230
48510B — Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002 Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
1982-11 → 1988-08 ended
KR26,YR2#,3# ¥170
90948-02002 note Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
1985-10 → 1988-08 ended
CR3#,YR3# ¥170
90948-02076 note Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
1985-10 → 1988-08 ended
CR3#,YR3# ¥200
48510C — Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007 Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥170
90948-02017 Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
1985-10 → 1988-08 ended
CR3#,YR3# ¥320
48520 — Absorber Assy, Shock, Front LH
48500-28090 Absorber Assy, Shock, Front LH
1985-10 → 1988-02 ended
CR3#,YR3# ¥8,100
48500-28110 Absorber Assy, Shock, Front LH
1985-08 → 1988-02 ended
CR26,YR26 D ¥8,100
48500-28110 Absorber Assy, Shock, Front LH
1985-08 → 1988-02 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,100
48500-28120 Absorber Assy, Shock, Front LH
1985-08 → 1988-02 ended
CR26,27,YR26 N ¥8,100
48500-29275 Absorber Assy, Shock, Front LH
1982-11 → 1984-08 ended
CR21,YR20,21 ¥8,000
48500-29276 Absorber Assy, Shock, Front LH
1984-08 → 1985-08 ended
CR21,YR20,21 ¥8,000
48500-29285 Absorber Assy, Shock, Front LH
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,R ¥8,000
48500-29286 Absorber Assy, Shock, Front LH
1984-08 → 1985-08 ended
CR26,KR26,YR26 D,R ¥8,000
48500-29295 Absorber Assy, Shock, Front LH
1982-11 → 1984-08 ended
YR26 N ¥8,000
48500-29296 Absorber Assy, Shock, Front LH
1984-08 → 1985-08 ended
CR26,27,YR26 N ¥7,000
48500-29315 Absorber Assy, Shock, Front LH
1988-02 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥8,100
48500-29315 Absorber Assy, Shock, Front LH
1988-02 → 1988-08 ended
CR26,YR26 D ¥8,100
48500-29325 Absorber Assy, Shock, Front LH
1988-02 → 1988-08 ended
CR26,27,YR26 N ¥8,100
48500-29335 Absorber Assy, Shock, Front LH
1988-02 → 1988-08 ended
CR3#,YR3# ¥8,100
48811 — Bar, Stabilizer, Front
48804-28010 Bar, Stabilizer, Front
1985-10 → 1987-12 ended
CR3#,YR3# ¥16,200
48804-28011 Bar, Stabilizer, Front
1987-12 → 1988-08 ended
CR3#,YR3# ¥17,600
48811-28020 Bar, Stabilizer, Front
1982-11 → 1984-08 ended
CR21,YR20,21 ¥11,800
48811-28030 Bar, Stabilizer, Front
1982-11 → 1985-08 ended
CR26,27,YR26 N —
48811-28050 Bar, Stabilizer, Front
1984-08 → 1985-08 ended
CR21,YR20,21 ¥12,500
48811-28080 Bar, Stabilizer, Front
1985-08 → 1988-08 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥12,400
48811A — Bush(FOR FRONT STABILIZER BAR)
48815-28030 Bush(FOR FRONT STABILIZER BAR)
1985-10 → 1988-08 ended
CR3#,YR3# ¥580
48815 — Bush, Front Stabilizer Bar, NO.1
48815-10080 Bush, Front Stabilizer Bar, NO.1
1984-08 → 1985-08 ended
CR26,27,YR26 N ¥710
48815-14160 Bush, Front Stabilizer Bar, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 ¥590
48815-30050 Bush, Front Stabilizer Bar, NO.1
1982-11 → 1984-08 ended
CR21,YR20,21 ¥380
48815-30060 Bush, Front Stabilizer Bar, NO.1
1982-11 → 1984-08 ended
YR26 N ¥590
48815-30100 Bush, Front Stabilizer Bar, NO.1
1985-08 → 1988-08 ended
CR36 ¥570
48815-30100 Bush, Front Stabilizer Bar, NO.1
1985-08 → 1988-08 ended
CR26,27,YR26 N ¥570
48815-30100 Bush, Front Stabilizer Bar, NO.1
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥570
48817 — Cushion, Front Stabilizer
90948-01002 Cushion, Front Stabilizer
1982-11 → 1988-08 ended
CR26 N;CR21,27,28,3#,YR2#,3# 4FC,5F,5H ¥260
48817A — Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
90948-02004 Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
1982-11 → 1988-08 ended
CR26 N;CR21,27,28,3#,YR2#,3# 4FC,5F,5H ¥170
48817B — Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
90948-02005 Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
1982-11 → 1988-08 ended
CR26 N;CR21,27,28,3#,YR2#,3# 4FC,5F,5H ¥140
48817D — Bolt(FOR FRONT STABILIZER)
48819-27010 note Bolt(FOR FRONT STABILIZER)
1985-11 → 1988-08 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥1,010
48819-28010 Bolt(FOR FRONT STABILIZER)
1985-10 → 1987-12 ended
CR3#,YR3# ¥1,540
48819-28011 Bolt(FOR FRONT STABILIZER)
1987-12 → 1988-08 ended
CR3#,YR3# ¥1,460
90101-10090 Bolt(FOR FRONT STABILIZER)
1982-11 → 1988-08 ended
CR26 N;CR21,27,28,YR2# 4FC,5F,5H ¥380
48824 — Bracket, Stabilizer, Front
48824-27030 note Bracket, Stabilizer, Front
1985-08 → 1988-08 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥1,240
48824-28020 note Bracket, Stabilizer, Front
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F,5H ¥1,380
48824-28030 Bracket, Stabilizer, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥670
48829-27030 note Bracket, Stabilizer, Front
1985-08 → 1988-08 ended
YR20 1,26,28 HRF 4FC,5F,5H +6 ¥1,240
48829-28020 note Bracket, Stabilizer, Front
1982-11 → 1985-08 ended
CR26 N;CR21,27,YR2# 4FC,5F,5H ¥1,380
48825 — Bracket, Stabilizer, NO.2
48825-28020 Bracket, Stabilizer, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥580
48827 — Bracket, Front Stabilizer, NO.2 RH
48827-28010 Bracket, Front Stabilizer, NO.2 RH
1985-10 → 1987-12 ended
CR3#,YR3# ¥330
48827-28011 Bracket, Front Stabilizer, NO.2 RH
1987-12 → 1988-08 ended
CR3#,YR3# ¥610
48828 — Bracket, Front Stabilizer, NO.2 LH
48828-28010 Bracket, Front Stabilizer, NO.2 LH
1985-10 → 1987-12 ended
CR3#,YR3# ¥330
48828-28011 Bracket, Front Stabilizer, NO.2 LH
1987-12 → 1988-08 ended
CR3#,YR3# ¥610
48836 — Bracket, Front Stabilizer End, RH
48836-28010 Bracket, Front Stabilizer End, RH
1985-10 → 1987-12 ended
CR3#,YR3# ¥640
48836-28011 Bracket, Front Stabilizer End, RH
1987-12 → 1988-08 ended
CR3#,YR3# ¥620
48837 — Bracket, Front Stabilizer End, LH
48837-28020 Bracket, Front Stabilizer End, LH
1985-10 → 1987-12 ended
CR3#,YR3# ¥640
48837-28021 Bracket, Front Stabilizer End, LH
1987-12 → 1988-08 ended
CR3#,YR3# ¥620
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
