Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

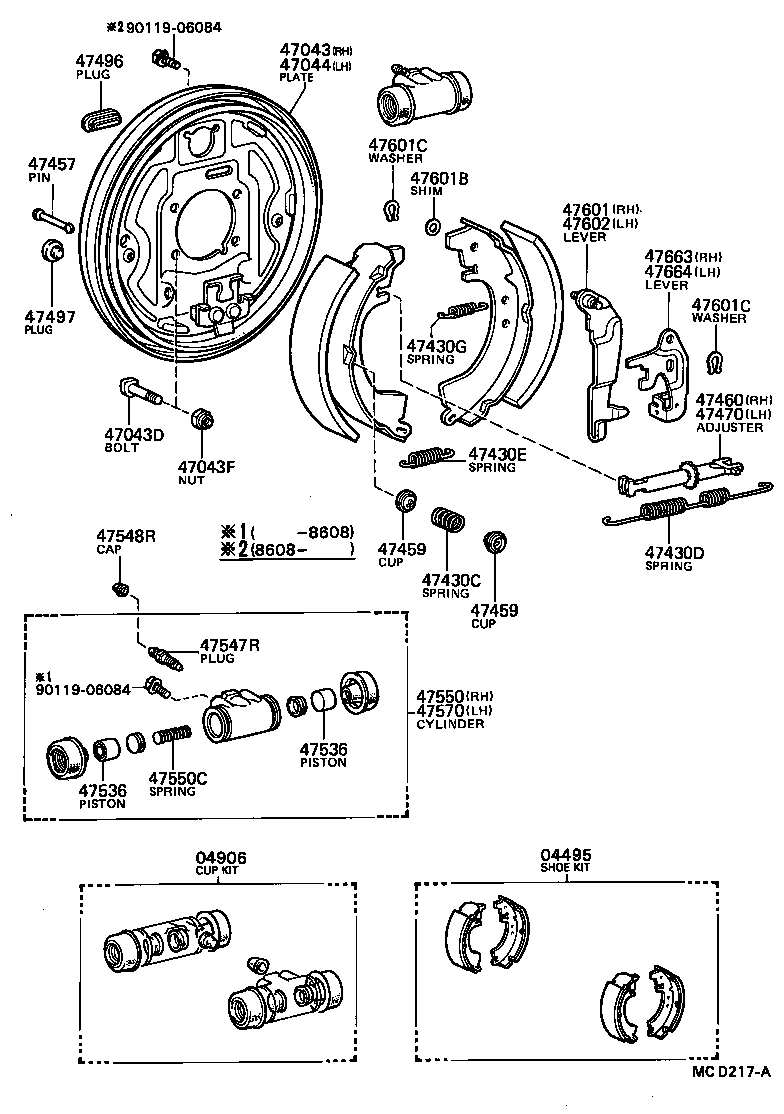

Exploded illustration MCD217A 9011906084 — not listed in this catalogue 47043 — PLATE SUB-ASSY, BRAKE BACKING, REAR RH (3 parts) 47496 — PLUG, HOLE(FOR REAR BRAKE) (1 parts) 47044 — PLATE SUB-ASSY, BRAKE BACKING, REAR LH (3 parts) 47601C — WASHER, C(FOR REAR BRAKE) (2 parts) 47457 — PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (2 parts) 47601B — SHIM, REAR PARKING BRAKE SHOE LEVER (12 parts) 47601 — LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) (2 parts) 47602 — LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) (2 parts) 47663 — LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) (2 parts) 47664 — LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) (2 parts) 47601C — WASHER, C(FOR REAR BRAKE) (2 parts) 47497 — PLUG, HOLE NO.2(FOR REAR BRAKE) (1 parts) 47430G — SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) (2 parts) 47460 — ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) (3 parts) 47470 — ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) (4 parts) 47043D — BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) (2 parts) 47430E — SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) (2 parts) 47043F — NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) (2 parts) 47548R — CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) (1 parts) 47459 — CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (1 parts) 47430D — SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) (2 parts) 47430C — SPRING(FOR REAR BRAKE SHOE HOLD DOWN) (2 parts) 47459 — CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) (1 parts) 47547R — PLUG, BLEEDER(FOR DRUM BRAKE, REAR) (2 parts) 9011906084 — not listed in this catalogue 47550 — CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) (16 parts) 47570 — CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) (16 parts) 47536 — PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) (12 parts) 47550C — SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) (12 parts) 47536 — PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) (12 parts) 04495 — SHOE KIT, REAR BRAKE (5 parts) 04906 — CUP KIT, REAR WHEEL CYLINDER (12 parts)
MCD217A · 31 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
128 parts on this figure
Part number Description Fitment Price
04495 — Shoe Kit, Rear Brake
04495-14020 note Shoe Kit, Rear Brake
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R ¥7,700
04495-20050 note Shoe Kit, Rear Brake
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥8,100
04495-28040 Shoe Kit, Rear Brake
1985-10 → 1988-08 ended
CR3#,YR3# ¥10,600
04497-14020 note Shoe Kit, Rear Brake
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R —
04497-20030 note Shoe Kit, Rear Brake
1982-11 → 1988-08 ended
CR2#,KR26,YR2# —
04906 — Cup Kit, Rear Wheel Cylinder
04906-12040 note Cup Kit, Rear Wheel Cylinder
1982-11 → 1985-08 ended
CR26,YR26 D ¥1,010
04906-12040 note Cup Kit, Rear Wheel Cylinder
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥1,010
04906-12040 note Cup Kit, Rear Wheel Cylinder
1985-08 → 1987-08 ended
YR20 E,N,R) HRF 5F +5 ¥1,010
04906-12040 note Cup Kit, Rear Wheel Cylinder
1985-08 → 1988-08 ended
CR21 MRF ¥1,010
04906-12040 note Cup Kit, Rear Wheel Cylinder
1987-08 → 1988-08 ended
YR20 ) HRF 5F +5 ¥1,010
04906-14010 note Cup Kit, Rear Wheel Cylinder
1982-11 → 1985-08 ended
KR26 ¥1,120
04906-14020 note Cup Kit, Rear Wheel Cylinder
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥1,110
04906-14020 note Cup Kit, Rear Wheel Cylinder
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥1,110
04906-14020 note Cup Kit, Rear Wheel Cylinder
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥1,110
04906-14020 note Cup Kit, Rear Wheel Cylinder
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥1,110
04906-14020 note Cup Kit, Rear Wheel Cylinder
1987-08 → 1988-08 ended
CR28 ¥1,110
04906-30080 Cup Kit, Rear Wheel Cylinder
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,110
47043 — Plate Sub-assy, Brake Backing, Rear RH
47043-28020 Plate Sub-assy, Brake Backing, Rear RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥4,630
47043-28040 Plate Sub-assy, Brake Backing, Rear RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,200
47043-28050 Plate Sub-assy, Brake Backing, Rear RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,700
47043D — Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22011 Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥250
42184-30021 Bolt(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
1985-10 → 1988-08 ended
CR3#,YR3# ¥370
47043F — Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90179-10030 Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
1985-10 → 1988-08 ended
CR3#,YR3# ¥160
94181-11000 Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥180
47044 — Plate Sub-assy, Brake Backing, Rear LH
47044-28020 Plate Sub-assy, Brake Backing, Rear LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥4,630
47044-28040 Plate Sub-assy, Brake Backing, Rear LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,200
47044-28050 Plate Sub-assy, Brake Backing, Rear LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,700
47430C — Spring(FOR REAR BRAKE SHOE HOLD DOWN)
90501-18017 Spring(FOR REAR BRAKE SHOE HOLD DOWN)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥190
90501-20756 Spring(FOR REAR BRAKE SHOE HOLD DOWN)
1985-10 → 1988-08 ended
CR3#,YR3# ¥110
47430D — Spring, Tension(FOR REAR BRAKE SHOE RETURN)
90506-23003 Spring, Tension(FOR REAR BRAKE SHOE RETURN)
1985-10 → 1988-08 ended
CR3#,YR3# ¥390
90506-23375 Spring, Tension(FOR REAR BRAKE SHOE RETURN)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥310
47430E — Spring, Tension(FOR REAR BRAKE SHOE RETURN)
90506-23030 Spring, Tension(FOR REAR BRAKE SHOE RETURN)
1985-10 → 1988-08 ended
CR3#,YR3# ¥300
90506-23346 Spring, Tension(FOR REAR BRAKE SHOE RETURN)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥230
47430G — Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12011 Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥190
90506-12480 Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
1985-10 → 1988-08 ended
CR3#,YR3# ¥260
47457 — Pin, Shoe Hold Down Spring(FOR REAR BRAKE)
47447-20030 Pin, Shoe Hold Down Spring(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥120
47447-30020 Pin, Shoe Hold Down Spring(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥130
47459 — Cup, Shoe Hold Down Spring(FOR REAR BRAKE)
47449-30020 Cup, Shoe Hold Down Spring(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥120
47460 — Adjuster Assy, Shoe, RH(FOR REAR BRAKE)
47061-14021 Adjuster Assy, Shoe, RH(FOR REAR BRAKE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥2,120
47061-14040 Adjuster Assy, Shoe, RH(FOR REAR BRAKE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,170
47062-30020 Adjuster Assy, Shoe, RH(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,010
47470 — Adjuster Assy, Shoe, LH(FOR REAR BRAKE)
47061-30020 Adjuster Assy, Shoe, LH(FOR REAR BRAKE)
1985-10 → 1987-05 ended
CR3#,YR3# ¥2,010
47061-30040 Adjuster Assy, Shoe, LH(FOR REAR BRAKE)
1987-05 → 1988-08 ended
CR3#,YR3# ¥2,010
47062-14021 Adjuster Assy, Shoe, LH(FOR REAR BRAKE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥2,120
47062-14040 Adjuster Assy, Shoe, LH(FOR REAR BRAKE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,130
47496 — Plug, Hole(FOR REAR BRAKE)
47491-20011 Plug, Hole(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥140
47497 — Plug, Hole NO.2(FOR REAR BRAKE)
47492-28010 Plug, Hole NO.2(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥130
47536 — Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
47051-21011 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1982-11 → 1985-08 ended
KR26 ¥590
47051-22020 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥930
47051-22020 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥930
47051-22020 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥930
47051-22020 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1987-08 → 1988-08 ended
CR28 ¥930
47051-22020 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥930
47051-22040 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1987-08 → 1988-08 ended
YR20 ) HRF 5F +5 ¥670
47051-22040 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥670
47051-22040 Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥670
47051-22040 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1985-08 → 1988-08 ended
CR21 MRF ¥670
47051-22040 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1985-08 → 1987-08 ended
YR20 E,N,R) HRF 5F +5 ¥670
47051-22040 note Piston, Wheel Brake Cylinder(FOR REAR BRAKE)
1982-11 → 1985-08 ended
CR26,YR26 D ¥670
47547R — Plug, Bleeder(FOR DRUM BRAKE, REAR)
47547-20010 Plug, Bleeder(FOR DRUM BRAKE, REAR)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥200
47547-20030 Plug, Bleeder(FOR DRUM BRAKE, REAR)
1985-10 → 1988-08 ended
CR3#,YR3# ¥230
47548R — Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
31478-30010 Cap, Bleeder Plug(FOR DRUM BRAKE, REAR)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥160
47550 — Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
47550-12060 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1987-08 → 1988-08 ended
YR20 ) HRF 5F +5 ¥5,700
47550-12060 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1986-08 → 1988-08 ended
CR21 MRF ¥5,700
47550-12060 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1986-08 → 1987-08 ended
YR20 E,N) HRF 5F +5 ¥5,700
47550-14020 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1987-08 → 1988-08 ended
CR28 ¥5,700
47550-14020 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥5,700
47550-19055 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1982-11 → 1985-08 ended
KR26 ¥4,980
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1985-08 → 1986-08 ended
CR21 DSL ¥5,900
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥5,900
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1982-11 → 1985-08 ended
CR26,YR26 D ¥5,900
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1985-08 → 1986-08 ended
YR20 E,N,R) HRF 5F +5 ¥5,900
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥5,700
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥5,700
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥5,700
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥5,700
47550-30120 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1986-08 → 1988-08 ended
CR3#,YR3# ¥5,200
47550-39215 Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER)
1985-10 → 1986-08 ended
CR3#,YR30 ¥5,200
47550C — Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
47509-12020 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1985-08 → 1987-08 ended
YR20 E,N,R) HRF 5F +5 ¥260
47509-12020 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1987-08 → 1988-08 ended
YR20 E,N) HRF 5F +5 ¥260
47509-12020 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1985-08 → 1988-08 ended
CR21 MRF ¥260
47509-12020 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥260
47509-12020 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1982-11 → 1985-08 ended
CR26,YR26 D ¥260
47509-14010 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1982-11 → 1985-08 ended
KR26 ¥370
47509-20010 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥260
47509-20010 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1985-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥260
47509-20010 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥260
47509-20010 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1987-08 → 1988-08 ended
CR28 ¥260
47509-20010 note Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥260
47509-22010 Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER)
1985-10 → 1988-08 ended
CR3#,YR3# ¥600
47570 — Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
47550-12060 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1986-08 → 1987-08 ended
YR20 E,N) HRF 5F +5 ¥5,700
47550-12060 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1986-08 → 1988-08 ended
CR21 MRF ¥5,700
47550-12060 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1987-08 → 1988-08 ended
YR20 ) HRF 5F +5 ¥5,700
47550-14020 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1986-08 → 1988-08 ended
CR21,YR20,21 HRF (E,Q) ¥5,700
47550-14020 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1987-08 → 1988-08 ended
CR28 ¥5,700
47550-19055 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1982-11 → 1985-08 ended
KR26 ¥4,980
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1982-11 → 1985-08 ended
CR26,YR26 D ¥5,900
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥5,900
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1985-08 → 1986-08 ended
YR20 E,N,R) HRF 5F +5 ¥5,900
47550-19135 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1985-08 → 1986-08 ended
CR21 DSL ¥5,900
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1985-08 → 1986-08 ended
CR21,YR20,21 HRF (E,Q) ¥5,700
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1984-08 → 1985-08 ended
YR21;CR21,YR20 E,Q,X;YR20 HRF 5F +1 ¥5,700
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1982-11 → 1984-08 ended
YR20 Q;CR21,YR21 ¥5,700
47550-19145 note Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥5,700
47550-30120 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1986-08 → 1988-08 ended
CR3#,YR3# ¥5,200
47550-39215 Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER)
1985-10 → 1986-08 ended
CR3#,YR30 ¥5,200
47601 — Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
47601-14010 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥620
47601-28010 Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥710
47601B — Shim, Rear Parking Brake Shoe Lever
90564-08150 note Shim, Rear Parking Brake Shoe Lever
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥170
90564-08151 note Shim, Rear Parking Brake Shoe Lever
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥170
90564-08152 note Shim, Rear Parking Brake Shoe Lever
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥170
90564-08172 note Shim, Rear Parking Brake Shoe Lever
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥190
90564-08173 note Shim, Rear Parking Brake Shoe Lever
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥170
90564-08174 note Shim, Rear Parking Brake Shoe Lever
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥170
90564-09001 note Shim, Rear Parking Brake Shoe Lever
1985-10 → 1988-08 ended
CR3#,YR3# ¥80
90564-09002 note Shim, Rear Parking Brake Shoe Lever
1985-10 → 1988-08 ended
CR3#,YR3# ¥70
90564-09003 note Shim, Rear Parking Brake Shoe Lever
1985-10 → 1988-08 ended
CR3#,YR3# ¥70
90564-09184 note Shim, Rear Parking Brake Shoe Lever
1985-10 → 1988-08 ended
CR3#,YR3# ¥90
90564-09185 note Shim, Rear Parking Brake Shoe Lever
1985-10 → 1988-08 ended
CR3#,YR3# ¥90
90564-09186 note Shim, Rear Parking Brake Shoe Lever
1985-10 → 1988-08 ended
CR3#,YR3# ¥90
47601C — Washer, C(FOR REAR BRAKE)
90213-06013 note Washer, C(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,30,36,KR26,YR2#,3# ¥110
90213-07010 note Washer, C(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥110
47602 — Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
47602-14010 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥620
47602-28010 Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥710
47663 — Lever, Automatic Adjust, RH(FOR REAR BRAKE)
47643-20020 Lever, Automatic Adjust, RH(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥480
47644-30010 Lever, Automatic Adjust, RH(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥610
47664 — Lever, Automatic Adjust, LH(FOR REAR BRAKE)
47643-30010 Lever, Automatic Adjust, LH(FOR REAR BRAKE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥440
47644-20020 Lever, Automatic Adjust, LH(FOR REAR BRAKE)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥480
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
