Exploded illustration MCD240D 9017010082 — not listed in this catalogue 9020114005 — not listed in this catalogue 9010114019 — not listed in this catalogue 48167 — ARM, TORQUE (2 parts) 48167A — BOLT(FOR TORQUE ARM SETTING) (1 parts) 9010112090 — not listed in this catalogue 9451201000 — not listed in this catalogue 9020112007 — not listed in this catalogue 48167B — TUBE(FOR TORQUE ARM SETTING BOLT) (1 parts) 48066 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH (6 parts) 48067 — ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH (6 parts) 43310 — JOINT ASSY, UPPER BALL (2 parts) 9017014012 — not listed in this catalogue 48198 — CAM, CAMBER ADJUST, NO.2 (3 parts) 48068 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH (4 parts) 48069 — ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH (4 parts) 9020114005 — not listed in this catalogue 43211 — KNUCKLE, STEERING, RH (3 parts) 43212 — KNUCKLE, STEERING, LH (3 parts) 48190 — CAM ASSY, CAMBER ADJUST (3 parts) 43330 — JOINT ASSY, LOWER BALL, FRONT (5 parts) 48631B — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) (4 parts) 9538103035 — not listed in this catalogue 48632 — BUSH, UPPER ARM (6 parts) 9017116050 — not listed in this catalogue 9453101600 — not listed in this catalogue 9453101400 — not listed in this catalogue 48632 — BUSH, UPPER ARM (6 parts) 9017008015 — not listed in this catalogue 9538103030 — not listed in this catalogue 9020108016 — not listed in this catalogue 43310A — PLUG (FOR BALL JOINT) (2 parts) 48631B — RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) (4 parts) 9017114042 — not listed in this catalogue 9010108039 — not listed in this catalogue 48332 — BUMPER, FRONT SPRING, NO.2 (4 parts) 9017114042 — not listed in this catalogue 9017908146 — not listed in this catalogue 9025203005 — not listed in this catalogue 9010510057 — not listed in this catalogue 9025203006 — not listed in this catalogue 9414671600 — not listed in this catalogue 48654 — BUSH, LOWER ARM (5 parts) 9017910058 — not listed in this catalogue 04485 — SHAFT KIT, UPPER SUSPENSION ARM (3 parts)

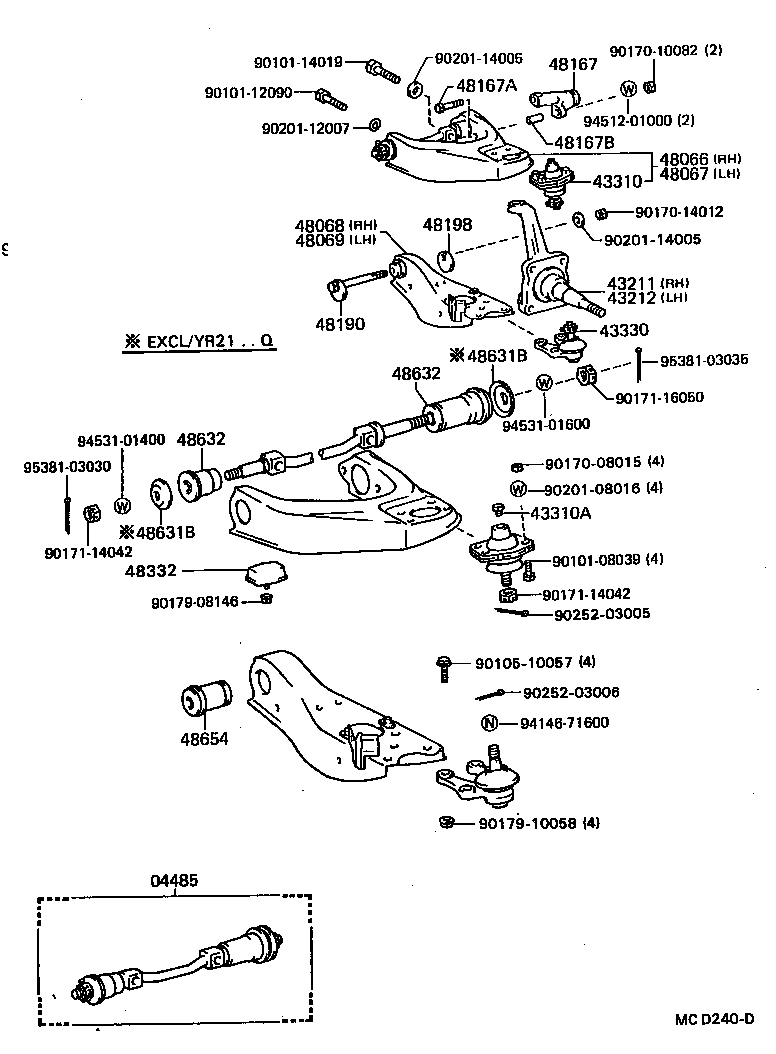

MCD240D · 21 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
04485 — Shaft Kit, Upper Suspension Arm
04485-28020 Shaft Kit, Upper Suspension Arm
1985-08 → 1988-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥6,100
04485-28020 Shaft Kit, Upper Suspension Arm
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥6,100
04485-28021 Shaft Kit, Upper Suspension Arm
1985-08 → 1988-08 ended
YR21 Q ¥8,800
43211 — Knuckle, Steering, RH
43201-28010 Knuckle, Steering, RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥34,700
43211-28020 Knuckle, Steering, RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥18,700
43211-28021 Knuckle, Steering, RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥18,700
43212 — Knuckle, Steering, LH
43202-28010 Knuckle, Steering, LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥34,700
43211-28020 Knuckle, Steering, LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥18,700
43211-28021 Knuckle, Steering, LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥18,700
43310 — Joint Assy, Upper Ball
43350-29036 note Joint Assy, Upper Ball
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥6,500
43360-29056 note Joint Assy, Upper Ball
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥6,500
43310A — Plug (FOR BALL JOINT)
90345-06014 note Plug (FOR BALL JOINT)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥110
90345-06014 note Plug (FOR BALL JOINT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥110
43330 — Joint Assy, Lower Ball, Front
43330-29115 note Joint Assy, Lower Ball, Front
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥6,800
43330-29165 note Joint Assy, Lower Ball, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,500
43330-29175 Joint Assy, Lower Ball, Front
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥5,700
43340-29095 note Joint Assy, Lower Ball, Front
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥6,800
43340-29115 note Joint Assy, Lower Ball, Front
1985-10 → 1988-08 ended
CR3#,YR3# ¥5,500
48066 — Arm Sub-assy, Front Suspension, Upper RH
48066-28030 Arm Sub-assy, Front Suspension, Upper RH
1985-10 → 1988-08 ended
CR3#,YR3# ¥21,400
48610-27020 Arm Sub-assy, Front Suspension, Upper RH
1985-08 → 1986-08 ended
YR21 Q ¥20,200
48610-27021 Arm Sub-assy, Front Suspension, Upper RH
1986-08 → 1988-08 ended
YR21 Q ¥20,300
48610-28011 Arm Sub-assy, Front Suspension, Upper RH
1985-08 → 1986-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥20,200
48610-28012 Arm Sub-assy, Front Suspension, Upper RH
1986-08 → 1988-08 ended
YR20,21 HRF E;YR20 HRF +4 ¥20,300
48610-28013 Arm Sub-assy, Front Suspension, Upper RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥22,600
48067 — Arm Sub-assy, Front Suspension, Upper LH
48067-28030 Arm Sub-assy, Front Suspension, Upper LH
1985-10 → 1988-08 ended
CR3#,YR3# ¥21,400
48630-27020 Arm Sub-assy, Front Suspension, Upper LH
1985-08 → 1986-08 ended
YR21 Q ¥20,200
48630-27021 Arm Sub-assy, Front Suspension, Upper LH
1986-08 → 1988-08 ended
YR21 Q ¥20,300
48630-28011 Arm Sub-assy, Front Suspension, Upper LH
1985-08 → 1986-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥19,200
48630-28012 Arm Sub-assy, Front Suspension, Upper LH
1986-08 → 1988-08 ended
YR20,21 HRF E;YR20 HRF +4 ¥19,500
48630-28013 Arm Sub-assy, Front Suspension, Upper LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥22,600
48068 — Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068-27050 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥12,800
48068-28020 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥14,200
48068-28030 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1985-10 → 1987-12 ended
CR3#,YR3# ¥21,900
48068-28031 Arm Sub-assy, Front Suspension, Lower NO.1 RH
1987-12 → 1988-08 ended
CR3#,YR3# ¥18,100
48069 — Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069-27050 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥12,800
48069-28020 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥14,200
48069-28030 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1985-10 → 1987-12 ended
CR3#,YR3# ¥21,900
48069-28031 Arm Sub-assy, Front Suspension, Lower NO.1 LH
1987-12 → 1988-08 ended
CR3#,YR3# ¥18,100
48167 — Arm, Torque
48106-28010 Arm, Torque
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥5,400
48106-28020 Arm, Torque
1985-10 → 1988-08 ended
CR3#,YR3# ¥4,750
48167A — Bolt(FOR TORQUE ARM SETTING)
91121-71085 Bolt(FOR TORQUE ARM SETTING)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥270
48167B — Tube(FOR TORQUE ARM SETTING BOLT)
90440-17029 Tube(FOR TORQUE ARM SETTING BOLT)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥630
48190 — Cam Assy, Camber Adjust
48190-20010 Cam Assy, Camber Adjust
1982-11 → 1985-09 ended
CR2#,KR26,YR2# ¥1,050
48190-27010 Cam Assy, Camber Adjust
1985-09 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,050
48190-27010 Cam Assy, Camber Adjust
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,050
48198 — Cam, Camber Adjust, NO.2
48198-20010 Cam, Camber Adjust, NO.2
1982-11 → 1985-09 ended
CR2#,KR26,YR2# ¥550
48198-27010 Cam, Camber Adjust, NO.2
1985-09 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥540
48198-27010 Cam, Camber Adjust, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥540
48332 — Bumper, Front Spring, NO.2
48331-27030 Bumper, Front Spring, NO.2
1985-04 → 1985-08 ended
YR20 HRF 5F G;CR2#,KR26,YR21,26;YR20 +4 ¥1,410
48331-27050 Bumper, Front Spring, NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,260
48331-28020 Bumper, Front Spring, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥850
48331-29045 Bumper, Front Spring, NO.2
1982-11 → 1985-04 ended
CR2#,KR26,YR2# ¥1,320
48631B — Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
90948-02048 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥380
90948-02048 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1985-08 → 1988-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥380
90948-02049 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥320
90948-02049 note Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM)
1985-08 → 1988-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥320
48632 — Bush, Upper Arm
48632-27010 note Bush, Upper Arm
1985-08 → 1988-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥1,830
48632-27020 note Bush, Upper Arm
1985-08 → 1988-08 ended
YR21 Q ¥1,570
48632-30040 note Bush, Upper Arm
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,330
48635-27030 note Bush, Upper Arm
1985-08 → 1988-08 ended
YR21 Q ¥3,330
48635-28010 note Bush, Upper Arm
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,480
48635-28010 note Bush, Upper Arm
1985-08 → 1988-08 ended
YR21 E;YR20 HRF (E,Q);YR20 +5 ¥3,480
48654 — Bush, Lower Arm
48061-27010 Bush, Lower Arm
1985-09 → 1986-11 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,850
48061-27011 Bush, Lower Arm
1986-11 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,830
48061-28010 Bush, Lower Arm
1982-11 → 1985-09 ended
CR2#,KR26,YR2# ¥4,020
48061-28020 Bush, Lower Arm
1985-10 → 1986-11 ended
CR3#,YR3# ¥3,820
48061-28021 Bush, Lower Arm
1986-11 → 1988-08 ended
CR3#,YR3# ¥3,820
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
