Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

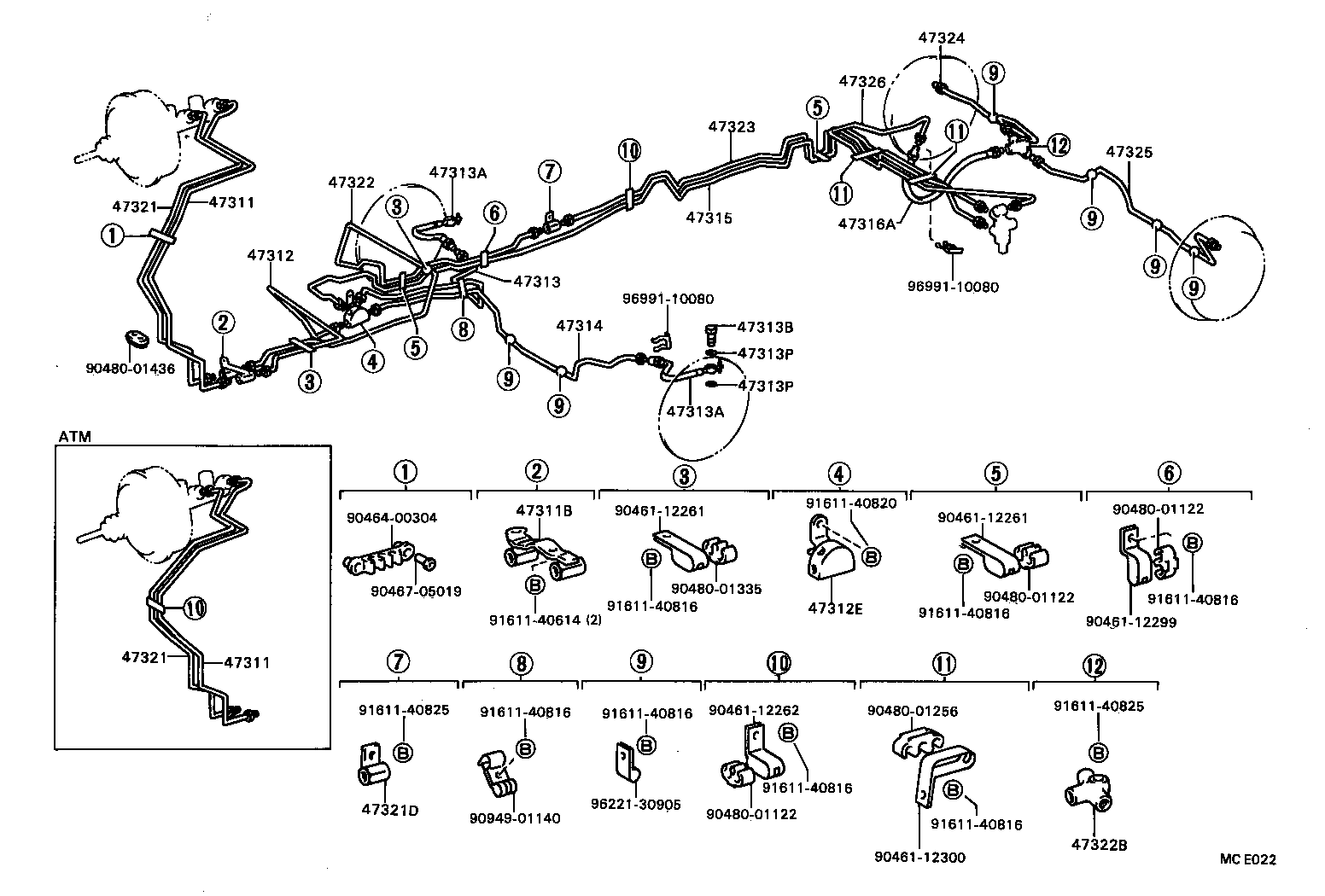

Exploded illustration MCE022 47324 — TUBE, REAR BRAKE, NO.4 (5 parts) 47326 — TUBE, REAR BRAKE, NO.6 (4 parts) 47323 — TUBE, REAR BRAKE, NO.3 (8 parts) 47325 — TUBE, REAR BRAKE, NO.5 (4 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (5 parts) 47322 — TUBE, REAR BRAKE, NO.2 (5 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (10 parts) 47321 — TUBE, REAR BRAKE, NO.1 (10 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (4 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (3 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (2 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (4 parts) 9699110080 — not listed in this catalogue 9699110080 — not listed in this catalogue 47314 — TUBE, FRONT BRAKE, NO.4 (4 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 9048001436 — not listed in this catalogue 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (5 parts) 9161140820 — not listed in this catalogue 9048001122 — not listed in this catalogue 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (1 parts) 9046112261 — not listed in this catalogue 9046400304 — not listed in this catalogue 9046112261 — not listed in this catalogue 9048001335 — not listed in this catalogue 9046705019 — not listed in this catalogue 9048001122 — not listed in this catalogue 9161140816 — not listed in this catalogue 9161140816 — not listed in this catalogue 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (5 parts) 9161140816 — not listed in this catalogue 9161140614 — not listed in this catalogue 9046112299 — not listed in this catalogue 47321 — TUBE, REAR BRAKE, NO.1 (10 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (10 parts) 9161140825 — not listed in this catalogue 9161140825 — not listed in this catalogue 9046112262 — not listed in this catalogue 9048001256 — not listed in this catalogue 9161140816 — not listed in this catalogue 9161140816 — not listed in this catalogue 9161140816 — not listed in this catalogue 9622130905 — not listed in this catalogue 47321D — WAY, NO.1(FOR REAR BRAKE TUBE) (2 parts) 9048001122 — not listed in this catalogue 9094901140 — not listed in this catalogue 9161140816 — not listed in this catalogue 47322B — WAY, NO.2(FOR REAR BRAKE TUBE) (2 parts) 9046112300 — not listed in this catalogue
MCE022 · 23 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-28050 Tube, Front Brake, NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 MTM —
47311-28060 Tube, Front Brake, NO.1
1982-11 → 1985-08 ended
CR26,KR26,YR26 MTM —
47311-28090 Tube, Front Brake, NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 4FC —
47311-28110 Tube, Front Brake, NO.1
1982-11 → 1985-08 ended
CR27,YR26 4FC —
47311-28120 Tube, Front Brake, NO.1
1985-08 → 1988-08 ended
CR21,YR20,21 MTM (D,E,G,Q) ¥1,320
47311-28130 Tube, Front Brake, NO.1
1985-08 → 1988-08 ended
CR21,YR21 4FC;YR20 MRF 4FC;YR20 +3 ¥1,320
47311-28160 Tube, Front Brake, NO.1
1985-08 → 1988-08 ended
CR26,28,KR26,YR26,28 MTM ¥1,320
47311-28170 Tube, Front Brake, NO.1
1985-08 → 1988-08 ended
CR27,28,YR26,28 4FC ¥1,320
47311-28180 Tube, Front Brake, NO.1
1985-10 → 1988-08 ended
CR3#,YR3# 5F ¥1,320
47311-28190 Tube, Front Brake, NO.1
1985-10 → 1988-08 ended
CR30,YR3# 4FC ¥1,320
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10097 Way, NO.1(FOR FRONT BRAKE TUBE)
1982-11 → 1988-08 ended
CR26,27,28,3#,KR26,YR26,28,3# ¥1,440
47312 — Tube, Front Brake, NO.2
47312-28050 Tube, Front Brake, NO.2
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,150
47312-28070 Tube, Front Brake, NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥990
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90413-10129 Way, NO.2(FOR FRONT BRAKE TUBE)
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥920
90413-10183 Way, NO.2(FOR FRONT BRAKE TUBE)
1985-08 → 1986-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,170
90413-10183 Way, NO.2(FOR FRONT BRAKE TUBE)
1986-08 → 1988-08 ended
CR21,YR21;YR20 HRF E;YR20 HRF +4 ¥1,170
90414-10014 Way, NO.2(FOR FRONT BRAKE TUBE)
1985-10 → 1986-08 ended
CR3#,YR30 ¥1,170
90414-10014 Way, NO.2(FOR FRONT BRAKE TUBE)
1986-08 → 1988-08 ended
CR26,27,28,3#,KR26,YR26,28,3# ¥1,170
47313 — Tube, Front Brake, NO.3
47313-28030 Tube, Front Brake, NO.3
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,260
47313-28050 Tube, Front Brake, NO.3
1985-08 → 1986-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥980
47313-28070 Tube, Front Brake, NO.3
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,320
47313-28090 Tube, Front Brake, NO.3
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥990
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02505 note Hose, Flexible, NO.1(FOR FRONT)
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥1,490
96940-32805 note Hose, Flexible, NO.1(FOR FRONT)
1982-11 → 1983-10 ended
CR2#,KR26,YR2# ¥1,190
96940-32855 note Hose, Flexible, NO.1(FOR FRONT)
1983-10 → 1986-08 ended
CR2#,KR26,YR2# ¥1,190
96940-33055 Hose, Flexible, NO.1(FOR FRONT)
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,260
96950-32905 note Hose, Flexible, NO.1(FOR FRONT)
1982-11 → 1985-08 ended
CR26,KR26,YR26 D,R ¥1,190
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10015 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥200
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
90430-10074 Gasket(FOR FRONT FLEXIBLE HOSE)
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥100
47314 — Tube, Front Brake, NO.4
47314-28030 Tube, Front Brake, NO.4
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥1,410
47314-28050 Tube, Front Brake, NO.4
1985-08 → 1986-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,660
47314-28070 Tube, Front Brake, NO.4
1985-10 → 1988-08 ended
CR3#,YR3# ¥2,030
47314-28100 Tube, Front Brake, NO.4
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥1,490
47315 — Tube, Front Brake, NO.5
47315-28060 Tube, Front Brake, NO.5
1986-08 → 1988-08 ended
CR26,27,28 ¥3,470
47315-28080 Tube, Front Brake, NO.5
1985-10 → 1988-08 ended
CR30,YR30 ¥3,100
47315-28090 Tube, Front Brake, NO.5
1985-10 → 1988-08 ended
CR36,37,YR36 ¥3,100
47315-28100 Tube, Front Brake, NO.5
1986-08 → 1988-08 ended
KR26,YR26,28 ¥3,240
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
90947-02442 Hose, Flexible(FOR REAR BRAKE TUBE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥1,600
96940-33105 Hose, Flexible(FOR REAR BRAKE TUBE)
1982-11 → 1988-08 ended
CR21,YR20,21 ¥1,260
96940-33605 Hose, Flexible(FOR REAR BRAKE TUBE)
1985-10 → 1988-08 ended
CR30,YR30 ¥1,320
47321 — Tube, Rear Brake, NO.1
47321-28050 Tube, Rear Brake, NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 MTM —
47321-28060 Tube, Rear Brake, NO.1
1982-11 → 1985-08 ended
CR26,KR26,YR26 MTM —
47321-28090 Tube, Rear Brake, NO.1
1982-11 → 1985-08 ended
CR21,YR20,21 4FC —
47321-28110 Tube, Rear Brake, NO.1
1982-11 → 1985-08 ended
CR27,YR26 4FC —
47321-28120 Tube, Rear Brake, NO.1
1985-08 → 1988-08 ended
CR21,YR20,21 MTM (D,E,G,Q) ¥1,090
47321-28130 Tube, Rear Brake, NO.1
1985-08 → 1988-08 ended
CR21,YR21 4FC;YR20 MRF 4FC;YR20 +3 ¥1,090
47321-28160 Tube, Rear Brake, NO.1
1985-08 → 1988-08 ended
CR26,28,KR26,YR26,28 MTM ¥1,090
47321-28170 Tube, Rear Brake, NO.1
1985-08 → 1988-08 ended
CR27,28,YR26,28 4FC ¥1,090
47321-28180 Tube, Rear Brake, NO.1
1985-10 → 1988-08 ended
CR3#,YR3# 5F ¥1,090
47321-28190 Tube, Rear Brake, NO.1
1985-10 → 1988-08 ended
CR30,YR3# 4FC ¥1,320
47321D — Way, NO.1(FOR REAR BRAKE TUBE)
90412-10063 Way, NO.1(FOR REAR BRAKE TUBE)
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥810
90412-10133 Way, NO.1(FOR REAR BRAKE TUBE)
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,180
47322 — Tube, Rear Brake, NO.2
47322-28050 Tube, Rear Brake, NO.2
1982-11 → 1985-08 ended
CR2#,KR26,YR2# —
47322-28070 Tube, Rear Brake, NO.2
1985-08 → 1986-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,880
47322-28070 Tube, Rear Brake, NO.2
1986-08 → 1988-08 ended
CR2#,YR21;YR20 HRF E;YR20 HRF +4 ¥1,880
47322-28090 Tube, Rear Brake, NO.2
1985-10 → 1988-08 ended
CR3#,YR3# ¥1,670
47322-28110 Tube, Rear Brake, NO.2
1986-08 → 1988-08 ended
KR26,YR26,28 ¥1,880
47322B — Way, NO.2(FOR REAR BRAKE TUBE)
90413-10098 Way, NO.2(FOR REAR BRAKE TUBE)
1982-11 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 ¥1,160
90413-10130 Way, NO.2(FOR REAR BRAKE TUBE)
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥1,070
47323 — Tube, Rear Brake, NO.3
47323-28070 Tube, Rear Brake, NO.3
1982-11 → 1985-08 ended
CR21,YR20,21 —
47323-28080 Tube, Rear Brake, NO.3
1982-11 → 1985-08 ended
CR26,KR26,YR26 —
47323-28090 note Tube, Rear Brake, NO.3
1982-11 → 1985-08 ended
CR26,27,KR26,YR26 —
47323-28120 Tube, Rear Brake, NO.3
1986-08 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥2,380
47323-28140 Tube, Rear Brake, NO.3
1985-08 → 1988-08 ended
CR21,YR21;YR20 HRF (E,Q);YR20 HRF +4 ¥1,650
47323-28150 note Tube, Rear Brake, NO.3
1985-08 → 1986-08 ended
CR26,27,28,KR26,YR26,28 ¥2,740
47323-28170 Tube, Rear Brake, NO.3
1985-10 → 1988-08 ended
CR30,YR30 ¥2,730
47323-28180 Tube, Rear Brake, NO.3
1985-10 → 1988-08 ended
CR36,37,YR36 ¥2,160
47324 — Tube, Rear Brake, NO.4
47324-28030 Tube, Rear Brake, NO.4
1982-11 → 1986-08 ended
CR21,YR20,21 ¥790
47324-28031 Tube, Rear Brake, NO.4
1986-08 → 1988-08 ended
CR21,YR21;YR20 HRF E;YR20 HRF +4 ¥790
47324-28050 Tube, Rear Brake, NO.4
1982-11 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥620
47324-28080 Tube, Rear Brake, NO.4
1985-10 → 1988-08 ended
CR36,37,YR36 ¥480
47324-28090 Tube, Rear Brake, NO.4
1985-10 → 1988-08 ended
CR30,YR30 ¥800
47325 — Tube, Rear Brake, NO.5
47325-28050 Tube, Rear Brake, NO.5
1982-11 → 1988-08 ended
CR21,YR20,21 ¥1,140
47325-28070 Tube, Rear Brake, NO.5
1982-11 → 1988-08 ended
CR26,27,28,KR26,YR26,28 ¥1,140
47325-28100 Tube, Rear Brake, NO.5
1985-10 → 1988-08 ended
CR36,37,YR36 ¥1,480
47325-28110 Tube, Rear Brake, NO.5
1985-10 → 1988-08 ended
CR30,YR30 ¥1,320
47326 — Tube, Rear Brake, NO.6
47326-28050 Tube, Rear Brake, NO.6
1982-11 → 1986-08 ended
CR26,27,28,KR26,YR26,28 ¥1,020
47326-28060 Tube, Rear Brake, NO.6
1985-10 → 1988-08 ended
CR30,37,YR30 ¥980
47326-28080 Tube, Rear Brake, NO.6
1985-10 → 1986-08 ended
CR36 ¥1,090
47326-28080 Tube, Rear Brake, NO.6
1986-08 → 1988-08 ended
CR26,27,28,36,KR26,YR26,28,36 ¥1,090
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
