Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

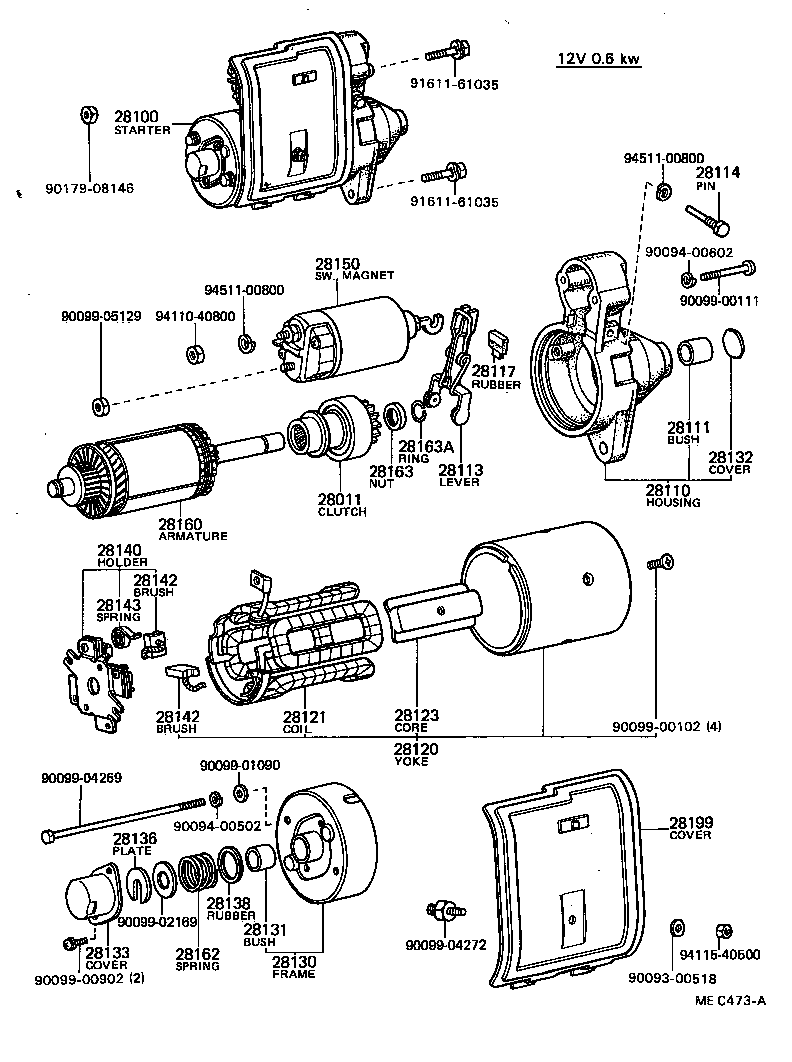

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28011 — Clutch Sub-assy, Starter | ||||
| 28011-13060 note |
Clutch Sub-assy, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥5,100 | |
| 28011-15010 note |
Clutch Sub-assy, Starter
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥5,300 | |
| 28011-22022 note |
Clutch Sub-assy, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28011-26042 note |
Clutch Sub-assy, Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥24,000 | |
| 28011-64010 note |
Clutch Sub-assy, Starter
1982-11 → 1984-08
ended
|
1C,2C CR2# | ¥23,000 | |
| 28011-64010 note |
Clutch Sub-assy, Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥23,000 | |
| 28011-64010 note |
Clutch Sub-assy, Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥23,000 | |
| 28011-64020 note |
Clutch Sub-assy, Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥24,000 | |
| 28011-64020 note |
Clutch Sub-assy, Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥24,000 | |
| 28011-64020 note |
Clutch Sub-assy, Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥24,000 | |
| 28011-64030 note |
Clutch Sub-assy, Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥53,000 | |
| 28100 — Starter Assy | ||||
| 28100-13020 note |
Starter Assy
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥73,000 | |
| 28100-13060 note |
Starter Assy
1985-08 → 1987-06
ended
|
4KJ KR26 | ¥62,100 | |
| 28100-13061 note |
Starter Assy
1987-06 → 1988-08
ended
|
4KJ KR26 | ¥62,100 | |
| 28100-24031 note |
Starter Assy
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥65,600 | |
| 28100-64010 note |
Starter Assy
1982-11 → 1983-09
ended
|
1C,2C CR2# | ¥117,000 | |
| 28100-64020 note |
Starter Assy
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥139,000 | |
| 28100-64020 note |
Starter Assy
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥139,000 | |
| 28100-64020 note |
Starter Assy
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥139,000 | |
| 28100-64030 note |
Starter Assy
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥151,000 | |
| 28100-64040 note |
Starter Assy
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥141,000 | |
| 28100-64100 note |
Starter Assy
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥116,000 | |
| 28100-64100 note |
Starter Assy
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥116,000 | |
| 28100-72010 note |
Starter Assy
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥101,000 | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-13020 note |
Housing Assy, Starter Drive
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥5,400 | |
| 28110-13060 note |
Housing Assy, Starter Drive
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥5,500 | |
| 28110-24010 note |
Housing Assy, Starter Drive
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28110-64070 note |
Housing Assy, Starter Drive
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥6,600 | |
| 28110-64070 note |
Housing Assy, Starter Drive
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥6,600 | |
| 28110-72010 note |
Housing Assy, Starter Drive
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥7,300 | |
| 28115-64010 note |
Housing Assy, Starter Drive
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28115-64020 note |
Housing Assy, Starter Drive
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28115-64020 note |
Housing Assy, Starter Drive
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28115-64020 note |
Housing Assy, Starter Drive
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28115-64030 note |
Housing Assy, Starter Drive
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28115-64040 note |
Housing Assy, Starter Drive
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28111 — Bush(FOR STARTER HOUSING) | ||||
| 28111-51011 note |
Bush(FOR STARTER HOUSING)
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28111-51011 note |
Bush(FOR STARTER HOUSING)
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 90099-10158 note |
Bush(FOR STARTER HOUSING)
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28113 — Lever, Starter Pinion Drive | ||||
| 28113-13060 note |
Lever, Starter Pinion Drive
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥1,110 | |
| 28113-15011 note |
Lever, Starter Pinion Drive
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥1,220 | |
| 28113-41011 note |
Lever, Starter Pinion Drive
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥680 | |
| 28114 — Pin, Starter Drive Lever Set | ||||
| 28114-25010 note |
Pin, Starter Drive Lever Set
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28117 — Rubber(FOR STARTER YOKE) | ||||
| 28117-15050 note |
Rubber(FOR STARTER YOKE)
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 90099-06031 note |
Rubber(FOR STARTER YOKE)
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 90099-14064 note |
Rubber(FOR STARTER YOKE)
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 90099-14064 note |
Rubber(FOR STARTER YOKE)
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-13060 note |
Yoke Assy, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28120-15090 note |
Yoke Assy, Starter
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 28120-15090 note |
Yoke Assy, Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28120-24030 note |
Yoke Assy, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28120-26071 note |
Yoke Assy, Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 28120-26140 note |
Yoke Assy, Starter
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28120-34030 note |
Yoke Assy, Starter
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28120-56081 note |
Yoke Assy, Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28120-64020 note |
Yoke Assy, Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28120-64020 note |
Yoke Assy, Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28120-64020 note |
Yoke Assy, Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28120-64040 note |
Yoke Assy, Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28121 — Coil, Starter Field | ||||
| 28121-22011 note |
Coil, Starter Field
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥6,400 | |
| 28123 — Core, Starter Pole | ||||
| 28123-10011 note |
Core, Starter Pole
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-13020 note |
Frame Assy, Starter Commutator End
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥3,980 | |
| 28130-13060 note |
Frame Assy, Starter Commutator End
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥3,270 | |
| 28130-21011 note |
Frame Assy, Starter Commutator End
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥1,840 | |
| 28130-64030 note |
Frame Assy, Starter Commutator End
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥6,100 | |
| 28130-64100 note |
Frame Assy, Starter Commutator End
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥4,390 | |
| 28130-64100 note |
Frame Assy, Starter Commutator End
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥4,390 | |
| 28130-72010 note |
Frame Assy, Starter Commutator End
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥2,630 | |
| 28131 — Bush, Commutator End Frame | ||||
| 28131-20010 note |
Bush, Commutator End Frame
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥330 | |
| 90099-10039 note |
Bush, Commutator End Frame
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥300 | |
| 90099-10040 note |
Bush, Commutator End Frame
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥300 | |
| 90099-10134 note |
Bush, Commutator End Frame
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 90099-10157 note |
Bush, Commutator End Frame
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28132 — Cover, Starter Bearing(FOR DRIVE HOUSING) | ||||
| 28166-24030 note |
Cover, Starter Bearing(FOR DRIVE HOUSING)
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28133 — Cover, Bearing(FOR END FRAME) | ||||
| 28132-15010 note |
Cover, Bearing(FOR END FRAME)
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28132-41011 note |
Cover, Bearing(FOR END FRAME)
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28136 — Plate, Starter Lock | ||||
| 28136-15010 note |
Plate, Starter Lock
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28136-41011 note |
Plate, Starter Lock
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28138 — Rubber(FOR STARTER BEARING COVER) | ||||
| 28138-15010 note |
Rubber(FOR STARTER BEARING COVER)
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28138-41011 note |
Rubber(FOR STARTER BEARING COVER)
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-15010 note |
Holder Assy, Starter Brush
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28140-15090 note |
Holder Assy, Starter Brush
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28140-15090 note |
Holder Assy, Starter Brush
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 28140-22011 note |
Holder Assy, Starter Brush
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28140-26070 note |
Holder Assy, Starter Brush
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 28140-34030 note |
Holder Assy, Starter Brush
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28140-54070 note |
Holder Assy, Starter Brush
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28140-54070 note |
Holder Assy, Starter Brush
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28140-54070 note |
Holder Assy, Starter Brush
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28140-64040 note |
Holder Assy, Starter Brush
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28140-77090 note |
Holder Assy, Starter Brush
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28142 — Brush, Starter | ||||
| 28142-10011 note |
Brush, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥680 | |
| 28142-10020 note |
Brush, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥370 | |
| 28143 — Spring, Starter Brush | ||||
| 28143-10020 note |
Spring, Starter Brush
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28143-40010 note |
Spring, Starter Brush
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 90099-17112 note |
Spring, Starter Brush
1982-11 → 1988-08
ended
|
1C,2C#,1YJ,2YU,3YEU CR2#,3#,YR2#,3# | — | |
| 90099-17115 note |
Spring, Starter Brush
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 90099-17115 note |
Spring, Starter Brush
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 90099-17115 note |
Spring, Starter Brush
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 90099-17115 note |
Spring, Starter Brush
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-10020 note |
Switch Assy, Magnet Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥8,700 | |
| 28150-15012 note |
Switch Assy, Magnet Starter
1982-11 → 1983-03
ended
|
4KJ KR26 | ¥10,400 | |
| 28150-24060 note |
Switch Assy, Magnet Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥9,100 | |
| 28150-34080 note |
Switch Assy, Magnet Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥25,600 | |
| 28150-37010 note |
Switch Assy, Magnet Starter
1983-03 → 1988-08
ended
|
4KJ KR26 | ¥10,500 | |
| 28150-64010 note |
Switch Assy, Magnet Starter
1982-11 → 1983-09
ended
|
1C,2C CR2# | ¥27,300 | |
| 28150-64020 note |
Switch Assy, Magnet Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥27,100 | |
| 28150-64020 note |
Switch Assy, Magnet Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥27,100 | |
| 28150-64020 note |
Switch Assy, Magnet Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥27,100 | |
| 28150-64030 note |
Switch Assy, Magnet Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥38,900 | |
| 28150-64040 note |
Switch Assy, Magnet Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥25,700 | |
| 28150-64070 note |
Switch Assy, Magnet Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥27,100 | |
| 28150-64070 note |
Switch Assy, Magnet Starter
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥27,100 | |
| 28160 — Armature Assy, Starter | ||||
| 28160-10020 note |
Armature Assy, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥13,400 | |
| 28160-15010 note |
Armature Assy, Starter
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥17,100 | |
| 28160-15090 note |
Armature Assy, Starter
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥24,100 | |
| 28160-15090 note |
Armature Assy, Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥24,100 | |
| 28160-22011 note |
Armature Assy, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥17,600 | |
| 28160-26050 note |
Armature Assy, Starter
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28160-26070 note |
Armature Assy, Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥24,100 | |
| 28160-47040 note |
Armature Assy, Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥55,700 | |
| 28160-54070 note |
Armature Assy, Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥36,200 | |
| 28160-54070 note |
Armature Assy, Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥36,200 | |
| 28160-54070 note |
Armature Assy, Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥36,200 | |
| 28160-64040 note |
Armature Assy, Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥27,100 | |
| 28162 — Spring, Starter Brake | ||||
| 28162-15010 note |
Spring, Starter Brake
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28162-41011 note |
Spring, Starter Brake
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28163 — Nut OR Collar, Pinion Stop, Starter | ||||
| 28163-10020 note |
Nut OR Collar, Pinion Stop, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28163-40011 note |
Nut OR Collar, Pinion Stop, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28163-40011 note |
Nut OR Collar, Pinion Stop, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28163A — Ring, Snap(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 note |
Ring, Snap(FOR STARTER PINION STOP NUT)
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 90099-07047 note |
Ring, Snap(FOR STARTER PINION STOP NUT)
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 90099-07124 note |
Ring, Snap(FOR STARTER PINION STOP NUT)
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28199 — Cover, Starter | ||||
| 28159-13060 note |
Cover, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28199-15110 note |
Cover, Starter
1983-04 → 1988-08
ended
|
4KJ KR26 | — | |
| 28199-24030 note |
Cover, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28199-26131 note |
Cover, Starter
1982-11 → 1983-04
ended
|
4KJ KR26 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
