Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

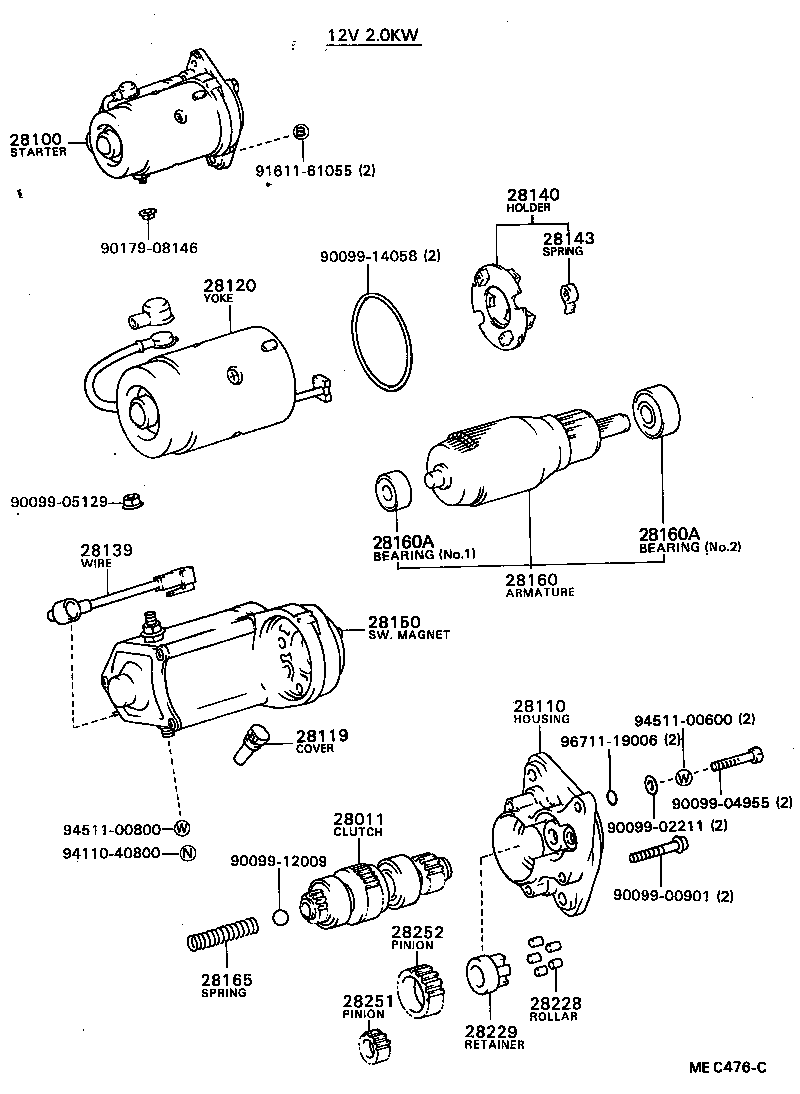

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28011 — Clutch Sub-assy, Starter | ||||
| 28011-13060 note |
Clutch Sub-assy, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥5,100 | |
| 28011-15010 note |
Clutch Sub-assy, Starter
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥5,300 | |
| 28011-22022 note |
Clutch Sub-assy, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28011-26042 note |
Clutch Sub-assy, Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥24,000 | |
| 28011-64010 note |
Clutch Sub-assy, Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥23,000 | |
| 28011-64010 note |
Clutch Sub-assy, Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥23,000 | |
| 28011-64010 note |
Clutch Sub-assy, Starter
1982-11 → 1984-08
ended
|
1C,2C CR2# | ¥23,000 | |
| 28011-64020 note |
Clutch Sub-assy, Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥24,000 | |
| 28011-64020 note |
Clutch Sub-assy, Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥24,000 | |
| 28011-64020 note |
Clutch Sub-assy, Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥24,000 | |
| 28011-64030 note |
Clutch Sub-assy, Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥53,000 | |
| 28100 — Starter Assy | ||||
| 28100-13020 note |
Starter Assy
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥73,000 | |
| 28100-13060 note |
Starter Assy
1985-08 → 1987-06
ended
|
4KJ KR26 | ¥62,100 | |
| 28100-13061 note |
Starter Assy
1987-06 → 1988-08
ended
|
4KJ KR26 | ¥62,100 | |
| 28100-24031 note |
Starter Assy
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥65,600 | |
| 28100-64010 note |
Starter Assy
1982-11 → 1983-09
ended
|
1C,2C CR2# | ¥117,000 | |
| 28100-64020 note |
Starter Assy
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥139,000 | |
| 28100-64020 note |
Starter Assy
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥139,000 | |
| 28100-64020 note |
Starter Assy
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥139,000 | |
| 28100-64030 note |
Starter Assy
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥151,000 | |
| 28100-64040 note |
Starter Assy
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥141,000 | |
| 28100-64100 note |
Starter Assy
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥116,000 | |
| 28100-64100 note |
Starter Assy
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥116,000 | |
| 28100-72010 note |
Starter Assy
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥101,000 | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-13020 note |
Housing Assy, Starter Drive
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥5,400 | |
| 28110-13060 note |
Housing Assy, Starter Drive
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥5,500 | |
| 28110-24010 note |
Housing Assy, Starter Drive
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28110-64070 note |
Housing Assy, Starter Drive
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥6,600 | |
| 28110-64070 note |
Housing Assy, Starter Drive
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥6,600 | |
| 28110-72010 note |
Housing Assy, Starter Drive
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥7,300 | |
| 28115-64010 note |
Housing Assy, Starter Drive
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28115-64020 note |
Housing Assy, Starter Drive
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28115-64020 note |
Housing Assy, Starter Drive
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28115-64020 note |
Housing Assy, Starter Drive
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28115-64030 note |
Housing Assy, Starter Drive
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28115-64040 note |
Housing Assy, Starter Drive
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28119 — Cover, Starter End Frame | ||||
| 28119-54070 note |
Cover, Starter End Frame
1985-10 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28119-54070 note |
Cover, Starter End Frame
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28119-54070 note |
Cover, Starter End Frame
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28119-54070 note |
Cover, Starter End Frame
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28199-15090 note |
Cover, Starter End Frame
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28199-72020 note |
Cover, Starter End Frame
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28199-72020 note |
Cover, Starter End Frame
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 28199-77090 note |
Cover, Starter End Frame
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28199-77090 note |
Cover, Starter End Frame
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-13060 note |
Yoke Assy, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28120-15090 note |
Yoke Assy, Starter
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 28120-15090 note |
Yoke Assy, Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28120-24030 note |
Yoke Assy, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28120-26071 note |
Yoke Assy, Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 28120-26140 note |
Yoke Assy, Starter
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28120-34030 note |
Yoke Assy, Starter
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28120-56081 note |
Yoke Assy, Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28120-64020 note |
Yoke Assy, Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28120-64020 note |
Yoke Assy, Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28120-64020 note |
Yoke Assy, Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28120-64040 note |
Yoke Assy, Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28139 — Wire, Lead, NO.1(FOR STARTER) | ||||
| 28139-64010 note |
Wire, Lead, NO.1(FOR STARTER)
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28139-64080 note |
Wire, Lead, NO.1(FOR STARTER)
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-15010 note |
Holder Assy, Starter Brush
1982-11 → 1988-08
ended
|
4KJ KR26 | — | |
| 28140-15090 note |
Holder Assy, Starter Brush
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 28140-15090 note |
Holder Assy, Starter Brush
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28140-22011 note |
Holder Assy, Starter Brush
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 28140-26070 note |
Holder Assy, Starter Brush
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 28140-34030 note |
Holder Assy, Starter Brush
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28140-54070 note |
Holder Assy, Starter Brush
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28140-54070 note |
Holder Assy, Starter Brush
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28140-54070 note |
Holder Assy, Starter Brush
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28140-64040 note |
Holder Assy, Starter Brush
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28140-77090 note |
Holder Assy, Starter Brush
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28143 — Spring, Starter Brush | ||||
| 28143-10020 note |
Spring, Starter Brush
1985-08 → 1988-08
ended
|
4KJ KR26 | — | |
| 28143-40010 note |
Spring, Starter Brush
1982-11 → 1985-08
ended
|
4KJ KR26 | — | |
| 90099-17112 note |
Spring, Starter Brush
1982-11 → 1988-08
ended
|
1C,2C#,1YJ,2YU,3YEU CR2#,3#,YR2#,3# | — | |
| 90099-17115 note |
Spring, Starter Brush
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 90099-17115 note |
Spring, Starter Brush
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 90099-17115 note |
Spring, Starter Brush
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 90099-17115 note |
Spring, Starter Brush
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-10020 note |
Switch Assy, Magnet Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥8,700 | |
| 28150-15012 note |
Switch Assy, Magnet Starter
1982-11 → 1983-03
ended
|
4KJ KR26 | ¥10,400 | |
| 28150-24060 note |
Switch Assy, Magnet Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥9,100 | |
| 28150-34080 note |
Switch Assy, Magnet Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥25,600 | |
| 28150-37010 note |
Switch Assy, Magnet Starter
1983-03 → 1988-08
ended
|
4KJ KR26 | ¥10,500 | |
| 28150-64010 note |
Switch Assy, Magnet Starter
1982-11 → 1983-09
ended
|
1C,2C CR2# | ¥27,300 | |
| 28150-64020 note |
Switch Assy, Magnet Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥27,100 | |
| 28150-64020 note |
Switch Assy, Magnet Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥27,100 | |
| 28150-64020 note |
Switch Assy, Magnet Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥27,100 | |
| 28150-64030 note |
Switch Assy, Magnet Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥38,900 | |
| 28150-64040 note |
Switch Assy, Magnet Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥25,700 | |
| 28150-64070 note |
Switch Assy, Magnet Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥27,100 | |
| 28150-64070 note |
Switch Assy, Magnet Starter
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥27,100 | |
| 28160 — Armature Assy, Starter | ||||
| 28160-10020 note |
Armature Assy, Starter
1985-08 → 1988-08
ended
|
4KJ KR26 | ¥13,400 | |
| 28160-15010 note |
Armature Assy, Starter
1982-11 → 1988-08
ended
|
4KJ KR26 | ¥17,100 | |
| 28160-15090 note |
Armature Assy, Starter
1983-09 → 1984-08
ended
|
1C,2C CR2# | ¥24,100 | |
| 28160-15090 note |
Armature Assy, Starter
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | ¥24,100 | |
| 28160-22011 note |
Armature Assy, Starter
1982-11 → 1985-08
ended
|
4KJ KR26 | ¥17,600 | |
| 28160-26050 note |
Armature Assy, Starter
1982-11 → 1983-09
ended
|
1C,2C CR2# | — | |
| 28160-26070 note |
Armature Assy, Starter
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | ¥24,100 | |
| 28160-47040 note |
Armature Assy, Starter
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥55,700 | |
| 28160-54070 note |
Armature Assy, Starter
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥36,200 | |
| 28160-54070 note |
Armature Assy, Starter
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥36,200 | |
| 28160-54070 note |
Armature Assy, Starter
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥36,200 | |
| 28160-64040 note |
Armature Assy, Starter
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥27,100 | |
| 28160A — Bearing, Starter Armature | ||||
| 28253-45020 note |
Bearing, Starter Armature
1982-11 → 1983-09
ended
|
1C,2C,1YJ,2YU,3YEU CR2#,YR2# | — | |
| 28253-45020 note |
Bearing, Starter Armature
1983-09 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 28253-54070 note |
Bearing, Starter Armature
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥1,620 | |
| 28253-54070 note |
Bearing, Starter Armature
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥1,620 | |
| 28253-54070 note |
Bearing, Starter Armature
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥1,620 | |
| 28253-54070 note |
Bearing, Starter Armature
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥1,620 | |
| 90099-10107 note |
Bearing, Starter Armature
1982-11 → 1983-09
ended
|
1C,2C CR2# | ¥0 | |
| 90099-10107 note |
Bearing, Starter Armature
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | ¥0 | |
| 90099-10113 note |
Bearing, Starter Armature
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 90099-10119 note |
Bearing, Starter Armature
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 90099-10131 note |
Bearing, Starter Armature
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | ¥510 | |
| 90099-10131 note |
Bearing, Starter Armature
1982-11 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | ¥510 | |
| 90099-10131 note |
Bearing, Starter Armature
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | ¥510 | |
| 90099-10143 note |
Bearing, Starter Armature
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 90099-10143 note |
Bearing, Starter Armature
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 90099-10143 note |
Bearing, Starter Armature
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 90099-10144 note |
Bearing, Starter Armature
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 90099-10144 note |
Bearing, Starter Armature
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28165 — Spring, Starter Magnet Switch Return | ||||
| 28165-26040 note |
Spring, Starter Magnet Switch Return
1982-11 → 1988-08
ended
|
1C,2C#,1YJ,2YU,3YEU CR2#,3#,YR2#,3# | — | |
| 28165-77090 note |
Spring, Starter Magnet Switch Return
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28228 — Roller, Starter Idle Gear Clutch | ||||
| 28228-26040 note |
Roller, Starter Idle Gear Clutch
1982-11 → 1988-08
ended
|
1C,2C#,1YJ,2YU,3YEU CR2#,3#,YR2#,3# | — | |
| 28228-56080 note |
Roller, Starter Idle Gear Clutch
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28229 — Retainer, Starter Idle Gear | ||||
| 28229-26040 note |
Retainer, Starter Idle Gear
1982-11 → 1988-08
ended
|
1C,1YJ,2YU,3YEU CR26,YR2#,3# | — | |
| 28229-56080 note |
Retainer, Starter Idle Gear
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28251 — Pinion, Starter Drive | ||||
| 28251-15090 note |
Pinion, Starter Drive
1983-09 → 1984-08
ended
|
1C,2C CR2# | — | |
| 28251-15090 note |
Pinion, Starter Drive
1984-08 → 1988-08
ended
|
1C,2C# CR21,26,28,3# 5F | — | |
| 28251-54070 note |
Pinion, Starter Drive
1982-11 → 1983-09
ended
|
2C CR21;1C CR26 V4D | — | |
| 28251-54070 note |
Pinion, Starter Drive
1987-08 → 1988-08
ended
|
2C# CR21,27,28,30 4FC | — | |
| 28251-54070 note |
Pinion, Starter Drive
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28251-54070 note |
Pinion, Starter Drive
1986-08 → 1987-08
ended
|
1C,2C# CR2#,3# | — | |
| 28251-54070 note |
Pinion, Starter Drive
1983-09 → 1986-08
ended
|
2C# CR21,27,28,30;1C,2C CR26,36 V4D | — | |
| 28252 — Gear, Starter Idle | ||||
| 28254-45020 note |
Gear, Starter Idle
1982-11 → 1988-08
ended
|
1YJ,2YU,3YEU YR2#,3# | — | |
| 28254-54070 note |
Gear, Starter Idle
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28254-64040 note |
Gear, Starter Idle
1987-08 → 1988-08
ended
|
1C,2C# CR2#,3# | — | |
| 28254-77090 note |
Gear, Starter Idle
1984-08 → 1987-08
ended
|
2C# CR21,27,28,30 4FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
