Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

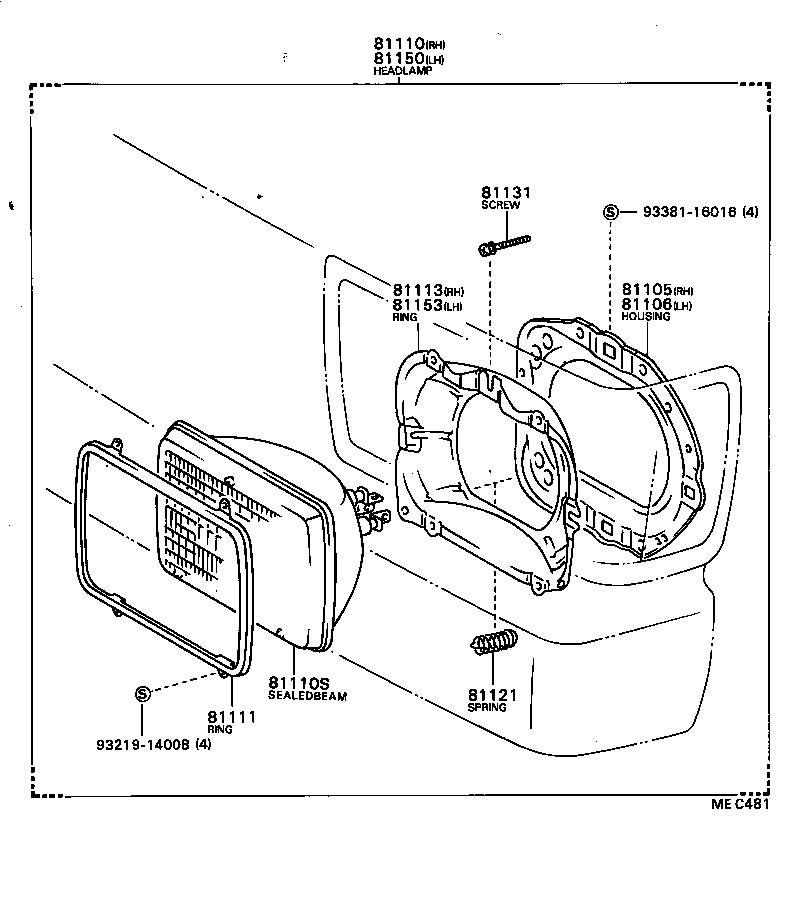

Exploded illustration MEC481 81110 — HEADLAMP ASSY, RH (15 parts) 81150 — HEADLAMP ASSY, LH (15 parts) 81131 — SCREW, HEADLAMP ADJUSTING (4 parts) 9338116016 — not listed in this catalogue 81105 — HOUSING SUB-ASSY, HEADLAMP, RH (3 parts) 81113 — RING, SEALED BEAM MOUNTING, NO.1 RH (2 parts) 81106 — HOUSING SUB-ASSY, HEADLAMP, LH (3 parts) 81153 — RING, SEALED BEAM MOUNTING, NO.1 LH (2 parts) 81110S — SEALED BEAM UNIT, NO.1 (8 parts) 81121 — SPRING, HEADLAMP TENSION (2 parts) 81111 — RING, SEALED BEAM RETAINING (3 parts) 9321914008 — not listed in this catalogue
MEC481 · 10 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
81105 — Housing Sub-assy, Headlamp, RH
81105-87010 Housing Sub-assy, Headlamp, RH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥3,340
81105-87012 Housing Sub-assy, Headlamp, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,710
81105-87015 Housing Sub-assy, Headlamp, RH
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥3,370
81106 — Housing Sub-assy, Headlamp, LH
81106-87010 Housing Sub-assy, Headlamp, LH
1982-11 → 1985-08 ended
CR21,YR20,21 ¥3,340
81106-87012 Housing Sub-assy, Headlamp, LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,710
81106-87015 Housing Sub-assy, Headlamp, LH
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥3,370
81110 — Headlamp Assy, RH
81110-80277 note Headlamp Assy, RH
1982-11 → 1985-08 ended
CR21,YR20 08S,09S ¥27,800
81110-80278 note Headlamp Assy, RH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥29,200
81110-80278 note Headlamp Assy, RH
1984-04 → 1984-05 ended
YR20 HRF E ¥29,200
81110-80278 note Headlamp Assy, RH
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥29,200
81110-80278 note Headlamp Assy, RH
1982-11 → 1985-08 ended
YR21;YR20 07S ¥29,200
81110-80281 note Headlamp Assy, RH
1982-11 → 1985-08 ended
CR21,YR20 08S,09S ¥19,300
81110-80282 note Headlamp Assy, RH
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥31,200
81110-80282 note Headlamp Assy, RH
1982-11 → 1985-08 ended
YR21;YR20 07S ¥31,200
81110-80282 note Headlamp Assy, RH
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥31,200
81110-80282 note Headlamp Assy, RH
1984-04 → 1984-05 ended
YR20 HRF E ¥31,200
81110-80283 Headlamp Assy, RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥13,800
81110-87013 note Headlamp Assy, RH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥25,100
81110-87014 note Headlamp Assy, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥26,300
81110-87015 note Headlamp Assy, RH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥18,700
81110-87016 note Headlamp Assy, RH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥31,100
81110S — Sealed Beam Unit, NO.1
90981-04001 note Sealed Beam Unit, NO.1
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥8,000
90981-05002 note Sealed Beam Unit, NO.1
1982-11 → 1985-08 ended
CR21,YR20 08S,09S ¥5,100
90981-05026 note Sealed Beam Unit, NO.1
1984-04 → 1984-05 ended
YR20 HRF E ¥10,100
90981-05026 note Sealed Beam Unit, NO.1
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥10,100
90981-05026 note Sealed Beam Unit, NO.1
1982-11 → 1985-08 ended
YR21;YR20 07S ¥10,100
90981-05026 note Sealed Beam Unit, NO.1
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥10,100
90981-05034 note Sealed Beam Unit, NO.1
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥5,200
90981-05040 note Sealed Beam Unit, NO.1
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥10,300
81111 — Ring, Sealed Beam Retaining
81111-16020 Ring, Sealed Beam Retaining
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,640
81111-20360 Ring, Sealed Beam Retaining
1982-11 → 1985-08 ended
CR21,YR20,21 ¥1,520
81111-22391 Ring, Sealed Beam Retaining
1985-08 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,380
81113 — Ring, Sealed Beam Mounting, NO.1 RH
81113-16220 Ring, Sealed Beam Mounting, NO.1 RH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,140
81113-87011 note Ring, Sealed Beam Mounting, NO.1 RH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,850
81121 — Spring, Headlamp Tension
81121-14320 Spring, Headlamp Tension
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,30 ¥230
81121-16020 Spring, Headlamp Tension
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥250
81131 — Screw, Headlamp Adjusting
81131-10031 Screw, Headlamp Adjusting
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥240
81131-14670 Screw, Headlamp Adjusting
1982-11 → 1985-08 ended
CR21,YR20,21 ¥230
81131-87015 note Screw, Headlamp Adjusting
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥190
81132-87015 note Screw, Headlamp Adjusting
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥190
81150 — Headlamp Assy, LH
81150-80274 note Headlamp Assy, LH
1982-11 → 1985-08 ended
CR21,YR20 08S,09S ¥27,800
81150-80275 note Headlamp Assy, LH
1983-10 → 1983-11 ended
YR20 MRF 5F G ¥29,200
81150-80275 note Headlamp Assy, LH
1984-04 → 1984-05 ended
YR20 HRF E ¥29,200
81150-80275 note Headlamp Assy, LH
1982-11 → 1985-08 ended
YR21;YR20 07S ¥29,200
81150-80275 note Headlamp Assy, LH
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥29,200
81150-80278 note Headlamp Assy, LH
1982-11 → 1985-08 ended
CR21,YR20 08S,09S ¥19,300
81150-80279 note Headlamp Assy, LH
1985-04 → 1985-08 ended
CR21,YR20 HRF E ¥31,200
81150-80279 note Headlamp Assy, LH
1985-01 → 1985-02 ended
CR21,YR20 HRF E ¥31,200
81150-80279 note Headlamp Assy, LH
1982-11 → 1985-08 ended
YR21;YR20 07S ¥31,200
81150-80279 note Headlamp Assy, LH
1984-04 → 1984-05 ended
YR20 HRF E ¥31,200
81150-80280 Headlamp Assy, LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥13,800
81150-87013 note Headlamp Assy, LH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥25,100
81150-87014 note Headlamp Assy, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥26,300
81150-87015 note Headlamp Assy, LH
1985-08 → 1988-08 ended
YR20 MRF (D,G);YR20 HRF +3 ¥18,700
81150-87016 note Headlamp Assy, LH
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥31,100
81153 — Ring, Sealed Beam Mounting, NO.1 LH
81153-16220 Ring, Sealed Beam Mounting, NO.1 LH
1982-11 → 1988-08 ended
CR26,27,36,KR26,YR26 ¥1,140
81153-87011 note Ring, Sealed Beam Mounting, NO.1 LH
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,850
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
