Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

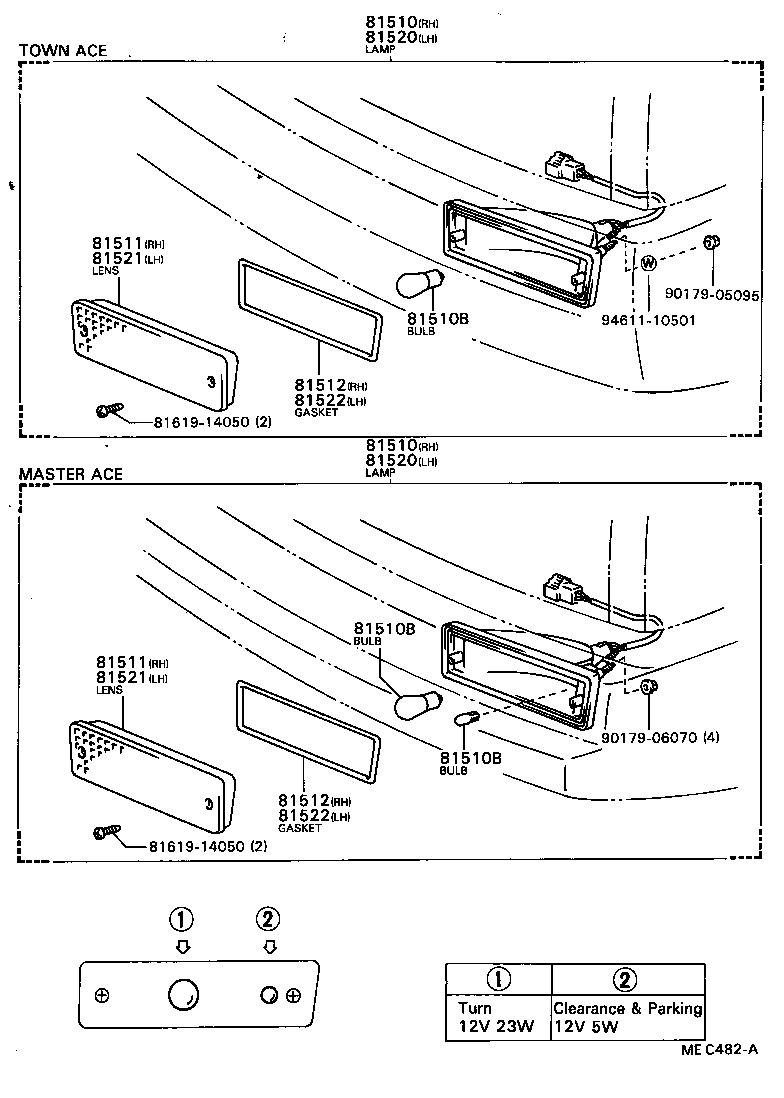

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81510 — Lamp Assy, Front Turn Signal, RH | ||||
| 81510-29805 note |
Lamp Assy, Front Turn Signal, RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥4,690 | |
| 81510-29805 note |
Lamp Assy, Front Turn Signal, RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥4,690 | |
| 81510-29825 note |
Lamp Assy, Front Turn Signal, RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥5,700 | |
| 81510-29865 note |
Lamp Assy, Front Turn Signal, RH
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥4,370 | |
| 81510-29865 note |
Lamp Assy, Front Turn Signal, RH
1984-08 → 1985-08
ended
|
CR21 E | ¥4,370 | |
| 81510-29865 note |
Lamp Assy, Front Turn Signal, RH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥4,370 | |
| 81510-80031 note |
Lamp Assy, Front Turn Signal, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,100 | |
| 81510-80032 note |
Lamp Assy, Front Turn Signal, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,800 | |
| 81510B — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11230 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 99132-12050 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥110 | |
| 99132-12050 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥110 | |
| 81511 — Lens, Front Turn Signal Lamp, RH | ||||
| 81511-87004 |
Lens, Front Turn Signal Lamp, RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,460 | |
| 81511-87004 |
Lens, Front Turn Signal Lamp, RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥1,460 | |
| 81511-87009 note |
Lens, Front Turn Signal Lamp, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥960 | |
| 81511-87010 note |
Lens, Front Turn Signal Lamp, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,100 | |
| 81512 — Gasket, Front Turn Signal Lamp Lens, RH | ||||
| 81512-87004 |
Gasket, Front Turn Signal Lamp Lens, RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥650 | |
| 81512-87004 |
Gasket, Front Turn Signal Lamp Lens, RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 81512-87009 note |
Gasket, Front Turn Signal Lamp Lens, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥640 | |
| 81520 — Lamp Assy, Front Turn Signal, LH | ||||
| 81520-29795 note |
Lamp Assy, Front Turn Signal, LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥4,690 | |
| 81520-29795 note |
Lamp Assy, Front Turn Signal, LH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥4,690 | |
| 81520-29815 note |
Lamp Assy, Front Turn Signal, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥5,700 | |
| 81520-29855 note |
Lamp Assy, Front Turn Signal, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥4,370 | |
| 81520-29855 note |
Lamp Assy, Front Turn Signal, LH
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥4,370 | |
| 81520-29855 note |
Lamp Assy, Front Turn Signal, LH
1984-08 → 1985-08
ended
|
CR21 E | ¥4,370 | |
| 81520-80031 note |
Lamp Assy, Front Turn Signal, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,100 | |
| 81520-80032 note |
Lamp Assy, Front Turn Signal, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,800 | |
| 81521 — Lens, Front Turn Signal Lamp, LH | ||||
| 81521-87003 |
Lens, Front Turn Signal Lamp, LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,460 | |
| 81521-87003 |
Lens, Front Turn Signal Lamp, LH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥1,460 | |
| 81521-87008 note |
Lens, Front Turn Signal Lamp, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥960 | |
| 81521-87009 note |
Lens, Front Turn Signal Lamp, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,100 | |
| 81522 — Gasket, Front Turn Signal Lamp Lens, LH | ||||
| 81512-87004 |
Gasket, Front Turn Signal Lamp Lens, LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 81512-87004 |
Gasket, Front Turn Signal Lamp Lens, LH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥650 | |
| 81512-87009 note |
Gasket, Front Turn Signal Lamp Lens, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥640 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
