Factory parts data · Europe

Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

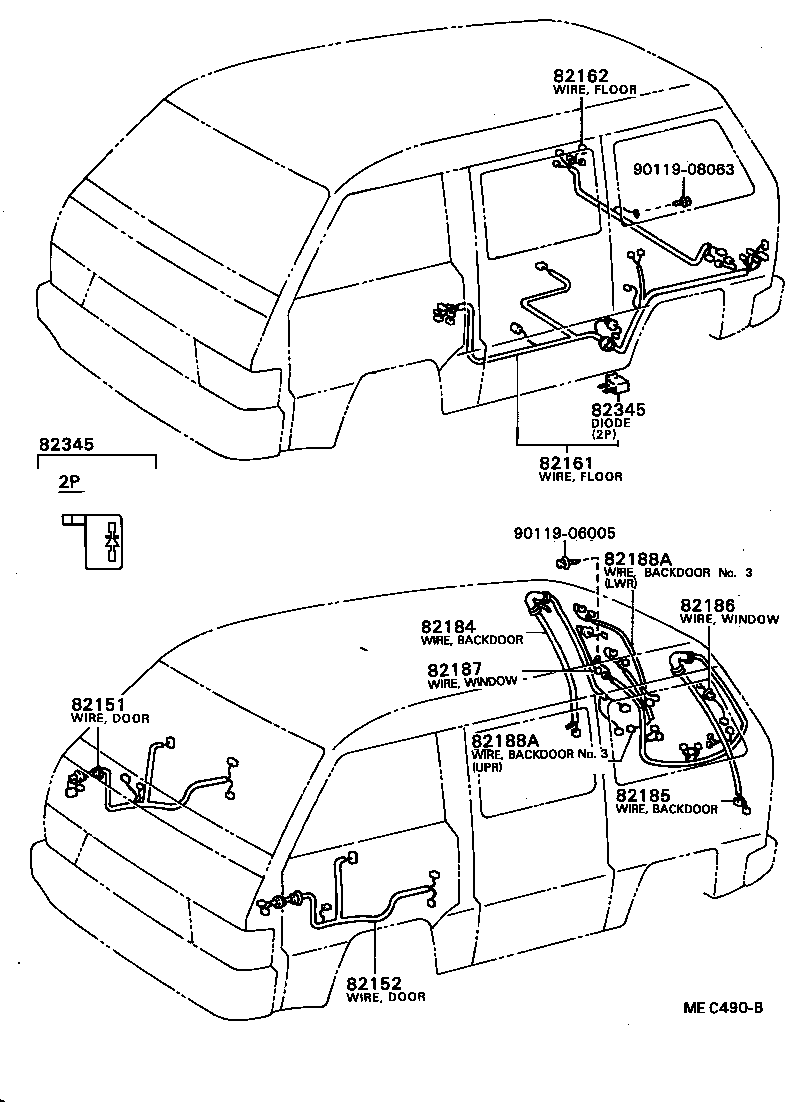

173 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-87001 Wire, Front Door, RH
1982-11 → 1983-02 ended
YR2# E,N —
82151-87002 Wire, Front Door, RH
1982-11 → 1983-02 ended
YR20 X —
82151-87004 note Wire, Front Door, RH
1982-11 → 1983-02 ended
YR20 07S —
82151-87010 Wire, Front Door, RH
1983-02 → 1984-08 ended
CR21,YR20,26 E,N —
82151-87011 Wire, Front Door, RH
1983-02 → 1984-08 ended
YR20,21 X —
82151-87013 note Wire, Front Door, RH
1983-02 → 1984-08 ended
YR20,21 07S —
82151-87015 note Wire, Front Door, RH
1987-09 → 1987-10 ended
CR21,30,YR20,21,30 HRF E ¥16,500
82151-87015 note Wire, Front Door, RH
1988-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥16,500
82151-87015 note Wire, Front Door, RH
1987-12 → 1988-08 ended
CR21,30,YR21,30 E ¥16,500
82151-87015 Wire, Front Door, RH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥16,500
82151-87015 note Wire, Front Door, RH
1987-10 → 1987-11 ended
CR21,30,YR20,21,30 HRF E ¥16,500
82151-87017 Wire, Front Door, RH
1984-08 → 1985-08 ended
YR20,21 X —
82151-87018 note Wire, Front Door, RH
1984-08 → 1985-08 ended
YR20,21 07S —
82151-87021 Wire, Front Door, RH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
82151-87026 note Wire, Front Door, RH
1986-04 → 1986-04 ended
CR21,YR20,21 HRF E —
82151-87G26 note Wire, Front Door, RH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
82151-87G26 note Wire, Front Door, RH
1986-12 → 1987-01 ended
CR21,30,YR20,21,30 HRF E —
82151-87G26 note Wire, Front Door, RH
1987-04 → 1987-04 ended
CR21,YR20,21,30 HRF E —
82151-87G26 note Wire, Front Door, RH
1987-04 → 1987-05 ended
CR21,YR20,21,30 HRF E —
82151-87G26 note Wire, Front Door, RH
1986-10 → 1986-10 ended
CR21,30,YR20,21,30 HRF E —
82152 — Wire, Front Door, LH
82152-87001 Wire, Front Door, LH
1982-11 → 1983-02 ended
YR20 X —
82152-87003 note Wire, Front Door, LH
1982-11 → 1983-02 ended
YR20 X —
82152-87004 Wire, Front Door, LH
1982-11 → 1983-02 ended
YR20 Q —
82152-87009 Wire, Front Door, LH
1983-02 → 1984-08 ended
YR20,21 X —
82152-87011 note Wire, Front Door, LH
1983-02 → 1984-08 ended
YR20,21 X —
82152-87012 Wire, Front Door, LH
1983-02 → 1984-08 ended
YR20,21 Q —
82152-87014 Wire, Front Door, LH
1984-08 → 1985-08 ended
YR20,21 X —
82152-87015 note Wire, Front Door, LH
1984-08 → 1985-08 ended
YR20,21 07S —
82152-87018 Wire, Front Door, LH
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
82152-87023 note Wire, Front Door, LH
1988-04 → 1988-08 ended
CR21,30,YR20,21,30 HRF E ¥9,400
82152-87023 note Wire, Front Door, LH
1987-12 → 1988-08 ended
CR21,30,YR21,30 E ¥9,400
82152-87023 Wire, Front Door, LH
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥9,400
82152-87023 note Wire, Front Door, LH
1987-10 → 1987-11 ended
CR21,30,YR20,21,30 HRF E ¥9,400
82152-87023 note Wire, Front Door, LH
1987-09 → 1987-10 ended
CR21,30,YR20,21,30 HRF E ¥9,400
82152-87025 note Wire, Front Door, LH
1986-04 → 1986-04 ended
CR21,YR20,21 HRF E —
82152-87G25 note Wire, Front Door, LH
1987-04 → 1987-05 ended
CR21,YR20,21,30 HRF E —
82152-87G25 note Wire, Front Door, LH
1987-04 → 1987-04 ended
CR21,YR20,21,30 HRF E —
82152-87G25 note Wire, Front Door, LH
1986-12 → 1987-01 ended
CR21,30,YR20,21,30 HRF E —
82152-87G25 note Wire, Front Door, LH
1986-10 → 1986-11 ended
CR21,30,YR20,21,30 HRF E —
82152-87G25 note Wire, Front Door, LH
1986-10 → 1986-10 ended
CR21,30,YR20,21,30 HRF E —
82161 — Wire, Floor
82161-87001 Wire, Floor
1982-11 → 1984-08 ended
YR20 D,G —
82161-87002 note Wire, Floor
1982-11 → 1984-08 ended
YR20 08S —
82161-87003 Wire, Floor
1982-11 → 1984-08 ended
YR20 X —
82161-87004 Wire, Floor
1982-11 → 1984-08 ended
YR20 Q —
82161-87005 Wire, Floor
1983-04 → 1984-08 ended
CR21 —
82161-87007 Wire, Floor
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,R —
82161-87008 note Wire, Floor
1982-11 → 1984-08 ended
CR26,KR26,YR26 D,N —
82161-87009 Wire, Floor
1983-05 → 1984-08 ended
YR21 G —
82161-87010 Wire, Floor
1983-05 → 1984-08 ended
YR21 X —
82161-87011 Wire, Floor
1983-05 → 1984-08 ended
YR21 Q —
82161-87013 Wire, Floor
1984-08 → 1985-08 ended
YR20 D,G —
82161-87014 note Wire, Floor
1984-08 → 1985-08 ended
YR20 08S —
82161-87015 Wire, Floor
1984-08 → 1985-08 ended
YR20 X —
82161-87016 Wire, Floor
1984-08 → 1985-08 ended
YR20 Q —
82161-87017 Wire, Floor
1984-08 → 1985-08 ended
YR21 G —
82161-87018 Wire, Floor
1984-08 → 1985-08 ended
YR21 X —
82161-87019 Wire, Floor
1984-08 → 1985-08 ended
YR21 Q —
82161-87020 Wire, Floor
1984-08 → 1985-08 ended
CR21 D,G —
82161-87021 note Wire, Floor
1984-08 → 1985-08 ended
CR21 E,G —
82161-87022 Wire, Floor
1984-08 → 1985-08 ended
CR26,KR26,YR26 D,R —
82161-87023 note Wire, Floor
1984-08 → 1985-08 ended
CR26,27,KR26,YR26 D,N —
82161-87025 Wire, Floor
1985-08 → 1987-08 ended
YR20 MRF G;YR20 HRF +2 ¥14,900
82161-87026 Wire, Floor
1985-08 → 1986-08 ended
YR20 E —
82161-87027 Wire, Floor
1985-08 → 1986-08 ended
YR20 Q —
82161-87028 Wire, Floor
1985-08 → 1987-08 ended
YR20 D ¥35,000
82161-87029 Wire, Floor
1985-08 → 1986-08 ended
YR21 E —
82161-87030 Wire, Floor
1985-08 → 1986-08 ended
YR21 Q —
82161-87031 Wire, Floor
1985-08 → 1987-08 ended
CR21 G ¥14,900
82161-87032 Wire, Floor
1985-08 → 1986-08 ended
CR21 E —
82161-87033 Wire, Floor
1985-08 → 1986-08 ended
CR21 Q —
82161-87034 Wire, Floor
1985-08 → 1987-08 ended
CR26,KR26,YR26 D,R ¥14,900
82161-87035 note Wire, Floor
1985-08 → 1987-08 ended
CR26,27,28,KR26,YR26 B,D,N ¥35,000
82161-87039 Wire, Floor
1985-08 → 1987-08 ended
CR21 D ¥14,900
82161-87040 Wire, Floor
1985-08 → 1987-08 ended
YR28 ¥35,000
82161-87041 Wire, Floor
1986-08 → 1987-08 ended
YR21 Q ¥40,900
82161-87042 Wire, Floor
1986-08 → 1987-08 ended
CR21 Q ¥40,900
82161-87043 Wire, Floor
1986-08 → 1987-08 ended
YR20 E ¥35,000
82161-87044 Wire, Floor
1986-08 → 1987-08 ended
YR21 E ¥26,900
82161-87045 Wire, Floor
1986-08 → 1987-08 ended
CR21 E ¥35,000
82161-87048 Wire, Floor
1987-08 → 1988-08 ended
YR20 MRF G;YR20 HRF +2 ¥16,500
82161-87049 Wire, Floor
1987-08 → 1988-08 ended
YR20 E ¥38,900
82161-87050 Wire, Floor
1987-08 → 1988-08 ended
YR20 D ¥38,900
82161-87051 Wire, Floor
1987-08 → 1988-08 ended
YR21 E ¥30,100
82161-87052 Wire, Floor
1987-08 → 1988-08 ended
YR21 Q ¥45,900
82161-87053 Wire, Floor
1987-08 → 1988-08 ended
CR21 D ¥16,500
82161-87054 Wire, Floor
1987-08 → 1988-08 ended
CR21 G ¥16,500
82161-87055 Wire, Floor
1987-08 → 1988-08 ended
CR21 E ¥38,900
82161-87056 Wire, Floor
1987-08 → 1988-08 ended
CR21 Q ¥45,900
82161-87057 Wire, Floor
1987-08 → 1988-08 ended
YR28 ¥38,900
82161-87058 Wire, Floor
1987-08 → 1988-08 ended
CR26,KR26,YR26 D ¥16,500
82161-87059 note Wire, Floor
1987-08 → 1988-08 ended
CR26,27,28,KR26,YR26 ¥38,900
82161-95D00 Wire, Floor
1985-10 → 1986-08 ended
YR30 E —
82161-95D02 Wire, Floor
1985-10 → 1986-08 ended
CR30 E —
82161-95D03 Wire, Floor
1985-10 → 1986-08 ended
CR30 Q —
82161-95D04 Wire, Floor
1985-10 → 1987-08 ended
CR36 D ¥26,900
82161-95D05 note Wire, Floor
1985-10 → 1987-08 ended
CR36 ¥35,000
82161-95D07 Wire, Floor
1985-10 → 1987-08 ended
YR30 G ¥35,000
82161-95D08 Wire, Floor
1985-10 → 1987-08 ended
CR30 G ¥40,900
82161-95D09 Wire, Floor
1986-08 → 1987-08 ended
YR36 ¥35,000
82161-95D10 Wire, Floor
1986-08 → 1987-08 ended
YR30 Q ¥40,900
82161-95D11 Wire, Floor
1986-08 → 1987-08 ended
CR30 Q ¥40,900
82161-95D12 Wire, Floor
1986-08 → 1987-08 ended
YR30 E ¥40,900
82161-95D13 Wire, Floor
1986-08 → 1987-08 ended
CR30 E ¥40,900
82161-95D15 Wire, Floor
1987-08 → 1988-08 ended
YR36 ¥45,900
82161-95D16 Wire, Floor
1987-08 → 1988-08 ended
YR30 G ¥38,900
82161-95D17 Wire, Floor
1987-08 → 1988-08 ended
YR30 E ¥45,900
82161-95D18 Wire, Floor
1987-08 → 1988-08 ended
YR30 Q ¥45,900
82161-95D19 Wire, Floor
1987-08 → 1988-08 ended
CR37 ¥38,900
82161-95D20 Wire, Floor
1987-08 → 1988-08 ended
CR30 G ¥38,900
82161-95D21 Wire, Floor
1987-08 → 1988-08 ended
CR30 E ¥38,900
82161-95D22 Wire, Floor
1987-08 → 1988-08 ended
CR30 Q ¥45,900
82161-95D23 Wire, Floor
1987-08 → 1988-08 ended
CR36 D ¥30,100
82161-95D24 note Wire, Floor
1987-08 → 1988-08 ended
CR36 ¥38,900
82162 — Wire, Floor, NO.2
82162-87001 Wire, Floor, NO.2
1982-11 → 1984-08 ended
CR26,KR26,YR20,26 D,G,R —
82162-87002 note Wire, Floor, NO.2
1982-11 → 1984-08 ended
YR20,21 08S —
82162-87002 note Wire, Floor, NO.2
1982-11 → 1984-08 ended
CR2#,KR26,YR26 D,E,N —
82162-87003 Wire, Floor, NO.2
1982-11 → 1984-08 ended
YR20,21 07S —
82162-87005 Wire, Floor, NO.2
1987-08 → 1988-08 ended
YR20 HRF E;YR20 MRF +5 ¥25,300
82162-87006 Wire, Floor, NO.2
1987-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥25,300
82162-87007 Wire, Floor, NO.2
1984-08 → 1985-08 ended
CR26,KR26,YR20,26 D,G,R —
82162-87008 note Wire, Floor, NO.2
1984-08 → 1985-08 ended
YR20,21 08S —
82162-87008 note Wire, Floor, NO.2
1984-08 → 1985-08 ended
CR26,27,KR26,YR26 D,N —
82162-87008 note Wire, Floor, NO.2
1984-08 → 1985-08 ended
CR21 E,G —
82162-87009 Wire, Floor, NO.2
1984-08 → 1985-08 ended
YR20,21 07S —
82162-87010 note Wire, Floor, NO.2
1984-08 → 1985-08 ended
YR20,21 Q —
82162-87011 note Wire, Floor, NO.2
1984-08 → 1985-08 ended
CR21,26,KR26,YR26 D,G —
82162-87012 Wire, Floor, NO.2
1985-08 → 1986-08 ended
YR20 HRF 5F G;CR21,YR20 +2 ¥9,400
82162-87013 Wire, Floor, NO.2
1985-08 → 1987-08 ended
YR20 HRF E;YR20 MRF +5 ¥25,700
82162-87014 Wire, Floor, NO.2
1985-08 → 1987-08 ended
CR21,30,YR20,21,30 Q ¥25,300
82162-87015 note Wire, Floor, NO.2
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
82162-87016 Wire, Floor, NO.2
1985-08 → 1987-08 ended
CR21,26,28,36,KR26,YR20,26,28,36 B,D,R ¥9,400
82162-87017 note Wire, Floor, NO.2
1985-08 → 1987-08 ended
CR2#,36,KR26,YR20,26,28,36 B,D,N,R ¥25,700
82162-87019 note Wire, Floor, NO.2
1986-08 → 1987-08 ended
CR21,30,YR21,30 Q ¥25,300
82162-87020 Wire, Floor, NO.2
1987-08 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥9,400
82162-87021 note Wire, Floor, NO.2
1987-08 → 1988-08 ended
CR2#,36,37,KR26,YR20,26,28,36 B,D,N ¥25,300
82162-87022 note Wire, Floor, NO.2
1987-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥25,300
82184 — Wire, Back Door, NO.1
82184-87003 note Wire, Back Door, NO.1
1982-11 → 1983-02 ended
YR20 07S,08S —
82184-87003 note Wire, Back Door, NO.1
1982-11 → 1983-02 ended
CR26,KR26,YR26 D,N —
82184-87004 note Wire, Back Door, NO.1
1982-11 → 1983-02 ended
YR20 Q —
82184-87005 note Wire, Back Door, NO.1
1982-11 → 1986-08 ended
CR21,26,28,36,KR26,YR20,26,28 B,D,G ¥450
82184-87005 note Wire, Back Door, NO.1
1986-08 → 1988-08 ended
CR21,26,28,36,37,KR26,YR20,26,28,36 B,D ¥450
82184-87007 note Wire, Back Door, NO.1
1983-02 → 1984-08 ended
CR26,KR26,YR26 D,N —
82184-87007 note Wire, Back Door, NO.1
1983-02 → 1984-08 ended
CR21,YR20,21 07S,08S —
82184-87008 note Wire, Back Door, NO.1
1983-02 → 1984-08 ended
YR20,21 Q —
82184-87010 note Wire, Back Door, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
82184-87010 note Wire, Back Door, NO.1
1984-08 → 1985-08 ended
CR26,27,KR26,YR26 D,N —
82184-87011 note Wire, Back Door, NO.1
1984-08 → 1985-08 ended
YR20,21 Q —
82184-87013 note Wire, Back Door, NO.1
1985-08 → 1988-08 ended
CR21,30,YR21,30;YR20 HRF (E,Q);YR20 HRF +4 ¥9,400
82184-87013 note Wire, Back Door, NO.1
1985-08 → 1988-08 ended
CR26,27,28,36,37,KR26,YR26,28,36 B,D,N ¥9,400
82184-87014 note Wire, Back Door, NO.1
1985-08 → 1986-08 ended
CR21,30,YR20,21 Q —
82184-87015 note Wire, Back Door, NO.1
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥9,400
82185 — Wire, Back Door, NO.2
82185-87001 Wire, Back Door, NO.2
1982-11 → 1984-08 ended
CR26,KR26,YR20,26 D,R —
82185-87002 note Wire, Back Door, NO.2
1982-11 → 1984-08 ended
CR26,KR26,YR2# D,G —
82185-87003 Wire, Back Door, NO.2
1982-11 → 1984-08 ended
CR21,YR20,21 E,Q,X —
82185-87004 Wire, Back Door, NO.2
1982-11 → 1984-08 ended
YR26 N —
82185-87011 Wire, Back Door, NO.2
1984-08 → 1985-08 ended
CR21,26,KR26,YR20,26 D,R —
82185-87012 note Wire, Back Door, NO.2
1984-08 → 1985-08 ended
CR21,26,KR26,YR2# D,G —
82185-87013 Wire, Back Door, NO.2
1984-08 → 1985-08 ended
CR26,27,YR26 —
82185-87014 Wire, Back Door, NO.2
1984-08 → 1985-08 ended
CR21,YR20,21 E,Q,X —
82185-87015 Wire, Back Door, NO.2
1985-08 → 1988-08 ended
YR20 MRF G;CR21,30,YR30 G;YR20 +3 ¥6,000
82185-87016 Wire, Back Door, NO.2
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 E,Q ¥9,400
82185-87017 Wire, Back Door, NO.2
1985-08 → 1988-08 ended
CR21,26,36,KR26,YR20,26 D ¥4,100
82185-87018 note Wire, Back Door, NO.2
1985-08 → 1988-08 ended
CR21,26,36,KR26,YR20,26 D ¥5,300
82185-87019 Wire, Back Door, NO.2
1985-08 → 1988-08 ended
CR26,27,36,YR26 N ¥6,000
82186 — Wire, Rear Window, NO.1
82187-87001 note Wire, Rear Window, NO.1
1982-11 → 1988-08 ended
KR26 D ¥1,670
82187-87001 note Wire, Rear Window, NO.1
1982-11 → 1988-08 ended
CR2#,3#,YR2#,3# ¥1,670
82187 — Wire, Rear Window, NO.2
82187-87001 note Wire, Rear Window, NO.2
1982-11 → 1988-08 ended
KR26 D ¥1,670
82187-87001 note Wire, Rear Window, NO.2
1982-11 → 1988-08 ended
CR2#,3#,YR2#,3# ¥1,670
82188A — Wire, Back Door, NO.3
82186-87002 note Wire, Back Door, NO.3
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥990
82186-87003 note Wire, Back Door, NO.3
1986-08 → 1988-08 ended
CR21,30,YR21,30 Q ¥1,870
82345 — Diode
82345-12050 note Diode
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥790
82345-22010 note Diode
1982-11 → 1985-08 ended
CR21,YR20,21 ¥1,430
82345-32010 note Diode
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥850
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
