Factory parts data · Europe

Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11

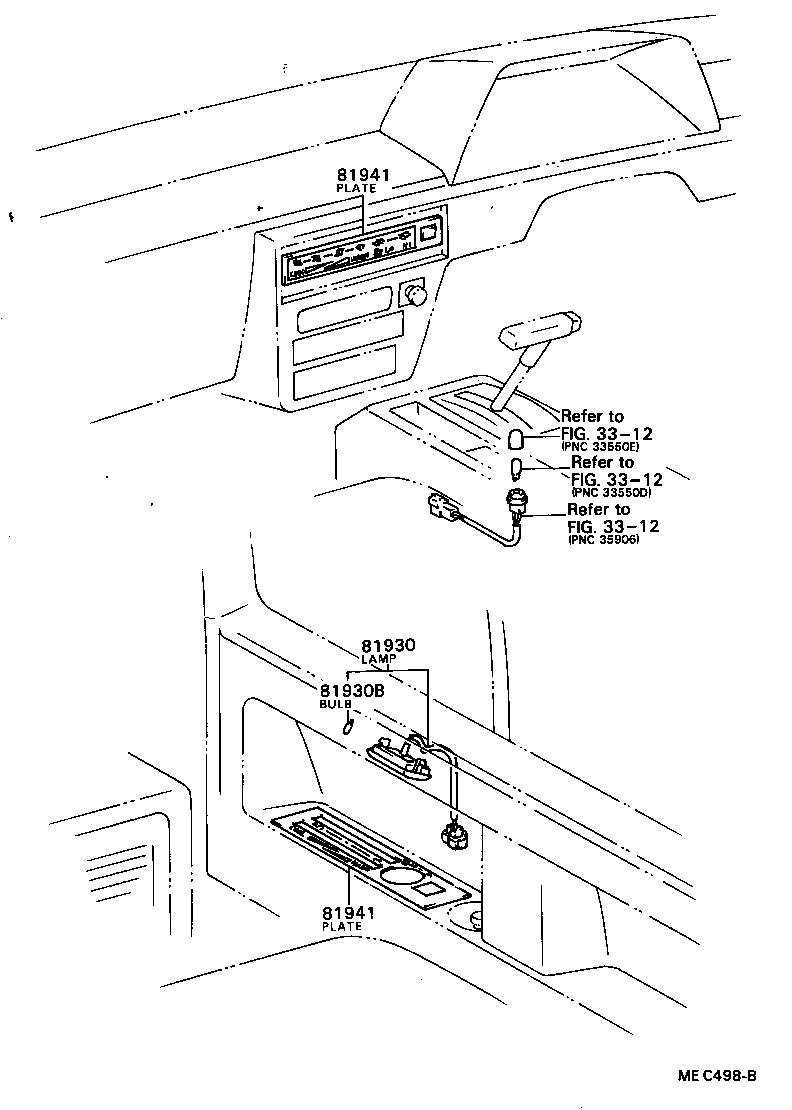

MEC498B · 4 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
81930 — Lamp Assy, Heater Control Indicator, NO.1
81930-87004 Lamp Assy, Heater Control Indicator, NO.1
1982-11 → 1988-08 ended
YR26 V4D N ¥1,630
81930-87004 Lamp Assy, Heater Control Indicator, NO.1
1984-08 → 1988-08 ended
CR26,27,36 V4D 05S ¥1,630
81930-87004 Lamp Assy, Heater Control Indicator, NO.1
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥1,630
81930B — Bulb, Heater Control Indicator Lamp
90981-11018 note Bulb, Heater Control Indicator Lamp
1982-11 → 1988-08 ended
CR21,28,30,37,YR20,21,28,3# ¥140
90981-11018 note Bulb, Heater Control Indicator Lamp
1982-11 → 1988-08 ended
YR26 V4D N ¥140
90981-11018 note Bulb, Heater Control Indicator Lamp
1984-08 → 1988-08 ended
CR26,27,36 V4D 05S ¥140
81941 — Plate, Heater Control Name
55519-28050 note Plate, Heater Control Name
1984-08 → 1985-08 ended
CR26,27,YR26 V4D 05S ¥3,690
55519-28051 note Plate, Heater Control Name
1985-08 → 1988-08 ended
08S YR20 HRF E;YR20 +6 ¥2,690
55519-28051 note Plate, Heater Control Name
1985-08 → 1988-08 ended
YR26 V4D N ¥2,690
55519-28051 note Plate, Heater Control Name
1985-08 → 1988-08 ended
CR26,27,36 V4D 05S ¥2,690
55519-28140 note Plate, Heater Control Name
1985-08 → 1988-08 ended
YR21,30;YR20 MRF 08S;YR20 HRF +4 ¥2,710
55519-28151 note Plate, Heater Control Name
1985-10 → 1988-08 ended
CR30,YR30 Q ¥2,710
55519-87003 note Plate, Heater Control Name
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥2,660
55519-87004 note Plate, Heater Control Name
1982-11 → 1984-08 ended
CR21;CR26 V4D 05S ¥3,720
55519-87004 note Plate, Heater Control Name
1982-11 → 1984-08 ended
YR26 V4D N ¥3,720
55519-87004 note Plate, Heater Control Name
1982-11 → 1984-08 ended
YR20,21 ¥3,720
55519-87006 note Plate, Heater Control Name
1984-08 → 1985-08 ended
CR2#,KR26,YR2# ¥2,690
55519-87010 note Plate, Heater Control Name
1984-08 → 1985-08 ended
YR20,21 Q ¥2,690
55519-87011 note Plate, Heater Control Name
1984-08 → 1985-08 ended
CR21,YR20,21 ¥3,690
55519-87013 note Plate, Heater Control Name
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,710
55519-87014 note Plate, Heater Control Name
1985-08 → 1987-08 ended
YR20,21,30 Q ¥2,690
55519-87014 note Plate, Heater Control Name
1987-08 → 1988-08 ended
YR21 Q ¥2,690
55519-87015 note Plate, Heater Control Name
1985-08 → 1988-08 ended
CR30,YR30 Q ¥2,710
55519-87017 note Plate, Heater Control Name
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 HRF (E,Q) ¥2,710
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
