Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

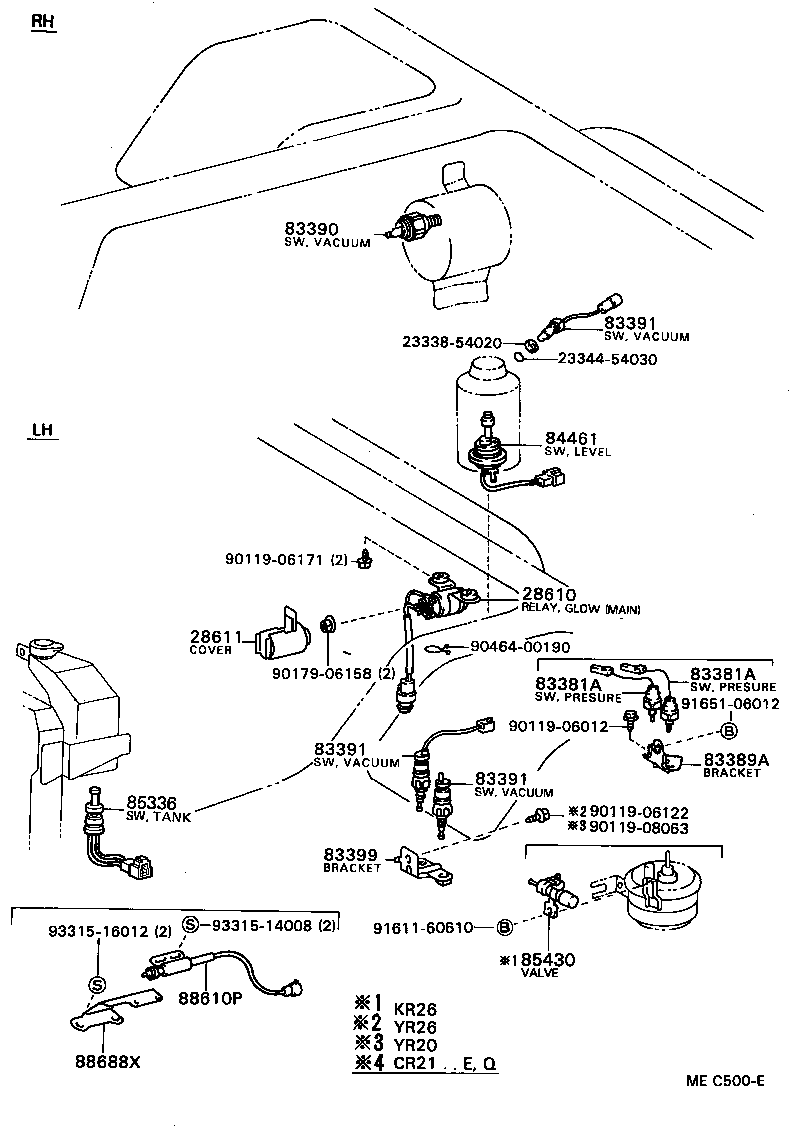

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28610 — Relay Assy, Intake Heater OR Glow Plug | ||||
| 28610-54021 note |
Relay Assy, Intake Heater OR Glow Plug
1982-11 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥6,800 | |
| 28610-54190 note |
Relay Assy, Intake Heater OR Glow Plug
1982-11 → 1986-08
ended
|
1C,2C# CR2#,3# | ¥15,300 | |
| 28610-64060 note |
Relay Assy, Intake Heater OR Glow Plug
1986-08 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥14,400 | |
| 28611 — Cover, Glow Plug Relay | ||||
| 28611-54020 |
Cover, Glow Plug Relay
1982-11 → 1986-05
ended
|
1C,2C# CR2#,3# | ¥1,180 | |
| 28611-55010 |
Cover, Glow Plug Relay
1986-05 → 1988-08
ended
|
1C,2C# CR2#,3# | ¥310 | |
| 83381A — Switch, Pressure | ||||
| 83381-28010 note |
Switch, Pressure
1985-08 → 1988-08
ended
|
CR21,30 HRF | ¥9,400 | |
| 83381-28010 note |
Switch, Pressure
1987-08 → 1988-08
ended
|
CR21,36,37 B,D,G | ¥9,400 | |
| 83381-28020 note |
Switch, Pressure
1985-08 → 1988-08
ended
|
CR21,30 HRF | ¥9,400 | |
| 83381-28020 note |
Switch, Pressure
1987-08 → 1988-08
ended
|
CR21,36,37 B,D,G | ¥9,400 | |
| 83389A — Bracket, Pressure Switch | ||||
| 83389-28010 |
Bracket, Pressure Switch
1987-08 → 1988-08
ended
|
CR21,28,37 B,D,G | ¥940 | |
| 83389-28010 |
Bracket, Pressure Switch
1985-08 → 1988-08
ended
|
CR21,30 HRF | ¥940 | |
| 83390 — Switch Assy, Vacuum Warning | ||||
| 83390-30020 |
Switch Assy, Vacuum Warning
1982-11 → 1988-08
ended
|
CR2#,3# | ¥4,080 | |
| 83391 — Switch, Vacuum | ||||
| 83391-12091 note |
Switch, Vacuum
1982-11 → 1985-08
ended
|
YR20 | ¥4,630 | |
| 83391-16030 note |
Switch, Vacuum
1982-11 → 1985-08
ended
|
YR20 | ¥4,020 | |
| 83391-22060 |
Switch, Vacuum
1985-08 → 1988-08
ended
|
CR2#,3# | ¥4,680 | |
| 83391-26030 note |
Switch, Vacuum
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥4,500 | |
| 83391-26050 note |
Switch, Vacuum
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥4,500 | |
| 83391-27020 note |
Switch, Vacuum
1982-11 → 1985-08
ended
|
YR26 | ¥5,500 | |
| 83399 — Bracket, Vacuum Switch | ||||
| 83399-27030 |
Bracket, Vacuum Switch
1982-11 → 1985-08
ended
|
YR26 | ¥740 | |
| 83399-28030 |
Bracket, Vacuum Switch
1982-11 → 1985-08
ended
|
YR20 | ¥650 | |
| 83399-28040 |
Bracket, Vacuum Switch
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥750 | |
| 83399-28050 |
Bracket, Vacuum Switch
1985-08 → 1988-08
ended
|
YR26 | ¥670 | |
| 84461 — Switch, Level Warning | ||||
| 84461-14030 |
Switch, Level Warning
1982-11 → 1986-08
ended
|
CR2#,3# | ¥6,300 | |
| 84461-35030 |
Switch, Level Warning
1986-08 → 1988-08
ended
|
CR2#,3# | — | |
| 85336 — Switch Assy, Reserve Tank Level Warning | ||||
| 85335-64030 |
Switch Assy, Reserve Tank Level Warning
1985-08 → 1988-08
ended
|
CR21,30 E,G,Q | ¥5,500 | |
| 85335-73010 |
Switch Assy, Reserve Tank Level Warning
1985-08 → 1988-08
ended
|
YR21,3# | ¥4,100 | |
| 85335-73010 |
Switch Assy, Reserve Tank Level Warning
1985-08 → 1988-08
ended
|
YR20 E | ¥4,100 | |
| 85335-95A01 |
Switch Assy, Reserve Tank Level Warning
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥6,000 | |
| 85335-95A01 |
Switch Assy, Reserve Tank Level Warning
1982-11 → 1985-08
ended
|
YR20,21 MRF 5F G | ¥6,000 | |
| 85335-95A01 |
Switch Assy, Reserve Tank Level Warning
1982-11 → 1984-08
ended
|
CR21,YR2# E,N,Q,X | ¥6,000 | |
| 85430 — Valve, Outer Vent Control | ||||
| 85430-12020 |
Valve, Outer Vent Control
1982-11 → 1985-08
ended
|
KR26 | — | |
| 90925-09008 |
Valve, Outer Vent Control
1985-08 → 1988-08
ended
|
KR26 | ¥4,690 | |
| 88610P — Switch Assy, Control | ||||
| 88601-87002 note |
Switch Assy, Control
1985-08 → 1988-08
ended
|
YR21,30;YR20 MRF 08S;YR20 HRF +4 | — | |
| 88610-12060 note |
Switch Assy, Control
1985-08 → 1987-07
ended
|
CR21,30 E,G,Q | — | |
| 88610-28060 note |
Switch Assy, Control
1987-07 → 1988-08
ended
|
CR21,30 E,G,Q | — | |
| 88688X — Bracket, Switch | ||||
| 88688-28070 note |
Bracket, Switch
1985-08 → 1988-08
ended
|
CR21,30 E,G,Q | — | |
| 88688-87028 note |
Bracket, Switch
1985-08 → 1988-08
ended
|
YR21,30;YR20 MRF 08S;YR20 HRF +4 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
