Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

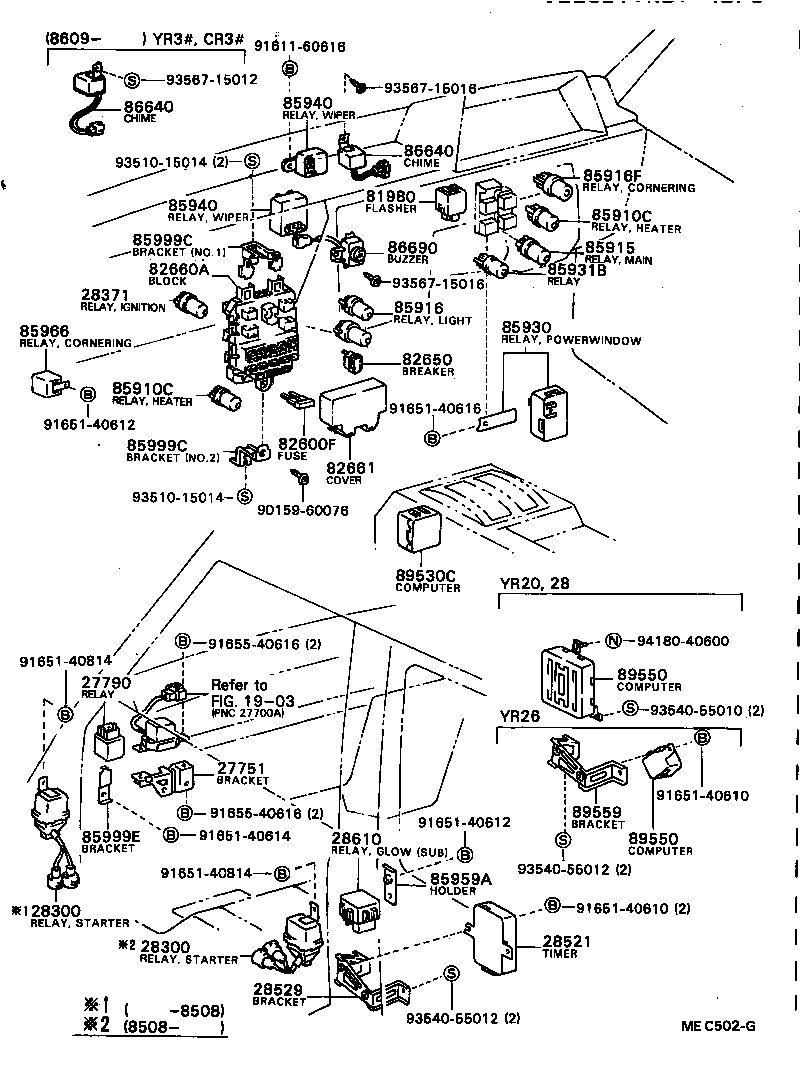

Exploded illustration MEC502G 9161160616 — not listed in this catalogue 9356715012 — not listed in this catalogue 9356715016 — not listed in this catalogue 85940 — RELAY ASSY, WINDSHIELD WIPER (2 parts) 86640 — CHIME ASSY (4 parts) 86640 — CHIME ASSY (4 parts) 9351015014 — not listed in this catalogue 85916F — RELAY, CORNERING LAMP (1 parts) 81980 — FLASHER ASSY, TURN SIGNAL (2 parts) 85940 — RELAY ASSY, WINDSHIELD WIPER (2 parts) 85910C — RELAY ASSY (FOR HEATER BLOWER MOTOR) (5 parts) 85999C — BRACKET, RELAY, NO.3 (3 parts) 86690 — BUZZER ASSY, SPEED INDICATOR (2 parts) 85915 — RELAY, MAIN (2 parts) 82660A — BLOCK ASSY, RELAY, COWL SIDE (14 parts) 85931B — RELAY, FUEL HEATER (1 parts) 9356715016 — not listed in this catalogue 28371 — RELAY, IGNITION, NO.1 (1 parts) 85916 — RELAY, LIGHT CONTROL (1 parts) 85930 — RELAY ASSY, POWER WINDOW (1 parts) 85966 — RELAY,CORNERING LAMP CONTROL (1 parts) 82650 — BREAKER ASSY, WIRING CIRCUIT, NO.1 (1 parts) 85910C — RELAY ASSY (FOR HEATER BLOWER MOTOR) (5 parts) 9165140616 — not listed in this catalogue 9165140612 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (5 parts) 85999C — BRACKET, RELAY, NO.3 (3 parts) 82661 — COVER, RELAY BLOCK, NO.1 (9 parts) 9351015014 — not listed in this catalogue 9015960076 — not listed in this catalogue 89530C — COMPUTER ASSY, TRANSMISSION CONTROL (1 parts) 9418040600 — not listed in this catalogue 9165540616 — not listed in this catalogue 9165140814 — not listed in this catalogue 89550 — COMPUTER ASSY, EMISSION CONTROL (4 parts) 27790 — RELAY ASSY, CHARGE LAMP (1 parts) 1903 — not listed in this catalogue 9354055010 — not listed in this catalogue 27751 — BRACKET, GENERATOR REGULATOR (3 parts) 9165140610 — not listed in this catalogue 89559 — BRACKET, EMISSION CONTROL COMPUTER (1 parts) 9165540616 — not listed in this catalogue 9165140612 — not listed in this catalogue 85999E — BRACKET, RELAY, NO.5 (1 parts) 9165140614 — not listed in this catalogue 28610 — RELAY ASSY, INTAKE HEATER OR GLOW PLUG (3 parts) 89550 — COMPUTER ASSY, EMISSION CONTROL (4 parts) 9354055012 — not listed in this catalogue 9165140814 — not listed in this catalogue 85959A — HOLDER, RELAY (1 parts) 9165140610 — not listed in this catalogue 28300 — RELAY ASSY, STARTER (1 parts) 28521 — TIMER, PREHEATING (6 parts) 28300 — RELAY ASSY, STARTER (1 parts) 28529 — BRACKET, PREHEATING TIMER, NO.1 (2 parts) 9354055012 — not listed in this catalogue
MEC502G · 34 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
27751 — Bracket, Generator Regulator
27751-64010 Bracket, Generator Regulator
1985-08 → 1988-08 ended
2CT CR21,28,30,37 ¥510
27751-72010 Bracket, Generator Regulator
1985-08 → 1988-08 ended
4KJ KR26 ¥1,180
27751-72010 Bracket, Generator Regulator
1982-11 → 1985-08 ended
1C,2C,4KJ,1YJ,2YU CR2#,KR26,YR20,26 ¥1,180
27790 — Relay Assy, Charge Lamp
27790-35020 Relay Assy, Charge Lamp
1982-11 → 1985-08 ended
2YU YR20 ¥6,000
28300 — Relay Assy, Starter
28300-54070 Relay Assy, Starter
1984-08 → 1987-08 ended
2C# CR21,27,28,30 4FC ¥9,800
28371 — Relay, Ignition, NO.1
90987-02004 Relay, Ignition, NO.1
1982-11 → 1988-08 ended
1C,2C#,4KJ,1YJ,2YU,3YEU CR2#,3#,KR26,YR2#,3# ¥2,330
28521 — Timer, Preheating
28521-64100 Timer, Preheating
1982-11 → 1983-03 ended
1C CR26 ¥46,900
28521-64170 Timer, Preheating
1983-03 → 1985-08 ended
1C CR26 ¥46,700
28521-64170 Timer, Preheating
1984-05 → 1985-08 ended
2C CR21,27 ¥46,700
28521-64171 Timer, Preheating
1985-08 → 1987-08 ended
1C,2C# CR2#,3# ¥47,100
28521-64250 Timer, Preheating
1983-04 → 1984-05 ended
2C CR21 ¥47,000
28521-64290 Timer, Preheating
1987-08 → 1988-08 ended
2C# CR21,27,28,3# ¥47,100
28529 — Bracket, Preheating Timer, NO.1
28529-64020 Bracket, Preheating Timer, NO.1
1982-11 → 1987-08 ended
1C,2C# CR2#,3# ¥1,570
28529-64160 Bracket, Preheating Timer, NO.1
1987-08 → 1988-08 ended
2C# CR21,27,28,3# ¥750
28610 — Relay Assy, Intake Heater OR Glow Plug
28610-54021 note Relay Assy, Intake Heater OR Glow Plug
1982-11 → 1988-08 ended
1C,2C# CR2#,3# ¥6,800
28610-54190 note Relay Assy, Intake Heater OR Glow Plug
1982-11 → 1986-08 ended
1C,2C# CR2#,3# ¥15,300
28610-64060 note Relay Assy, Intake Heater OR Glow Plug
1986-08 → 1988-08 ended
1C,2C# CR2#,3# ¥14,400
81980 — Flasher Assy, Turn Signal
81980-16010 Flasher Assy, Turn Signal
1986-04 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,200
81980-22070 Flasher Assy, Turn Signal
1982-11 → 1986-04 ended
CR2#,3#,KR26,YR2#,30 ¥8,500
82600F — Fuse, Fuse Block
90982-09002 note Fuse, Fuse Block
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥120
90982-09002 note Fuse, Fuse Block
1985-10 → 1988-08 ended
CR30,YR30 E,Q ¥120
90982-09003 note Fuse, Fuse Block
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥120
90982-09004 note Fuse, Fuse Block
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥120
90982-09005 note Fuse, Fuse Block
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥120
82650 — Breaker Assy, Wiring Circuit, NO.1
82650-20011 note Breaker Assy, Wiring Circuit, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 ¥880
82660A — Block Assy, Relay, Cowl Side
82660-28010 Block Assy, Relay, Cowl Side
1985-10 → 1986-08 ended
CR3#,YR30 D,G,N ¥12,700
82660-28010 Block Assy, Relay, Cowl Side
1985-08 → 1987-08 ended
CR26,27,KR26,YR26 ¥12,700
82660-28010 Block Assy, Relay, Cowl Side
1984-08 → 1985-08 ended
CR2#,KR26,YR20,26 ¥12,700
82660-28010 Block Assy, Relay, Cowl Side
1982-11 → 1984-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R,X ¥12,700
82660-28011 Block Assy, Relay, Cowl Side
1986-08 → 1988-08 ended
CR3#,YR3# B,D,G,N ¥12,800
82660-28011 Block Assy, Relay, Cowl Side
1987-08 → 1988-08 ended
YR20 HRF E;CR21,28,YR21,28;YR20 HRF +4 ¥12,800
82660-28020 Block Assy, Relay, Cowl Side
1984-08 → 1985-08 ended
YR21 Q ¥12,800
82660-28020 note Block Assy, Relay, Cowl Side
1984-08 → 1985-08 ended
YR20 Q ¥12,800
82660-28020 Block Assy, Relay, Cowl Side
1985-08 → 1985-11 ended
CR21,28,YR21,28;YR20 HRF (E,Q);YR20 HRF +4 ¥12,800
82660-28020 Block Assy, Relay, Cowl Side
1982-11 → 1984-08 ended
YR21;YR20 Q ¥12,800
82660-28021 Block Assy, Relay, Cowl Side
1985-10 → 1987-08 ended
CR30,YR30 E,Q ¥12,700
82660-28021 Block Assy, Relay, Cowl Side
1985-11 → 1987-08 ended
CR21,28,YR21,28;YR20 HRF (E,Q);YR20 HRF +4 ¥12,700
82660-28022 Block Assy, Relay, Cowl Side
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥12,900
82660-28022 Block Assy, Relay, Cowl Side
1987-08 → 1988-08 ended
CR26,27,KR26,YR26 ¥12,900
82661 — Cover, Relay Block, NO.1
82661-28010 Cover, Relay Block, NO.1
1982-11 → 1985-11 ended
CR2#,36,KR26,YR2# ¥780
82661-28010 Cover, Relay Block, NO.1
1985-11 → 1987-08 ended
CR26,27,KR26,YR26 ¥780
82661-28011 Cover, Relay Block, NO.1
1985-11 → 1987-08 ended
CR21,28,YR21,28;YR20 HRF (E,Q);YR20 HRF +4 ¥790
82661-28011 Cover, Relay Block, NO.1
1985-10 → 1986-08 ended
CR30,YR30 ¥790
82661-28011 Cover, Relay Block, NO.1
1986-08 → 1987-08 ended
CR30,YR30 E,Q ¥790
82661-28012 Cover, Relay Block, NO.1
1987-08 → 1988-08 ended
CR30,YR30 E,Q ¥1,490
82661-28012 Cover, Relay Block, NO.1
1987-08 → 1988-08 ended
CR26,27,KR26,YR26 ¥1,490
82661-28030 Cover, Relay Block, NO.1
1986-08 → 1988-08 ended
CR30,36,YR3# B,D,G,N ¥790
82661-28030 Cover, Relay Block, NO.1
1987-08 → 1988-08 ended
YR20 HRF E;CR21,28,YR21,28;YR20 HRF +4 ¥790
85910C — Relay Assy (FOR HEATER BLOWER MOTOR)
88630-87010 note Relay Assy (FOR HEATER BLOWER MOTOR)
1985-12 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
90987-02004 note Relay Assy (FOR HEATER BLOWER MOTOR)
1985-12 → 1988-08 ended
YR26 V4D N ¥2,330
90987-02004 note Relay Assy (FOR HEATER BLOWER MOTOR)
1985-12 → 1988-08 ended
CR26,27,36 V4D 05S ¥2,330
90987-02004 note Relay Assy (FOR HEATER BLOWER MOTOR)
1985-12 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,330
90987-02004 Relay Assy (FOR HEATER BLOWER MOTOR)
1982-11 → 1985-12 ended
CR2#,3#,KR26,YR2#,30 ¥2,330
85915 — Relay, Main
90987-02004 Relay, Main
1982-11 → 1985-08 ended
CR21,YR20,21 E,Q,X ¥2,330
90987-02004 Relay, Main
1985-08 → 1988-08 ended
CR21,30,YR20,21 HRF (E,Q) ¥2,330
85916 — Relay, Light Control
90987-01003 Relay, Light Control
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,320
85916F — Relay, Cornering Lamp
90987-02004 Relay, Cornering Lamp
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥2,330
85930 — Relay Assy, Power Window
85930-87002 Relay Assy, Power Window
1982-11 → 1985-08 ended
YR20,21 07S ¥24,700
85931B — Relay, Fuel Heater
90987-02004 Relay, Fuel Heater
1985-08 → 1988-08 ended
CR2#,3# ¥2,330
85940 — Relay Assy, Windshield Wiper
85940-28010 note Relay Assy, Windshield Wiper
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# B,D,E,G,N,Q,X ¥10,800
85940-89101 note Relay Assy, Windshield Wiper
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 ¥10,600
85959A — Holder, Relay
85959-28010 Holder, Relay
1982-11 → 1988-08 ended
CR2#,3# ¥300
85966 — Relay,Cornering Lamp Control
85966-28010 Relay,Cornering Lamp Control
1985-08 → 1987-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥12,900
85999C — Bracket, Relay, NO.3
85999-28010 note Bracket, Relay, NO.3
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# ¥2,590
85999-28020 note Bracket, Relay, NO.3
1982-11 → 1986-08 ended
CR2#,3#,KR26,YR2#,30 ¥320
85999-28021 note Bracket, Relay, NO.3
1986-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥330
85999E — Bracket, Relay, NO.5
85999-22070 Bracket, Relay, NO.5
1982-11 → 1985-08 ended
YR20 ¥270
86640 — Chime Assy
86640-87004 Chime Assy
1982-11 → 1985-08 ended
KR26,YR2# ¥2,690
86640-87004 Chime Assy
1985-08 → 1986-09 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,690
86640-87004 Chime Assy
1986-09 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥2,690
86640-95D00 Chime Assy
1986-09 → 1988-08 ended
CR3#,YR3# ¥2,690
86690 — Buzzer Assy, Speed Indicator
86650-30040 Buzzer Assy, Speed Indicator
1982-11 → 1983-11 ended
CR2# ¥2,730
86650-87003 Buzzer Assy, Speed Indicator
1983-11 → 1985-08 ended
CR2# ¥2,710
89530C — Computer Assy, Transmission Control
89530-28030 Computer Assy, Transmission Control
1985-10 → 1988-08 ended
CR30,YR3# 4FC ¥7,600
89550 — Computer Assy, Emission Control
89550-27040 Computer Assy, Emission Control
1982-11 → 1988-08 ended
YR26 ¥7,700
89550-28030 Computer Assy, Emission Control
1982-11 → 1983-05 ended
YR20 ¥47,600
89550-28030 Computer Assy, Emission Control
1983-05 → 1988-08 ended
YR20,28 MTM ¥47,600
89550-28060 Computer Assy, Emission Control
1983-05 → 1988-08 ended
YR20,28 4FC ¥47,600
89559 — Bracket, Emission Control Computer
28529-64020 Bracket, Emission Control Computer
1982-11 → 1988-08 ended
YR26 ¥1,570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
