Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

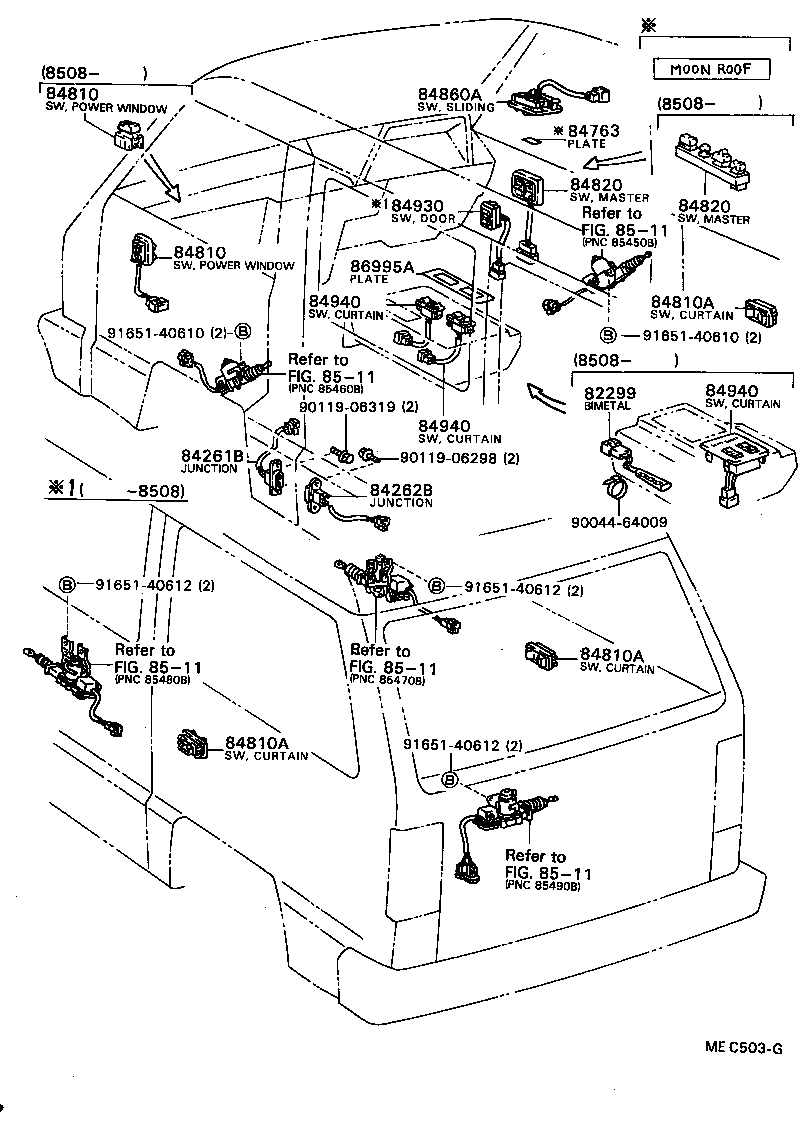

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82299 — Bimetal, Auto Curtain | ||||
| 82299-95700 note |
Bimetal, Auto Curtain
1986-08 → 1988-08
ended
|
CR21,30,YR21,30 Q | ¥3,610 | |
| 84261B — Junction, Slide Door Control,Male | ||||
| 84261-87001 |
Junction, Slide Door Control,Male
1982-11 → 1988-07
ended
|
CR21,26,27,30,36,YR20,21,26,30 E,N,Q,X | ¥3,090 | |
| 84261-87002 |
Junction, Slide Door Control,Male
1988-07 → 1988-08
ended
|
CR21,26,27,30,36,YR20,21,26,30 E,N,Q | ¥3,090 | |
| 84262B — Junction, Slide Door Control, Female | ||||
| 84262-87001 |
Junction, Slide Door Control, Female
1982-11 → 1988-07
ended
|
CR21,26,27,30,36,YR20,21,26,30 E,N,Q,X | ¥2,500 | |
| 84262-87002 |
Junction, Slide Door Control, Female
1988-07 → 1988-08
ended
|
CR21,26,27,30,36,YR20,21,26,30 E,N,Q | ¥2,500 | |
| 84763 — Plate, Switch | ||||
| 84763-87001 |
Plate, Switch
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥170 | |
| 84763-87001 |
Plate, Switch
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥170 | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-32050 |
Switch Assy, Power Window Regulator
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥3,890 | |
| 84810-32050 note |
Switch Assy, Power Window Regulator
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,890 | |
| 84810-32050 note |
Switch Assy, Power Window Regulator
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥3,890 | |
| 84810-32050 note |
Switch Assy, Power Window Regulator
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,890 | |
| 84810-32050 note |
Switch Assy, Power Window Regulator
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,890 | |
| 84810-87002-03 note |
Switch Assy, Power Window Regulator
1982-11 → 1984-08
ended
|
YR20,21 07S | ¥3,700 | |
| 84810-87002-05 note |
Switch Assy, Power Window Regulator
1982-11 → 1984-08
ended
|
YR20,21 07S | ¥3,700 | |
| 84810-87003-02 note |
Switch Assy, Power Window Regulator
1984-08 → 1985-08
ended
|
YR20,21 07S | ¥3,750 | |
| 84810-87003-04 note |
Switch Assy, Power Window Regulator
1984-08 → 1985-08
ended
|
YR20,21 07S | ¥3,750 | |
| 84810A — Switch Assy, Power Curtain | ||||
| 84810-87001-02 note |
Switch Assy, Power Curtain
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥3,720 | |
| 84810-87001-04 note |
Switch Assy, Power Curtain
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥3,720 | |
| 84810-87001-06 note |
Switch Assy, Power Curtain
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | ¥3,720 | |
| 84810-87001-14 note |
Switch Assy, Power Curtain
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | ¥3,720 | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-87002-03 note |
Master Switch Assy, Power Window Regulator
1982-11 → 1984-08
ended
|
YR20,21 07S | ¥7,900 | |
| 84820-87002-05 note |
Master Switch Assy, Power Window Regulator
1982-11 → 1984-08
ended
|
YR20,21 07S | ¥7,900 | |
| 84820-87004-02 note |
Master Switch Assy, Power Window Regulator
1984-08 → 1985-08
ended
|
YR20,21 07S | ¥8,200 | |
| 84820-87004-04 note |
Master Switch Assy, Power Window Regulator
1984-08 → 1985-08
ended
|
YR20,21 07S | ¥8,200 | |
| 84820-87006 |
Master Switch Assy, Power Window Regulator
1985-08 → 1986-01
ended
|
CR21,30,YR20,21 Q | — | |
| 84820-87008 note |
Master Switch Assy, Power Window Regulator
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥11,900 | |
| 84820-87008 |
Master Switch Assy, Power Window Regulator
1986-01 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥11,900 | |
| 84820-87008 note |
Master Switch Assy, Power Window Regulator
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥11,900 | |
| 84820-87008 note |
Master Switch Assy, Power Window Regulator
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥11,900 | |
| 84820-87008 note |
Master Switch Assy, Power Window Regulator
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥11,900 | |
| 84860A — Switch Assy, Sliding Roof | ||||
| 84860-87002-03 note |
Switch Assy, Sliding Roof
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥6,800 | |
| 84860-87002-05 note |
Switch Assy, Sliding Roof
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥6,800 | |
| 84860-87003-03 note |
Switch Assy, Sliding Roof
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥6,700 | |
| 84860-87003-03 note |
Switch Assy, Sliding Roof
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥6,700 | |
| 84860-87003-15 note |
Switch Assy, Sliding Roof
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥6,700 | |
| 84860-87003-25 note |
Switch Assy, Sliding Roof
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | ¥6,700 | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-87002-03 note |
Switch Assy, Door Control
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥3,890 | |
| 84930-87002-05 note |
Switch Assy, Door Control
1982-11 → 1984-08
ended
|
CR21,YR2# E,N,Q,X | ¥3,890 | |
| 84930-87003 |
Switch Assy, Door Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E | ¥3,630 | |
| 84930-87003 |
Switch Assy, Door Control
1985-08 → 1988-08
ended
|
CR26,27,36,YR26 N | ¥3,630 | |
| 84930-95701 |
Switch Assy, Door Control
1984-08 → 1985-08
ended
|
CR2#,YR2# E,N,Q,X | ¥3,870 | |
| 84940 — Switch Assy, Curtain | ||||
| 84940-87001-03 note |
Switch Assy, Curtain
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥4,150 | |
| 84940-87001-05 note |
Switch Assy, Curtain
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥4,150 | |
| 84940-87003-04 note |
Switch Assy, Curtain
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥7,400 | |
| 84940-87003-06 note |
Switch Assy, Curtain
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥7,400 | |
| 84940-95702-03 note |
Switch Assy, Curtain
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥7,900 | |
| 84940-95702-05 note |
Switch Assy, Curtain
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥7,900 | |
| 86995A — Plate, Power Curtain Caution | ||||
| 86995-87001 |
Plate, Power Curtain Caution
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
