Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

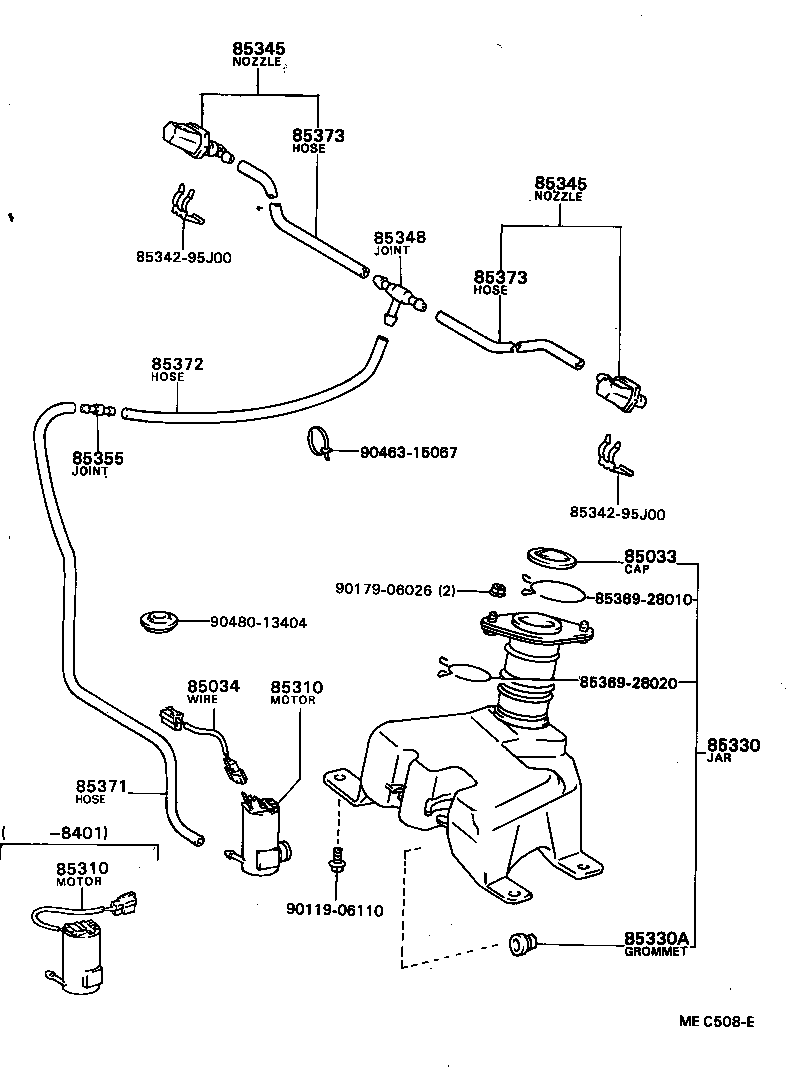

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85033 — Cap Assy, Windshield Washer | ||||
| 85033-36120 note |
Cap Assy, Windshield Washer
1984-08 → 1986-08
ended
|
CR21,26,28,KR26,YR20,26,28 B,D,G,R | — | |
| 85033-36120 note |
Cap Assy, Windshield Washer
1986-08 → 1988-08
ended
|
CR21,26,28,37,KR26,YR20,26,28,36 B,D | — | |
| 85332-28010 |
Cap Assy, Windshield Washer
1982-11 → 1984-02
ended
|
CR2#,KR26,YR2# | ¥660 | |
| 85332-28011 |
Cap Assy, Windshield Washer
1984-02 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥650 | |
| 85332-87002 note |
Cap Assy, Windshield Washer
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥210 | |
| 85332-87002 note |
Cap Assy, Windshield Washer
1984-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | ¥210 | |
| 85332-87002 note |
Cap Assy, Windshield Washer
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥210 | |
| 85034 — Wire, Washer | ||||
| 85034-87001 |
Wire, Washer
1984-02 → 1984-08
ended
|
CR2#,KR26,YR2# | — | |
| 85310 — Motor And Pump Assy, Windshield Washer | ||||
| 85310-22080 note |
Motor And Pump Assy, Windshield Washer
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 85310-22080 note |
Motor And Pump Assy, Windshield Washer
1984-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | — | |
| 85310-22080 note |
Motor And Pump Assy, Windshield Washer
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 85310-30060 note |
Motor And Pump Assy, Windshield Washer
1984-08 → 1986-08
ended
|
CR21,26,28,KR26,YR20,26,28 B,D,G,R | — | |
| 85310-30060 note |
Motor And Pump Assy, Windshield Washer
1986-08 → 1988-08
ended
|
CR21,26,28,37,KR26,YR20,26,28,36 B,D | — | |
| 85310-87003 |
Motor And Pump Assy, Windshield Washer
1982-11 → 1984-02
ended
|
CR2#,KR26,YR2# | — | |
| 85310-95703 |
Motor And Pump Assy, Windshield Washer
1984-02 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥9,900 | |
| 85330 — Jar Assy, Windshield Washer | ||||
| 85330-87003 |
Jar Assy, Windshield Washer
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥7,000 | |
| 85330-87005 note |
Jar Assy, Windshield Washer
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥8,600 | |
| 85330-87005 note |
Jar Assy, Windshield Washer
1984-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | ¥8,600 | |
| 85330-87005 note |
Jar Assy, Windshield Washer
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥8,600 | |
| 85330-87006 note |
Jar Assy, Windshield Washer
1984-08 → 1986-08
ended
|
CR21,26,28,KR26,YR20,26,28 B,D,G,R | ¥3,400 | |
| 85330-87006 note |
Jar Assy, Windshield Washer
1986-08 → 1988-08
ended
|
CR21,26,28,37,KR26,YR20,26,28,36 B,D | ¥3,400 | |
| 85330A — Bush, Windshield Washer Jar | ||||
| 90099-32089 |
Bush, Windshield Washer Jar
1984-08 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,30 | — | |
| 90099-32103 |
Bush, Windshield Washer Jar
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥0 | |
| 85345 — Nozzle, Windshield Washer | ||||
| 85035-87007 note |
Nozzle, Windshield Washer
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,30 | ¥2,150 | |
| 85035-87008 note |
Nozzle, Windshield Washer
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,30 | ¥2,150 | |
| 85348 — Joint, Windshield Washer Hose, NO.1 | ||||
| 85348-12250 note |
Joint, Windshield Washer Hose, NO.1
1986-08 → 1988-08
ended
|
CR21,26,28,37,KR26,YR20,26,28,36 B,D | — | |
| 85348-12250 note |
Joint, Windshield Washer Hose, NO.1
1984-08 → 1986-08
ended
|
CR21,26,28,KR26,YR20,26,28 B,D,G,R | — | |
| 85348-22162 note |
Joint, Windshield Washer Hose, NO.1
1986-07 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 85348-22162 note |
Joint, Windshield Washer Hose, NO.1
1986-07 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | — | |
| 85348-40010 note |
Joint, Windshield Washer Hose, NO.1
1985-08 → 1986-07
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 85348-40010 note |
Joint, Windshield Washer Hose, NO.1
1984-08 → 1986-07
ended
|
CR26,27,36,KR26,YR26 D,N | — | |
| 85348-40010 note |
Joint, Windshield Washer Hose, NO.1
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 85349-89122 note |
Joint, Windshield Washer Hose, NO.1
1984-08 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,30 | — | |
| 85355-60010 |
Joint, Windshield Washer Hose, NO.1
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥570 | |
| 85355 — Valve, Windshield Washer Hose | ||||
| 85031-14080 |
Valve, Windshield Washer Hose
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | — | |
| 85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT) | ||||
| 85354-28010 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥380 | |
| 90446-06013 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-08 → 1986-08
ended
|
CR21,26,28,KR26,YR20,26,28 B,D,G,R | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
1986-08 → 1988-08
ended
|
CR21,26,28,37,KR26,YR20,26,28,36 B,D | — | |
| 85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 | ||||
| 85343-87002 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-08 → 1984-12
ended
|
CR26,27,KR26,YR26 D,N | ¥850 | |
| 85343-87002 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-08 → 1984-12
ended
|
CR21,YR20,21 E,G,Q,X | ¥850 | |
| 85343-87004 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1985-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥620 | |
| 85343-87004 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | ¥620 | |
| 85343-87004 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥620 | |
| 85354-87001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1985-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥620 | |
| 85354-87001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | ¥620 | |
| 85354-87001 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥620 | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1985-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1988-08
ended
|
CR26,27,36,KR26,YR26 D,N | — | |
| 90099-33332 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-08 → 1986-08
ended
|
CR21,26,28,KR26,YR20,26,28 B,D,G,R | — | |
| 90446-06013 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1986-08 → 1988-08
ended
|
CR21,26,28,37,KR26,YR20,26,28,36 B,D | — | |
| 85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
