Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

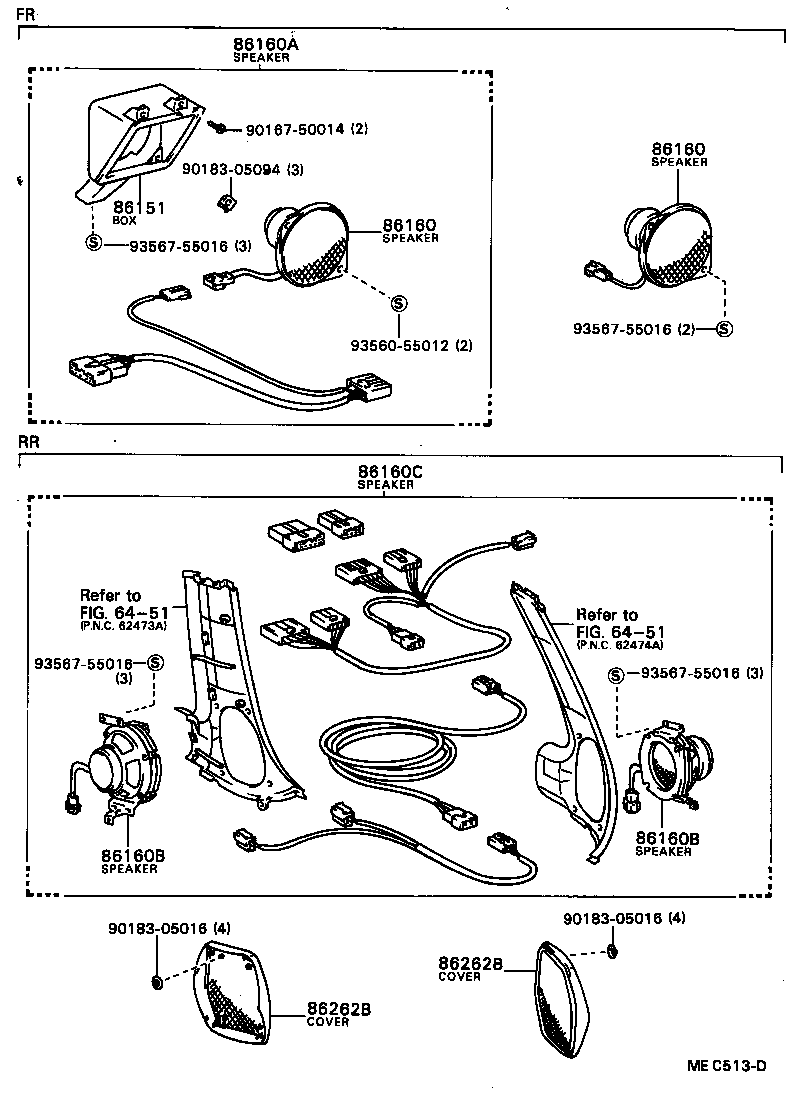

Exploded illustration MEC513D 86160A — SPEAKER SET, FRONT (2 parts) 9016750014 — not listed in this catalogue 86160 — SPEAKER ASSY, FRONT NO.1 (4 parts) 9018305094 — not listed in this catalogue 86151 — BOX, SPEAKER (2 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (4 parts) 9356755016 — not listed in this catalogue 9356755016 — not listed in this catalogue 9356055012 — not listed in this catalogue 86160C — SPEAKER SET, REAR (3 parts) 6451 — not listed in this catalogue 6451 — not listed in this catalogue 9356755016 — not listed in this catalogue 9356755016 — not listed in this catalogue 86160B — SPEAKER ASSY, REAR (2 parts) 86160B — SPEAKER ASSY, REAR (2 parts) 9018305016 — not listed in this catalogue 9018305016 — not listed in this catalogue 86262B — COVER, SPEAKER, REAR (8 parts) 86262B — COVER, SPEAKER, REAR (8 parts)
MEC513D · 9 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
86151 — Box, Speaker
86151-87001 Box, Speaker
1986-08 → 1988-08 ended
YR36 —
86151-87001 Box, Speaker
1982-11 → 1988-08 ended
CR37,YR36 —
86160 — Speaker Assy, Front NO.1
86160-10140 note Speaker Assy, Front NO.1
1982-11 → 1983-11 ended
CR21,YR2# 4FC,5F —
86160-10140 Speaker Assy, Front NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
86160-87011 note Speaker Assy, Front NO.1
1983-11 → 1988-08 ended
CR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30 B,E,G,N,Q,X ¥6,600
86160-87011 note Speaker Assy, Front NO.1
1986-08 → 1988-08 ended
CR37,YR36 ¥6,600
86160A — Speaker Set, Front
86150-29015 note Speaker Set, Front
1982-11 → 1988-08 ended
CR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30 B,E,G,N,Q,X —
86150-29015 Speaker Set, Front
1986-08 → 1988-08 ended
CR37,YR36 —
86160B — Speaker Assy, Rear
86160-87007 note Speaker Assy, Rear
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 07S —
86160-87008 note Speaker Assy, Rear
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 07S —
86160C — Speaker Set, Rear
86160-29515 note Speaker Set, Rear
1982-11 → 1988-08 ended
CR21,YR20,21,30 07S —
86160-29525 note Speaker Set, Rear
1982-11 → 1984-08 ended
YR20,21 07S —
86160-29745 note Speaker Set, Rear
1984-08 → 1988-08 ended
CR21,YR20,21,30 07S —
86262B — Cover, Speaker, Rear
86225-87001-03 note Cover, Speaker, Rear
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 07S ¥10,100
86225-87001-05 note Cover, Speaker, Rear
1982-11 → 1984-08 ended
YR20,21 07S ¥10,100
86225-87001-15 note Cover, Speaker, Rear
1984-08 → 1985-08 ended
YR20,21 07S ¥10,100
86225-87001-25 note Cover, Speaker, Rear
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥10,100
86226-87001-03 note Cover, Speaker, Rear
1982-11 → 1988-08 ended
CR21,30,YR20,21,30 07S ¥10,100
86226-87001-05 note Cover, Speaker, Rear
1982-11 → 1984-08 ended
YR20,21 07S ¥10,100
86226-87001-15 note Cover, Speaker, Rear
1984-08 → 1985-08 ended
YR20,21 07S ¥10,100
86226-87001-25 note Cover, Speaker, Rear
1985-08 → 1988-08 ended
CR21,30,YR20,21,30 Q ¥10,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
