Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

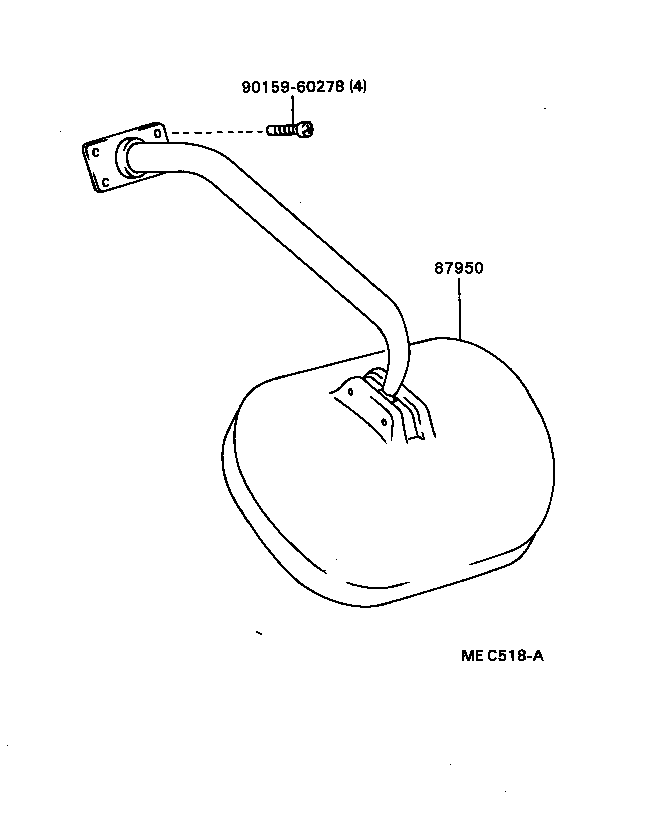

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87950 — Mirror Assy, Outer Under Rear View | ||||
| 87950-29035 |
Mirror Assy, Outer Under Rear View
1982-11 → 1985-08
ended
|
CR26,KR26,YR26;CR21,27,YR20,21 E,G,N,Q,X | ¥14,000 | |
| 87950-29035 |
Mirror Assy, Outer Under Rear View
1985-08 → 1986-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥14,000 | |
| 87950-87002 |
Mirror Assy, Outer Under Rear View
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥14,500 | |
| 87950-87003-08 note |
Mirror Assy, Outer Under Rear View
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | — | |
| 87950-87004-03 note |
Mirror Assy, Outer Under Rear View
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
