Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

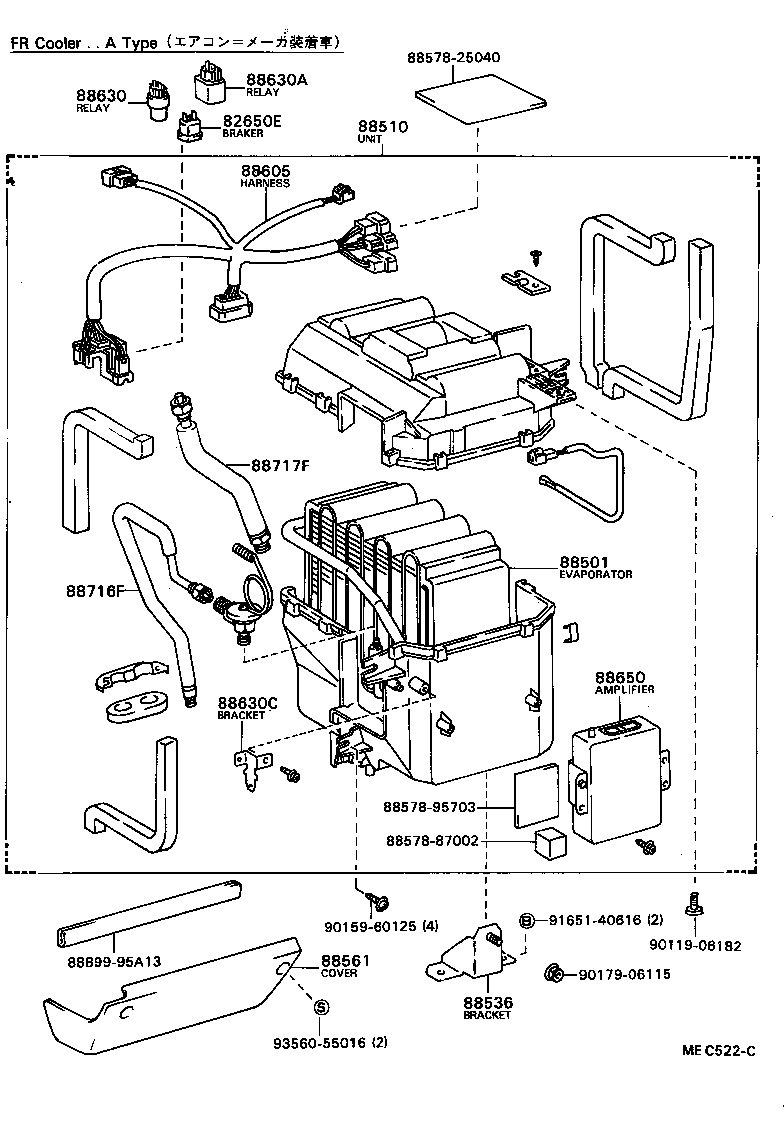

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82650E — Breaker Assy, Wiring Circuit | ||||
| 82650-20011 note |
Breaker Assy, Wiring Circuit
1985-10 → 1988-08
ended
|
CR30 | ¥880 | |
| 82650-35010 note |
Breaker Assy, Wiring Circuit
1982-11 → 1988-08
ended
|
CR21,YR20,21,30 E,G,Q,X | ¥1,170 | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-87006 note |
Evaporator Sub-assy, Cooler, NO.1
1982-11 → 1986-01
ended
|
CR2#,3#,KR26,YR2#,30 | — | |
| 88501-87007 note |
Evaporator Sub-assy, Cooler, NO.1
1982-11 → 1985-02
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88501-87008 note |
Evaporator Sub-assy, Cooler, NO.1
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88501-87009 note |
Evaporator Sub-assy, Cooler, NO.1
1986-01 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88501-87010 note |
Evaporator Sub-assy, Cooler, NO.1
1985-02 → 1987-06
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88501-87011 note |
Evaporator Sub-assy, Cooler, NO.1
1987-06 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | — | |
| 88510 — Unit Assy, Cooler | ||||
| 88510-87010 note |
Unit Assy, Cooler
1982-11 → 1984-08
ended
|
YR20 Q | — | |
| 88510-87011 note |
Unit Assy, Cooler
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88510-87017 note |
Unit Assy, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88510-87018 note |
Unit Assy, Cooler
1983-05 → 1984-08
ended
|
YR21 Q | — | |
| 88510-87021 note |
Unit Assy, Cooler
1984-08 → 1985-08
ended
|
YR20 Q | — | |
| 88510-87022 note |
Unit Assy, Cooler
1984-08 → 1985-08
ended
|
YR21 Q | — | |
| 88510-87031 note |
Unit Assy, Cooler
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88536 — Bracket, Cooling Unit, NO.1 | ||||
| 88536-87013 |
Bracket, Cooling Unit, NO.1
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 88561 — Cover, Cooler Unit | ||||
| 88899-87012 |
Cover, Cooler Unit
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 88899-87015 note |
Cover, Cooler Unit
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88605 — Harness Sub-assy, Cooler Wiring, NO.1 | ||||
| 88605-87024 |
Harness Sub-assy, Cooler Wiring, NO.1
1982-11 → 1985-08
ended
|
KR26,YR20,26 D,E,G,N,R | — | |
| 88605-87025 note |
Harness Sub-assy, Cooler Wiring, NO.1
1982-11 → 1984-08
ended
|
YR20 Q | — | |
| 88605-87025 note |
Harness Sub-assy, Cooler Wiring, NO.1
1984-08 → 1985-08
ended
|
YR20 07S,08S | — | |
| 88605-87026 |
Harness Sub-assy, Cooler Wiring, NO.1
1982-11 → 1985-08
ended
|
CR2# | — | |
| 88605-87033 note |
Harness Sub-assy, Cooler Wiring, NO.1
1983-04 → 1984-08
ended
|
CR21 | — | |
| 88605-87034 note |
Harness Sub-assy, Cooler Wiring, NO.1
1983-05 → 1985-08
ended
|
YR21 | — | |
| 88605-87041 note |
Harness Sub-assy, Cooler Wiring, NO.1
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88605-87042 note |
Harness Sub-assy, Cooler Wiring, NO.1
1984-08 → 1985-04
ended
|
YR21 Q | — | |
| 88605-87043 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-04 → 1985-08
ended
|
YR21 Q | — | |
| 88605-87053 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
CR26,27 | — | |
| 88605-87054 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | — | |
| 88605-87056 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
CR21 E,G,Q | — | |
| 88605-87060 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
YR21 | — | |
| 88605-87061 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1986-08
ended
|
YR20 Q | — | |
| 88605-87062 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
CR21 Q | — | |
| 88605-87063 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
YR21 Q | — | |
| 88605-87067 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
KR26,YR26 | — | |
| 88605-87068 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
CR21,28 B,D | — | |
| 88605-87069 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-08 → 1988-08
ended
|
YR20,28 B,D | — | |
| 88605-95D05 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-10 → 1988-08
ended
|
YR30 | — | |
| 88605-95D07 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-10 → 1988-08
ended
|
CR30 | — | |
| 88605-95D08 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-10 → 1988-08
ended
|
CR36 | — | |
| 88605-95D09 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-10 → 1988-08
ended
|
CR30 Q | — | |
| 88605-95D14 note |
Harness Sub-assy, Cooler Wiring, NO.1
1986-08 → 1988-08
ended
|
YR36 | — | |
| 88605-95D15 note |
Harness Sub-assy, Cooler Wiring, NO.1
1985-10 → 1988-08
ended
|
YR30 Q | — | |
| 88605-95D16 note |
Harness Sub-assy, Cooler Wiring, NO.1
1987-08 → 1988-08
ended
|
CR37 | — | |
| 88605-95D19 note |
Harness Sub-assy, Cooler Wiring, NO.1
1988-05 → 1988-08
ended
|
CR30 4FC | — | |
| 88630 — Relay Assy, Cooler | ||||
| 28380-44030 note |
Relay Assy, Cooler
1985-10 → 1988-08
ended
|
CR30 E,Q | ¥4,230 | |
| 88630-14030 note |
Relay Assy, Cooler
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88630-95702 note |
Relay Assy, Cooler
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 90987-03001 note |
Relay Assy, Cooler
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥2,230 | |
| 88630A — Relay Assy, Cooler | ||||
| 85913-30020 note |
Relay Assy, Cooler
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥4,270 | |
| 88630-95704 note |
Relay Assy, Cooler
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88630C — Bracket, Cooler Relay | ||||
| 88631-87001 |
Bracket, Cooler Relay
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88631-87002 note |
Bracket, Cooler Relay
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88631-95D00 |
Bracket, Cooler Relay
1985-10 → 1988-08
ended
|
YR3# | — | |
| 88631-95D01 |
Bracket, Cooler Relay
1985-10 → 1988-08
ended
|
CR3# | — | |
| 88688-87031 note |
Bracket, Cooler Relay
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88650 — Amplifier Assy, Cooler Stabilizer | ||||
| 88650-12060 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
KR26,YR20,26,28 B,D,N | — | |
| 88650-12060 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1985-08
ended
|
KR26,YR20,26 D,E,G,N,R | — | |
| 88650-14030 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1985-08
ended
|
CR2# | — | |
| 88650-14030 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
CR2#,36,37 B,D,N | — | |
| 88650-14051 note |
Amplifier Assy, Cooler Stabilizer
1986-08 → 1988-08
ended
|
YR36 | — | |
| 88650-28010 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
YR21 | — | |
| 88650-87002 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1984-08
ended
|
YR20 07S,08S | — | |
| 88650-87006 note |
Amplifier Assy, Cooler Stabilizer
1983-04 → 1984-08
ended
|
CR21 | — | |
| 88650-87009 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | — | |
| 88650-87009 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88650-87010 note |
Amplifier Assy, Cooler Stabilizer
1983-05 → 1984-08
ended
|
YR21 | — | |
| 88650-87011 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
CR21 E,G,Q | — | |
| 88650-87011 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1988-08
ended
|
YR20,21 07S,08S | — | |
| 88650-87012 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
YR20 07S,08S | — | |
| 88650-87013 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88650-87015 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
YR21 | — | |
| 88650-87015 note |
Amplifier Assy, Cooler Stabilizer
1985-10 → 1988-08
ended
|
YR30 | — | |
| 88650-87020 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | — | |
| 88650-87021 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
CR21,30 E,G,Q | — | |
| 88716F — Pipe, Cooler Refrigerant Liquid, F | ||||
| 88716-87042 note |
Pipe, Cooler Refrigerant Liquid, F
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥2,050 | |
| 88716-87051 note |
Pipe, Cooler Refrigerant Liquid, F
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥4,220 | |
| 88717F — Pipe, Cooler Refrigerant Suction, F | ||||
| 88717-87036 note |
Pipe, Cooler Refrigerant Suction, F
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥6,400 | |
| 88717-87048 note |
Pipe, Cooler Refrigerant Suction, F
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥5,700 | |
| 88717-87048 note |
Pipe, Cooler Refrigerant Suction, F
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
