Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

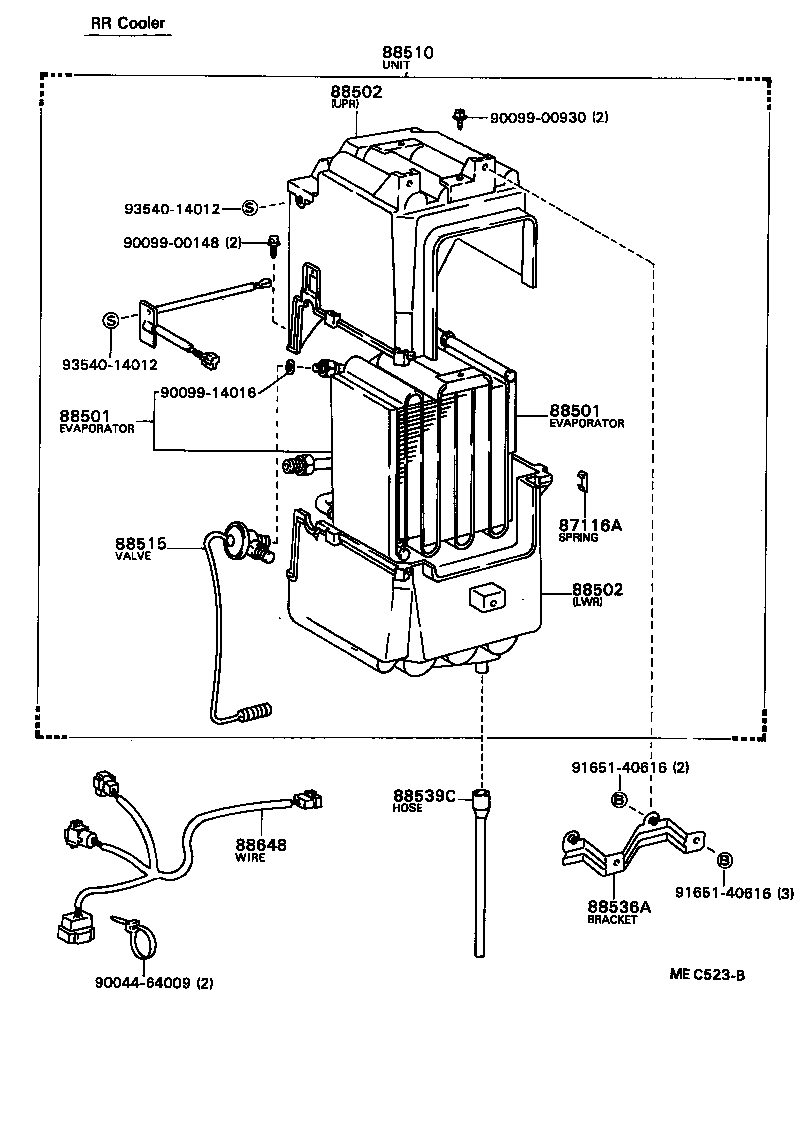

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87116A — Spring, Holding (FOR COOLER UNIT CASE) | ||||
| 87116-14010 note |
Spring, Holding (FOR COOLER UNIT CASE)
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 87116-14010 note |
Spring, Holding (FOR COOLER UNIT CASE)
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-87006 note |
Evaporator Sub-assy, Cooler, NO.1
1982-11 → 1986-01
ended
|
CR2#,3#,KR26,YR2#,30 | — | |
| 88501-87007 note |
Evaporator Sub-assy, Cooler, NO.1
1982-11 → 1985-02
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88501-87008 note |
Evaporator Sub-assy, Cooler, NO.1
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88501-87009 note |
Evaporator Sub-assy, Cooler, NO.1
1986-01 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88501-87010 note |
Evaporator Sub-assy, Cooler, NO.1
1985-02 → 1987-06
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88501-87011 note |
Evaporator Sub-assy, Cooler, NO.1
1987-06 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | — | |
| 88502 — Case Sub-assy, Cooling Unit | ||||
| 88502-28010 note |
Case Sub-assy, Cooling Unit
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88502-28020 note |
Case Sub-assy, Cooling Unit
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88510 — Unit Assy, Cooler | ||||
| 88510-87010 note |
Unit Assy, Cooler
1982-11 → 1984-08
ended
|
YR20 Q | — | |
| 88510-87011 note |
Unit Assy, Cooler
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88510-87017 note |
Unit Assy, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88510-87018 note |
Unit Assy, Cooler
1983-05 → 1984-08
ended
|
YR21 Q | — | |
| 88510-87021 note |
Unit Assy, Cooler
1984-08 → 1985-08
ended
|
YR20 Q | — | |
| 88510-87022 note |
Unit Assy, Cooler
1984-08 → 1985-08
ended
|
YR21 Q | — | |
| 88510-87031 note |
Unit Assy, Cooler
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-16030 note |
Valve, Cooler Expansion
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥7,100 | |
| 88515-87002 note |
Valve, Cooler Expansion
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | ¥7,100 | |
| 88515-87003 note |
Valve, Cooler Expansion
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥7,100 | |
| 88515-87004 note |
Valve, Cooler Expansion
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥7,100 | |
| 88536A — Bracket, Cooling Unit, NO.2 | ||||
| 88536-87014 |
Bracket, Cooling Unit, NO.2
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88539C — Hose, Cooler Unit Drain, NO.2 | ||||
| 88539-87006 |
Hose, Cooler Unit Drain, NO.2
1982-11 → 1988-05
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88539-95701 |
Hose, Cooler Unit Drain, NO.2
1988-05 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥370 | |
| 88648 — Wiring, Cooler, NO.1 | ||||
| 88648-87003 |
Wiring, Cooler, NO.1
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
