Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

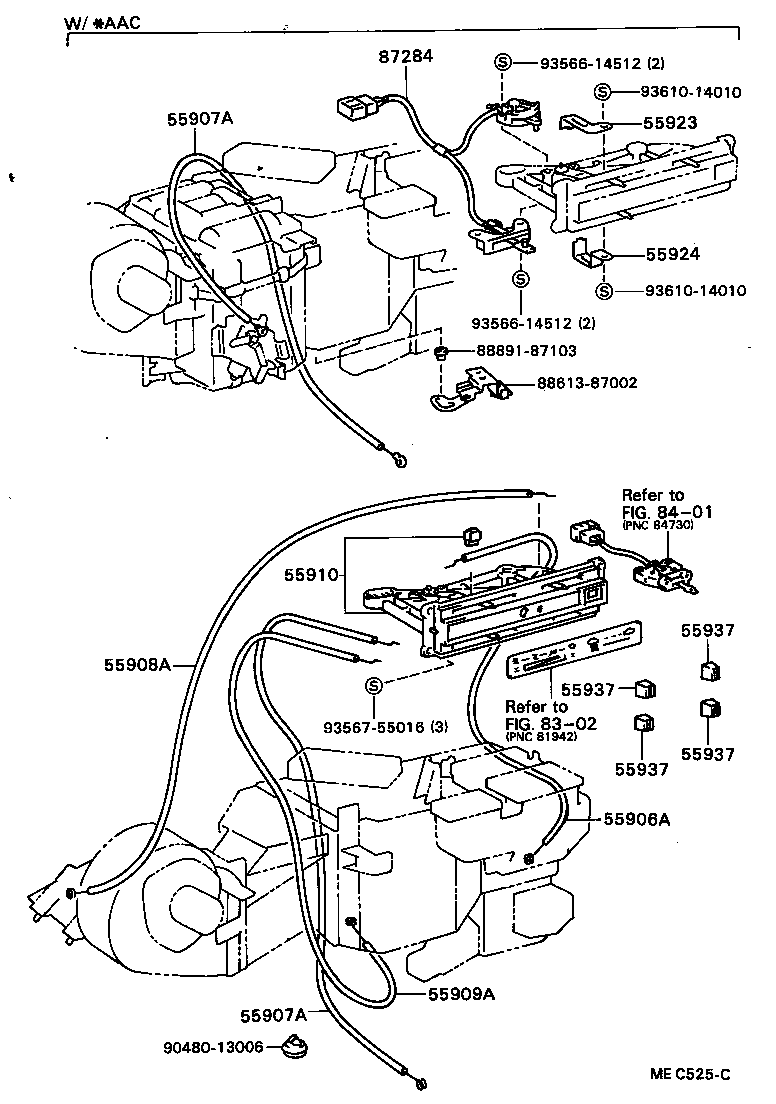

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55906A — Cable Sub-assy, Defroster Damper Control | ||||
| 55906-87004 |
Cable Sub-assy, Defroster Damper Control
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥680 | |
| 55907A — Cable Sub-assy, Water Valve Control | ||||
| 55907-28020 note |
Cable Sub-assy, Water Valve Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 55907-87005 |
Cable Sub-assy, Water Valve Control
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥1,430 | |
| 55908A — Cable Sub-assy, Air Inlet Damper Control | ||||
| 55908-87003 |
Cable Sub-assy, Air Inlet Damper Control
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,110 | |
| 55908-87004 |
Cable Sub-assy, Air Inlet Damper Control
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,180 | |
| 55909A — Cable Sub-assy, Airmix Damper Control | ||||
| 55909-28030 note |
Cable Sub-assy, Airmix Damper Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 55909-28040 note |
Cable Sub-assy, Airmix Damper Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 55909-87002 note |
Cable Sub-assy, Airmix Damper Control
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥870 | |
| 55909-87003 note |
Cable Sub-assy, Airmix Damper Control
1982-11 → 1988-08
ended
|
CR21,28,30,37,YR20,21,28,3# | ¥1,740 | |
| 55909-87003 note |
Cable Sub-assy, Airmix Damper Control
1982-11 → 1988-08
ended
|
CR26,27,36 V4D 05S | ¥1,740 | |
| 55909-87003 note |
Cable Sub-assy, Airmix Damper Control
1982-11 → 1988-08
ended
|
YR26 V4D N | ¥1,740 | |
| 55910 — Control Assy, Heater OR Boost Ventilator | ||||
| 55910-87006 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-04
ended
|
CR2#,KR26,YR2# | ¥5,200 | |
| 55910-87007-02 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
YR20 HRF;YR20 MRF (E,X);CR21,YR21 +1 | ¥5,100 | |
| 55910-87007-04 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,Q,X | ¥5,100 | |
| 55910-87007-04 note |
Control Assy, Heater OR Boost Ventilator
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥5,100 | |
| 55910-87009-02 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
CR21,YR20 08S,09S | ¥5,100 | |
| 55910-87009-02 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
CR26,27 V4D 05S | ¥5,100 | |
| 55910-87009-02 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
YR26 V4D N | ¥5,100 | |
| 55910-87009-04 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
CR21,YR20 E | ¥5,100 | |
| 55910-87009-04 note |
Control Assy, Heater OR Boost Ventilator
1982-11 → 1985-08
ended
|
CR26,27 V4D 05S | ¥5,100 | |
| 55910-87014-04 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥5,300 | |
| 55910-87014-06 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥5,300 | |
| 55910-87015-04 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
YR20 6S,08S HRF E;YR20 +6 | ¥5,900 | |
| 55910-87015-04 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
CR26,27,36 V4D 05S | ¥5,900 | |
| 55910-87015-04 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
YR26 V4D N | ¥5,900 | |
| 55910-87015-06 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
YR20 6S,08S HRF E;YR20 +6 | ¥5,900 | |
| 55910-87015-06 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
CR26,27,36 V4D 05S | ¥5,900 | |
| 55910-87015-06 note |
Control Assy, Heater OR Boost Ventilator
1985-08 → 1988-08
ended
|
YR26 V4D N | ¥5,900 | |
| 55910-87018 note |
Control Assy, Heater OR Boost Ventilator
1985-04 → 1988-08
ended
|
YR20 # HRF 5F +5 | ¥5,200 | |
| 55923 — Retainer, Heater Control, Upper | ||||
| 55923-28010 note |
Retainer, Heater Control, Upper
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥310 | |
| 55924 — Retainer, Heater Control, Lower | ||||
| 55924-28010 note |
Retainer, Heater Control, Lower
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥300 | |
| 55937 — Knob, Heater Control Lever | ||||
| 55905-12060 note |
Knob, Heater Control Lever
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | ¥470 | |
| 55905-12060 note |
Knob, Heater Control Lever
1984-08 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥470 | |
| 55905-89110 note |
Knob, Heater Control Lever
1984-08 → 1988-08
ended
|
CR21,28,30,37,YR20,21,28,3# | ¥440 | |
| 55905-89110 note |
Knob, Heater Control Lever
1984-08 → 1988-08
ended
|
CR26,27,36 V4D 05S | ¥440 | |
| 55905-89110 note |
Knob, Heater Control Lever
1984-08 → 1988-08
ended
|
YR26 V4D N | ¥440 | |
| 87284 — Resistor Sub-assy, Variable | ||||
| 88032-87001 note |
Resistor Sub-assy, Variable
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88032-87002 note |
Resistor Sub-assy, Variable
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88622-87001 note |
Resistor Sub-assy, Variable
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | — | |
| 88622-87001 |
Resistor Sub-assy, Variable
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
