Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

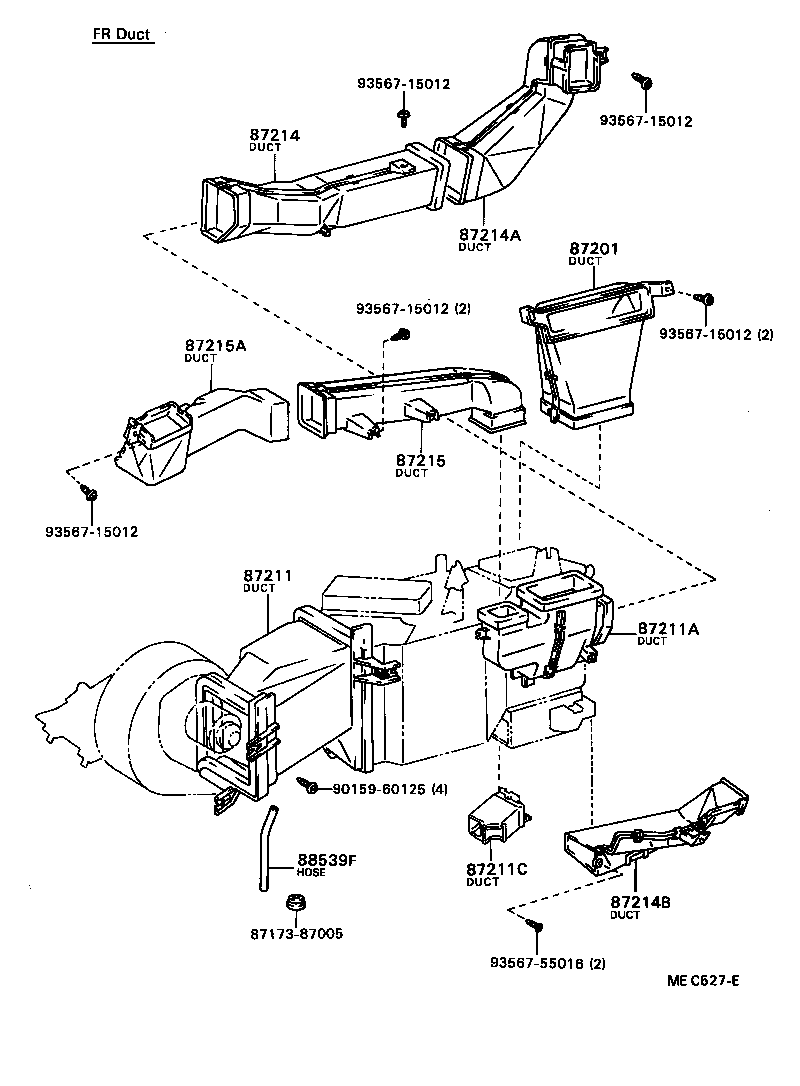

Exploded illustration MEC527E 9356715012 — not listed in this catalogue 9356715012 — not listed in this catalogue 87214 — DUCT, AIR, SIDE NO.1 RH (2 parts) 87214A — DUCT, AIR, SIDE NO.2 RH (2 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (2 parts) 9356715012 — not listed in this catalogue 9356715012 — not listed in this catalogue 87215A — DUCT, AIR, SIDE NO.2 LH (2 parts) 87215 — DUCT, AIR, SIDE NO.1 LH (2 parts) 9356715012 — not listed in this catalogue 87211 — DUCT, AIR, NO.1 (1 parts) 87211A — DUCT, AIR, NO.2 (1 parts) 9015960125 — not listed in this catalogue 88539F — HOSE, DRAIN (1 parts) 87211C — DUCT, AIR, NO.4 (1 parts) 87214B — DUCT, AIR, SIDE NO.3 RH (3 parts) 8717387005 — not listed in this catalogue 9356755016 — not listed in this catalogue
MEC527E · 10 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
87201 — Duct Sub-assy, Air, NO.1
55086-87001 Duct Sub-assy, Air, NO.1
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,100
55086-87002 Duct Sub-assy, Air, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,860
87211 — Duct, Air, NO.1
87201-87002 Duct, Air, NO.1
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
87211A — Duct, Air, NO.2
87201-87003 Duct, Air, NO.2
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
87211C — Duct, Air, NO.4
87211-87002 Duct, Air, NO.4
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
87214 — Duct, Air, Side NO.1 RH
55084-87001 Duct, Air, Side NO.1 RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,690
55084-87002 Duct, Air, Side NO.1 RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,680
87214A — Duct, Air, Side NO.2 RH
55085-87001 Duct, Air, Side NO.2 RH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥4,000
55085-87002 Duct, Air, Side NO.2 RH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥4,060
87214B — Duct, Air, Side NO.3 RH
87211-87003 Duct, Air, Side NO.3 RH
1982-11 → 1984-08 ended
CR2#,KR26,YR2# —
87211-87004 Duct, Air, Side NO.3 RH
1984-08 → 1988-01 ended
CR2#,3#,KR26,YR2#,3# —
87211-87005 Duct, Air, Side NO.3 RH
1988-01 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 —
87215 — Duct, Air, Side NO.1 LH
55087-87001 Duct, Air, Side NO.1 LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# —
55087-87002 Duct, Air, Side NO.1 LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥4,020
87215A — Duct, Air, Side NO.2 LH
55088-87001 Duct, Air, Side NO.2 LH
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,460
55088-87001 Duct, Air, Side NO.2 LH
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,460
88539F — Hose, Drain
88539-22011 Hose, Drain
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
