Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

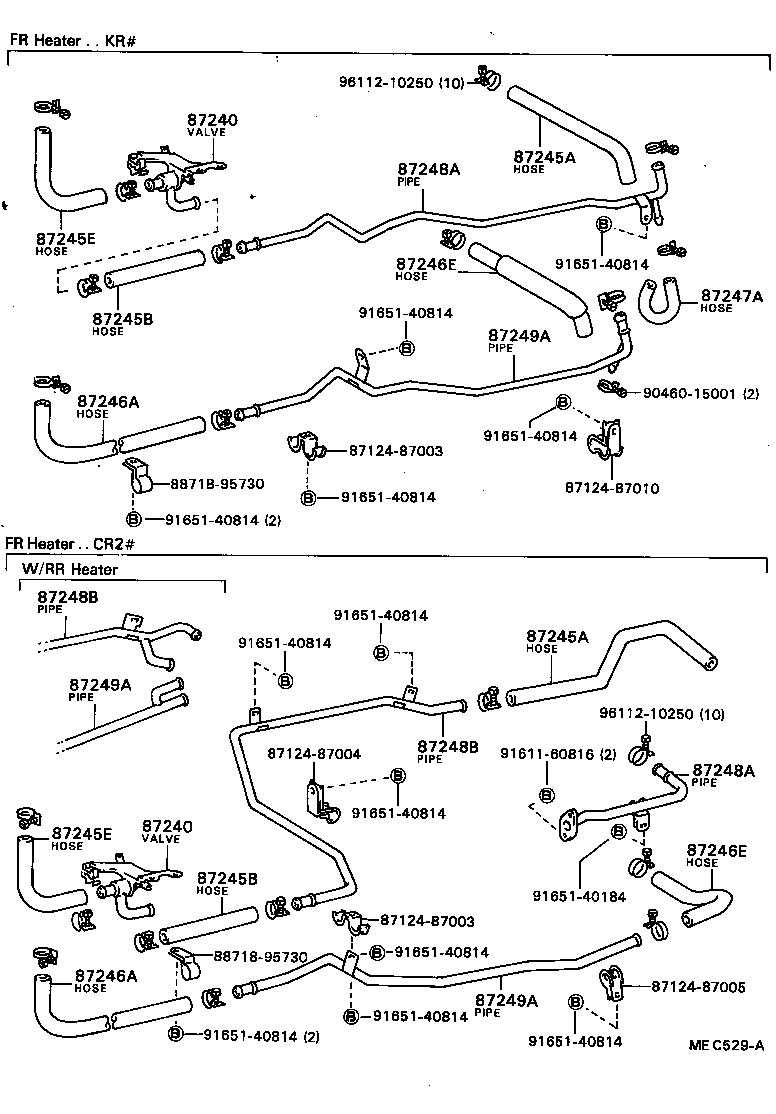

Exploded illustration MEC529A 9611210250 — not listed in this catalogue 87240 — VALVE ASSY, HEATER WATER (4 parts) 87245A — HOSE, HEATER WATER, INLET A (6 parts) 87248A — PIPE, HEATER WATER INLET, A (4 parts) 87245E — HOSE, HEATER WATER, INLET E (3 parts) 87246E — HOSE, HEATER WATER, OUTLET E (5 parts) 9165140814 — not listed in this catalogue 87247A — HOSE, HEATER WATER, A (1 parts) 9165140814 — not listed in this catalogue 87245B — HOSE, HEATER WATER, INLET B (4 parts) 87249A — PIPE, HEATER WATER OUTLET, A (10 parts) 9046015001 — not listed in this catalogue 87246A — HOSE, HEATER WATER, OUTLET A (4 parts) 9165140814 — not listed in this catalogue 8712487003 — not listed in this catalogue 8871895730 — not listed in this catalogue 8712487010 — not listed in this catalogue 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 87248B — PIPE, HEATER WATER INLET, B (16 parts) 9165140814 — not listed in this catalogue 87245A — HOSE, HEATER WATER, INLET A (6 parts) 9165140814 — not listed in this catalogue 87249A — PIPE, HEATER WATER OUTLET, A (10 parts) 9611210250 — not listed in this catalogue 87248B — PIPE, HEATER WATER INLET, B (16 parts) 9161160816 — not listed in this catalogue 8712487004 — not listed in this catalogue 87248A — PIPE, HEATER WATER INLET, A (4 parts) 9165140814 — not listed in this catalogue 87240 — VALVE ASSY, HEATER WATER (4 parts) 87245E — HOSE, HEATER WATER, INLET E (3 parts) 87246E — HOSE, HEATER WATER, OUTLET E (5 parts) 87245B — HOSE, HEATER WATER, INLET B (4 parts) 9165140184 — not listed in this catalogue 8712487003 — not listed in this catalogue 9165140814 — not listed in this catalogue 8871895730 — not listed in this catalogue 87246A — HOSE, HEATER WATER, OUTLET A (4 parts) 8712487005 — not listed in this catalogue 87249A — PIPE, HEATER WATER OUTLET, A (10 parts) 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue
MEC529A · 20 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
87240 — Valve Assy, Heater Water
87240-87008 Valve Assy, Heater Water
1982-11 → 1985-08 ended
CR2#,KR26,YR2# ¥3,270
87240-87009 Valve Assy, Heater Water
1985-08 → 1987-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,200
87240-87010 Valve Assy, Heater Water
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥3,210
87240-95D00 Valve Assy, Heater Water
1985-10 → 1987-08 ended
CR3#,YR3# ¥3,200
87245A — Hose, Heater Water, Inlet A
87245-87014 Hose, Heater Water, Inlet A
1982-11 → 1988-08 ended
YR2# ¥2,430
87245-87015 Hose, Heater Water, Inlet A
1982-11 → 1985-08 ended
CR2# ¥2,650
87245-87020 Hose, Heater Water, Inlet A
1982-11 → 1988-08 ended
KR26 ¥1,530
87245-87030 Hose, Heater Water, Inlet A
1985-08 → 1988-08 ended
CR2# ¥1,190
87245-95D09 Hose, Heater Water, Inlet A
1985-10 → 1988-08 ended
YR3# ¥2,170
87245-95D11 Hose, Heater Water, Inlet A
1985-10 → 1988-08 ended
CR3# ¥920
87245B — Hose, Heater Water, Inlet B
99552-30500 note Hose, Heater Water, Inlet B
1982-11 → 1983-08 ended
CR2#,KR26,YR2# ¥880
99556-30500 note Hose, Heater Water, Inlet B
1983-08 → 1987-08 ended
CR2#,KR26,YR2# ¥1,090
99556-30500 note Hose, Heater Water, Inlet B
1985-10 → 1987-08 ended
CR3#,YR3# ¥1,090
99556-30500 note Hose, Heater Water, Inlet B
1987-08 → 1988-08 ended
YR20 HRF E;YR20 HRF +4 ¥1,090
87245E — Hose, Heater Water, Inlet E
99552-30200 note Hose, Heater Water, Inlet E
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥390
99556-30165 note Hose, Heater Water, Inlet E
1986-07 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥350
99556-30180 Hose, Heater Water, Inlet E
1984-08 → 1986-07 ended
CR2#,3#,KR26,YR2#,30 ¥400
87246A — Hose, Heater Water, Outlet A
87245-87024 Hose, Heater Water, Outlet A
1982-11 → 1985-08 ended
CR2#,KR26,YR2# —
87245-87031 Hose, Heater Water, Outlet A
1985-08 → 1986-02 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,290
87245-87031 Hose, Heater Water, Outlet A
1986-02 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥1,290
99556-30980 note Hose, Heater Water, Outlet A
1986-02 → 1988-08 ended
CR3#,YR3# ¥1,940
87246E — Hose, Heater Water, Outlet E
87245-87016 Hose, Heater Water, Outlet E
1982-11 → 1988-08 ended
YR2# ¥2,140
87245-87017 Hose, Heater Water, Outlet E
1982-11 → 1988-08 ended
CR2# ¥940
87245-87021 Hose, Heater Water, Outlet E
1982-11 → 1988-08 ended
KR26 ¥1,200
87245-95D08 Hose, Heater Water, Outlet E
1985-10 → 1988-08 ended
YR3# ¥1,410
87245-95D10 Hose, Heater Water, Outlet E
1985-10 → 1988-08 ended
CR3# ¥1,540
87247A — Hose, Heater Water, A
87245-87022 Hose, Heater Water, A
1982-11 → 1988-08 ended
KR26 ¥470
87248A — Pipe, Heater Water Inlet, A
87208-28010 Pipe, Heater Water Inlet, A
1982-11 → 1988-08 ended
YR2#,3# —
87208-28030 Pipe, Heater Water Inlet, A
1982-11 → 1983-07 ended
CR2# —
87208-28031 Pipe, Heater Water Inlet, A
1983-07 → 1985-08 ended
CR2# —
87208-87013 Pipe, Heater Water Inlet, A
1982-11 → 1988-08 ended
KR26 —
87248B — Pipe, Heater Water Inlet, B
87208-87002 note Pipe, Heater Water Inlet, B
1982-11 → 1985-08 ended
YR20,21 —
87208-87002 note Pipe, Heater Water Inlet, B
1982-11 → 1985-08 ended
YR26 V4D N —
87208-87003 note Pipe, Heater Water Inlet, B
1982-11 → 1985-08 ended
CR21,27;CR26 V4D 05S —
87208-87004 Pipe, Heater Water Inlet, B
1982-11 → 1985-08 ended
YR20,26 D,N —
87208-87009 Pipe, Heater Water Inlet, B
1982-11 → 1985-08 ended
CR2# D,N —
87208-87018 Pipe, Heater Water Inlet, B
1985-08 → 1988-08 ended
CR2# B,D,N —
87208-87019 note Pipe, Heater Water Inlet, B
1985-08 → 1988-08 ended
YR26 V4D N —
87208-87019 note Pipe, Heater Water Inlet, B
1985-08 → 1988-08 ended
YR20 HRF 5F G;YR20 +4 —
87208-87020 Pipe, Heater Water Inlet, B
1985-08 → 1988-08 ended
YR20,26,28 B,D,N —
87208-87023 note Pipe, Heater Water Inlet, B
1985-08 → 1988-08 ended
CR26 V4D 05S —
87208-87023 note Pipe, Heater Water Inlet, B
1985-08 → 1988-08 ended
CR21,27,28 —
87208-95D04 Pipe, Heater Water Inlet, B
1986-08 → 1988-08 ended
YR36 —
87208-95D05 note Pipe, Heater Water Inlet, B
1985-10 → 1988-08 ended
YR3# —
87208-95D06 Pipe, Heater Water Inlet, B
1985-10 → 1988-08 ended
CR36,37 —
87208-95D07 note Pipe, Heater Water Inlet, B
1985-10 → 1988-08 ended
CR36 V4D 05S —
87208-95D07 note Pipe, Heater Water Inlet, B
1985-10 → 1988-08 ended
CR30,37 —
87249A — Pipe, Heater Water Outlet, A
87208-87005 note Pipe, Heater Water Outlet, A
1982-11 → 1988-08 ended
CR26,27 V4D 05S —
87208-87005 note Pipe, Heater Water Outlet, A
1982-11 → 1988-08 ended
YR26 V4D N —
87208-87005 note Pipe, Heater Water Outlet, A
1982-11 → 1988-08 ended
CR21,28,YR20,21,28 —
87208-87007 Pipe, Heater Water Outlet, A
1982-11 → 1988-08 ended
CR2#,YR20,26,28 B,D,N —
87208-87014 Pipe, Heater Water Outlet, A
1982-11 → 1988-08 ended
KR26 —
87208-95D01 note Pipe, Heater Water Outlet, A
1985-10 → 1988-08 ended
YR3# —
87208-95D02 Pipe, Heater Water Outlet, A
1985-10 → 1988-08 ended
CR36,37 —
87208-95D03 note Pipe, Heater Water Outlet, A
1985-10 → 1988-08 ended
CR30,37 —
87208-95D03 note Pipe, Heater Water Outlet, A
1985-10 → 1988-08 ended
CR36 V4D 05S —
87208-95D11 Pipe, Heater Water Outlet, A
1986-08 → 1988-08 ended
YR36 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
