Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

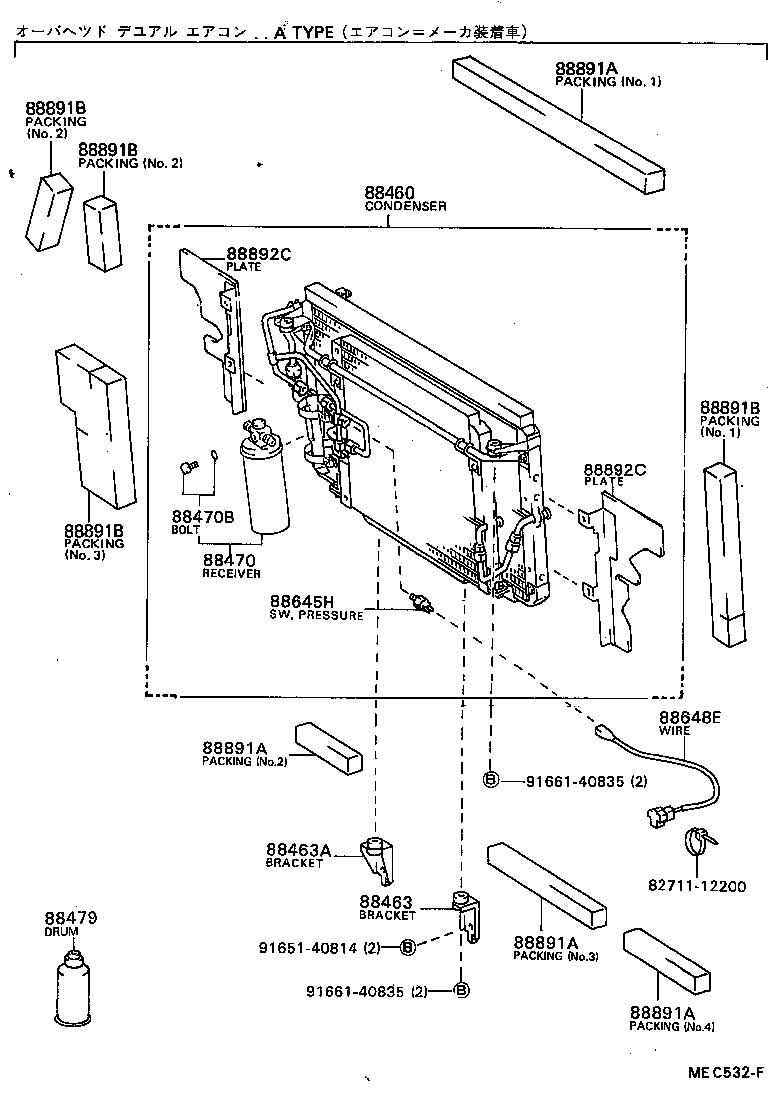

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88460 — Condenser Assy, Cooler | ||||
| 88450-87002 note |
Condenser Assy, Cooler
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥60,300 | |
| 88450-87007 note |
Condenser Assy, Cooler
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | ¥39,700 | |
| 88450-87007 note |
Condenser Assy, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥39,700 | |
| 88460-87006 note |
Condenser Assy, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥32,500 | |
| 88460-87007 note |
Condenser Assy, Cooler
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥55,400 | |
| 88460-87008 note |
Condenser Assy, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥56,700 | |
| 88460-95D00 note |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
YR3# | — | |
| 88460-95D01 |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
CR30 | ¥88,300 | |
| 88460-95D03 note |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
CR36,37 | ¥56,700 | |
| 88460-95D03 note |
Condenser Assy, Cooler
1985-10 → 1988-08
ended
|
YR30 | ¥56,700 | |
| 88460-95D04 note |
Condenser Assy, Cooler
1987-08 → 1988-08
ended
|
CR30 4FC | ¥83,800 | |
| 88460-95D05 note |
Condenser Assy, Cooler
1987-08 → 1988-08
ended
|
CR30 4FC | ¥32,500 | |
| 88463 — Bracket, Cooler Condenser, NO.1 | ||||
| 88463-87008 note |
Bracket, Cooler Condenser, NO.1
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 88463-87010 |
Bracket, Cooler Condenser, NO.1
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88463-87012 note |
Bracket, Cooler Condenser, NO.1
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88688-95D05 |
Bracket, Cooler Condenser, NO.1
1985-10 → 1988-08
ended
|
YR3# | — | |
| 88463A — Bracket, Cooler Condenser, NO.2 | ||||
| 88463-87009 |
Bracket, Cooler Condenser, NO.2
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88463-87011 note |
Bracket, Cooler Condenser, NO.2
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 88463-87013 note |
Bracket, Cooler Condenser, NO.2
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88688-95D12 |
Bracket, Cooler Condenser, NO.2
1985-10 → 1988-08
ended
|
YR3# | — | |
| 88470 — Receiver & Dryer Assy, Cooler | ||||
| 88470-14010 |
Receiver & Dryer Assy, Cooler
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | ¥7,200 | |
| 88471-16010 |
Receiver & Dryer Assy, Cooler
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥7,100 | |
| 88470B — Bolt, Fuse | ||||
| 88475-12020 |
Bolt, Fuse
1985-10 → 1988-08
ended
|
CR30,36,YR3# | — | |
| 90099-04579 |
Bolt, Fuse
1982-11 → 1988-08
ended
|
CR2#,KR26,YR2# | — | |
| 88479 — Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 note |
Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 88645H — Switch, Pressure NO.1 | ||||
| 88645-12010 |
Switch, Pressure NO.1
1982-11 → 1985-08
ended
|
CR21,26,KR26,YR20,26 D,E,G,N,R | — | |
| 88645-12010 |
Switch, Pressure NO.1
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 88645-90D01 note |
Switch, Pressure NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | — | |
| 88648E — Wiring, Cooler | ||||
| 88648-28070 note |
Wiring, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88648-87004 |
Wiring, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88648-87004 note |
Wiring, Cooler
1985-08 → 1988-08
ended
|
KR26,YR26 | — | |
| 88648-87018 |
Wiring, Cooler
1985-08 → 1988-08
ended
|
CR30,36,YR3# | — | |
| 88648-95D01 note |
Wiring, Cooler
1987-08 → 1988-08
ended
|
CR37 | — | |
| 88648-95D03 note |
Wiring, Cooler
1988-05 → 1988-08
ended
|
CR30 4FC | — | |
| 88891A — Packing A (FOR COOLER) | ||||
| 88578-87001 note |
Packing A (FOR COOLER)
1982-11 → 1988-08
ended
|
CR21,26,27,KR26,YR20,21,26 | — | |
| 88578-87003 note |
Packing A (FOR COOLER)
1982-11 → 1985-08
ended
|
CR2#,YR2# | — | |
| 88578-87004 note |
Packing A (FOR COOLER)
1982-11 → 1988-08
ended
|
CR21,26,27,KR26,YR20,21,26 | — | |
| 88578-87005 note |
Packing A (FOR COOLER)
1982-11 → 1988-08
ended
|
CR21,26,27,YR20,21,26 | — | |
| 88578-87006 note |
Packing A (FOR COOLER)
1982-11 → 1988-08
ended
|
CR21,26,27,KR26,YR20,21,26 | — | |
| 88578-87007 note |
Packing A (FOR COOLER)
1982-11 → 1985-08
ended
|
KR26 | — | |
| 88578-87009 note |
Packing A (FOR COOLER)
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88891B — Packing B (FOR COOLER) | ||||
| 88893-28010 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR20,21 Q | — | |
| 88893-28010 note |
Packing B (FOR COOLER)
1984-08 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88893-28020 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR20,21 Q | — | |
| 88893-28020 note |
Packing B (FOR COOLER)
1984-08 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88893-28030 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR21 Q | — | |
| 88893-28030 note |
Packing B (FOR COOLER)
1984-08 → 1985-08
ended
|
YR21 | — | |
| 88893-28040 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR20 Q | — | |
| 88893-28040 note |
Packing B (FOR COOLER)
1984-08 → 1985-08
ended
|
CR21,YR20 E,G,Q,X | — | |
| 88893-28040 note |
Packing B (FOR COOLER)
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88892C — Plate, Condenser, NO.1 | ||||
| 88362-87001 note |
Plate, Condenser, NO.1
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88362-87002 note |
Plate, Condenser, NO.1
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
