Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

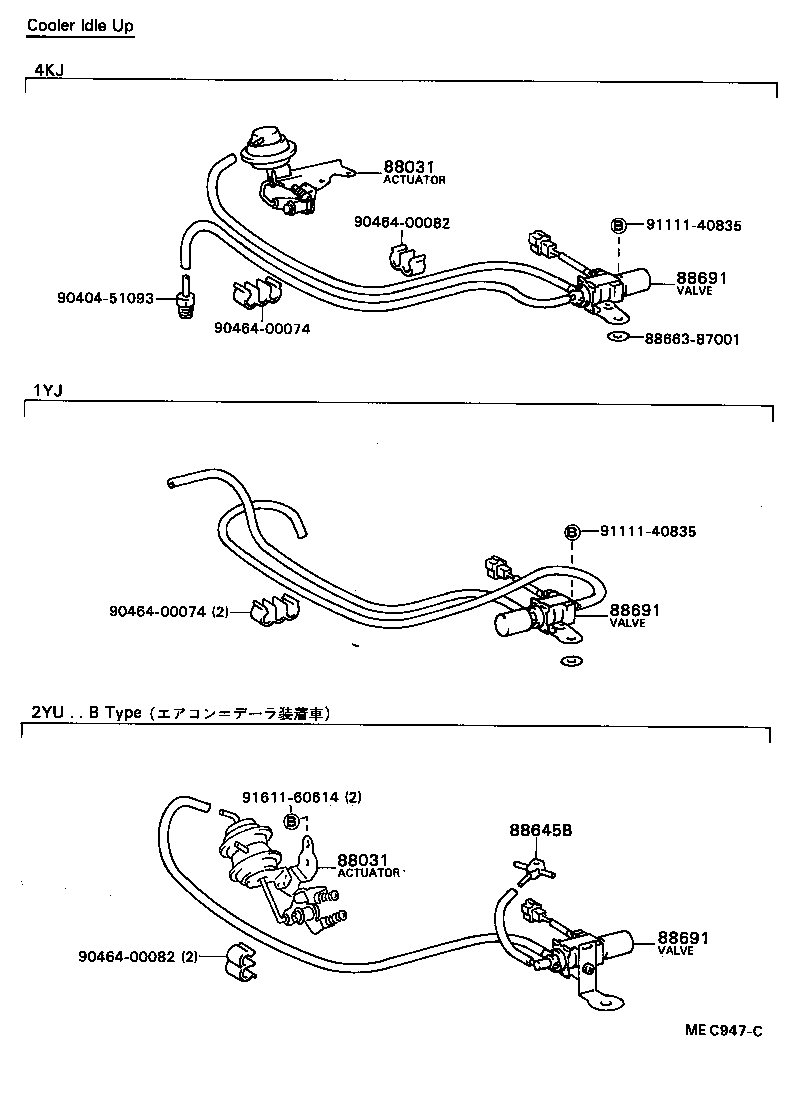

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88031 — Actuator Set, Idle-up | ||||
| 21908-71010 note |
Actuator Set, Idle-up
1982-11 → 1985-08
ended
|
YR20 08S,09S | ¥12,700 | |
| 21908-71010 note |
Actuator Set, Idle-up
1982-11 → 1988-08
ended
|
YR20 07S,08S | ¥12,700 | |
| 21908-71010 note |
Actuator Set, Idle-up
1985-08 → 1988-08
ended
|
YR28;YR20 MRF (D,G);YR20 HRF +2 | ¥12,700 | |
| 21908-71020 note |
Actuator Set, Idle-up
1982-11 → 1988-08
ended
|
YR26 | ¥12,800 | |
| 88031-12081 note |
Actuator Set, Idle-up
1982-11 → 1988-08
ended
|
KR26 | ¥6,700 | |
| 88031-12120 note |
Actuator Set, Idle-up
1982-11 → 1985-08
ended
|
CR2# | — | |
| 88031-12120 note |
Actuator Set, Idle-up
1984-08 → 1985-08
ended
|
CR21 4FC | — | |
| 88031-12120 note |
Actuator Set, Idle-up
1982-11 → 1983-12
ended
|
CR21;CR26 V4D | — | |
| 88031-28010 note |
Actuator Set, Idle-up
1982-11 → 1988-08
ended
|
YR20 08S,09S | ¥10,600 | |
| 88031-28020 note |
Actuator Set, Idle-up
1985-08 → 1988-08
ended
|
CR21,26,27,3# | — | |
| 88031-28020 note |
Actuator Set, Idle-up
1985-08 → 1988-08
ended
|
CR21,27,28,30 4FC | — | |
| 88645B — Joint, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04001 note |
Joint, NO.1 (FOR IDLE UP DIVICE)
1985-08 → 1986-08
ended
|
YR20 Q | ¥310 | |
| 90413-04001 |
Joint, NO.1 (FOR IDLE UP DIVICE)
1982-11 → 1988-08
ended
|
CR21,26,27,3# | ¥310 | |
| 90413-04001 note |
Joint, NO.1 (FOR IDLE UP DIVICE)
1982-11 → 1988-08
ended
|
YR20 | ¥310 | |
| 90413-04005 note |
Joint, NO.1 (FOR IDLE UP DIVICE)
1982-11 → 1985-08
ended
|
YR20,26 4FC,4H,5F | ¥190 | |
| 90413-04005 note |
Joint, NO.1 (FOR IDLE UP DIVICE)
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | ¥190 | |
| 88691 — Valve, Magnet (FOR IDLE UP DEVICE) | ||||
| 88690-87007 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1983-12
ended
|
CR21;CR26 V4D | — | |
| 88690-87007 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1983-04 → 1988-08
ended
|
CR21,30 E,G,Q | — | |
| 88690-87007 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1984-08 → 1985-08
ended
|
CR21,27 4FC | — | |
| 88690-87008 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1985-08
ended
|
YR20 08S,09S | — | |
| 88690-87008 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1985-08
ended
|
YR20,21 07S,08S | — | |
| 88690-87009 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1985-08
ended
|
YR20 07S,08S | — | |
| 88690-87010 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1988-08
ended
|
YR26 | — | |
| 88690-87011 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1985-08
ended
|
YR26 N | — | |
| 88690-87011 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-08 → 1988-08
ended
|
YR26 | — | |
| 88690-87012 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1985-08
ended
|
YR20 | — | |
| 88690-87013 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1988-08
ended
|
KR26 | — | |
| 88690-87018 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1985-08
ended
|
CR2# | — | |
| 88690-87019 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1988-08
ended
|
KR26 | — | |
| 88690-87022 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-08 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | — | |
| 88690-87024 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-08 → 1985-09
ended
|
YR20 HRF 5F G;YR20 +4 | — | |
| 88690-87026 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-08 → 1988-08
ended
|
CR21,27,28,30 4FC | — | |
| 88690-87027 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-08 → 1988-08
ended
|
CR2#,30,37 | — | |
| 88690-87028 |
Valve, Magnet (FOR IDLE UP DEVICE)
1982-11 → 1988-08
ended
|
YR30 | — | |
| 88690-87028 |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-08 → 1988-08
ended
|
YR21 | — | |
| 88690-87029 note |
Valve, Magnet (FOR IDLE UP DEVICE)
1985-09 → 1988-08
ended
|
YR20 HRF 5F G;YR20 +4 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
