Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

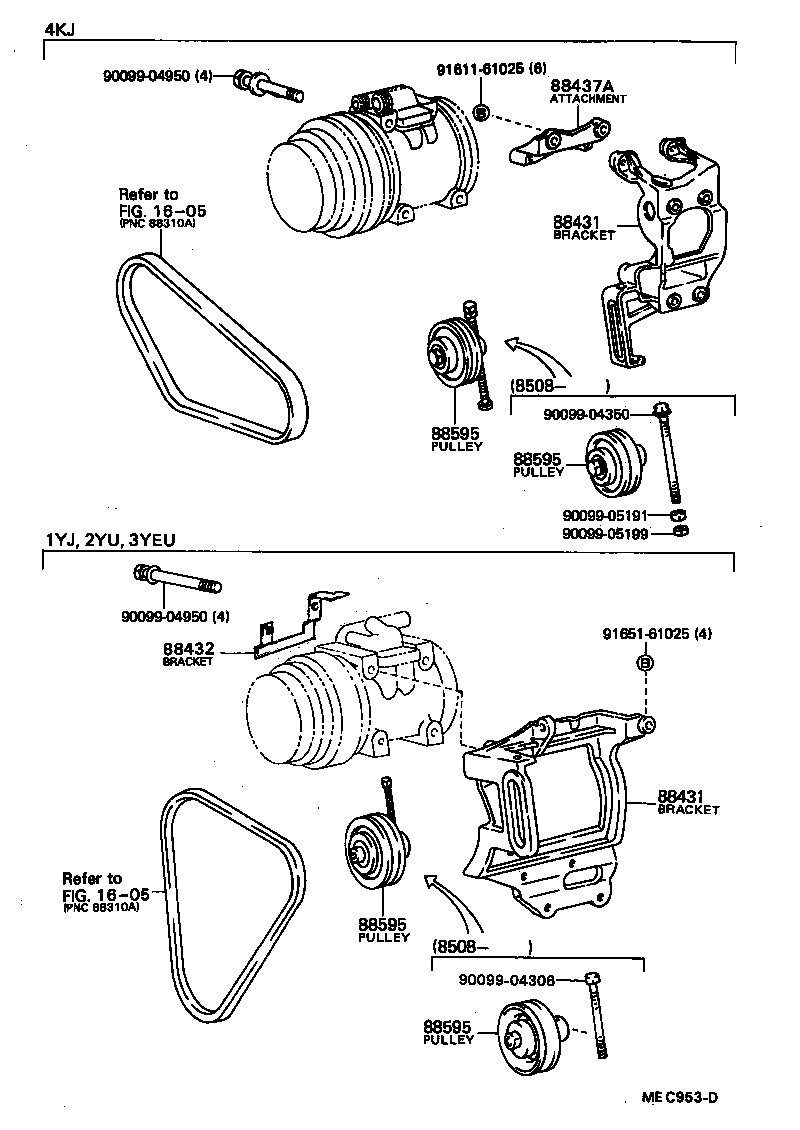

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-27030 |
Bracket, Compressor Mounting, NO.1
1985-08 → 1988-08
ended
|
KR26 | — | |
| 88431-28050 |
Bracket, Compressor Mounting, NO.1
1982-11 → 1985-08
ended
|
YR2# | — | |
| 88431-28060 |
Bracket, Compressor Mounting, NO.1
1982-11 → 1985-08
ended
|
KR26 | — | |
| 88431-28070 |
Bracket, Compressor Mounting, NO.1
1985-08 → 1988-08
ended
|
YR21,26,28,3#;YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 88432 — Bracket, Compressor Mounting, NO.2 | ||||
| 88434-28010 |
Bracket, Compressor Mounting, NO.2
1982-11 → 1988-08
ended
|
YR20,21,26 | — | |
| 88437A — Attachment, Compressor | ||||
| 88437-27030 |
Attachment, Compressor
1985-08 → 1988-08
ended
|
KR26 | — | |
| 88437-28020 |
Attachment, Compressor
1982-11 → 1985-08
ended
|
KR26 | — | |
| 88595 — Pulley, Cooler Compressor Idle | ||||
| 88440-28030 |
Pulley, Cooler Compressor Idle
1982-11 → 1985-08
ended
|
CR21,26 5F | ¥7,600 | |
| 88440-28040 |
Pulley, Cooler Compressor Idle
1982-11 → 1985-08
ended
|
KR26 | ¥6,200 | |
| 88440-28050 |
Pulley, Cooler Compressor Idle
1982-11 → 1985-08
ended
|
YR2# | ¥6,700 | |
| 88440-35010 |
Pulley, Cooler Compressor Idle
1984-08 → 1985-08
ended
|
CR21,27 4FC | ¥3,570 | |
| 88440-35010 |
Pulley, Cooler Compressor Idle
1985-08 → 1988-08
ended
|
CR2# | ¥3,570 | |
| 88440-35020 |
Pulley, Cooler Compressor Idle
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥5,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
