Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

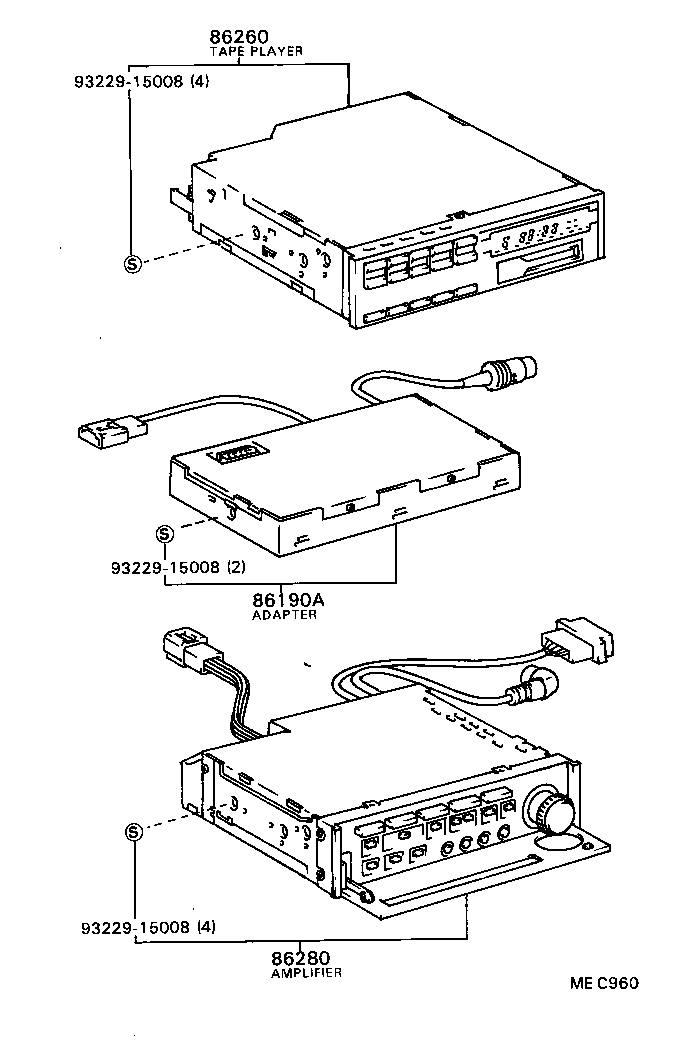

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86190A — Adapter Assy, Remote Control | ||||
| 86190-87001 note |
Adapter Assy, Remote Control
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥41,600 | |
| 86190-87001 note |
Adapter Assy, Remote Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥41,600 | |
| 86190-87002 note |
Adapter Assy, Remote Control
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥11,500 | |
| 86190-87002 note |
Adapter Assy, Remote Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥11,500 | |
| 86260 — Tape Player Assy | ||||
| 86260-19015 note |
Tape Player Assy
1982-11 → 1986-08
ended
|
CR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30 B,E,G,N | — | |
| 86260-19025 note |
Tape Player Assy
1982-11 → 1985-08
ended
|
YR20,21 07S | — | |
| 86260-19105 note |
Tape Player Assy
1986-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | — | |
| 86260-19105 note |
Tape Player Assy
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | — | |
| 86260-29115 note |
Tape Player Assy
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86260-29115 note |
Tape Player Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 86260-29155 note |
Tape Player Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-29095 |
Amplifier Assy, Stereo Component
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86280-29095 |
Amplifier Assy, Stereo Component
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
