Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

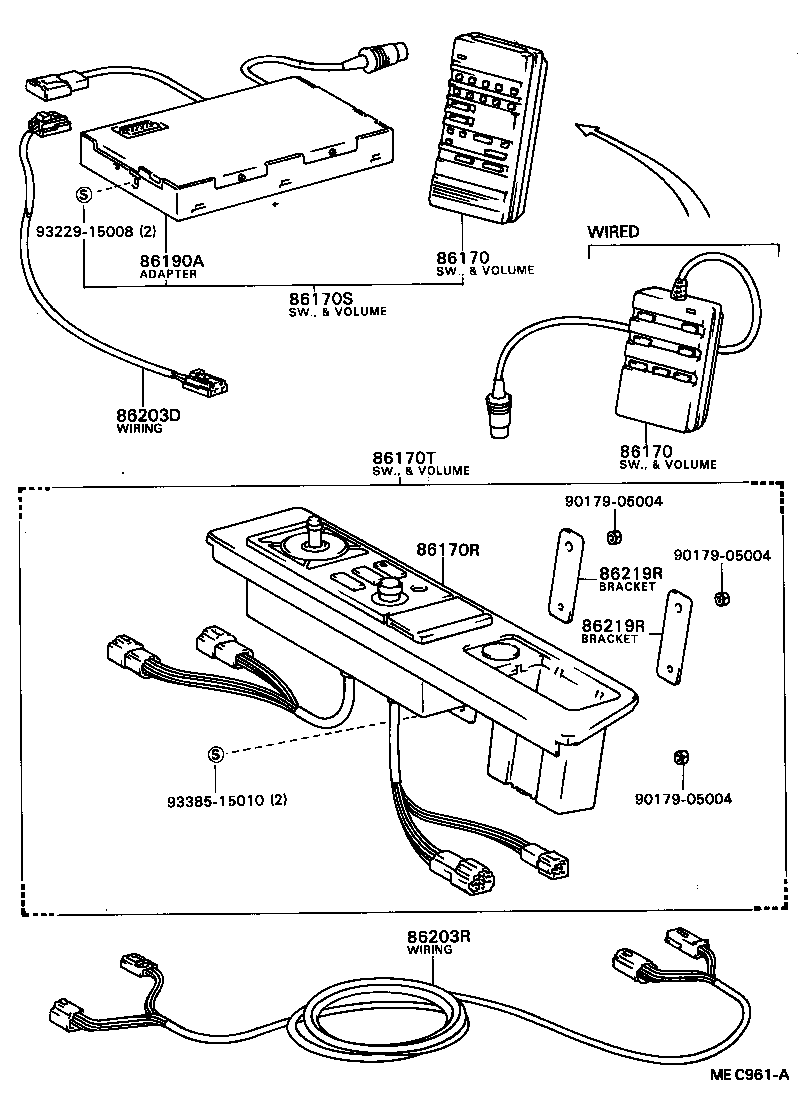

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86170 — Switch And Volume Assy, Radio | ||||
| 86170-87001 note |
Switch And Volume Assy, Radio
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 86170-87001 note |
Switch And Volume Assy, Radio
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86170-87002 note |
Switch And Volume Assy, Radio
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥11,200 | |
| 86170-87002 note |
Switch And Volume Assy, Radio
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥11,200 | |
| 86170R — Switch & Volume Assy, RR | ||||
| 86170-87003 |
Switch & Volume Assy, RR
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86170-87003 |
Switch & Volume Assy, RR
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 86170S — Switch & Volume, Set | ||||
| 86170-29015 note |
Switch & Volume, Set
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86170-29015 note |
Switch & Volume, Set
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | — | |
| 86170-29025 note |
Switch & Volume, Set
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86170-29025 note |
Switch & Volume, Set
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | — | |
| 86170T — Controller, Speaker, Set | ||||
| 86170-29035 |
Controller, Speaker, Set
1982-11 → 1985-08
ended
|
YR21;CR21,YR20 E,Q,X | — | |
| 86170-29035 |
Controller, Speaker, Set
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | — | |
| 86190A — Adapter Assy, Remote Control | ||||
| 86190-87001 note |
Adapter Assy, Remote Control
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥41,600 | |
| 86190-87001 note |
Adapter Assy, Remote Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥41,600 | |
| 86190-87002 note |
Adapter Assy, Remote Control
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥11,500 | |
| 86190-87002 note |
Adapter Assy, Remote Control
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥11,500 | |
| 86203D — Wire, Stereo Component, NO.1 | ||||
| 86203-87006 note |
Wire, Stereo Component, NO.1
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥4,590 | |
| 86203-87006 note |
Wire, Stereo Component, NO.1
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥4,590 | |
| 86203-87008 note |
Wire, Stereo Component, NO.1
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥9,400 | |
| 86203-87008 note |
Wire, Stereo Component, NO.1
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥9,400 | |
| 86203R — Wire Sub-assy, RR | ||||
| 86203-87004 |
Wire Sub-assy, RR
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | ¥16,500 | |
| 86203-87004 |
Wire Sub-assy, RR
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥16,500 | |
| 86219R — Bracket, Speaker Controller | ||||
| 86219-87009 |
Bracket, Speaker Controller
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86219-87009 |
Bracket, Speaker Controller
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
