Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

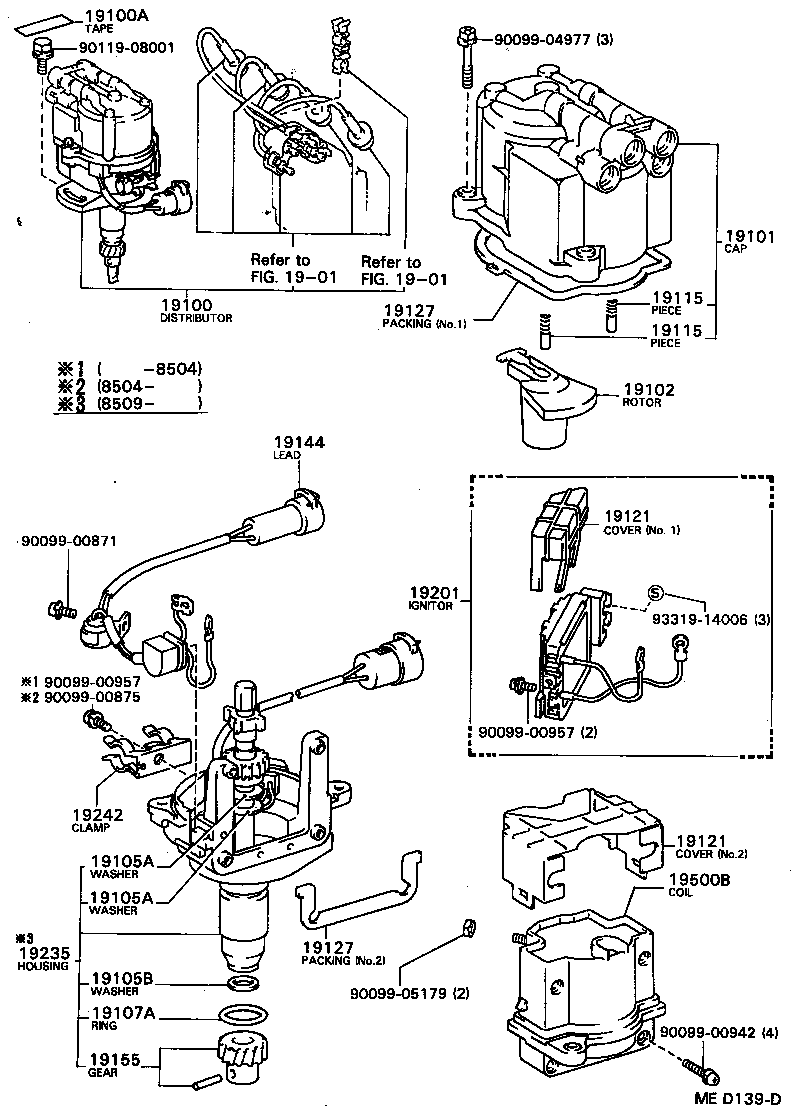

Exploded illustration MED139D 19100A — TAPE, SEALING (2 parts) 9009904977 — not listed in this catalogue 9011908001 — not listed in this catalogue 19101 — CAP SUB-ASSY, DISTRIBUTOR (3 parts) 1901 — not listed in this catalogue 1901 — not listed in this catalogue 19115 — PIECE, DISTRIBUTOR CAP, CENTER (11 parts) 19100 — DISTRIBUTOR ASSY (5 parts) 19127 — PACKING, DUST PROOF (3 parts) 19115 — PIECE, DISTRIBUTOR CAP, CENTER (11 parts) 19102 — ROTOR SUB-ASSY, DISTRIBUTOR (5 parts) 19144 — LEAD, DISTRIBUTOR BREAKER (4 parts) 19121 — COVER, DUST PROOF (5 parts) 9009900871 — not listed in this catalogue 19201 — IGNITER (3 parts) 9331914006 — not listed in this catalogue 9009900957 — not listed in this catalogue 9009900875 — not listed in this catalogue 9009900957 — not listed in this catalogue 19242 — CLAMP, CORD (2 parts) 19121 — COVER, DUST PROOF (5 parts) 19105A — WASHER(FOR GOVERNOR SHAFT THRUST) (8 parts) 19500B — COIL ASSY, IGNITION (2 parts) 19105A — WASHER(FOR GOVERNOR SHAFT THRUST) (8 parts) 19127 — PACKING, DUST PROOF (3 parts) 19235 — HOUSING, DISTRIBUTOR (1 parts) 19105B — WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) (1 parts) 9009905179 — not listed in this catalogue 19107A — RING, O, DISTRIBUTOR HOUSING (2 parts) 9009900942 — not listed in this catalogue 19155 — GEAR, SPIRAL, DISTRIBUTOR (2 parts)
MED139D · 20 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
19100 — Distributor Assy
19030-71010 Distributor Assy
1982-11 → 1988-08 ended
2YU YR20,28 ¥124,000
19030-71020 Distributor Assy
1982-11 → 1988-08 ended
1YJ YR26 ¥122,000
19030-73010 Distributor Assy
1983-05 → 1988-08 ended
3YEU YR21,3# ¥142,000
19100-13290 Distributor Assy
1982-11 → 1985-08 ended
4KJ KR26 ¥29,400
19100-13400 Distributor Assy
1985-08 → 1988-08 ended
4KJ KR26 ¥31,400
19100A — Tape, Sealing
90919-24004 Tape, Sealing
1982-11 → 1988-08 ended
4KJ KR26 ¥170
90919-24004 Tape, Sealing
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥170
19101 — Cap Sub-assy, Distributor
19101-25070 Cap Sub-assy, Distributor
1982-11 → 1985-08 ended
4KJ KR26 ¥2,940
19101-71010 Cap Sub-assy, Distributor
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥9,100
19101-71020 Cap Sub-assy, Distributor
1985-08 → 1988-08 ended
4KJ KR26 ¥2,810
19102 — Rotor Sub-assy, Distributor
19102-16040 Rotor Sub-assy, Distributor
1985-09 → 1987-08 ended
3YEU YR21,3# ¥710
19102-16040 Rotor Sub-assy, Distributor
1987-08 → 1988-08 ended
2YU 21,26,28,3# YR20 HRF +9 ¥710
19102-33012 Rotor Sub-assy, Distributor
1982-11 → 1988-08 ended
4KJ KR26 ¥720
19102-63010 Rotor Sub-assy, Distributor
1982-11 → 1985-09 ended
1YJ,2YU,3YEU YR2# ¥610
19102-63010 Rotor Sub-assy, Distributor
1985-09 → 1987-08 ended
2YU ,D,E,N,Q) YR20 HRF +8 ¥610
19105A — Washer(FOR GOVERNOR SHAFT THRUST)
90099-01385 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
4KJ KR26 —
90099-01386 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
4KJ KR26 —
90099-01387 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
4KJ KR26 —
90099-01412 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
4KJ KR26 —
90099-01486 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
90099-01487 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
90099-01488 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
90099-01489 note Washer(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
19105B — Washer, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429 Washer, NO.2(FOR GOVERNOR SHAFT THRUST)
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
19107A — Ring, O, Distributor Housing
90099-14020 Ring, O, Distributor Housing
1982-11 → 1988-08 ended
4KJ KR26 ¥300
90099-14020 Ring, O, Distributor Housing
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥300
19115 — Piece, Distributor Cap, Center
19115-50010 Piece, Distributor Cap, Center
1983-12 → 1988-08 ended
4KJ KR26 ¥0
19115-50010 Piece, Distributor Cap, Center
1983-08 → 1983-12 ended
4KJ KR26 ¥0
19115-50010 Piece, Distributor Cap, Center
1982-11 → 1983-08 ended
4KJ KR26 ¥0
19115-50010 Piece, Distributor Cap, Center
1982-11 → 1983-08 ended
1YJ,2YU,3YEU YR2# ¥0
19115-50010 Piece, Distributor Cap, Center
1983-08 → 1983-12 ended
1YJ,2YU YR20,26 ¥0
19115-63010 Piece, Distributor Cap, Center
1983-08 → 1985-05 ended
3YEU YR21 —
19115-63010 Piece, Distributor Cap, Center
1983-12 → 1985-05 ended
1YJ,2YU YR20,26 —
19115-63010 Piece, Distributor Cap, Center
1987-05 → 1988-08 ended
3YEU YR21,3# —
19115-63010 Piece, Distributor Cap, Center
1987-05 → 1988-08 ended
2YU ,D,E,N) YR20 HRF +8 —
19115-71010 Piece, Distributor Cap, Center
1985-05 → 1987-05 ended
2YU ,D,E,N,Q,X) YR20 HRF +8 —
19115-71010 Piece, Distributor Cap, Center
1985-05 → 1987-05 ended
3YEU YR21,3# —
19121 — Cover, Dust Proof
19121-16010 note Cover, Dust Proof
1983-05 → 1985-07 ended
3YEU YR21 —
19121-38030 Cover, Dust Proof
1982-11 → 1985-08 ended
4KJ KR26 —
19121-63010 note Cover, Dust Proof
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 —
19121-63040 note Cover, Dust Proof
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
19121-63090 note Cover, Dust Proof
1985-07 → 1988-08 ended
3YEU YR21,3# —
19127 — Packing, Dust Proof
19127-15010 Packing, Dust Proof
1982-11 → 1988-08 ended
4KJ KR26 ¥0
19127-63010 note Packing, Dust Proof
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
19127-63020 note Packing, Dust Proof
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# —
19144 — Lead, Distributor Breaker
19144-71010 Lead, Distributor Breaker
1982-11 → 1983-12 ended
1YJ,2YU YR20,26 —
19144-71011 Lead, Distributor Breaker
1983-12 → 1988-08 ended
1YJ,2YU YR20,26,28 —
19144-73010 Lead, Distributor Breaker
1983-05 → 1984-05 ended
3YEU YR21 —
19144-73011 Lead, Distributor Breaker
1984-05 → 1988-08 ended
3YEU YR21,3# —
19155 — Gear, Spiral, Distributor
19195-24081 Gear, Spiral, Distributor
1982-11 → 1988-08 ended
4KJ KR26 ¥3,330
19195-71010 Gear, Spiral, Distributor
1982-11 → 1988-08 ended
1YJ,2YU,3YEU YR2#,3# ¥3,280
19201 — Igniter
89620-20250 Igniter
1985-08 → 1988-08 ended
3YEU YR21,3# ¥32,700
89620-28030 Igniter
1983-05 → 1985-08 ended
3YEU YR21 ¥32,700
89620-32020 Igniter
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥25,500
19235 — Housing, Distributor
19235-73010 Housing, Distributor
1985-09 → 1988-08 ended
3YEU YR21,3# ¥21,700
19242 — Clamp, Cord
19242-71010 Clamp, Cord
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥1,280
19242-73010 Clamp, Cord
1983-05 → 1988-08 ended
3YEU YR21,3# ¥1,160
19500B — Coil Assy, Ignition
90919-02135 Coil Assy, Ignition
1983-05 → 1988-08 ended
3YEU YR21,3# ¥12,000
90919-02139 Coil Assy, Ignition
1982-11 → 1988-08 ended
1YJ,2YU YR20,26,28 ¥13,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
