Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

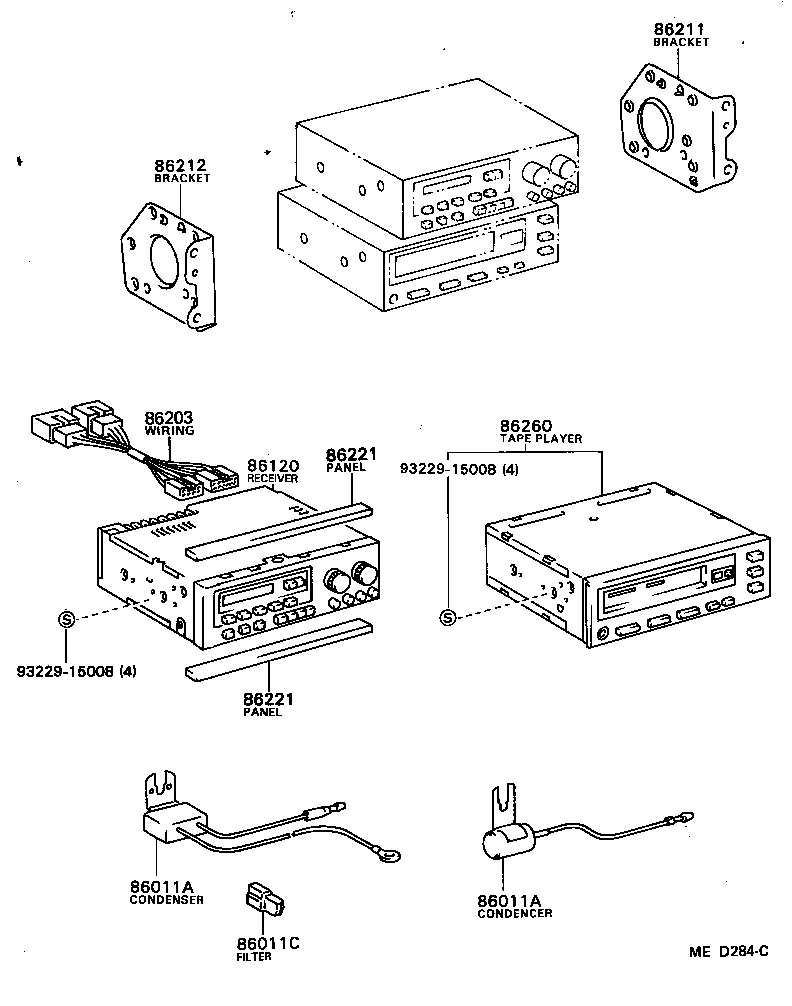

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04010 note |
Condenser, Radio Setting
1985-08 → 1988-08
ended
|
KR26 | ¥710 | |
| 90980-04010 note |
Condenser, Radio Setting
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 | ¥710 | |
| 90980-04033 note |
Condenser, Radio Setting
1982-11 → 1988-08
ended
|
KR26 | ¥1,260 | |
| 86011C — Filter, Noise | ||||
| 90980-05073 note |
Filter, Noise
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥1,400 | |
| 86120 — Receiver Assy, Radio | ||||
| 86120-14420 note |
Receiver Assy, Radio
1982-11 → 1984-06
ended
|
CR2#,KR26 D,E | ¥35,000 | |
| 86120-14421 note |
Receiver Assy, Radio
1984-06 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N | ¥37,100 | |
| 86120-14421 note |
Receiver Assy, Radio
1985-08 → 1986-08
ended
|
YR20 ,03S,05S,06S,08S HRF E;YR20 +6 | ¥37,100 | |
| 86120-14720 note |
Receiver Assy, Radio
1987-02 → 1988-08
ended
|
CR21,30,YR21,30 Q | ¥135,000 | |
| 86120-16350 note |
Receiver Assy, Radio
1986-08 → 1988-08
ended
|
YR20 F) HRF (B,D,E,N) +5 | ¥29,200 | |
| 86120-16350 note |
Receiver Assy, Radio
1986-08 → 1988-08
ended
|
CR21,30,YR21,30 08S | ¥29,200 | |
| 86120-19015 note |
Receiver Assy, Radio
1982-11 → 1984-12
ended
|
CR2#,YR2# E,G,N | ¥87,000 | |
| 86120-19016 note |
Receiver Assy, Radio
1984-12 → 1986-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥87,200 | |
| 86120-19025 note |
Receiver Assy, Radio
1982-11 → 1985-08
ended
|
YR20,21 07S | — | |
| 86120-19036 note |
Receiver Assy, Radio
1982-11 → 1985-08
ended
|
YR20,21 07S | — | |
| 86120-20310 note |
Receiver Assy, Radio
1985-08 → 1986-08
ended
|
CR21,30,YR20,21 Q | ¥242,000 | |
| 86120-20530 note |
Receiver Assy, Radio
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥133,000 | |
| 86120-32170 note |
Receiver Assy, Radio
1986-08 → 1987-02
ended
|
CR21,30,YR21,30 Q | ¥132,000 | |
| 86120-32190 note |
Receiver Assy, Radio
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥73,500 | |
| 86203 — Wire, Radio | ||||
| 86203-16060 |
Wire, Radio
1986-08 → 1988-08
ended
|
CR21,30,YR21,30 Q | ¥2,320 | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-87003 |
Bracket, Radio, NO.1
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥1,180 | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-87002 |
Bracket, Radio, NO.2
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥1,180 | |
| 86221 — Panel, Stereo Component | ||||
| 86221-12020 |
Panel, Stereo Component
1982-11 → 1983-08
ended
|
CR2#,KR26,YR20,26 | ¥300 | |
| 86260 — Tape Player Assy | ||||
| 86260-19015 note |
Tape Player Assy
1982-11 → 1986-08
ended
|
CR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30 B,E,G,N | — | |
| 86260-19025 note |
Tape Player Assy
1982-11 → 1985-08
ended
|
YR20,21 07S | — | |
| 86260-19105 note |
Tape Player Assy
1986-08 → 1988-08
ended
|
CR26,27,28,36,37,KR26,YR26,28,36 | — | |
| 86260-19105 note |
Tape Player Assy
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | — | |
| 86260-29115 note |
Tape Player Assy
1982-11 → 1985-08
ended
|
YR21;CR21 E;YR20 HRF;YR20 MRF +1 | — | |
| 86260-29115 note |
Tape Player Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 86260-29155 note |
Tape Player Assy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
