Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

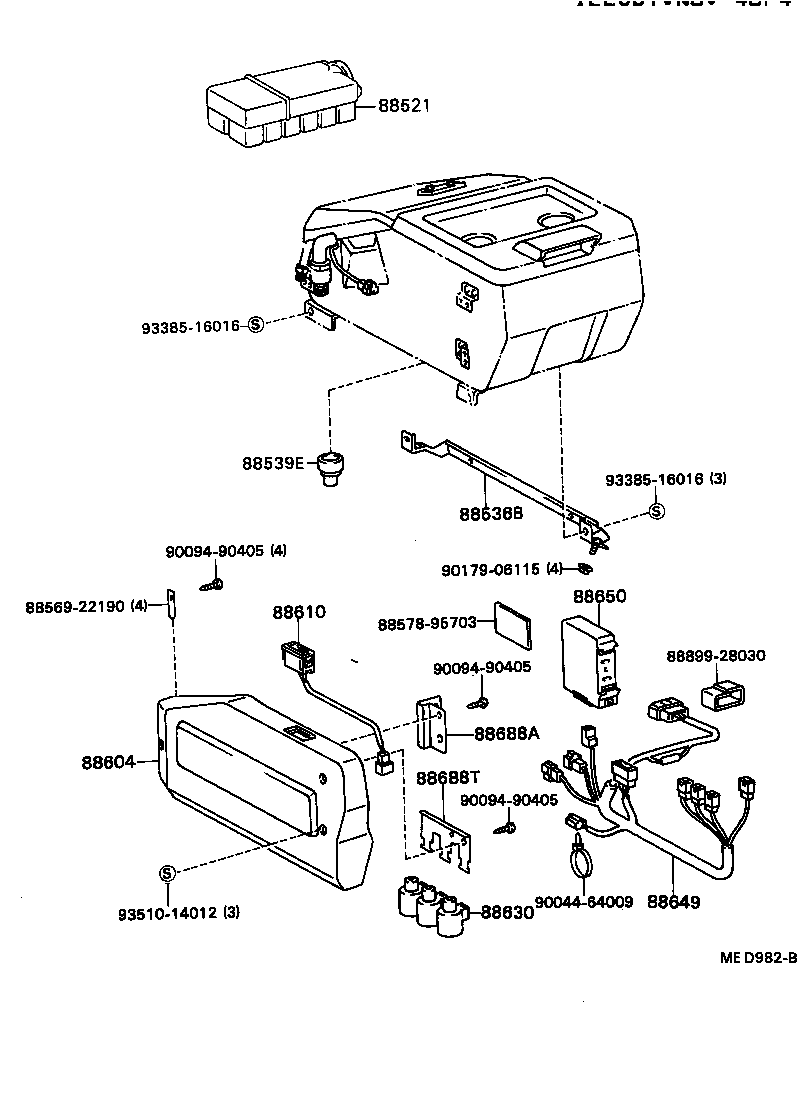

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88521 — Case, Cooler Unit | ||||
| 88899-87010 |
Case, Cooler Unit
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88536B — Bracket, Cooling Unit, NO.3 | ||||
| 88688-87018 |
Bracket, Cooling Unit, NO.3
1982-11 → 1984-01
ended
|
CR21,YR20,21 07S,08S | — | |
| 88688-87023 |
Bracket, Cooling Unit, NO.3
1984-01 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88539E — Hose, Cooler Unit Drain, NO.3 | ||||
| 88539-87007 |
Hose, Cooler Unit Drain, NO.3
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88604 — Panel Sub-assy, Cooler Control | ||||
| 87491-87001-02 note |
Panel Sub-assy, Cooler Control
1984-08 → 1985-08
ended
|
YR20,21 07S,08S | — | |
| 87491-87001-03 note |
Panel Sub-assy, Cooler Control
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | — | |
| 87491-87001-03 note |
Panel Sub-assy, Cooler Control
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 87491-87001-04 note |
Panel Sub-assy, Cooler Control
1984-08 → 1985-08
ended
|
YR20,21 E,Q,X | — | |
| 87491-87001-05 note |
Panel Sub-assy, Cooler Control
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | — | |
| 87491-87001-05 note |
Panel Sub-assy, Cooler Control
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 87491-87001-06 note |
Panel Sub-assy, Cooler Control
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 87491-87001-14 note |
Panel Sub-assy, Cooler Control
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | — | |
| 88610 — Switch Assy, Cooler Control | ||||
| 88610-87003 |
Switch Assy, Cooler Control
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | — | |
| 88610-87003 |
Switch Assy, Cooler Control
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88610-87004 |
Switch Assy, Cooler Control
1985-08 → 1988-08
ended
|
CR21 E,G,Q | — | |
| 88610-87004 |
Switch Assy, Cooler Control
1984-08 → 1988-08
ended
|
YR20,21 07S,08S | — | |
| 88630 — Relay Assy, Cooler | ||||
| 28380-44030 note |
Relay Assy, Cooler
1985-10 → 1988-08
ended
|
CR30 E,Q | ¥4,230 | |
| 88630-14030 note |
Relay Assy, Cooler
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | — | |
| 88630-95702 note |
Relay Assy, Cooler
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 90987-03001 note |
Relay Assy, Cooler
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥2,230 | |
| 88649 — Wiring, Cooler, NO.2 | ||||
| 88648-87006 |
Wiring, Cooler, NO.2
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88648-87010 |
Wiring, Cooler, NO.2
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88650 — Amplifier Assy, Cooler Stabilizer | ||||
| 88650-12060 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1985-08
ended
|
KR26,YR20,26 D,E,G,N,R | — | |
| 88650-12060 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
KR26,YR20,26,28 B,D,N | — | |
| 88650-14030 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
CR2#,36,37 B,D,N | — | |
| 88650-14030 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1985-08
ended
|
CR2# | — | |
| 88650-14051 note |
Amplifier Assy, Cooler Stabilizer
1986-08 → 1988-08
ended
|
YR36 | — | |
| 88650-28010 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
YR21 | — | |
| 88650-87002 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1984-08
ended
|
YR20 07S,08S | — | |
| 88650-87006 note |
Amplifier Assy, Cooler Stabilizer
1983-04 → 1984-08
ended
|
CR21 | — | |
| 88650-87009 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88650-87009 note |
Amplifier Assy, Cooler Stabilizer
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | — | |
| 88650-87010 note |
Amplifier Assy, Cooler Stabilizer
1983-05 → 1984-08
ended
|
YR21 | — | |
| 88650-87011 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1988-08
ended
|
YR20,21 07S,08S | — | |
| 88650-87011 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
CR21 E,G,Q | — | |
| 88650-87012 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
YR20 07S,08S | — | |
| 88650-87013 note |
Amplifier Assy, Cooler Stabilizer
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88650-87015 note |
Amplifier Assy, Cooler Stabilizer
1985-10 → 1988-08
ended
|
YR30 | — | |
| 88650-87015 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
YR21 | — | |
| 88650-87020 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | — | |
| 88650-87021 note |
Amplifier Assy, Cooler Stabilizer
1985-08 → 1988-08
ended
|
CR21,30 E,G,Q | — | |
| 88688A — Bracket, Cooler Stabilizer Amplifier | ||||
| 88688-14080 |
Bracket, Cooler Stabilizer Amplifier
1982-11 → 1985-08
ended
|
CR2#,KR26,YR26 | — | |
| 88688-14080 note |
Bracket, Cooler Stabilizer Amplifier
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88688-14080 |
Bracket, Cooler Stabilizer Amplifier
1985-08 → 1988-08
ended
|
CR2#,36,37,KR26,YR20,26,28,36 B,D,N | — | |
| 88688T — Bracket (FOR COOL BOX) | ||||
| 88688-87019 |
Bracket (FOR COOL BOX)
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | — | |
| 88688-87019 |
Bracket (FOR COOL BOX)
1984-08 → 1985-08
ended
|
CR21 E,G | — | |
| 88688-87025 |
Bracket (FOR COOL BOX)
1984-08 → 1988-08
ended
|
YR20,21 07S,08S | — | |
| 88688-87025 |
Bracket (FOR COOL BOX)
1985-08 → 1988-08
ended
|
CR21 E,G,Q | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
