Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

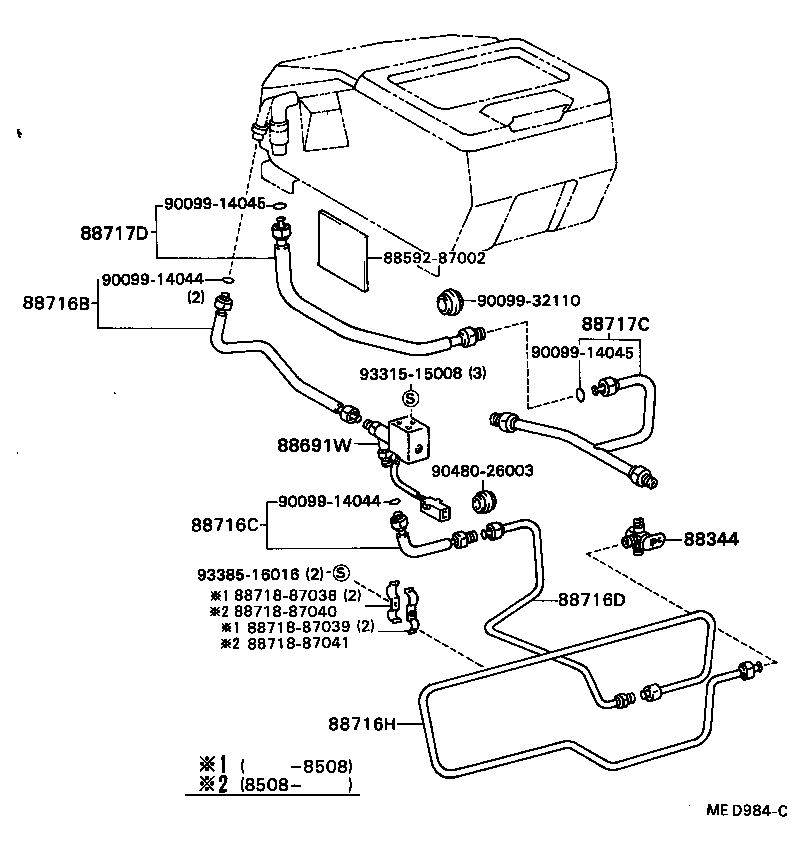

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88344 — Glass Sub-assy, Sight | ||||
| 88481-87002 note |
Glass Sub-assy, Sight
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 88481-87002 note |
Glass Sub-assy, Sight
1984-08 → 1985-08
ended
|
CR21,27 4FC | — | |
| 88481-87002 |
Glass Sub-assy, Sight
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | — | |
| 88481-87002 |
Glass Sub-assy, Sight
1985-10 → 1988-08
ended
|
CR3#,YR3# | — | |
| 88481-87002 note |
Glass Sub-assy, Sight
1982-11 → 1983-07
ended
|
CR2#,KR26,YR2# | — | |
| 88481-87003 note |
Glass Sub-assy, Sight
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88481-87004 note |
Glass Sub-assy, Sight
1983-07 → 1985-08
ended
|
YR2#;CR21,26,KR26 MTM | — | |
| 88481-87004 |
Glass Sub-assy, Sight
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88691W — Valve, Magnet | ||||
| 88690-87015 note |
Valve, Magnet
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88691-87001 note |
Valve, Magnet
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88691-87003 note |
Valve, Magnet
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-87024 note |
Pipe, Cooler Refrigerant Liquid, B
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥1,880 | |
| 88716-87033 note |
Pipe, Cooler Refrigerant Liquid, B
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥2,520 | |
| 88716-87038 |
Pipe, Cooler Refrigerant Liquid, B
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥3,780 | |
| 88716C — Pipe, Cooler Refrigerant Liquid, C | ||||
| 88716-87027 note |
Pipe, Cooler Refrigerant Liquid, C
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥2,420 | |
| 88716-87027 note |
Pipe, Cooler Refrigerant Liquid, C
1985-08 → 1988-08
ended
|
YR21,30;YR20 MRF 08S;YR20 HRF +4 | ¥2,420 | |
| 88716-87034 note |
Pipe, Cooler Refrigerant Liquid, C
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥1,940 | |
| 88716-87058 note |
Pipe, Cooler Refrigerant Liquid, C
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥1,820 | |
| 88716-87063 note |
Pipe, Cooler Refrigerant Liquid, C
1985-08 → 1988-08
ended
|
CR21,30 E,G,Q | ¥2,410 | |
| 88716D — Pipe, Cooler Refrigerant Liquid, D | ||||
| 88710-95D02 note |
Pipe, Cooler Refrigerant Liquid, D
1985-10 → 1988-08
ended
|
CR30,YR30 | ¥25,000 | |
| 88710-95D03 note |
Pipe, Cooler Refrigerant Liquid, D
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥25,000 | |
| 88716-87030 note |
Pipe, Cooler Refrigerant Liquid, D
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥9,900 | |
| 88716-87035 |
Pipe, Cooler Refrigerant Liquid, D
1982-11 → 1983-06
ended
|
CR21,YR20 07S,08S | — | |
| 88716-87039 note |
Pipe, Cooler Refrigerant Liquid, D
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥3,500 | |
| 88716-87041 note |
Pipe, Cooler Refrigerant Liquid, D
1983-06 → 1984-01
ended
|
CR21,YR20,21 07S,08S | ¥3,070 | |
| 88716-87043 note |
Pipe, Cooler Refrigerant Liquid, D
1984-01 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥3,050 | |
| 88716-87054 note |
Pipe, Cooler Refrigerant Liquid, D
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥14,400 | |
| 88716-87056 note |
Pipe, Cooler Refrigerant Liquid, D
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥4,920 | |
| 88716-87059 note |
Pipe, Cooler Refrigerant Liquid, D
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | ¥12,900 | |
| 88716H — Pipe, Cooler Refrigerant Liquid, H | ||||
| 88716-87036 note |
Pipe, Cooler Refrigerant Liquid, H
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 88716-87040 note |
Pipe, Cooler Refrigerant Liquid, H
1983-05 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥4,910 | |
| 88716-87046 note |
Pipe, Cooler Refrigerant Liquid, H
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥4,280 | |
| 88716-87050 note |
Pipe, Cooler Refrigerant Liquid, H
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥3,510 | |
| 88716-95D14 note |
Pipe, Cooler Refrigerant Liquid, H
1985-10 → 1987-08
ended
|
CR30,YR30 | ¥3,620 | |
| 88716-95D14 note |
Pipe, Cooler Refrigerant Liquid, H
1987-08 → 1988-08
ended
|
CR30 5F | ¥3,620 | |
| 88716-95D15 note |
Pipe, Cooler Refrigerant Liquid, H
1986-08 → 1988-08
ended
|
CR36,37,YR36 | ¥4,730 | |
| 88716-95D21 note |
Pipe, Cooler Refrigerant Liquid, H
1987-08 → 1988-08
ended
|
YR30 | ¥3,380 | |
| 88716-95D21 note |
Pipe, Cooler Refrigerant Liquid, H
1987-08 → 1988-08
ended
|
CR30 4FC | ¥3,380 | |
| 88721-87004 note |
Pipe, Cooler Refrigerant Liquid, H
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥10,500 | |
| 88717C — Pipe, Cooler Refrigerant Suction, C | ||||
| 88717-87027 |
Pipe, Cooler Refrigerant Suction, C
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥4,290 | |
| 88717-87028 note |
Pipe, Cooler Refrigerant Suction, C
1982-11 → 1984-01
ended
|
CR21,YR20,21 07S,08S | — | |
| 88717-87038 note |
Pipe, Cooler Refrigerant Suction, C
1984-01 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥6,300 | |
| 88717-87041 note |
Pipe, Cooler Refrigerant Suction, C
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥9,100 | |
| 88717-87046 note |
Pipe, Cooler Refrigerant Suction, C
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥7,100 | |
| 88717-87046 note |
Pipe, Cooler Refrigerant Suction, C
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥7,100 | |
| 88717D — Pipe, Cooler Refrigerant Suction, D | ||||
| 88717-87029 note |
Pipe, Cooler Refrigerant Suction, D
1982-11 → 1984-01
ended
|
CR21,YR20,21 07S,08S | — | |
| 88717-87037 note |
Pipe, Cooler Refrigerant Suction, D
1984-01 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥5,700 | |
| 88717-87050 note |
Pipe, Cooler Refrigerant Suction, D
1985-08 → 1988-08
ended
|
CR21 E,G,Q | ¥5,700 | |
| 88717-87057 note |
Pipe, Cooler Refrigerant Suction, D
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥6,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
