Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

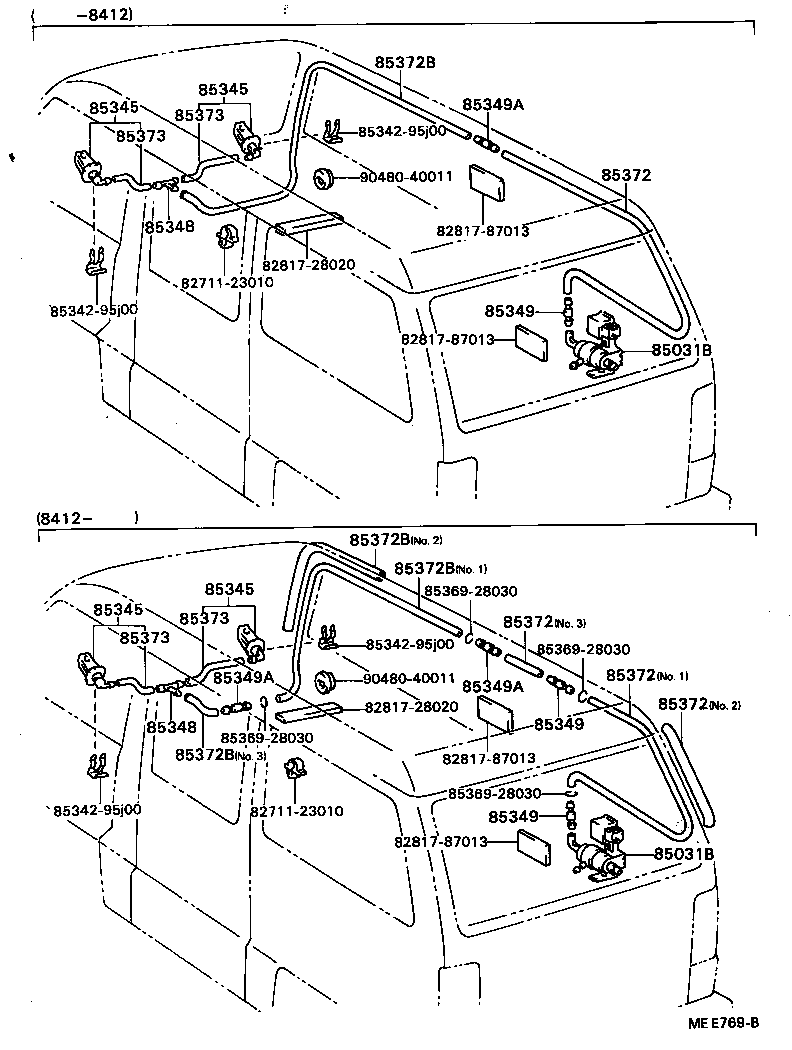

Exploded illustration MEE769B 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (11 parts) 85345 — NOZZLE, WINDSHIELD WASHER (2 parts) 85349A — JOINT, WINDSHIELD WASHER HOSE, NO.2 (5 parts) 85345 — NOZZLE, WINDSHIELD WASHER (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (1 parts) 8534295J00 — not listed in this catalogue 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (1 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (14 parts) 9048040011 — not listed in this catalogue 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (9 parts) 8281787013 — not listed in this catalogue 8281728020 — not listed in this catalogue 8271123010 — not listed in this catalogue 8534295J00 — not listed in this catalogue 85349 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (5 parts) 8281787013 — not listed in this catalogue 85031B — VALVE SUB-ASSY, WASHER (3 parts) 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (11 parts) 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (11 parts) 85345 — NOZZLE, WINDSHIELD WASHER (2 parts) 8536928030 — not listed in this catalogue 85345 — NOZZLE, WINDSHIELD WASHER (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (1 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (14 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (1 parts) 8534295J00 — not listed in this catalogue 8536928030 — not listed in this catalogue 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (14 parts) 85349A — JOINT, WINDSHIELD WASHER HOSE, NO.2 (5 parts) 9048040011 — not listed in this catalogue 85349A — JOINT, WINDSHIELD WASHER HOSE, NO.2 (5 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (14 parts) 8281728020 — not listed in this catalogue 85349 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (5 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (9 parts) 8536928030 — not listed in this catalogue 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (11 parts) 8281787013 — not listed in this catalogue 8536928030 — not listed in this catalogue 8534295J00 — not listed in this catalogue 8271123010 — not listed in this catalogue 85349 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (5 parts) 8281787013 — not listed in this catalogue 85031B — VALVE SUB-ASSY, WASHER (3 parts)
MEE769B · 26 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
85031B — Valve Sub-assy, Washer
85031-87002 Valve Sub-assy, Washer
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥3,970
85031-87002 Valve Sub-assy, Washer
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥3,970
85031-87002 Valve Sub-assy, Washer
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥3,970
85345 — Nozzle, Windshield Washer
85035-87007 note Nozzle, Windshield Washer
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 ¥2,150
85035-87008 note Nozzle, Windshield Washer
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 ¥2,150
85348 — Joint, Windshield Washer Hose, NO.1
85348-12250 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R —
85348-12250 note Joint, Windshield Washer Hose, NO.1
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D —
85348-22162 note Joint, Windshield Washer Hose, NO.1
1986-07 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85348-22162 note Joint, Windshield Washer Hose, NO.1
1986-07 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85348-40010 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
85348-40010 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1986-07 ended
CR26,27,36,KR26,YR26 D,N —
85348-40010 note Joint, Windshield Washer Hose, NO.1
1985-08 → 1986-07 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 —
85355-60010 Joint, Windshield Washer Hose, NO.1
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥570
85349 — Joint, Windshield Washer Hose, NO.1
85349-20010 Joint, Windshield Washer Hose, NO.1
1984-08 → 1984-12 ended
CR21,YR20,21 E,G,Q,X —
85349-20010 Joint, Windshield Washer Hose, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85349-20010 Joint, Windshield Washer Hose, NO.1
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85349-20010 Joint, Windshield Washer Hose, NO.1
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 —
85349-20010 Joint, Windshield Washer Hose, NO.1
1984-08 → 1984-12 ended
CR26,27,KR26,YR26 D,N —
85349A — Joint, Windshield Washer Hose, NO.2
85349-20010 Joint, Windshield Washer Hose, NO.2
1984-08 → 1984-12 ended
CR21,YR20,21 E,G,Q,X —
85349-20010 Joint, Windshield Washer Hose, NO.2
1984-08 → 1984-12 ended
CR26,27,KR26,YR26 D,N —
85349-20010 Joint, Windshield Washer Hose, NO.2
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 —
85349-20010 Joint, Windshield Washer Hose, NO.2
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85349-20010 Joint, Windshield Washer Hose, NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85343-87002 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-08 → 1984-12 ended
CR26,27,KR26,YR26 D,N ¥850
85343-87002 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-08 → 1984-12 ended
CR21,YR20,21 E,G,Q,X ¥850
85343-87004 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥620
85343-87004 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥620
85343-87004 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥620
85354-87001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥620
85354-87001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥620
85354-87001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥620
90099-33332 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 —
90099-33332 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
90099-33332 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
90446-06013 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R —
90446-06013 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D —
90446-06013 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
1982-11 → 1984-08 ended
CR2#,KR26,YR2# —
85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85343-87003 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-08 → 1984-12 ended
CR21,YR20,21 E,G,Q,X ¥950
85343-87003 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-08 → 1984-12 ended
CR26,27,KR26,YR26 D,N ¥950
85343-87005 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 —
85343-87005 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85343-87005 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85354-87002 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥850
85354-87002 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥850
85354-87002 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥850
90099-33332 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-12 → 1985-08 ended
YR20 MRF 08S;YR20 HRF +5 —
90099-33332 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1984-12 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
90099-33332 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90446-06013 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
