Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

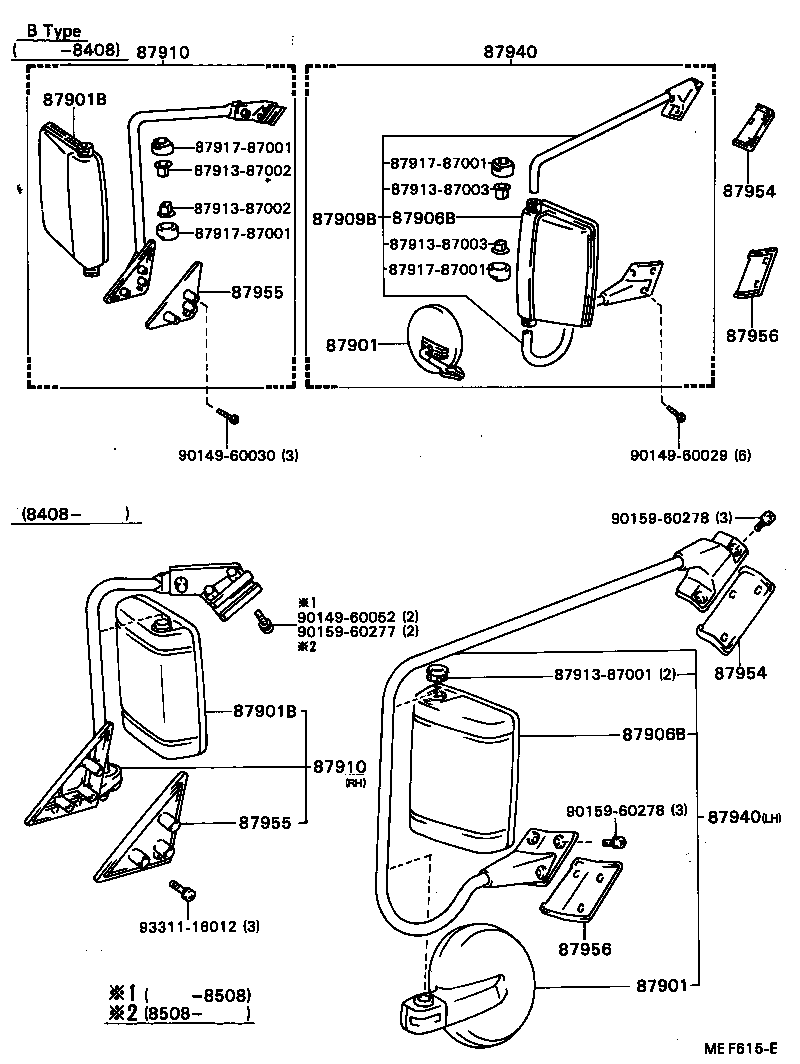

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87901 — Mirror Sub-assy, Outer Under View | ||||
| 87901-87005 note |
Mirror Sub-assy, Outer Under View
1986-10 → 1986-10
ended
|
CR21,30,YR20,21,30 HRF E | — | |
| 87906-87015 |
Mirror Sub-assy, Outer Under View
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥3,640 | |
| 87906-87022 |
Mirror Sub-assy, Outer Under View
1984-08 → 1986-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | ¥3,640 | |
| 87906-87022 |
Mirror Sub-assy, Outer Under View
1985-08 → 1986-08
ended
|
CR2#,36,KR26,YR20,26,28 B,D,N,R | ¥3,640 | |
| 87906-87023 note |
Mirror Sub-assy, Outer Under View
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | — | |
| 87906-87025 note |
Mirror Sub-assy, Outer Under View
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 87906-87026 note |
Mirror Sub-assy, Outer Under View
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | ¥2,450 | |
| 87907-87001 |
Mirror Sub-assy, Outer Under View
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | ¥3,640 | |
| 87907-87002-08 note |
Mirror Sub-assy, Outer Under View
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥4,660 | |
| 87907-87003-03 note |
Mirror Sub-assy, Outer Under View
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥4,690 | |
| 87907-87004 note |
Mirror Sub-assy, Outer Under View
1986-10 → 1986-11
ended
|
CR21,YR20,21 HRF E | — | |
| 87907-87005 note |
Mirror Sub-assy, Outer Under View
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87006 note |
Mirror Sub-assy, Outer Under View
1986-10 → 1986-11
ended
|
CR30,YR30 E | ¥3,640 | |
| 87907-87007 note |
Mirror Sub-assy, Outer Under View
1986-12 → 1987-02
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87007 note |
Mirror Sub-assy, Outer Under View
1987-04 → 1987-05
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87008-08 note |
Mirror Sub-assy, Outer Under View
1987-04 → 1987-04
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87008-08 note |
Mirror Sub-assy, Outer Under View
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87008-08 note |
Mirror Sub-assy, Outer Under View
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87008-08 note |
Mirror Sub-assy, Outer Under View
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87010-05 note |
Mirror Sub-assy, Outer Under View
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥3,650 | |
| 87907-87012 note |
Mirror Sub-assy, Outer Under View
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥3,650 | |
| 87901B — Mirror Sub-assy, Outer Rear View, RH | ||||
| 87901-87009 |
Mirror Sub-assy, Outer Rear View, RH
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥14,700 | |
| 87901-87012 |
Mirror Sub-assy, Outer Rear View, RH
1984-08 → 1985-06
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 87908-87001 |
Mirror Sub-assy, Outer Rear View, RH
1985-06 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥14,600 | |
| 87908-87002-08 note |
Mirror Sub-assy, Outer Rear View, RH
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87908-87002-08 note |
Mirror Sub-assy, Outer Rear View, RH
1987-04 → 1987-04
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87908-87002-08 note |
Mirror Sub-assy, Outer Rear View, RH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87908-87002-08 note |
Mirror Sub-assy, Outer Rear View, RH
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87908-87002-08 note |
Mirror Sub-assy, Outer Rear View, RH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥15,400 | |
| 87908-87003-03 note |
Mirror Sub-assy, Outer Rear View, RH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥15,400 | |
| 87908-87004 note |
Mirror Sub-assy, Outer Rear View, RH
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | — | |
| 87908-87005 note |
Mirror Sub-assy, Outer Rear View, RH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 87908-87006 note |
Mirror Sub-assy, Outer Rear View, RH
1986-10 → 1986-11
ended
|
CR21,YR20,21 HRF E | — | |
| 87908-87007 note |
Mirror Sub-assy, Outer Rear View, RH
1986-10 → 1986-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,000 | |
| 87908-87007 note |
Mirror Sub-assy, Outer Rear View, RH
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,000 | |
| 87908-87008 note |
Mirror Sub-assy, Outer Rear View, RH
1986-10 → 1986-11
ended
|
CR30,YR30 E | ¥14,000 | |
| 87908-87009 note |
Mirror Sub-assy, Outer Rear View, RH
1987-04 → 1987-05
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,800 | |
| 87908-87009 note |
Mirror Sub-assy, Outer Rear View, RH
1986-12 → 1987-02
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,800 | |
| 87908-87011-05 note |
Mirror Sub-assy, Outer Rear View, RH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,000 | |
| 87908-87012 note |
Mirror Sub-assy, Outer Rear View, RH
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥16,800 | |
| 87909-87006 note |
Mirror Sub-assy, Outer Rear View, RH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 87906B — Mirror Sub-assy, Outer Rear View, LH | ||||
| 87901-87009 note |
Mirror Sub-assy, Outer Rear View, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥14,700 | |
| 87901-87012 note |
Mirror Sub-assy, Outer Rear View, LH
1984-08 → 1985-06
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 87906-87024 note |
Mirror Sub-assy, Outer Rear View, LH
1985-08 → 1988-08
ended
|
CR2#,36,37,KR26,YR20,26,28,36 B,D,N,R | ¥9,400 | |
| 87909-87003 note |
Mirror Sub-assy, Outer Rear View, LH
1985-06 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥14,600 | |
| 87909-87004-08 note |
Mirror Sub-assy, Outer Rear View, LH
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87909-87004-08 note |
Mirror Sub-assy, Outer Rear View, LH
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87909-87004-08 note |
Mirror Sub-assy, Outer Rear View, LH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87909-87004-08 note |
Mirror Sub-assy, Outer Rear View, LH
1987-04 → 1987-04
ended
|
CR21,30,YR20,21,30 HRF E | ¥15,400 | |
| 87909-87004-08 note |
Mirror Sub-assy, Outer Rear View, LH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥15,400 | |
| 87909-87005-03 note |
Mirror Sub-assy, Outer Rear View, LH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | — | |
| 87909-87006 note |
Mirror Sub-assy, Outer Rear View, LH
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | — | |
| 87909-87007 note |
Mirror Sub-assy, Outer Rear View, LH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 87909-87008 note |
Mirror Sub-assy, Outer Rear View, LH
1986-10 → 1986-11
ended
|
CR21,YR20,21 HRF E | ¥13,800 | |
| 87909-87008 note |
Mirror Sub-assy, Outer Rear View, LH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | ¥13,800 | |
| 87909-87009 note |
Mirror Sub-assy, Outer Rear View, LH
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥13,800 | |
| 87909-87009 note |
Mirror Sub-assy, Outer Rear View, LH
1986-10 → 1986-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥13,800 | |
| 87909-87010 note |
Mirror Sub-assy, Outer Rear View, LH
1986-10 → 1986-11
ended
|
CR30,YR30 E | — | |
| 87909-87011 note |
Mirror Sub-assy, Outer Rear View, LH
1986-12 → 1987-02
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,800 | |
| 87909-87011 note |
Mirror Sub-assy, Outer Rear View, LH
1987-04 → 1987-05
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,800 | |
| 87909-87013-05 note |
Mirror Sub-assy, Outer Rear View, LH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥14,000 | |
| 87909-87014 note |
Mirror Sub-assy, Outer Rear View, LH
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥16,800 | |
| 87909B — Mirror Sub-assy, LH | ||||
| 87909-87002 |
Mirror Sub-assy, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥31,600 | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-29725 note |
Mirror Assy, Outer Rear View, RH
1982-11 → 1983-06
ended
|
CR26,KR26,YR20,26 D,N,R | ¥6,300 | |
| 87910-29725 note |
Mirror Assy, Outer Rear View, RH
1983-06 → 1986-08
ended
|
CR2#,36,KR26,YR20,26,28 B,D,N,R | ¥6,300 | |
| 87910-29745 note |
Mirror Assy, Outer Rear View, RH
1983-06 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥6,300 | |
| 87910-80113 note |
Mirror Assy, Outer Rear View, RH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥6,300 | |
| 87910-80113 note |
Mirror Assy, Outer Rear View, RH
1984-04 → 1984-05
ended
|
YR20 HRF E | ¥6,300 | |
| 87910-87004 note |
Mirror Assy, Outer Rear View, RH
1986-08 → 1988-08
ended
|
CR2#,36,37,KR26,YR20,26,28,36 B,D,N | ¥6,200 | |
| 87910-87006 note |
Mirror Assy, Outer Rear View, RH
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥26,300 | |
| 87910-87015 note |
Mirror Assy, Outer Rear View, RH
1984-08 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥26,500 | |
| 87910-87016 note |
Mirror Assy, Outer Rear View, RH
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | ¥26,500 | |
| 87910-87017 note |
Mirror Assy, Outer Rear View, RH
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥26,900 | |
| 87910-87018 note |
Mirror Assy, Outer Rear View, RH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | ¥26,500 | |
| 87910-87019 note |
Mirror Assy, Outer Rear View, RH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | ¥26,500 | |
| 87910-87021-08 note |
Mirror Assy, Outer Rear View, RH
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥27,600 | |
| 87910-87021-08 note |
Mirror Assy, Outer Rear View, RH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥27,600 | |
| 87910-87021-08 note |
Mirror Assy, Outer Rear View, RH
1987-04 → 1987-04
ended
|
CR21,30,YR20,21,30 HRF E | ¥27,600 | |
| 87910-87021-08 note |
Mirror Assy, Outer Rear View, RH
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥27,600 | |
| 87910-87021-08 note |
Mirror Assy, Outer Rear View, RH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥27,600 | |
| 87910-87022-03 note |
Mirror Assy, Outer Rear View, RH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | ¥27,600 | |
| 87910-87024 note |
Mirror Assy, Outer Rear View, RH
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥26,900 | |
| 87910-87024 note |
Mirror Assy, Outer Rear View, RH
1986-10 → 1986-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥26,900 | |
| 87910-87025 note |
Mirror Assy, Outer Rear View, RH
1986-10 → 1986-11
ended
|
CR30,YR30 E | — | |
| 87910-87026 note |
Mirror Assy, Outer Rear View, RH
1986-10 → 1986-11
ended
|
CR21,YR20,21 HRF E | ¥26,600 | |
| 87910-87027 note |
Mirror Assy, Outer Rear View, RH
1987-04 → 1987-05
ended
|
CR21,30,YR20,21,30 HRF E | ¥26,900 | |
| 87910-87027 note |
Mirror Assy, Outer Rear View, RH
1986-12 → 1987-02
ended
|
CR21,30,YR20,21,30 HRF E | ¥26,900 | |
| 87910-87029-05 note |
Mirror Assy, Outer Rear View, RH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥26,900 | |
| 87910-87038 note |
Mirror Assy, Outer Rear View, RH
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥28,700 | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-29825 note |
Mirror Assy, Outer Rear View, LH
1982-11 → 1983-06
ended
|
CR2#,KR26,YR2# D,E,G,N,R | ¥8,700 | |
| 87940-29825 note |
Mirror Assy, Outer Rear View, LH
1983-06 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,N,R | ¥8,700 | |
| 87940-80105 note |
Mirror Assy, Outer Rear View, LH
1983-06 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥6,300 | |
| 87940-80113 note |
Mirror Assy, Outer Rear View, LH
1984-04 → 1984-05
ended
|
YR20 HRF E | ¥6,300 | |
| 87940-80113 note |
Mirror Assy, Outer Rear View, LH
1983-10 → 1983-11
ended
|
YR20 MRF 5F G | ¥6,300 | |
| 87940-87016 note |
Mirror Assy, Outer Rear View, LH
1982-11 → 1984-08
ended
|
CR21,YR20,21 07S,08S | ¥32,600 | |
| 87940-87025 note |
Mirror Assy, Outer Rear View, LH
1984-08 → 1986-08
ended
|
CR21,28,30,YR20,21,28,30 B,E,G,Q,X | ¥34,600 | |
| 87940-87026 note |
Mirror Assy, Outer Rear View, LH
1985-01 → 1985-02
ended
|
CR21,YR20 HRF E | — | |
| 87940-87027 note |
Mirror Assy, Outer Rear View, LH
1985-08 → 1986-08
ended
|
CR2#,36,KR26,YR20,26,28 B,D,N,R | ¥12,400 | |
| 87940-87028 note |
Mirror Assy, Outer Rear View, LH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | — | |
| 87940-87029 note |
Mirror Assy, Outer Rear View, LH
1985-04 → 1985-08
ended
|
CR21,YR20 HRF E | ¥34,600 | |
| 87940-87031 note |
Mirror Assy, Outer Rear View, LH
1986-08 → 1988-08
ended
|
YR20 HRF E;YR20 MRF +5 | ¥34,600 | |
| 87940-87032 note |
Mirror Assy, Outer Rear View, LH
1986-08 → 1988-08
ended
|
CR2#,36,37,KR26,YR20,26,28,36 B,D,N | ¥12,400 | |
| 87940-87033-08 note |
Mirror Assy, Outer Rear View, LH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | — | |
| 87940-87034-03 note |
Mirror Assy, Outer Rear View, LH
1986-04 → 1986-04
ended
|
CR21,YR20,21 HRF E | — | |
| 87940-87036 note |
Mirror Assy, Outer Rear View, LH
1986-10 → 1986-11
ended
|
CR21,YR20,21 HRF E | ¥34,600 | |
| 87940-87037 note |
Mirror Assy, Outer Rear View, LH
1986-10 → 1986-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87037 note |
Mirror Assy, Outer Rear View, LH
1986-10 → 1986-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87038 note |
Mirror Assy, Outer Rear View, LH
1986-10 → 1986-11
ended
|
CR30,YR30 E | — | |
| 87940-87039 note |
Mirror Assy, Outer Rear View, LH
1986-12 → 1987-02
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87039 note |
Mirror Assy, Outer Rear View, LH
1987-04 → 1987-05
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87040-08 note |
Mirror Assy, Outer Rear View, LH
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87040-08 note |
Mirror Assy, Outer Rear View, LH
1987-04 → 1987-04
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87040-08 note |
Mirror Assy, Outer Rear View, LH
1987-10 → 1987-11
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87040-08 note |
Mirror Assy, Outer Rear View, LH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87042-05 note |
Mirror Assy, Outer Rear View, LH
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥34,600 | |
| 87940-87051 note |
Mirror Assy, Outer Rear View, LH
1987-12 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥36,500 | |
| 87954 — Gasket, Outer Rear View Mirror Base, Upper LH | ||||
| 87941-87011 |
Gasket, Outer Rear View Mirror Base, Upper LH
1982-11 → 1988-08
ended
|
CR21,28,30,37,YR20,21,28,3# B,E,G,Q,X | ¥370 | |
| 87941-87013 |
Gasket, Outer Rear View Mirror Base, Upper LH
1985-08 → 1988-08
ended
|
CR2#,36,KR26,YR20,26,28,36 B,D,N,R | ¥370 | |
| 87955 — Gasket, Outer Rear View Mirror Base, Lower RH | ||||
| 87911-87001 note |
Gasket, Outer Rear View Mirror Base, Lower RH
1986-10 → 1986-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥1,000 | |
| 87911-87001 |
Gasket, Outer Rear View Mirror Base, Lower RH
1982-11 → 1988-08
ended
|
CR21,28,30,37,YR20,21,28,3# B,E,G,Q,X | ¥1,000 | |
| 87956 — Gasket, Outer Rear View Mirror Base, Lower LH | ||||
| 87941-87013 |
Gasket, Outer Rear View Mirror Base, Lower LH
1982-11 → 1988-08
ended
|
CR21,28,30,37,YR20,21,28,3# B,E,G,Q,X | ¥370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
