Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

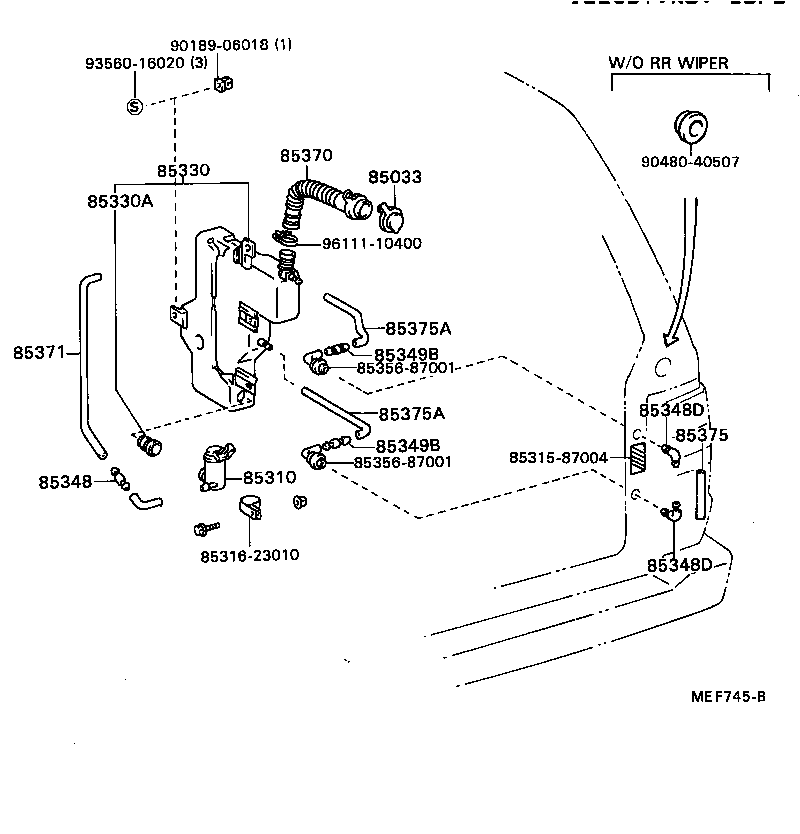

Exploded illustration MEF745B 9018906018 — not listed in this catalogue 9356016020 — not listed in this catalogue 85370 — HOSE ASSY, WINDSHIELD WASHER (3 parts) 9048040507 — not listed in this catalogue 85330 — JAR ASSY, WINDSHIELD WASHER (6 parts) 85033 — CAP ASSY, WINDSHIELD WASHER (7 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (2 parts) 9611110400 — not listed in this catalogue 85375A — HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE) (5 parts) 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (6 parts) 85349B — JOINT, WINDSHIELD WASHER HOSE, NO.3 (3 parts) 8535687001 — not listed in this catalogue 85348D — JOINT, WINDSHIELD WASHER ELBOW, NO.1 (3 parts) 85375A — HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE) (5 parts) 85375 — HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE) (3 parts) 85349B — JOINT, WINDSHIELD WASHER HOSE, NO.3 (3 parts) 8531587004 — not listed in this catalogue 8535687001 — not listed in this catalogue 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (7 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (9 parts) 8531623010 — not listed in this catalogue 85348D — JOINT, WINDSHIELD WASHER ELBOW, NO.1 (3 parts)
MEF745B · 14 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
85033 — Cap Assy, Windshield Washer
85033-36120 note Cap Assy, Windshield Washer
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R —
85033-36120 note Cap Assy, Windshield Washer
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D —
85332-28010 Cap Assy, Windshield Washer
1982-11 → 1984-02 ended
CR2#,KR26,YR2# ¥660
85332-28011 Cap Assy, Windshield Washer
1984-02 → 1984-08 ended
CR2#,KR26,YR2# ¥650
85332-87002 note Cap Assy, Windshield Washer
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥210
85332-87002 note Cap Assy, Windshield Washer
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥210
85332-87002 note Cap Assy, Windshield Washer
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥210
85310 — Motor And Pump Assy, Windshield Washer
85310-22080 note Motor And Pump Assy, Windshield Washer
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
85310-22080 note Motor And Pump Assy, Windshield Washer
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85310-22080 note Motor And Pump Assy, Windshield Washer
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85310-30060 note Motor And Pump Assy, Windshield Washer
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R —
85310-30060 note Motor And Pump Assy, Windshield Washer
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D —
85310-87003 Motor And Pump Assy, Windshield Washer
1982-11 → 1984-02 ended
CR2#,KR26,YR2# —
85310-95703 Motor And Pump Assy, Windshield Washer
1984-02 → 1984-08 ended
CR2#,KR26,YR2# ¥9,900
85330 — Jar Assy, Windshield Washer
85330-87003 Jar Assy, Windshield Washer
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥7,000
85330-87005 note Jar Assy, Windshield Washer
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥8,600
85330-87005 note Jar Assy, Windshield Washer
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥8,600
85330-87005 note Jar Assy, Windshield Washer
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥8,600
85330-87006 note Jar Assy, Windshield Washer
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R ¥3,400
85330-87006 note Jar Assy, Windshield Washer
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D ¥3,400
85330A — Bush, Windshield Washer Jar
90099-32089 Bush, Windshield Washer Jar
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 —
90099-32103 Bush, Windshield Washer Jar
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥0
85348 — Joint, Windshield Washer Hose, NO.1
85348-12250 note Joint, Windshield Washer Hose, NO.1
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D —
85348-12250 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R —
85348-22162 note Joint, Windshield Washer Hose, NO.1
1986-07 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85348-22162 note Joint, Windshield Washer Hose, NO.1
1986-07 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85348-40010 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
85348-40010 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1986-07 ended
CR26,27,36,KR26,YR26 D,N —
85348-40010 note Joint, Windshield Washer Hose, NO.1
1985-08 → 1986-07 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1984-08 → 1988-08 ended
CR2#,3#,KR26,YR2#,30 —
85355-60010 Joint, Windshield Washer Hose, NO.1
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥570
85348D — Joint, Windshield Washer Elbow, NO.1
85355-20200 Joint, Windshield Washer Elbow, NO.1
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
85355-20200 Joint, Windshield Washer Elbow, NO.1
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85355-20200 Joint, Windshield Washer Elbow, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85349B — Joint, Windshield Washer Hose, NO.3
85349-89122 Joint, Windshield Washer Hose, NO.3
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
85349-89122 Joint, Windshield Washer Hose, NO.3
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
85349-89122 Joint, Windshield Washer Hose, NO.3
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85370 — Hose Assy, Windshield Washer
85370-87002 note Hose Assy, Windshield Washer
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥2,860
85370-87002 note Hose Assy, Windshield Washer
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N ¥2,860
85370-87002 note Hose Assy, Windshield Washer
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 ¥2,860
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
85354-28010 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1982-11 → 1984-08 ended
CR2#,KR26,YR2# ¥380
90446-06013 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-08 → 1986-08 ended
CR21,26,28,KR26,YR20,26,28 B,D,G,R —
90446-06013 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1986-08 → 1988-08 ended
CR21,26,28,37,KR26,YR20,26,28,36 B,D —
90446-06013 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
90446-06013 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
90446-06013 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
85375 — Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
90446-06013 note Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
90446-06013 note Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
90446-06013 note Hose, Windshield Washer, NO.1(FOR LEVEL GAGE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
85375A — Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
90099-33299 note Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
1984-08 → 1985-08 ended
CR21,YR20,21 E,G,Q,X —
90099-33299 note Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
1984-08 → 1985-08 ended
CR26,27,KR26,YR26 D,N —
90099-33299 note Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
1984-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
90099-33299 note Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
1985-08 → 1988-08 ended
CR26,27,36,KR26,YR26 D,N —
90099-33299 note Hose, Windshield Washer, NO.2(FOR LEVEL GAGE)
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
