Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

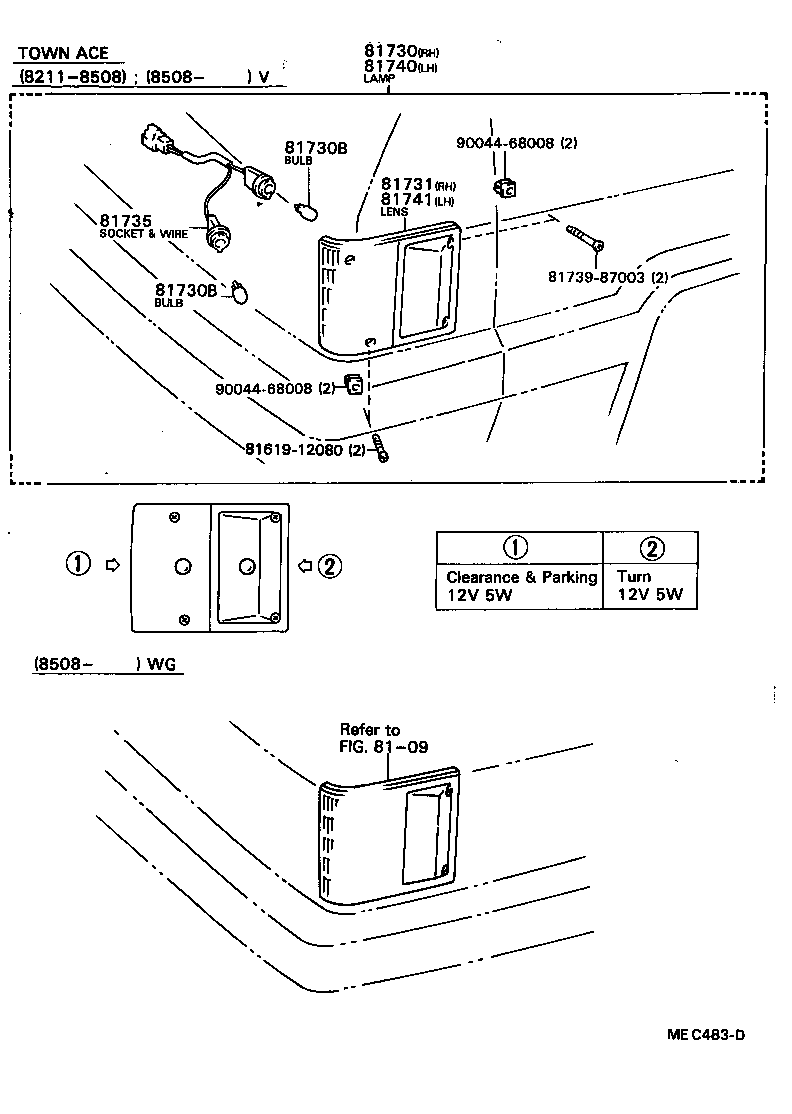

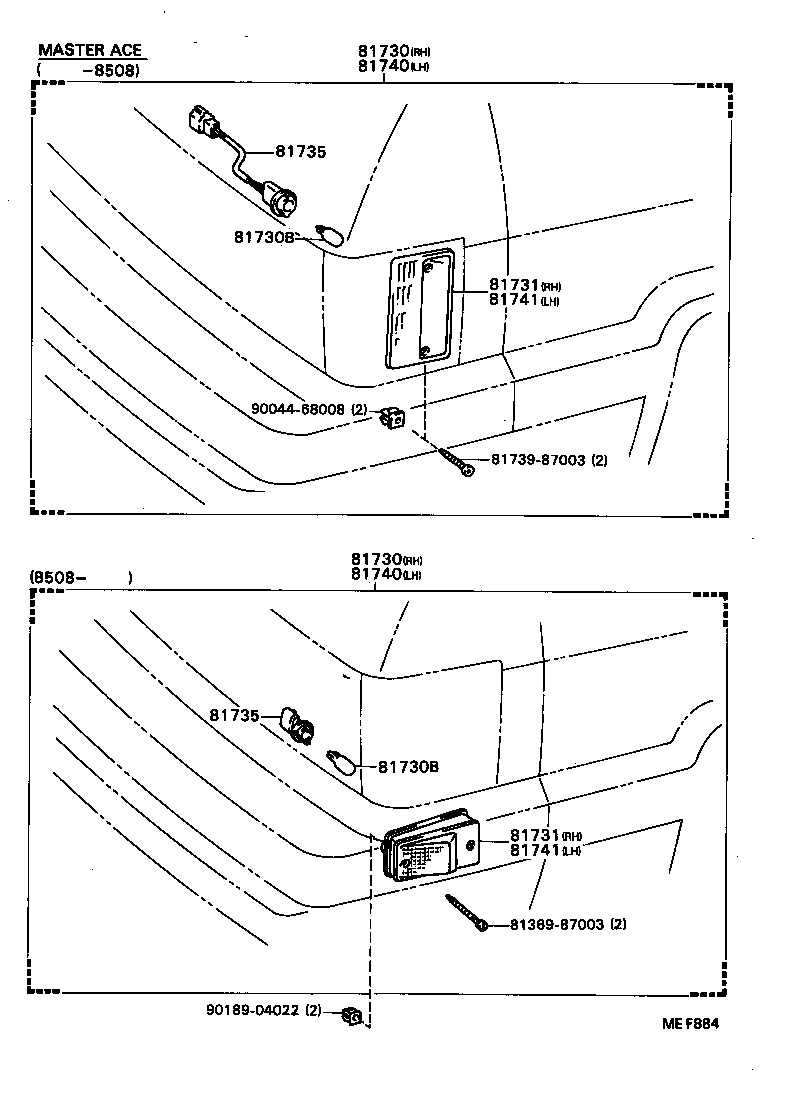

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81730 — Lamp Assy, Side Turn Signal, RH | ||||
| 81730-29225 |
Lamp Assy, Side Turn Signal, RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥7,500 | |
| 81730-29225 |
Lamp Assy, Side Turn Signal, RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥7,500 | |
| 81730-29245 note |
Lamp Assy, Side Turn Signal, RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥4,170 | |
| 81730-29265 note |
Lamp Assy, Side Turn Signal, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,590 | |
| 81730B — Bulb (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-12050 note |
Bulb (FOR SIDE TURN SIGNAL LAMP)
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | ¥110 | |
| 81731 — Lens, Side Turn Signal Lamp, RH | ||||
| 81731-87003 |
Lens, Side Turn Signal Lamp, RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥4,590 | |
| 81731-87003 |
Lens, Side Turn Signal Lamp, RH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥4,590 | |
| 81731-87005 note |
Lens, Side Turn Signal Lamp, RH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥3,650 | |
| 81731-87007 note |
Lens, Side Turn Signal Lamp, RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,850 | |
| 81735 — Socket And Wire, Side Turn Signal Lamp | ||||
| 81735-87003 |
Socket And Wire, Side Turn Signal Lamp
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥1,800 | |
| 81735-87003 |
Socket And Wire, Side Turn Signal Lamp
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥1,800 | |
| 81735-87005 note |
Socket And Wire, Side Turn Signal Lamp
1982-11 → 1985-08
ended
|
CR21,YR20,21 | — | |
| 81735-87005 note |
Socket And Wire, Side Turn Signal Lamp
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | — | |
| 81740 — Lamp Assy, Side Turn Signal, LH | ||||
| 81740-29215 |
Lamp Assy, Side Turn Signal, LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥7,500 | |
| 81740-29215 |
Lamp Assy, Side Turn Signal, LH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥7,500 | |
| 81740-29235 note |
Lamp Assy, Side Turn Signal, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥4,170 | |
| 81740-29255 note |
Lamp Assy, Side Turn Signal, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,590 | |
| 81741 — Lens, Side Turn Signal Lamp, LH | ||||
| 81741-87003 |
Lens, Side Turn Signal Lamp, LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥4,590 | |
| 81741-87003 |
Lens, Side Turn Signal Lamp, LH
1985-08 → 1988-08
ended
|
CR26,27,36,KR26,YR26 | ¥4,590 | |
| 81741-87005 note |
Lens, Side Turn Signal Lamp, LH
1982-11 → 1985-08
ended
|
CR21,YR20,21 | ¥3,650 | |
| 81741-87007 note |
Lens, Side Turn Signal Lamp, LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,850 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
