Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

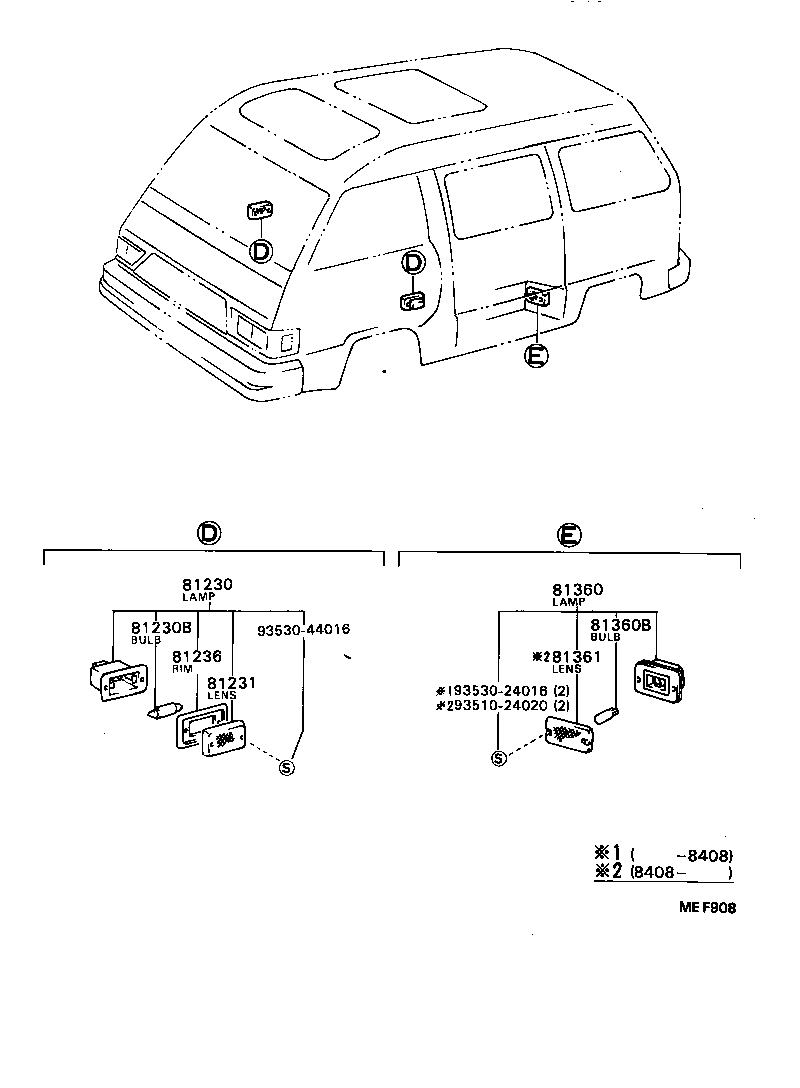

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81230 — Lamp Assy, Courtesy | ||||
| 81230-24010 |
Lamp Assy, Courtesy
1982-11 → 1984-02
ended
|
YR20,21 Q | ¥1,020 | |
| 81230-87003 |
Lamp Assy, Courtesy
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥2,420 | |
| 81230-87004 |
Lamp Assy, Courtesy
1984-02 → 1984-08
ended
|
YR20,21 Q | ¥1,610 | |
| 81230-87004 note |
Lamp Assy, Courtesy
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥1,610 | |
| 81230-87004 note |
Lamp Assy, Courtesy
1987-10 → 1987-11
ended
|
CR30,YR20,21 HRF E | ¥1,610 | |
| 81230-87004 |
Lamp Assy, Courtesy
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥1,610 | |
| 81230-87004 note |
Lamp Assy, Courtesy
1988-04 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥1,610 | |
| 81230-87004 note |
Lamp Assy, Courtesy
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥1,610 | |
| 81230B — Bulb(FOR COURTESY LAMP) | ||||
| 90981-11013 note |
Bulb(FOR COURTESY LAMP)
1984-02 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥110 | |
| 99132-12050 note |
Bulb(FOR COURTESY LAMP)
1988-04 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥110 | |
| 99132-12050 note |
Bulb(FOR COURTESY LAMP)
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥110 | |
| 99132-12050 note |
Bulb(FOR COURTESY LAMP)
1987-10 → 1987-11
ended
|
CR21,YR20,21 HRF E | ¥110 | |
| 99132-12050 note |
Bulb(FOR COURTESY LAMP)
1987-09 → 1987-10
ended
|
CR21,30,YR20,21,30 HRF E | ¥110 | |
| 99132-13050 note |
Bulb(FOR COURTESY LAMP)
1982-11 → 1984-02
ended
|
YR20,21 Q | ¥150 | |
| 81231 — Lens, Courtesy Lamp | ||||
| 81231-30010 |
Lens, Courtesy Lamp
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥480 | |
| 81231-30080 |
Lens, Courtesy Lamp
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥330 | |
| 81231-30080 |
Lens, Courtesy Lamp
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 Q | ¥330 | |
| 81231-30080 note |
Lens, Courtesy Lamp
1988-04 → 1988-08
ended
|
CR21,30,YR21,30 E | ¥330 | |
| 81231-30080 note |
Lens, Courtesy Lamp
1988-04 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF E | ¥330 | |
| 81236 — Rim, Courtesy Lamp | ||||
| 81236-30010 |
Rim, Courtesy Lamp
1984-08 → 1985-08
ended
|
YR20,21 Q | ¥500 | |
| 81360 — Lamp Assy, Step OR Spot | ||||
| 81230-24010 |
Lamp Assy, Step OR Spot
1984-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥1,020 | |
| 81230-87003 |
Lamp Assy, Step OR Spot
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥2,420 | |
| 81360B — Bulb, Step OR Spot Lamp | ||||
| 90981-11013 note |
Bulb, Step OR Spot Lamp
1982-11 → 1984-08
ended
|
CR21,YR20,21 E,Q,X | ¥110 | |
| 99132-13050 note |
Bulb, Step OR Spot Lamp
1984-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥150 | |
| 81361 — Lens, Step Lamp | ||||
| 81231-30080 |
Lens, Step Lamp
1984-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q,X | ¥330 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
