Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

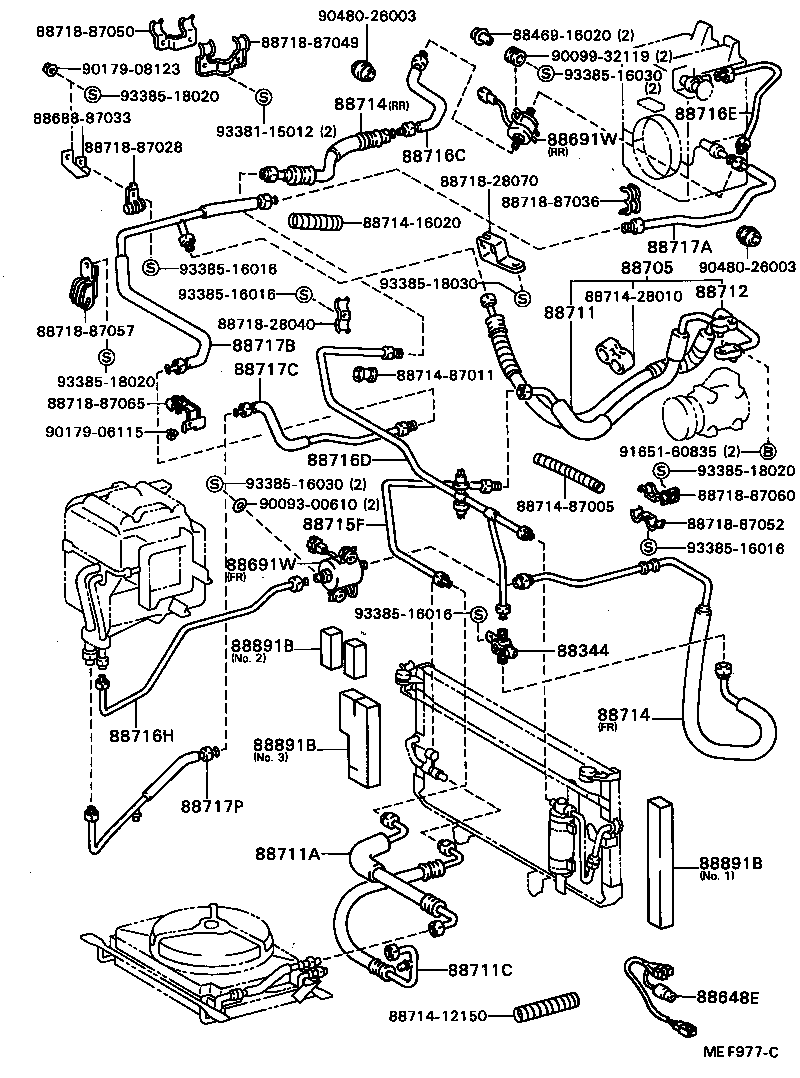

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88344 — Glass Sub-assy, Sight | ||||
| 88481-87002 note |
Glass Sub-assy, Sight
1982-11 → 1985-08
ended
|
YR20,21 Q | — | |
| 88481-87002 note |
Glass Sub-assy, Sight
1982-11 → 1983-07
ended
|
CR2#,KR26,YR2# | — | |
| 88481-87002 |
Glass Sub-assy, Sight
1985-10 → 1988-08
ended
|
CR3#,YR3# | — | |
| 88481-87002 |
Glass Sub-assy, Sight
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | — | |
| 88481-87002 note |
Glass Sub-assy, Sight
1984-08 → 1985-08
ended
|
CR21,27 4FC | — | |
| 88481-87003 note |
Glass Sub-assy, Sight
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88481-87004 note |
Glass Sub-assy, Sight
1983-07 → 1985-08
ended
|
YR2#;CR21,26,KR26 MTM | — | |
| 88481-87004 |
Glass Sub-assy, Sight
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88648E — Wiring, Cooler | ||||
| 88648-28070 note |
Wiring, Cooler
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
| 88648-87004 |
Wiring, Cooler
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 88648-87004 note |
Wiring, Cooler
1985-08 → 1988-08
ended
|
KR26,YR26 | — | |
| 88648-87018 |
Wiring, Cooler
1985-08 → 1988-08
ended
|
CR30,36,YR3# | — | |
| 88648-95D01 note |
Wiring, Cooler
1987-08 → 1988-08
ended
|
CR37 | — | |
| 88648-95D03 note |
Wiring, Cooler
1988-05 → 1988-08
ended
|
CR30 4FC | — | |
| 88691W — Valve, Magnet | ||||
| 88690-87015 note |
Valve, Magnet
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88691-87001 note |
Valve, Magnet
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | — | |
| 88691-87003 note |
Valve, Magnet
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88705 — Pipe Sub-assy, Discharge | ||||
| 88705-87001 note |
Pipe Sub-assy, Discharge
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | ¥22,600 | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-28010 note |
Hose, Cooler Refrigerant Discharge, NO.1
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥12,400 | |
| 88711-28010 note |
Hose, Cooler Refrigerant Discharge, NO.1
1984-08 → 1985-08
ended
|
YR21 | ¥12,400 | |
| 88711-87013 note |
Hose, Cooler Refrigerant Discharge, NO.1
1982-11 → 1984-08
ended
|
YR2# | ¥14,900 | |
| 88711-87013 note |
Hose, Cooler Refrigerant Discharge, NO.1
1984-08 → 1985-08
ended
|
YR21 G | ¥14,900 | |
| 88711-87013 note |
Hose, Cooler Refrigerant Discharge, NO.1
1984-08 → 1984-10
ended
|
YR20 | ¥14,900 | |
| 88711-87014 |
Hose, Cooler Refrigerant Discharge, NO.1
1982-11 → 1985-08
ended
|
CR2# | ¥20,500 | |
| 88711-87015 |
Hose, Cooler Refrigerant Discharge, NO.1
1982-11 → 1985-08
ended
|
KR26 | — | |
| 88711-87016 note |
Hose, Cooler Refrigerant Discharge, NO.1
1983-04 → 1985-08
ended
|
CR21 E,G | ¥20,800 | |
| 88711-87020 |
Hose, Cooler Refrigerant Discharge, NO.1
1984-10 → 1988-08
ended
|
YR20 | ¥14,700 | |
| 88711-87024 |
Hose, Cooler Refrigerant Discharge, NO.1
1985-08 → 1988-08
ended
|
CR2# | ¥18,100 | |
| 88711-87027 note |
Hose, Cooler Refrigerant Discharge, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | ¥14,600 | |
| 88711-87028 |
Hose, Cooler Refrigerant Discharge, NO.1
1985-08 → 1988-08
ended
|
KR26 | ¥12,900 | |
| 88711-87029 |
Hose, Cooler Refrigerant Discharge, NO.1
1985-08 → 1988-08
ended
|
YR20,26,28 B,D,N | ¥12,600 | |
| 88711-95D01 |
Hose, Cooler Refrigerant Discharge, NO.1
1985-10 → 1988-08
ended
|
YR3# | ¥12,600 | |
| 88711-95D06 |
Hose, Cooler Refrigerant Discharge, NO.1
1985-10 → 1988-08
ended
|
CR3# | ¥7,200 | |
| 88711A — Hose, Cooler Refrigerant Discharge, NO.2 | ||||
| 88711-87026 note |
Hose, Cooler Refrigerant Discharge, NO.2
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,G,Q | ¥12,800 | |
| 88711-95D03 note |
Hose, Cooler Refrigerant Discharge, NO.2
1985-10 → 1988-08
ended
|
CR30 | ¥11,400 | |
| 88711-95D04 |
Hose, Cooler Refrigerant Discharge, NO.2
1985-10 → 1988-08
ended
|
YR3# | ¥12,000 | |
| 88711-95D07 note |
Hose, Cooler Refrigerant Discharge, NO.2
1985-10 → 1988-08
ended
|
CR36,37 | ¥4,840 | |
| 88711-95D09 note |
Hose, Cooler Refrigerant Discharge, NO.2
1987-08 → 1988-08
ended
|
CR30 4FC | ¥9,900 | |
| 88711C — Hose, Cooler Refrigerant Discharge, NO.3 | ||||
| 88711-87025 note |
Hose, Cooler Refrigerant Discharge, NO.3
1985-08 → 1988-08
ended
|
CR21,YR20,21 E,G,Q | ¥12,900 | |
| 88711-95D05 |
Hose, Cooler Refrigerant Discharge, NO.3
1985-10 → 1988-08
ended
|
YR3# | ¥11,300 | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-87007 |
Hose, Cooler Refrigerant Suction, NO.1
1982-11 → 1984-10
ended
|
YR2# | ¥12,100 | |
| 88712-87008 |
Hose, Cooler Refrigerant Suction, NO.1
1982-11 → 1985-08
ended
|
CR2# | ¥14,800 | |
| 88712-87009 |
Hose, Cooler Refrigerant Suction, NO.1
1982-11 → 1985-08
ended
|
KR26 | — | |
| 88712-87011 note |
Hose, Cooler Refrigerant Suction, NO.1
1982-11 → 1985-08
ended
|
CR21 E,G | ¥18,100 | |
| 88712-87013 |
Hose, Cooler Refrigerant Suction, NO.1
1984-10 → 1988-08
ended
|
YR2# | ¥14,900 | |
| 88712-87014 |
Hose, Cooler Refrigerant Suction, NO.1
1985-08 → 1988-08
ended
|
CR2# | ¥16,700 | |
| 88712-87016 note |
Hose, Cooler Refrigerant Suction, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | ¥14,300 | |
| 88712-87017 |
Hose, Cooler Refrigerant Suction, NO.1
1985-08 → 1988-08
ended
|
KR26 | ¥14,800 | |
| 88712-87018 |
Hose, Cooler Refrigerant Suction, NO.1
1985-08 → 1988-08
ended
|
YR20,26,28 B,D,N | ¥18,000 | |
| 88712-95D01 |
Hose, Cooler Refrigerant Suction, NO.1
1985-10 → 1988-08
ended
|
YR3# | ¥14,000 | |
| 88712-95D02 |
Hose, Cooler Refrigerant Suction, NO.1
1985-10 → 1988-08
ended
|
CR3# | ¥14,900 | |
| 88714 — Hose, Cooler Refrigerant Liquid, NO.1 | ||||
| 88721-87003 note |
Hose, Cooler Refrigerant Liquid, NO.1
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥12,100 | |
| 88721-87005 note |
Hose, Cooler Refrigerant Liquid, NO.1
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥11,500 | |
| 88721-87006 |
Hose, Cooler Refrigerant Liquid, NO.1
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥12,800 | |
| 88721-87008 note |
Hose, Cooler Refrigerant Liquid, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥13,500 | |
| 88721-87011 note |
Hose, Cooler Refrigerant Liquid, NO.1
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | ¥11,500 | |
| 88721-87012 |
Hose, Cooler Refrigerant Liquid, NO.1
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | ¥13,200 | |
| 88721-87013 note |
Hose, Cooler Refrigerant Liquid, NO.1
1985-08 → 1988-08
ended
|
CR21,30,YR30 E,G,Q | ¥10,300 | |
| 88715F — Pipe, Cooler Refrigerant Discharge, F | ||||
| 88715-87009 note |
Pipe, Cooler Refrigerant Discharge, F
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥3,760 | |
| 88715-95D05 |
Pipe, Cooler Refrigerant Discharge, F
1985-10 → 1988-08
ended
|
YR3# | ¥7,300 | |
| 88715-95D06 |
Pipe, Cooler Refrigerant Discharge, F
1985-10 → 1988-08
ended
|
CR30 | ¥8,900 | |
| 88715-95D08 |
Pipe, Cooler Refrigerant Discharge, F
1985-10 → 1988-08
ended
|
CR36,37 | ¥6,500 | |
| 88716C — Pipe, Cooler Refrigerant Liquid, C | ||||
| 88716-87027 note |
Pipe, Cooler Refrigerant Liquid, C
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥2,420 | |
| 88716-87027 note |
Pipe, Cooler Refrigerant Liquid, C
1985-08 → 1988-08
ended
|
YR21,30;YR20 MRF 08S;YR20 HRF +4 | ¥2,420 | |
| 88716-87034 note |
Pipe, Cooler Refrigerant Liquid, C
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥1,940 | |
| 88716-87058 note |
Pipe, Cooler Refrigerant Liquid, C
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥1,820 | |
| 88716-87063 note |
Pipe, Cooler Refrigerant Liquid, C
1985-08 → 1988-08
ended
|
CR21,30 E,G,Q | ¥2,410 | |
| 88716D — Pipe, Cooler Refrigerant Liquid, D | ||||
| 88710-95D02 note |
Pipe, Cooler Refrigerant Liquid, D
1985-10 → 1988-08
ended
|
CR30,YR30 | ¥25,000 | |
| 88710-95D03 note |
Pipe, Cooler Refrigerant Liquid, D
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥25,000 | |
| 88716-87030 note |
Pipe, Cooler Refrigerant Liquid, D
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥9,900 | |
| 88716-87035 |
Pipe, Cooler Refrigerant Liquid, D
1982-11 → 1983-06
ended
|
CR21,YR20 07S,08S | — | |
| 88716-87039 note |
Pipe, Cooler Refrigerant Liquid, D
1982-11 → 1985-08
ended
|
CR2#,KR26,YR20,26 D,E,G,N,R | ¥3,500 | |
| 88716-87041 note |
Pipe, Cooler Refrigerant Liquid, D
1983-06 → 1984-01
ended
|
CR21,YR20,21 07S,08S | ¥3,070 | |
| 88716-87043 note |
Pipe, Cooler Refrigerant Liquid, D
1984-01 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥3,050 | |
| 88716-87054 note |
Pipe, Cooler Refrigerant Liquid, D
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥14,400 | |
| 88716-87056 note |
Pipe, Cooler Refrigerant Liquid, D
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥4,920 | |
| 88716-87059 note |
Pipe, Cooler Refrigerant Liquid, D
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | ¥12,900 | |
| 88716E — Pipe, Cooler Refrigerant Liquid, E | ||||
| 88716-87028 note |
Pipe, Cooler Refrigerant Liquid, E
1982-11 → 1988-08
ended
|
CR21,30,YR20,21,30 E,G,Q,X | ¥2,220 | |
| 88716H — Pipe, Cooler Refrigerant Liquid, H | ||||
| 88716-87036 note |
Pipe, Cooler Refrigerant Liquid, H
1984-08 → 1985-08
ended
|
YR20,21 Q | — | |
| 88716-87040 note |
Pipe, Cooler Refrigerant Liquid, H
1983-05 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥4,910 | |
| 88716-87046 note |
Pipe, Cooler Refrigerant Liquid, H
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥4,280 | |
| 88716-87050 note |
Pipe, Cooler Refrigerant Liquid, H
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥3,510 | |
| 88716-95D14 note |
Pipe, Cooler Refrigerant Liquid, H
1985-10 → 1987-08
ended
|
CR30,YR30 | ¥3,620 | |
| 88716-95D14 note |
Pipe, Cooler Refrigerant Liquid, H
1987-08 → 1988-08
ended
|
CR30 5F | ¥3,620 | |
| 88716-95D15 note |
Pipe, Cooler Refrigerant Liquid, H
1986-08 → 1988-08
ended
|
CR36,37,YR36 | ¥4,730 | |
| 88716-95D21 note |
Pipe, Cooler Refrigerant Liquid, H
1987-08 → 1988-08
ended
|
CR30 4FC | ¥3,380 | |
| 88716-95D21 note |
Pipe, Cooler Refrigerant Liquid, H
1987-08 → 1988-08
ended
|
YR30 | ¥3,380 | |
| 88721-87004 note |
Pipe, Cooler Refrigerant Liquid, H
1982-11 → 1984-08
ended
|
YR20,21 Q | ¥10,500 | |
| 88717A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-87019 note |
Pipe, Cooler Refrigerant Suction, A
1982-11 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥6,100 | |
| 88717-95D02 note |
Pipe, Cooler Refrigerant Suction, A
1985-10 → 1988-08
ended
|
CR30,YR30 | ¥7,600 | |
| 88717B — Pipe, Cooler Refrigerant Suction, B | ||||
| 88717-87014 |
Pipe, Cooler Refrigerant Suction, B
1982-11 → 1983-05
ended
|
YR2# D,E,G,N | — | |
| 88717-87015 note |
Pipe, Cooler Refrigerant Suction, B
1983-05 → 1985-08
ended
|
YR21 | ¥13,900 | |
| 88717-87015 note |
Pipe, Cooler Refrigerant Suction, B
1984-08 → 1985-08
ended
|
YR20 07S,08S | ¥13,900 | |
| 88717-87016 |
Pipe, Cooler Refrigerant Suction, B
1982-11 → 1985-08
ended
|
CR2# | ¥18,000 | |
| 88717-87026 note |
Pipe, Cooler Refrigerant Suction, B
1982-11 → 1985-08
ended
|
YR20,21 Q | ¥25,200 | |
| 88717-87026 note |
Pipe, Cooler Refrigerant Suction, B
1982-11 → 1984-08
ended
|
YR20 07S,08S | ¥25,200 | |
| 88717-87030 |
Pipe, Cooler Refrigerant Suction, B
1982-11 → 1985-08
ended
|
KR26 | — | |
| 88717-87031 note |
Pipe, Cooler Refrigerant Suction, B
1983-04 → 1985-08
ended
|
CR21 E,G | ¥14,900 | |
| 88717-87035 |
Pipe, Cooler Refrigerant Suction, B
1983-05 → 1985-08
ended
|
YR20,26 D,E,G,N | — | |
| 88717-87043 note |
Pipe, Cooler Refrigerant Suction, B
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +4 | ¥13,200 | |
| 88717-87044 note |
Pipe, Cooler Refrigerant Suction, B
1985-08 → 1988-08
ended
|
CR21 E,G,Q | ¥15,400 | |
| 88717-87049 |
Pipe, Cooler Refrigerant Suction, B
1985-08 → 1988-08
ended
|
CR2# B,D,N | ¥11,500 | |
| 88717-87052 |
Pipe, Cooler Refrigerant Suction, B
1985-08 → 1988-08
ended
|
KR26 | ¥12,900 | |
| 88717-95D07 |
Pipe, Cooler Refrigerant Suction, B
1985-10 → 1988-08
ended
|
CR3#,YR3# | ¥13,200 | |
| 88717-95D10 |
Pipe, Cooler Refrigerant Suction, B
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥10,300 | |
| 88717C — Pipe, Cooler Refrigerant Suction, C | ||||
| 88717-87027 |
Pipe, Cooler Refrigerant Suction, C
1982-11 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥4,290 | |
| 88717-87028 note |
Pipe, Cooler Refrigerant Suction, C
1982-11 → 1984-01
ended
|
CR21,YR20,21 07S,08S | — | |
| 88717-87038 note |
Pipe, Cooler Refrigerant Suction, C
1984-01 → 1985-08
ended
|
CR21,YR20,21 E,G,Q,X | ¥6,300 | |
| 88717-87041 note |
Pipe, Cooler Refrigerant Suction, C
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | ¥9,100 | |
| 88717-87046 note |
Pipe, Cooler Refrigerant Suction, C
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥7,100 | |
| 88717-87046 note |
Pipe, Cooler Refrigerant Suction, C
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥7,100 | |
| 88717P — Pipe, Cooler Refrigerant Suction, P | ||||
| 88717-87020 |
Pipe, Cooler Refrigerant Suction, P
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥7,900 | |
| 88717-87040 note |
Pipe, Cooler Refrigerant Suction, P
1985-08 → 1988-08
ended
|
YR20 MRF 08S;YR20 HRF +5 | ¥7,200 | |
| 88717-87040 note |
Pipe, Cooler Refrigerant Suction, P
1985-10 → 1988-08
ended
|
CR36,37,YR36 | ¥7,200 | |
| 88717-87051 note |
Pipe, Cooler Refrigerant Suction, P
1985-08 → 1988-08
ended
|
CR2#,KR26,YR20,26,28 B,D,N | ¥10,200 | |
| 88717-95D08 note |
Pipe, Cooler Refrigerant Suction, P
1987-08 → 1988-08
ended
|
CR30 4FC | ¥7,500 | |
| 88891B — Packing B (FOR COOLER) | ||||
| 88893-28010 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR20,21 Q | — | |
| 88893-28010 note |
Packing B (FOR COOLER)
1984-08 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88893-28020 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR20,21 Q | — | |
| 88893-28020 note |
Packing B (FOR COOLER)
1984-08 → 1988-08
ended
|
CR21,YR20,21 E,G,Q,X | — | |
| 88893-28030 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR21 Q | — | |
| 88893-28030 note |
Packing B (FOR COOLER)
1984-08 → 1985-08
ended
|
YR21 | — | |
| 88893-28040 note |
Packing B (FOR COOLER)
1983-09 → 1984-08
ended
|
YR20 Q | — | |
| 88893-28040 note |
Packing B (FOR COOLER)
1984-08 → 1985-08
ended
|
CR21,YR20 E,G,Q,X | — | |
| 88893-28040 note |
Packing B (FOR COOLER)
1985-08 → 1988-08
ended
|
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
