Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

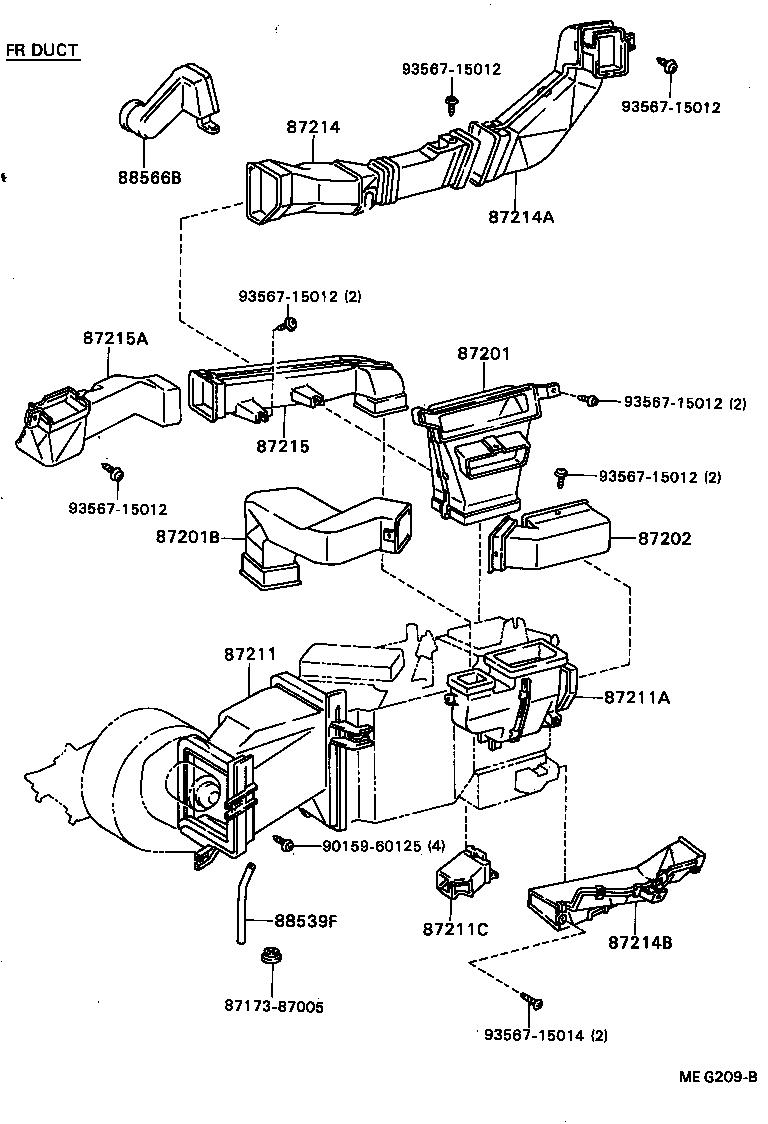

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87201 — Duct Sub-assy, Air, NO.1 | ||||
| 55086-87001 |
Duct Sub-assy, Air, NO.1
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥3,100 | |
| 55086-87002 |
Duct Sub-assy, Air, NO.1
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,860 | |
| 87201B — Duct Sub-assy, Air, NO.2 | ||||
| 55076-87001 |
Duct Sub-assy, Air, NO.2
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥2,710 | |
| 87202 — Duct, Heater Air | ||||
| 55832-87001 note |
Duct, Heater Air
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥1,080 | |
| 87202-28010 |
Duct, Heater Air
1983-08 → 1984-08
ended
|
CR21,YR20,21 MRF (E,X) | — | |
| 87202-28010 |
Duct, Heater Air
1984-08 → 1985-08
ended
|
YR20 MRF E;YR20 MRF +4 | — | |
| 87202-87002 |
Duct, Heater Air
1982-11 → 1983-08
ended
|
CR21,YR21 MRF;YR20 MRF (E,X);YR20 +3 | — | |
| 87202-87003 |
Duct, Heater Air
1982-11 → 1985-08
ended
|
CR21,YR20,21 HRF | — | |
| 87202-87006 note |
Duct, Heater Air
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 87202-87007 note |
Duct, Heater Air
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 87202-87008 note |
Duct, Heater Air
1985-08 → 1988-08
ended
|
CR21,YR20,21 HRF (E,Q) | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87201-87002 |
Duct, Air, NO.1
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87201-87003 |
Duct, Air, NO.2
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 87211C — Duct, Air, NO.4 | ||||
| 87211-87002 |
Duct, Air, NO.4
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 87214 — Duct, Air, Side NO.1 RH | ||||
| 55084-87001 |
Duct, Air, Side NO.1 RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥3,690 | |
| 55084-87002 |
Duct, Air, Side NO.1 RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥3,680 | |
| 87214A — Duct, Air, Side NO.2 RH | ||||
| 55085-87001 |
Duct, Air, Side NO.2 RH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥4,000 | |
| 55085-87002 |
Duct, Air, Side NO.2 RH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥4,060 | |
| 87214B — Duct, Air, Side NO.3 RH | ||||
| 87211-87003 |
Duct, Air, Side NO.3 RH
1982-11 → 1984-08
ended
|
CR2#,KR26,YR2# | — | |
| 87211-87004 |
Duct, Air, Side NO.3 RH
1984-08 → 1988-01
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 87211-87005 |
Duct, Air, Side NO.3 RH
1988-01 → 1988-08
ended
|
YR20 HRF E;YR20 HRF +4 | — | |
| 87215 — Duct, Air, Side NO.1 LH | ||||
| 55087-87001 |
Duct, Air, Side NO.1 LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | — | |
| 55087-87002 |
Duct, Air, Side NO.1 LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥4,020 | |
| 87215A — Duct, Air, Side NO.2 LH | ||||
| 55088-87001 |
Duct, Air, Side NO.2 LH
1982-11 → 1985-08
ended
|
CR2#,KR26,YR2# | ¥3,460 | |
| 55088-87001 |
Duct, Air, Side NO.2 LH
1985-08 → 1988-08
ended
|
YR20 HRF (E,Q);YR20 HRF +4 | ¥3,460 | |
| 88539F — Hose, Drain | ||||
| 88539-22011 |
Hose, Drain
1982-11 → 1988-08
ended
|
CR2#,3#,KR26,YR2#,3# | — | |
| 88566B — Duct, Cooler Air, NO.2 | ||||
| 88566-95D00 note |
Duct, Cooler Air, NO.2
1985-10 → 1988-08
ended
|
CR30,YR30 Q | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
