Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

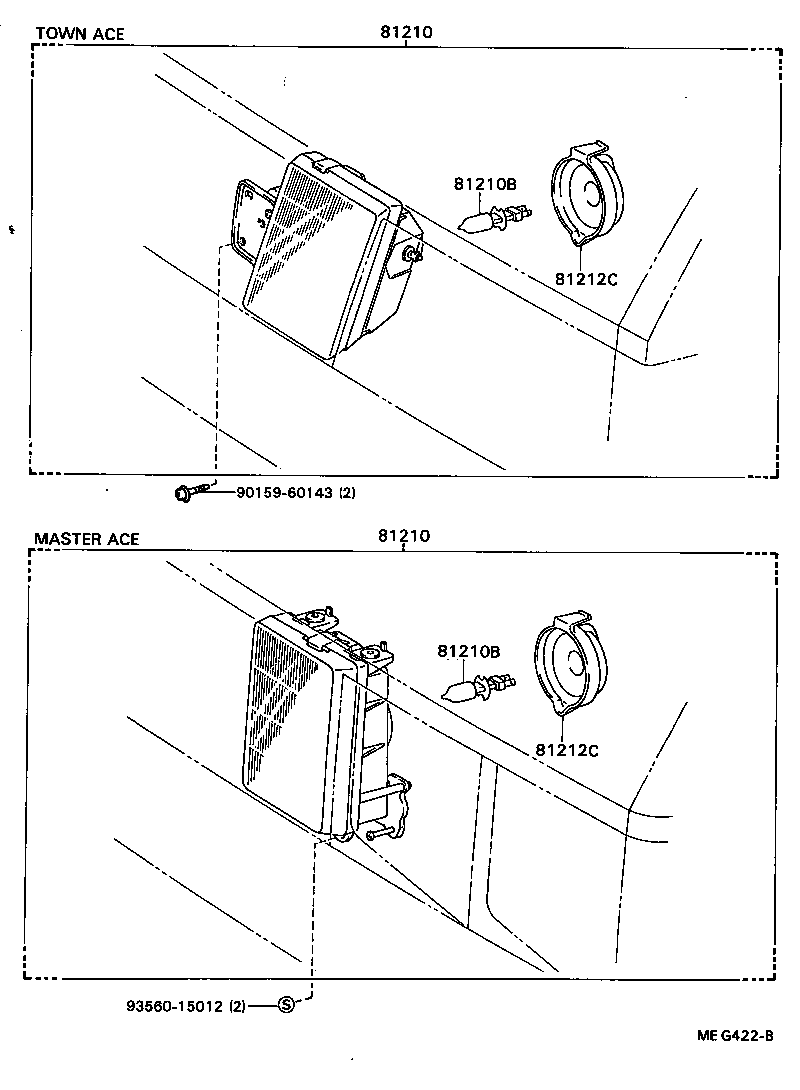

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210 — Lamp Assy, Fog | ||||
| 81210-87003 note |
Lamp Assy, Fog
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥14,400 | |
| 81210-87004 note |
Lamp Assy, Fog
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥14,400 | |
| 81220-87001 note |
Lamp Assy, Fog
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥14,400 | |
| 81220-87002 note |
Lamp Assy, Fog
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥14,400 | |
| 81210B — Bulb, Fog Lamp | ||||
| 90981-13038 note |
Bulb, Fog Lamp
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥1,200 | |
| 81212C — Cover, Fog Lamp | ||||
| 81212-30030 |
Cover, Fog Lamp
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 E,Q | ¥1,620 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
