Toyota Town/Masterace V,WG
1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan
Discontinued model
Data version 1988-11

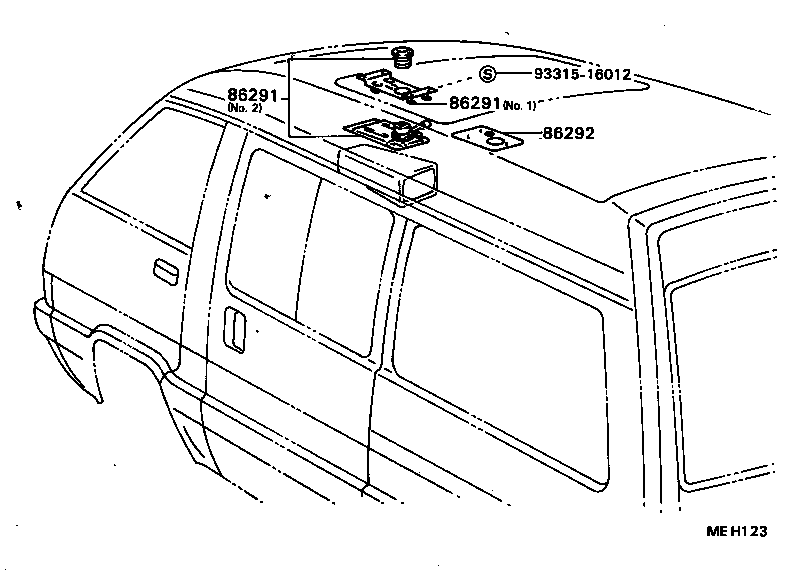

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86291 — Bracket, Television | ||||
| 86291-87001 note |
Bracket, Television
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
| 86291-87002 note |
Bracket, Television
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | ¥10,000 | |
| 86292 — Cover, Television Set | ||||
| 86292-87001 |
Cover, Television Set
1985-08 → 1988-08
ended
|
CR21,30,YR20,21,30 HRF (E,Q) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
