Toyota Town/Masterace V,WG

1982-11 → 1988-08 · chassis KR26,YR2#,3#,CR2#,3# · catalogue 651120 · Japan

Discontinued model Data version 1988-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

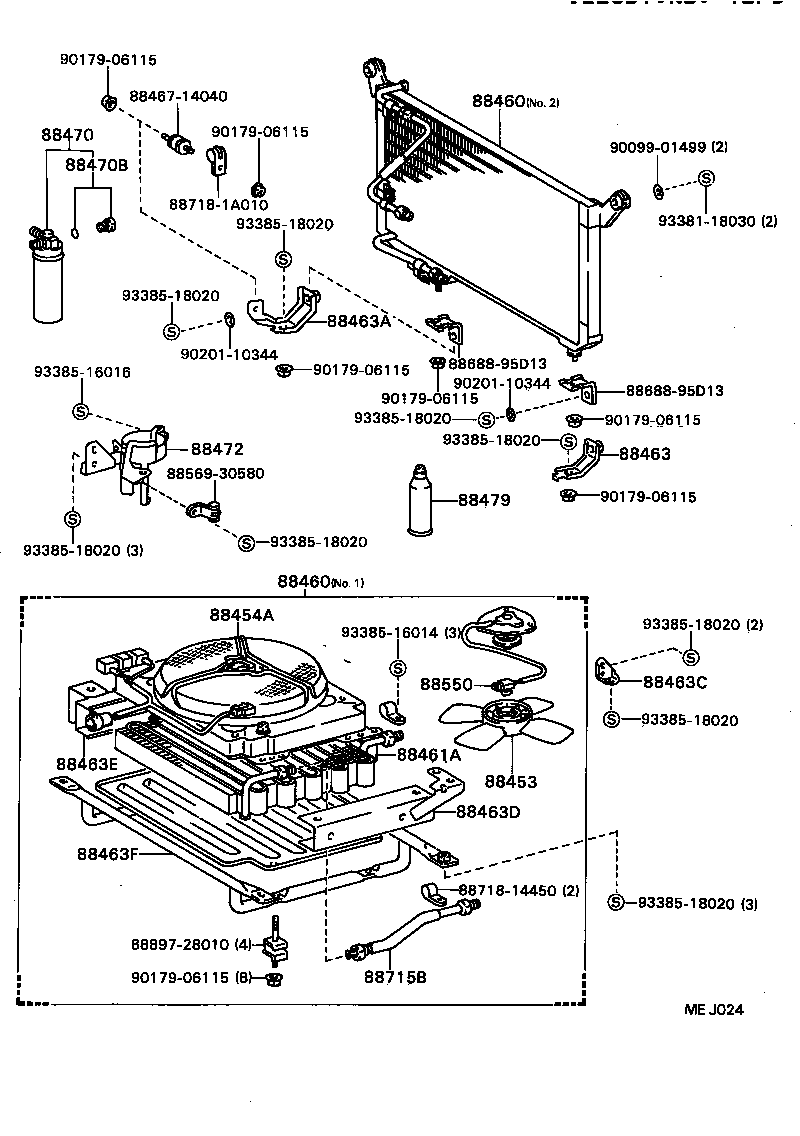

Exploded illustration MEJ024 9017906115 — not listed in this catalogue 8846714040 — not listed in this catalogue 88460 — CONDENSER ASSY, COOLER (12 parts) 9017906115 — not listed in this catalogue 88470 — RECEIVER & DRYER ASSY, COOLER (2 parts) 9009901499 — not listed in this catalogue 88470B — BOLT, FUSE (2 parts) 887181A010 — not listed in this catalogue 9338118030 — not listed in this catalogue 9338518020 — not listed in this catalogue 9338518020 — not listed in this catalogue 88463A — BRACKET, COOLER CONDENSER, NO.2 (4 parts) 9020110344 — not listed in this catalogue 8868895D13 — not listed in this catalogue 9017906115 — not listed in this catalogue 9338516016 — not listed in this catalogue 9020110344 — not listed in this catalogue 8868895D13 — not listed in this catalogue 9017906115 — not listed in this catalogue 9338518020 — not listed in this catalogue 9017906115 — not listed in this catalogue 9338518020 — not listed in this catalogue 88472 — BRACKET, RECEIVER TANK, NO.1 (1 parts) 88463 — BRACKET, COOLER CONDENSER, NO.1 (4 parts) 8856930580 — not listed in this catalogue 9017906115 — not listed in this catalogue 88479 — FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) (1 parts) 9338518020 — not listed in this catalogue 9338518020 — not listed in this catalogue 88460 — CONDENSER ASSY, COOLER (12 parts) 88454A — SHROUD, FAN (2 parts) 9338518020 — not listed in this catalogue 9338516014 — not listed in this catalogue 88463C — BRACKET, COOLER CONDENSER, NO.4 (2 parts) 88550 — MOTOR ASSY, BLOWER (FOR CONDENSER) (2 parts) 9338518020 — not listed in this catalogue 88461A — CORE, COOLER CONDENSER (4 parts) 88463E — BRACKET, COOLER CONDENSER, NO.6 (3 parts) 88453 — FAN, COOLING (FOR CONDENSER) (2 parts) 88463D — BRACKET, COOLER CONDENSER, NO.5 (3 parts) 88463F — BRACKET, COOLER CONDENSER, NO.7 (2 parts) 8871814450 — not listed in this catalogue 9338518020 — not listed in this catalogue 8889728010 — not listed in this catalogue 88715B — PIPE, COOLER REFRIGERANT DISCHARGE, B (2 parts) 9017906115 — not listed in this catalogue
MEJ024 · 17 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
88453 — Fan, Cooling (FOR CONDENSER)
88453-28010 Fan, Cooling (FOR CONDENSER)
1985-10 → 1988-08 ended
CR21,YR20,21 E,G,Q —
88453-28010 Fan, Cooling (FOR CONDENSER)
1985-10 → 1988-08 ended
CR3#,YR3# —
88454A — Shroud, Fan
88454-28010 Shroud, Fan
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 —
88454-28010 Shroud, Fan
1985-10 → 1988-08 ended
CR36,37,YR36 —
88460 — Condenser Assy, Cooler
88450-87002 note Condenser Assy, Cooler
1982-11 → 1985-08 ended
YR20,21 Q ¥60,300
88450-87007 note Condenser Assy, Cooler
1985-08 → 1988-08 ended
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 ¥39,700
88450-87007 note Condenser Assy, Cooler
1985-08 → 1988-08 ended
CR2#,KR26,YR20,26,28 B,D,N ¥39,700
88460-87006 note Condenser Assy, Cooler
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R ¥32,500
88460-87007 note Condenser Assy, Cooler
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥55,400
88460-87008 note Condenser Assy, Cooler
1985-08 → 1988-08 ended
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 ¥56,700
88460-95D00 note Condenser Assy, Cooler
1985-10 → 1988-08 ended
YR3# —
88460-95D01 Condenser Assy, Cooler
1985-10 → 1988-08 ended
CR30 ¥88,300
88460-95D03 note Condenser Assy, Cooler
1985-10 → 1988-08 ended
YR30 ¥56,700
88460-95D03 note Condenser Assy, Cooler
1985-10 → 1988-08 ended
CR36,37 ¥56,700
88460-95D04 note Condenser Assy, Cooler
1987-08 → 1988-08 ended
CR30 4FC ¥83,800
88460-95D05 note Condenser Assy, Cooler
1987-08 → 1988-08 ended
CR30 4FC ¥32,500
88461A — Core, Cooler Condenser
88461-28010 Core, Cooler Condenser
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥37,100
88461-28010 Core, Cooler Condenser
1985-10 → 1988-08 ended
CR36,37,YR36 ¥37,100
88461-95D02 note Core, Cooler Condenser
1987-08 → 1988-08 ended
CR30 4FC ¥32,500
88461-95D03 note Core, Cooler Condenser
1987-08 → 1988-08 ended
CR30 4FC ¥32,500
88463 — Bracket, Cooler Condenser, NO.1
88463-87008 note Bracket, Cooler Condenser, NO.1
1982-11 → 1985-08 ended
YR20,21 Q —
88463-87010 Bracket, Cooler Condenser, NO.1
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
88463-87012 note Bracket, Cooler Condenser, NO.1
1982-11 → 1985-08 ended
CR2#,KR26,YR2# —
88688-95D05 Bracket, Cooler Condenser, NO.1
1985-10 → 1988-08 ended
YR3# —
88463A — Bracket, Cooler Condenser, NO.2
88463-87009 Bracket, Cooler Condenser, NO.2
1985-08 → 1988-08 ended
YR20 HRF (E,Q);YR20 HRF +4 —
88463-87011 note Bracket, Cooler Condenser, NO.2
1982-11 → 1985-08 ended
YR20,21 Q —
88463-87013 note Bracket, Cooler Condenser, NO.2
1982-11 → 1985-08 ended
CR2#,KR26,YR2# —
88688-95D12 Bracket, Cooler Condenser, NO.2
1985-10 → 1988-08 ended
YR3# —
88463C — Bracket, Cooler Condenser, NO.4
88463-87015 note Bracket, Cooler Condenser, NO.4
1985-08 → 1988-08 ended
CR36,37,YR36 —
88463-87015 note Bracket, Cooler Condenser, NO.4
1985-10 → 1988-08 ended
CR36,YR36 —
88463D — Bracket, Cooler Condenser, NO.5
88463-28030 Bracket, Cooler Condenser, NO.5
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 —
88463-28030 Bracket, Cooler Condenser, NO.5
1985-10 → 1988-08 ended
CR36,37,YR36 —
88463-95D09 note Bracket, Cooler Condenser, NO.5
1987-08 → 1988-08 ended
CR30 4FC —
88463E — Bracket, Cooler Condenser, NO.6
88463-28040 Bracket, Cooler Condenser, NO.6
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 —
88463-28040 Bracket, Cooler Condenser, NO.6
1985-10 → 1988-08 ended
CR36,37,YR36 —
88463-95D10 note Bracket, Cooler Condenser, NO.6
1987-08 → 1988-08 ended
CR30 4FC —
88463F — Bracket, Cooler Condenser, NO.7
88463-28050 Bracket, Cooler Condenser, NO.7
1985-10 → 1988-08 ended
CR36,37,YR36 —
88463-95D08 note Bracket, Cooler Condenser, NO.7
1987-08 → 1988-08 ended
CR30 4FC —
88470 — Receiver & Dryer Assy, Cooler
88470-14010 Receiver & Dryer Assy, Cooler
1982-11 → 1988-08 ended
CR2#,KR26,YR2# ¥7,200
88471-16010 Receiver & Dryer Assy, Cooler
1985-10 → 1988-08 ended
CR3#,YR3# ¥7,100
88470B — Bolt, Fuse
88475-12020 Bolt, Fuse
1985-10 → 1988-08 ended
CR30,36,YR3# —
90099-04579 Bolt, Fuse
1982-11 → 1988-08 ended
CR2#,KR26,YR2# —
88472 — Bracket, Receiver Tank, NO.1
88472-95D02 Bracket, Receiver Tank, NO.1
1985-10 → 1988-08 ended
CR3#,YR3# —
88479 — Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
90986-02001 note Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
1982-11 → 1988-08 ended
CR2#,3#,KR26,YR2#,3# —
88550 — Motor Assy, Blower (FOR CONDENSER)
88550-87002 Motor Assy, Blower (FOR CONDENSER)
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥17,200
88550-87002 Motor Assy, Blower (FOR CONDENSER)
1985-10 → 1988-08 ended
CR36,37,YR36 ¥17,200
88715B — Pipe, Cooler Refrigerant Discharge, B
88715-28020 note Pipe, Cooler Refrigerant Discharge, B
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥3,340
88715-28020 note Pipe, Cooler Refrigerant Discharge, B
1985-10 → 1988-08 ended
CR36,37,YR36 ¥3,340
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
