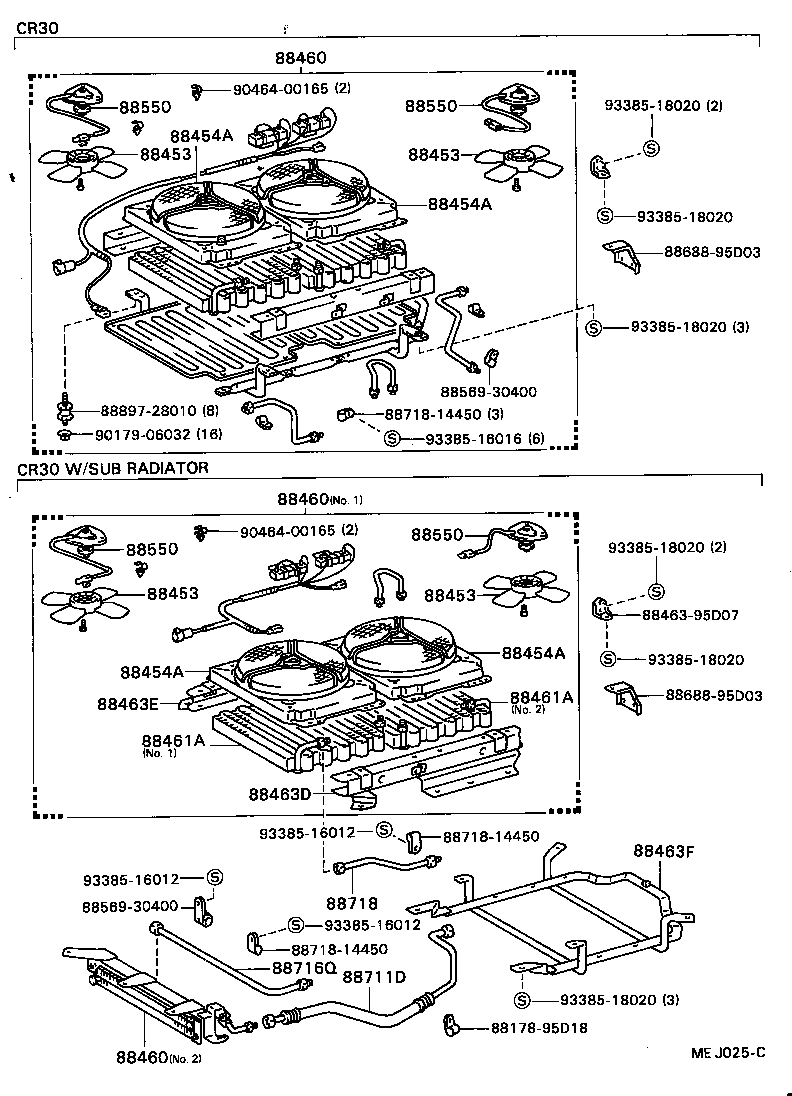

Exploded illustration MEJ025C 88460 — CONDENSER ASSY, COOLER (12 parts) 9046400165 — not listed in this catalogue 88550 — MOTOR ASSY, BLOWER (FOR CONDENSER) (2 parts) 9338518020 — not listed in this catalogue 88550 — MOTOR ASSY, BLOWER (FOR CONDENSER) (2 parts) 88454A — SHROUD, FAN (2 parts) 88453 — FAN, COOLING (FOR CONDENSER) (2 parts) 88453 — FAN, COOLING (FOR CONDENSER) (2 parts) 88454A — SHROUD, FAN (2 parts) 9338518020 — not listed in this catalogue 8868895D03 — not listed in this catalogue 9338518020 — not listed in this catalogue 8856930400 — not listed in this catalogue 8889728010 — not listed in this catalogue 8871814450 — not listed in this catalogue 9017906032 — not listed in this catalogue 9338516016 — not listed in this catalogue 88460 — CONDENSER ASSY, COOLER (12 parts) 9046400165 — not listed in this catalogue 88550 — MOTOR ASSY, BLOWER (FOR CONDENSER) (2 parts) 9338518020 — not listed in this catalogue 88550 — MOTOR ASSY, BLOWER (FOR CONDENSER) (2 parts) 88453 — FAN, COOLING (FOR CONDENSER) (2 parts) 88453 — FAN, COOLING (FOR CONDENSER) (2 parts) 8846395D07 — not listed in this catalogue 88454A — SHROUD, FAN (2 parts) 9338518020 — not listed in this catalogue 88454A — SHROUD, FAN (2 parts) 8868895D03 — not listed in this catalogue 88461A — CORE, COOLER CONDENSER (4 parts) 88463E — BRACKET, COOLER CONDENSER, NO.6 (3 parts) 88461A — CORE, COOLER CONDENSER (4 parts) 88463D — BRACKET, COOLER CONDENSER, NO.5 (3 parts) 9338516012 — not listed in this catalogue 8871814450 — not listed in this catalogue 88463F — BRACKET, COOLER CONDENSER, NO.7 (2 parts) 9338516012 — not listed in this catalogue 88718 — PIPE, COOLER REFRIGERANT SUCTION, NO.2 (1 parts) 8856930400 — not listed in this catalogue 9338516012 — not listed in this catalogue 8871814450 — not listed in this catalogue 88716Q — PIPE, COOLER REFRIGERANT LIQUID, Q (1 parts) 88711D — HOSE, COOLER REFRIGERANT DISCHARGE, NO.4 (1 parts) 9338518020 — not listed in this catalogue 8817895D18 — not listed in this catalogue 88460 — CONDENSER ASSY, COOLER (12 parts)
MEJ025C · 23 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
88453 — Fan, Cooling (FOR CONDENSER)
88453-28010 Fan, Cooling (FOR CONDENSER)
1985-10 → 1988-08 ended
CR21,YR20,21 E,G,Q —
88453-28010 Fan, Cooling (FOR CONDENSER)
1985-10 → 1988-08 ended
CR3#,YR3# —
88454A — Shroud, Fan
88454-28010 Shroud, Fan
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 —
88454-28010 Shroud, Fan
1985-10 → 1988-08 ended
CR36,37,YR36 —
88460 — Condenser Assy, Cooler
88450-87002 note Condenser Assy, Cooler
1982-11 → 1985-08 ended
YR20,21 Q ¥60,300
88450-87007 note Condenser Assy, Cooler
1985-08 → 1988-08 ended
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 ¥39,700
88450-87007 note Condenser Assy, Cooler
1985-08 → 1988-08 ended
CR2#,KR26,YR20,26,28 B,D,N ¥39,700
88460-87006 note Condenser Assy, Cooler
1982-11 → 1985-08 ended
CR2#,KR26,YR20,26 D,E,G,N,R ¥32,500
88460-87007 note Condenser Assy, Cooler
1982-11 → 1985-08 ended
CR21,YR20,21 E,G,Q,X ¥55,400
88460-87008 note Condenser Assy, Cooler
1985-08 → 1988-08 ended
YR20 MRF 08S;CR21,YR21 E,G,Q;YR20 +5 ¥56,700
88460-95D00 note Condenser Assy, Cooler
1985-10 → 1988-08 ended
YR3# —
88460-95D01 Condenser Assy, Cooler
1985-10 → 1988-08 ended
CR30 ¥88,300
88460-95D03 note Condenser Assy, Cooler
1985-10 → 1988-08 ended
CR36,37 ¥56,700
88460-95D03 note Condenser Assy, Cooler
1985-10 → 1988-08 ended
YR30 ¥56,700
88460-95D04 note Condenser Assy, Cooler
1987-08 → 1988-08 ended
CR30 4FC ¥83,800
88460-95D05 note Condenser Assy, Cooler
1987-08 → 1988-08 ended
CR30 4FC ¥32,500
88461A — Core, Cooler Condenser
88461-28010 Core, Cooler Condenser
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥37,100
88461-28010 Core, Cooler Condenser
1985-10 → 1988-08 ended
CR36,37,YR36 ¥37,100
88461-95D02 note Core, Cooler Condenser
1987-08 → 1988-08 ended
CR30 4FC ¥32,500
88461-95D03 note Core, Cooler Condenser
1987-08 → 1988-08 ended
CR30 4FC ¥32,500
88463D — Bracket, Cooler Condenser, NO.5
88463-28030 Bracket, Cooler Condenser, NO.5
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 —
88463-28030 Bracket, Cooler Condenser, NO.5
1985-10 → 1988-08 ended
CR36,37,YR36 —
88463-95D09 note Bracket, Cooler Condenser, NO.5
1987-08 → 1988-08 ended
CR30 4FC —
88463E — Bracket, Cooler Condenser, NO.6
88463-28040 Bracket, Cooler Condenser, NO.6
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 —
88463-28040 Bracket, Cooler Condenser, NO.6
1985-10 → 1988-08 ended
CR36,37,YR36 —
88463-95D10 note Bracket, Cooler Condenser, NO.6
1987-08 → 1988-08 ended
CR30 4FC —
88463F — Bracket, Cooler Condenser, NO.7
88463-28050 Bracket, Cooler Condenser, NO.7
1985-10 → 1988-08 ended
CR36,37,YR36 —
88463-95D08 note Bracket, Cooler Condenser, NO.7
1987-08 → 1988-08 ended
CR30 4FC —
88550 — Motor Assy, Blower (FOR CONDENSER)
88550-87002 Motor Assy, Blower (FOR CONDENSER)
1985-08 → 1988-08 ended
YR20 MRF 08S;YR20 HRF +5 ¥17,200
88550-87002 Motor Assy, Blower (FOR CONDENSER)
1985-10 → 1988-08 ended
CR36,37,YR36 ¥17,200
88711D — Hose, Cooler Refrigerant Discharge, NO.4
88711-95D08 note Hose, Cooler Refrigerant Discharge, NO.4
1987-08 → 1988-08 ended
CR30 4FC ¥11,200
88716Q — Pipe, Cooler Refrigerant Liquid, Q
88716-95D20 note Pipe, Cooler Refrigerant Liquid, Q
1987-08 → 1988-08 ended
CR30 4FC ¥3,520
88718 — Pipe, Cooler Refrigerant Suction, NO.2
88715-95D10 note Pipe, Cooler Refrigerant Suction, NO.2
1987-08 → 1988-08 ended
CR30 4FC ¥2,830
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
